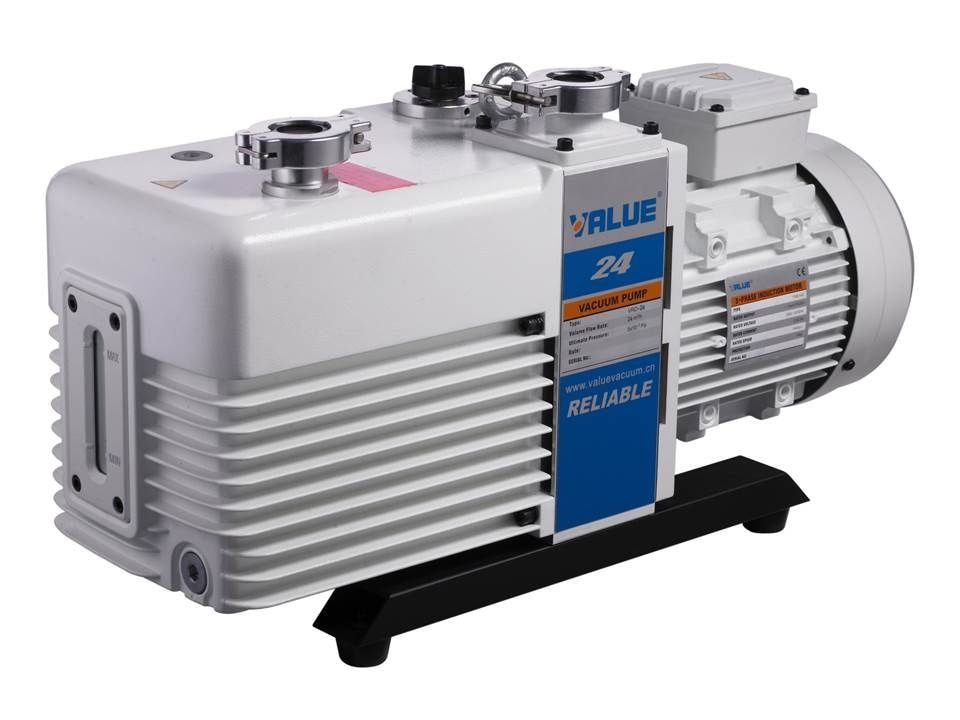

VALUE VRD-24 Dual-Stage Vacuum Pump 24m³/h 50Hz 1PH
Tidak dapat memuatkan ketersediaan pengambilan
Product Overview
The VALUE VRD-24 Dual-Stage Vacuum Pump is designed for laboratory and industrial applications requiring reliable vacuum performance. With a displacement speed of 24 m³/h, this oil-sealed pump features an integrated cylinder structure and forced oil circulation to support stable operation.
The VRD-24 is equipped with an adjustable gas ballast valve for handling condensable vapours and dual oil anti-suck-back protection to help prevent oil from flowing back into the vacuum system when the pump stops. Its maintenance-friendly design makes it suitable for production processes, vacuum drying and other industrial applications requiring dependable vacuum performance.
Key Features
-
24 m³/h Pumping Capacity: Suitable for laboratory and industrial vacuum applications.
-
Dual-Stage Compression: Designed to achieve low ultimate pressure for demanding vacuum processes.
-
Adjustable Gas Ballast: Helps remove condensable vapours, including water vapour, during suitable operating conditions.
-
Oil Anti-Suck-Back Protection: Helps prevent oil from flowing back into the vacuum system when the pump stops.
-
Forced Oil Circulation: Maintains a constant-pressure oil supply to support stable pump operation.
-
Integrated Cylinder Structure: Designed for operational stability and reliable performance.
-
Easy Maintenance: A simplified component structure helps facilitate servicing and repairs.
-
KF Vacuum Connections: Supports integration with compatible vacuum piping systems.
Technical Specifications
| Specification | VALUE VRD-24 |
|---|---|
| Brand | VALUE |
| Model | VRD-24 |
| Pump Type | Dual-stage oil-sealed vacuum pump |
| Displacement Speed | 24 m³/h |
| Displacement Speed | 396 L/min / 14 CFM |
| Ultimate Partial Pressure (Gas Ballast Closed) | 4 × 10⁻² Pa |
| Ultimate Total Pressure (Gas Ballast Closed) | 4 × 10⁻¹ Pa |
| Ultimate Total Pressure (Gas Ballast Open) | 8 × 10⁻¹ Pa |
| Power Supply | 230 V, single-phase configuration |
| Motor Power | 1.1 kW |
| Compression Stages | 2 |
| Motor Speed at 50 Hz | 1440 rpm |
| Inlet Connection | KF25 |
| Exhaust Connection | KF25* |
| Oil Type | Mineral vacuum pump oil |
| Recommended Oil Viscosity | 68 mm²/s |
| Oil Capacity | 1.3–2.0 L |
| Operating Ambient Temperature | 5–40°C |
| Noise Level | ≤58 dB |
| Dimensions | 567 × 188 × 272 mm* |
| Net Weight | Approximately 35 kg* |
The inlet/outlet connections, dimensions and weight follow the official Polish product listing, which differs from some figures on the English page. Confirm the exact configuration with the supplier before publishing these fields.
Package Contents
The official Polish product listing identifies the packaging as a cardboard carton on a pallet. The complete accessory inventory is not confirmed.
-
VALUE VRD-24 vacuum pump
-
Packaging: cardboard carton on pallet
-
Vacuum pump oil and other accessories: confirm with the supplier
-
Operating and safety instructions: confirm with the supplier
Only list oil, cables, adapters or other accessories as included if they are supplied with your specific product.
Warranty Term
Warranty: To be confirmed with the authorised distributor.
Please verify the warranty duration, coverage and exclusions with your supplier before publishing. No specific warranty period is stated here because it has not been confirmed by the cited product information.
Why Choose VALUE?
VALUE develops vacuum equipment and HVACR tools for professional applications. The VRD-24 combines a 24 m³/h pumping capacity with dual-stage compression, forced oil circulation, adjustable gas ballast and oil anti-suck-back protection.
Its integrated cylinder structure supports stable operation, while the simplified design helps make routine maintenance more manageable. The pump is suitable for industrial production processes, vacuum drying and other applications requiring dependable vacuum performance.
Choose the VALUE VRD-24 for a practical combination of pumping capacity, vacuum performance and essential oil-management features in a dual-stage vacuum pump.
