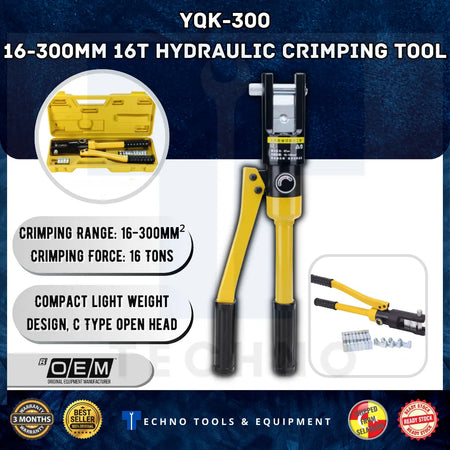

YQK-300 Hand Hydraulic Crimping Tool (16mm-300mm²)
Overview Summary
The YQK-300 is a professional-grade hand hydraulic crimping tool designed for high-performance compression on power cables and wires. Engineered for reliability, this tool ensures the crimped conductor maintains high conductivity and close contact, preventing breakage or overheating during electrical use. Featuring a compact and lightweight design, the YQK-300 is equipped with a C-type open head and a double-speed unit to shorten operation time and save energy. With its 180-degree rotating head and insulated handles, it provides a safe and versatile solution for electrical professionals working in diverse environments.
Key Features of YQK-300
-
High-Efficiency Crimping: Designed specifically for power cables and wires to ensure high conductivity and secure, heat-resistant contact.
-
C-Type Open Head: Features an open-cut design for convenient operation and easy access to the cable or wire.
-
Double Speed Unit: Dies move quickly to the tube via high speed, then automatically switch to low speed for high-force compression, saving time and energy.
-
180° Rotating Head: The head rotates freely up to 180 degrees, making it ideal for working in narrow or restricted spaces.
-
Built-in Safety Valve: Automatically releases pressure when it reaches the maximum limit to prevent over-pressure damage.
-
Insulated Handles: Fiberglass insulated handles provide protection against accidental electric shocks during operation.
-
Manual Retraction: Equipped with a manual retraction knob for precise control and easy reset after the crimp is finished.
Technical Specifications
| Attribute | Value |
| Model | YQK-300 |
| Crimping Range | 16mm² to 300mm² |
| Crimping Type | Hexagon |

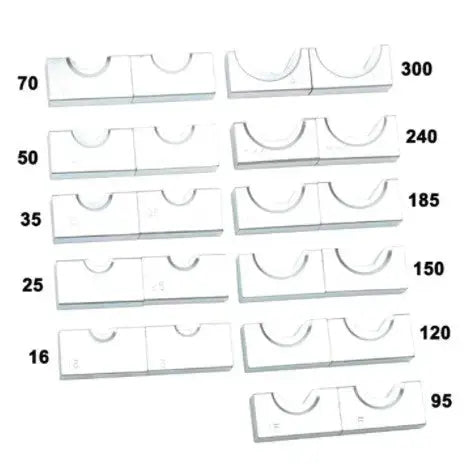

| Die Sizes (mm²) | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 |
| Head Design | C-Type Open Head (180° Rotation) |
| Handle Material | Fiberglass Insulated |

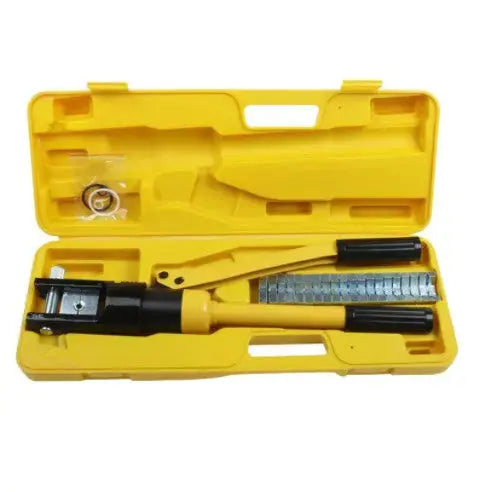

| Storage Case | Robust Integral Plastic Box |
Warranty Term
The YQK-300 Hydraulic Crimping Tool comes with a 1-Year Warranty covering manufacturer defects, ensuring long-term reliability for your professional toolkit.
Why Choose the YQK-300?
The YQK-300 balances power and portability, making it the preferred choice for industrial electrical installations. Its unique double-speed mechanism reduces the physical effort required for heavy-duty compression while ensuring every crimp meets professional conductivity standards. Housed in a robust plastic carrying case, this tool is ready for the rigors of the job site, providing safety through its internal pressure valve and insulated handles.
