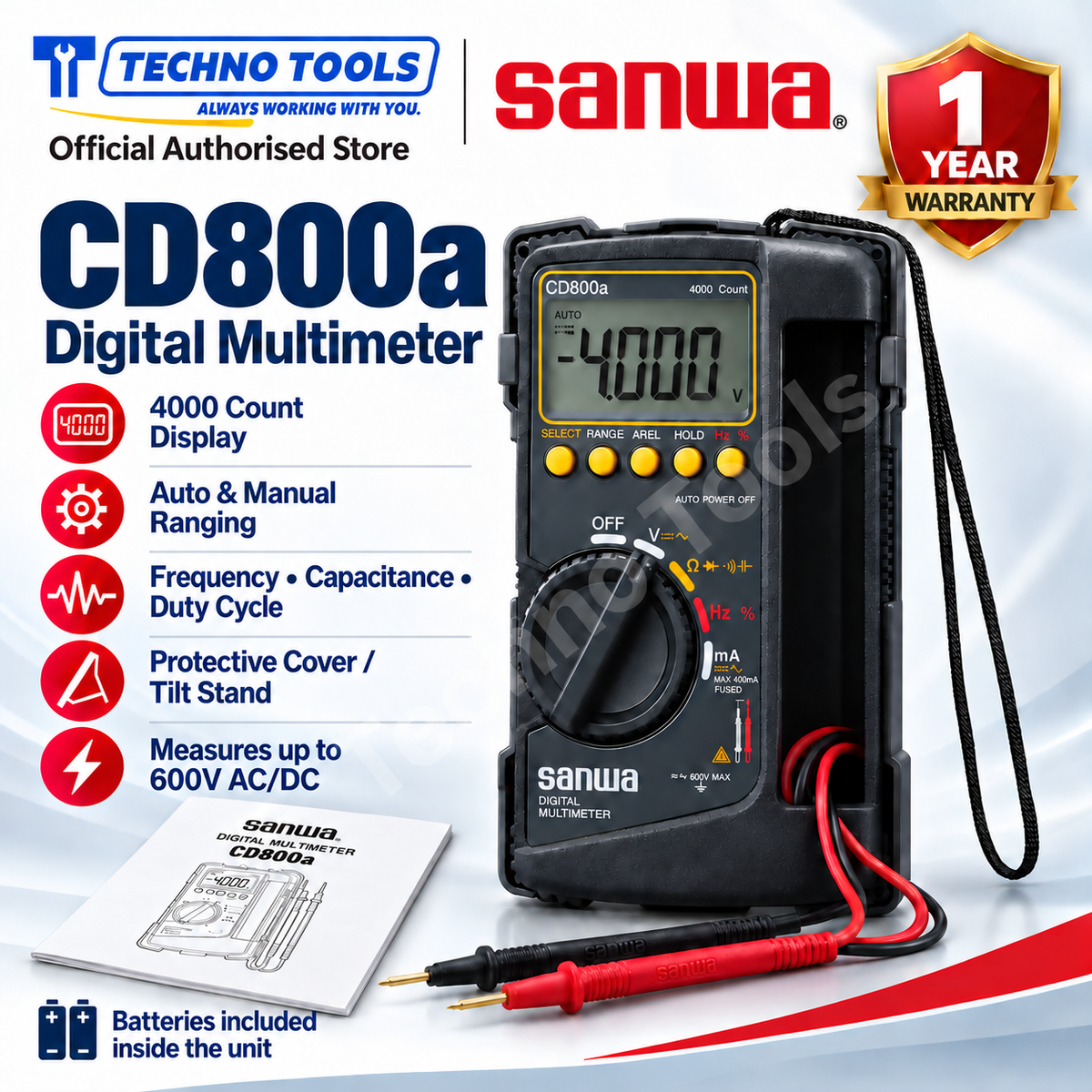

Sanwa Digital Multimeter, 4000 Count, 600V, Protective Body Cover – CD800a
- Product Datasheet (PDF) Muat turun
- User manual / Instruction Book (PDF) Muat turun
Tidak dapat memuatkan ketersediaan pengambilan

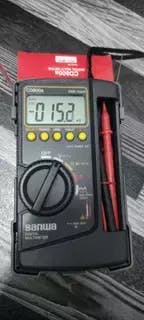

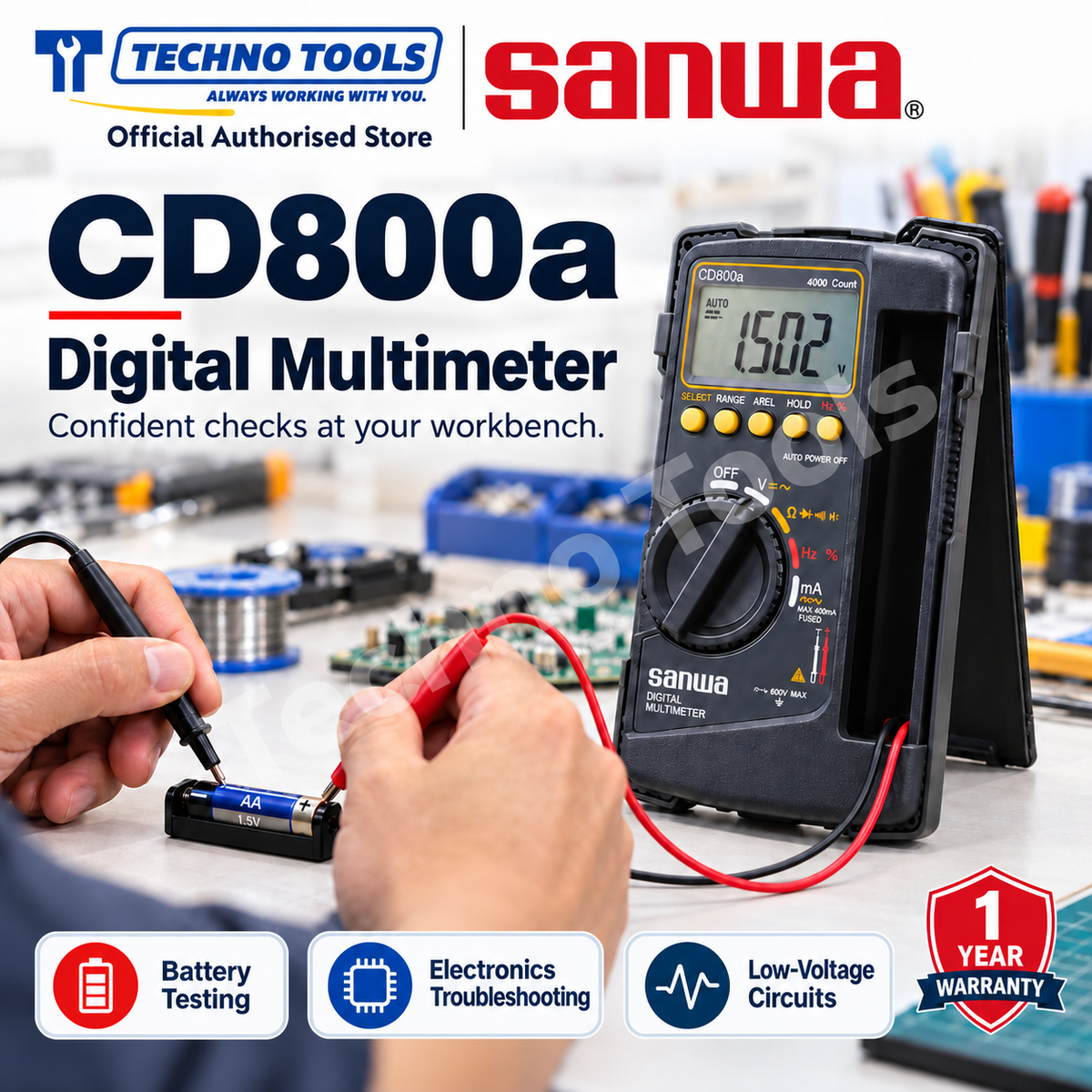

The Sanwa CD800a is a compact 4000-count digital multimeter for 600V AC/DC work. Its solid body cover protects the meter, stores the test leads and doubles as a tilt stand, so nothing gets tangled or lost in the toolbox. It suits electronics technicians, laboratory and school users, and field service staff who need dependable everyday readings.
Key Features of the Sanwa CD800a
- Protective body cover that doubles as a tilt stand
- 4000-count display (3-3/4 digits) with sharp-contrast 17.5mm characters
- Best accuracy 0.7% (DCV)
- Capacitance, frequency and duty cycle measurement
- Continuity buzzer with low-power ohm (approx. 0.4V open voltage)
- Diode test
- Data hold, range hold (manual ranging) and relative mode
- Auto power off after approx. 30 minutes (can be cancelled)
- Chip resistor holder behind the body cover
- Safety: IEC 61010-1 CAT III 600V

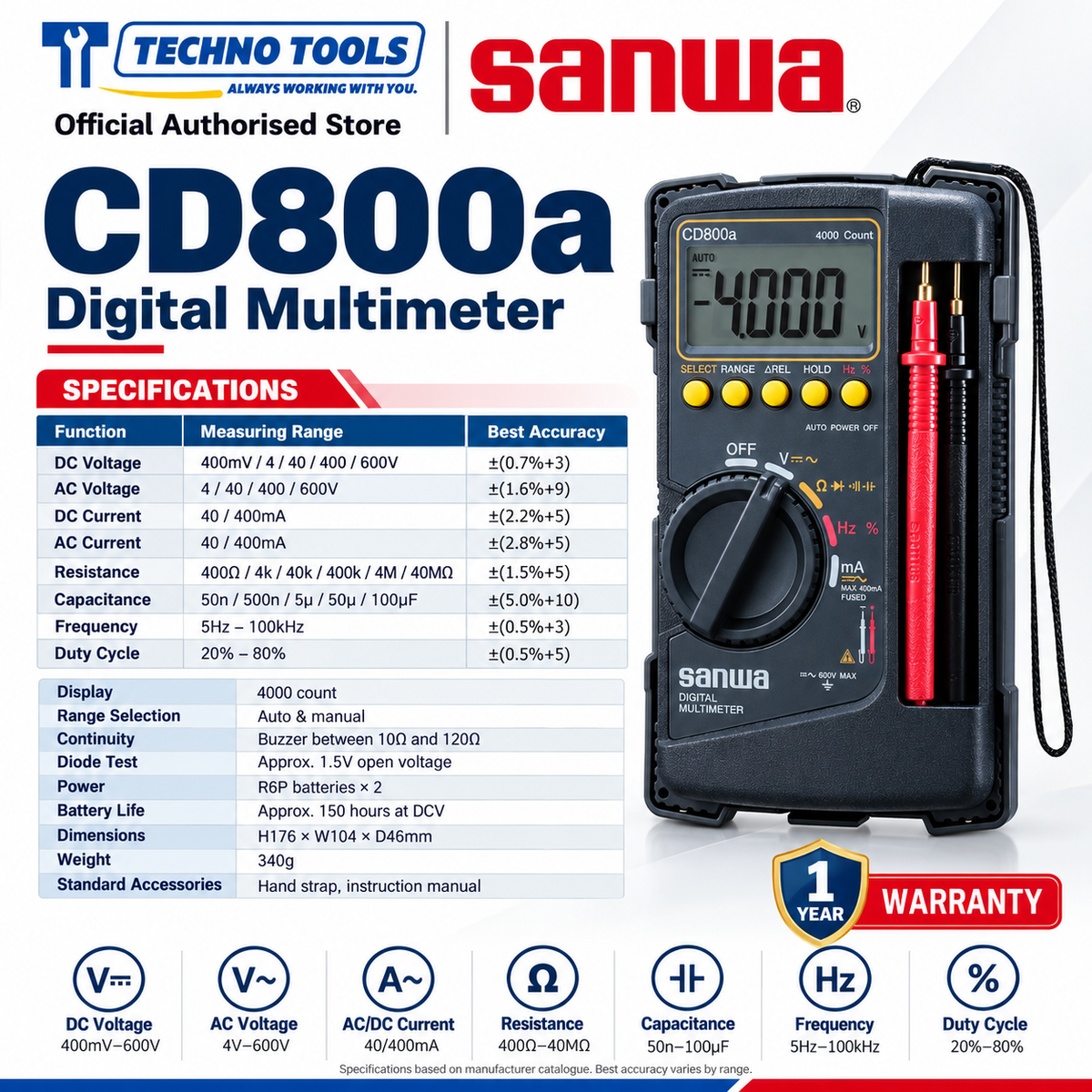

Sanwa CD800a Specifications
| Function | Measuring range | Best accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| DCV | 400m/4/40/400/600V | ±(0.7%+3) | 0.1mV | 10M–100MΩ |
| ACV | 4/40/400/600V | ±(1.6%+5) | 0.001V | 10M–11MΩ |
| DCA | 40m/400mA | ±(2.2%+5) | 0.01mA | – |
| ACA | 40m/400mA | ±(2.8%+5) | 0.01mA | – |
| Resistance | 400/4k/40k/400k/4M/40MΩ | ±(1.2%+5) | 0.1Ω | – |
| Capacitance | 50n/500n/5μ/50μ/100μF | ±(5%+10) | 0.01nF | – |
| Frequency | 5Hz–100kHz | ±(0.5%+3) | – | – |
| Duty cycle | 20%–80% | ±(0.5%+5) | – | – |
| Continuity | Buzzer sounds between 10Ω and 120Ω; open voltage approx. 0.4V | |||
| Diode test | Open voltage approx. 1.5V | |||
| Display | 3-3/4 digit, 4000 counts, 17.5mm high characters |
| Sampling rate | 3 times/sec |
| AC bandwidth | 40Hz–400Hz |
| Safety rating | IEC 61010-1 CAT III 600V, double insulation (Class II), pollution degree 2 |
| Fuse | 0.5A/250V 1.5kA Φ5×20mm ceramic |
| Battery | 1.5V AA (R6P) × 2 |
| Battery life | Approx. 500h (manganese battery, DCV range) |
| Auto power off | Approx. 30 minutes (can be cancelled) |
| Operating conditions | 5°C to 40°C, max. 80% RH up to 31°C (decreasing linearly to 50% RH at 40°C) |
| Storage conditions | -10°C to 50°C, max. 70% RH, no condensation (remove batteries) |
| Size / mass | H176 × W104 × D46mm / approx. 340g |
| Test lead length / pin tip | Approx. 0.7m / 19mm |
Sanwa CD800a vs CD800a2 vs CD800a3
All three share the same tough body cover design. Choose by the jobs you do:
| Feature | CD800a (this model) | CD800a2 | CD800a3 |
|---|---|---|---|
| Display count | 4000 | 6000 | 6000 |
| True RMS | No | Yes | Yes |
| EF (electric field) detection | No | No | Yes |
| Safety rating | CAT III 600V | CAT IV 600V | CAT IV 600V |
| Current ranges (DC/AC) | 40mA / 400mA | 60mA / 600mA | 60mA / 600mA |
| Capacitance (max.) | 100μF | 6mF | 6mF |
| MAX/MIN hold | No | Yes | Yes |
| Best for | Electronics, appliances, batteries, training | Electrical work with non-sinusoidal loads | Electrical work plus live-wire detection |
What's in the Box
- Sanwa CD800a multimeter with protective body cover
- Test leads (approx. 0.7m)
- Hand strap
- User manual
Frequently Asked Questions
Is the Sanwa CD800a True RMS?
No. The CD800a is an average-sensing meter, which is accurate on normal sine-wave AC. For inverters, VFDs or other distorted waveforms, choose the True RMS CD800a2 or CD800a3.
Are the CD800a and CD-800A the same model?
Yes. Sanwa writes the model as CD800a; some sellers list it as CD-800A or CD 800A. It is the same multimeter.
What battery does the CD800a use?
Two 1.5V AA batteries (R6P), giving approximately 500 hours on the DCV range with manganese batteries.
Can the CD800a measure capacitance?
Yes, from 50nF up to 100μF. It is not suitable for capacitors with a large leakage current.
What is the CD800a safety rating?
IEC 61010-1 CAT III 600V, so it is suitable for distribution-level work such as building wiring, sockets and fixed equipment up to 600V.
Why Choose the Sanwa CD800a?
Sanwa is a Japanese test-instrument maker with a long track record in multimeters. The CD800a is popular in labs, schools and service vans because its integrated cover protects the meter and leads from knocks, which keeps it working for years with little care.
