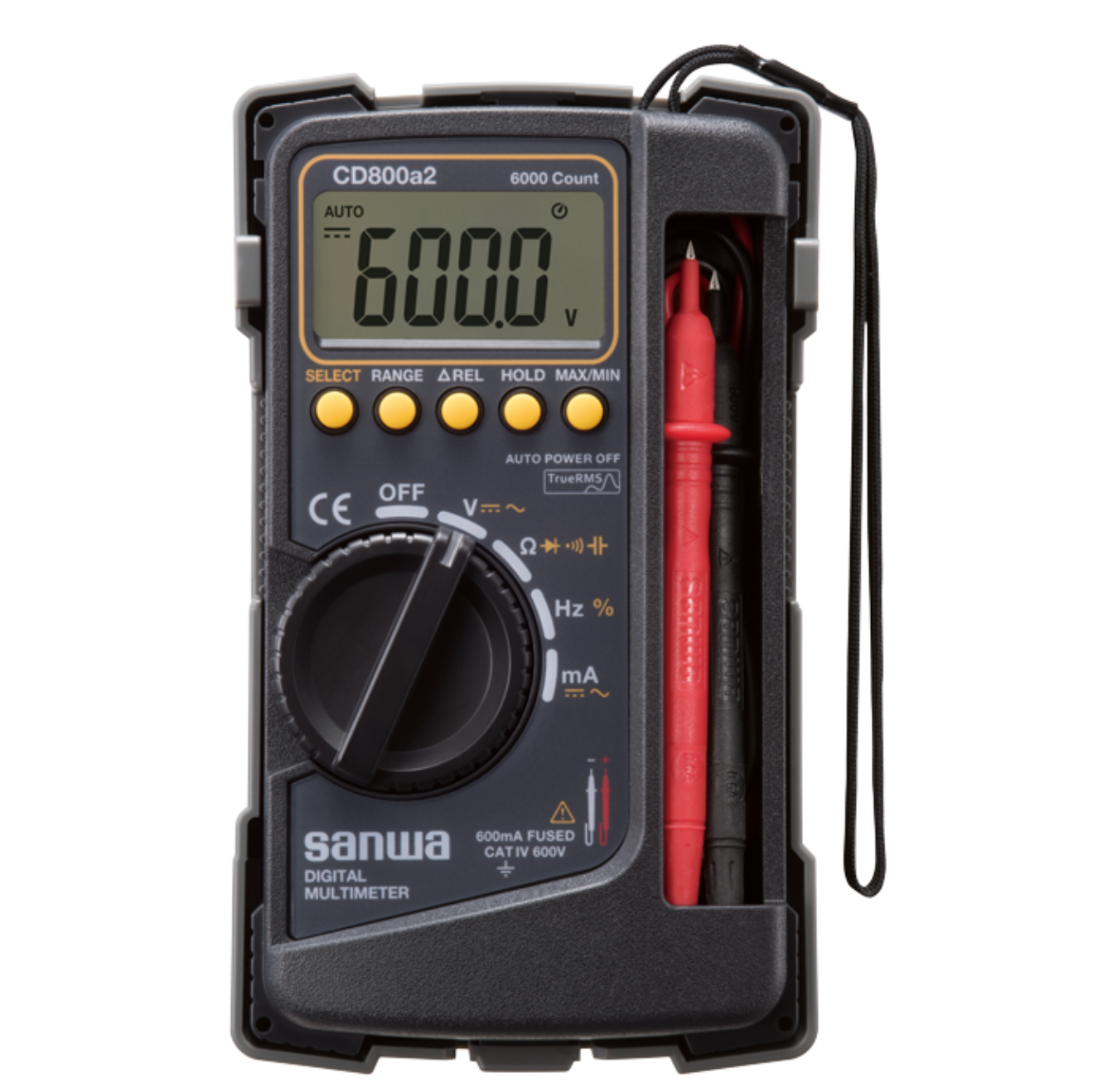

Sanwa CD800a2 Digital Multimeter – True RMS, 6000 Count, High Accuracy
Helpful Documents
- Product Brochure Muat turun
- Product Datasheet / User manual Muat turun
Tidak dapat memuatkan ketersediaan pengambilan
Product Overview – Sanwa CD800a2 Digital Multimeter
The Sanwa CD800a2 is a professional True RMS digital multimeter designed for technicians who need reliable performance, precise measurement accuracy, and durable daily-use dependability. The Sanwa CD800a2 delivers advanced functions with a 6000-count display and enhanced features suited for electrical, industrial, and field testing applications.
Key Features of Sanwa CD800a2
The Sanwa CD800a2 digital multimeter offers versatile measuring capabilities with strong safety ratings, improved operation convenience, and high accuracy across voltage, current, resistance, capacitance, and frequency testing.
Key Features of Sanwa CD800a2
-
True RMS for accurate AC measurement
-
6000-count high-visibility display
-
Max/Min value hold
-
Data hold & Range hold
-
Relative function for quick comparison
-
EF (Electric Field) non-contact detection
-
Auto power-off (30 minutes, cancelable)
-
Backlight for low-light operation
-

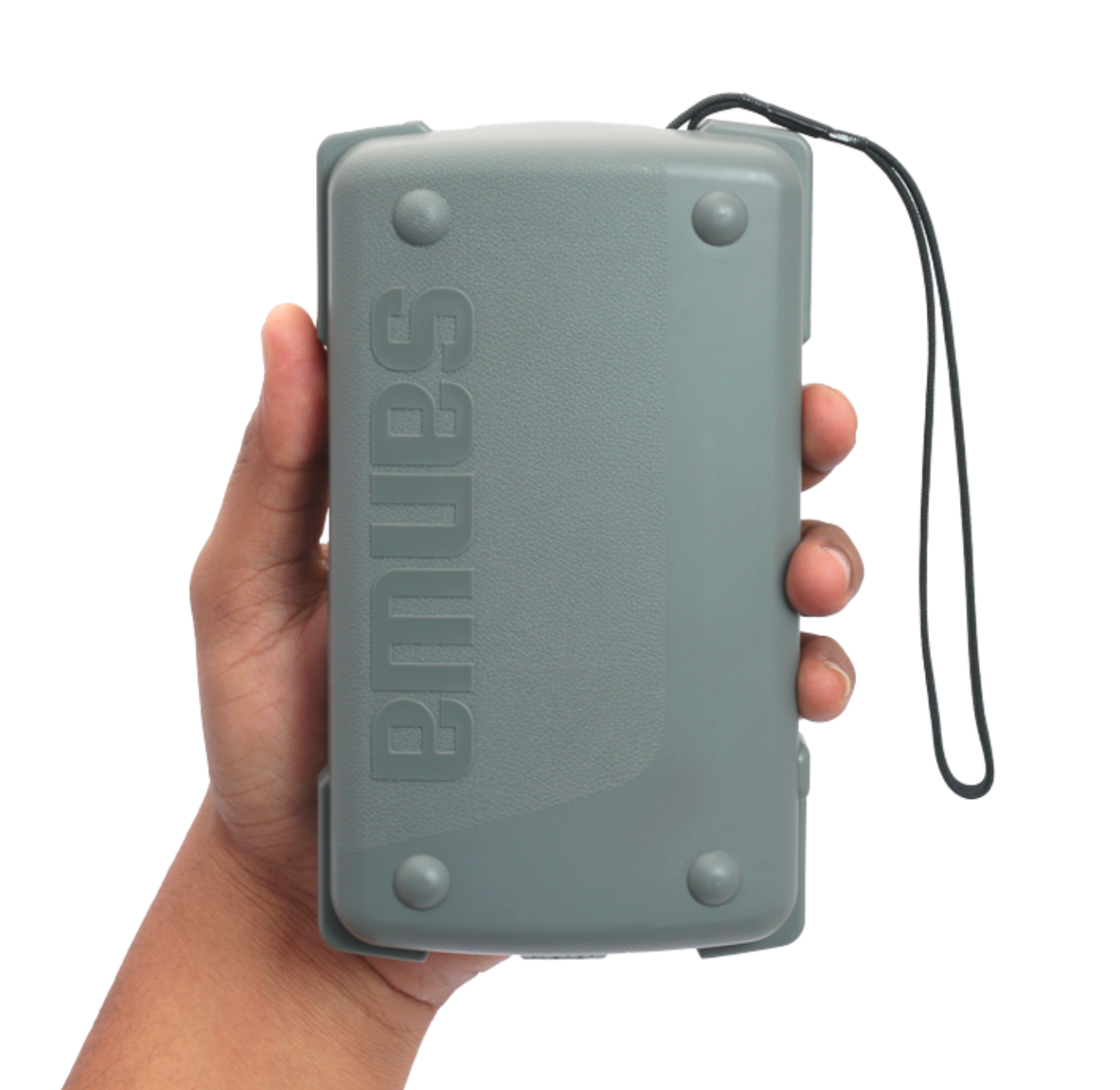

Protective body cover with tilt stand
-
Chip holder integrated behind cover
-
Continuity buzzer
-
Diode test
-
CAT IV 600V safety rating
Specification Table – Sanwa CD800a2
| Function | Sanwa CD800a2 Specification |
|---|---|
| DC Voltage | 600mV–600V ±(0.7%+3) |
| AC Voltage | 6V–600V ±(1.6%+5) |
| DC Current | 60mA / 600mA ±(2.2%+5) |
| AC Current | 60mA / 600mA ±(2.8%+5) |
| Resistance | 600Ω–60MΩ ±(1.2%+5) |
| Capacitance | 60nF–6mF ±(5%+10) |
| Frequency | Up to 99.99kHz ±(0.5%+3) |
| Duty Cycle | 20%–80% |
| EF Detection | Detects ≥ 90V AC |
| Continuity | Buzzer at 39–60Ω |
| Diode Test | 3V open voltage |
| Bandwidth | 40–400Hz |
| Sampling Rate | 3 times/sec |
| Fuse Protection | 0.6A / 600V Ceramic |
Comparison of mode CD800a, CD800a2, and CD800a3
| Feature | CD800A | CD800A2 | CD800A3 |
|---|---|---|---|
| Display Count | 4000 | 6000 | 6000 |
| True RMS | No | Yes | Yes |
| DC Voltage | 400mV–600V (±0.7%) | 600mV–600V (±0.7%) | 600mV–600V (±0.7%) |
| AC Voltage | 4V–600V (±1.6%) | 6V–600V (±1.6%) | 6V–600V (±1.6%) |
| DC Current | 40mA–400mA | 60mA–600mA | 60mA–600mA |
| AC Current | 40mA–400mA | 60mA–600mA | 60mA–600mA |
| Resistance | 400Ω–40MΩ | 600Ω–60MΩ | 600Ω–60MΩ |
| Capacitance | 50nF–100µF | 60nF–6mF | 60nF–6mF |
| Frequency | Up to 5Hz～100kHz | Up to 99.99kHz | Up to 99.99kHz |
| Duty Cycle | Yes | Yes | Yes |
| Continuity | Yes (buzzer) | Yes (buzzer) | Yes (buzzer) |
| Diode Test | Yes | Yes | Yes |
| Data Hold | Yes | Yes | Yes |
| Range Hold | Yes | Yes | Yes |
| EF Detection | No | No | Yes |
| Backlight | No | No | Yes |
| Max/Min Hold | No | Yes | Yes |
| Relative Mode | No | Yes | Yes |

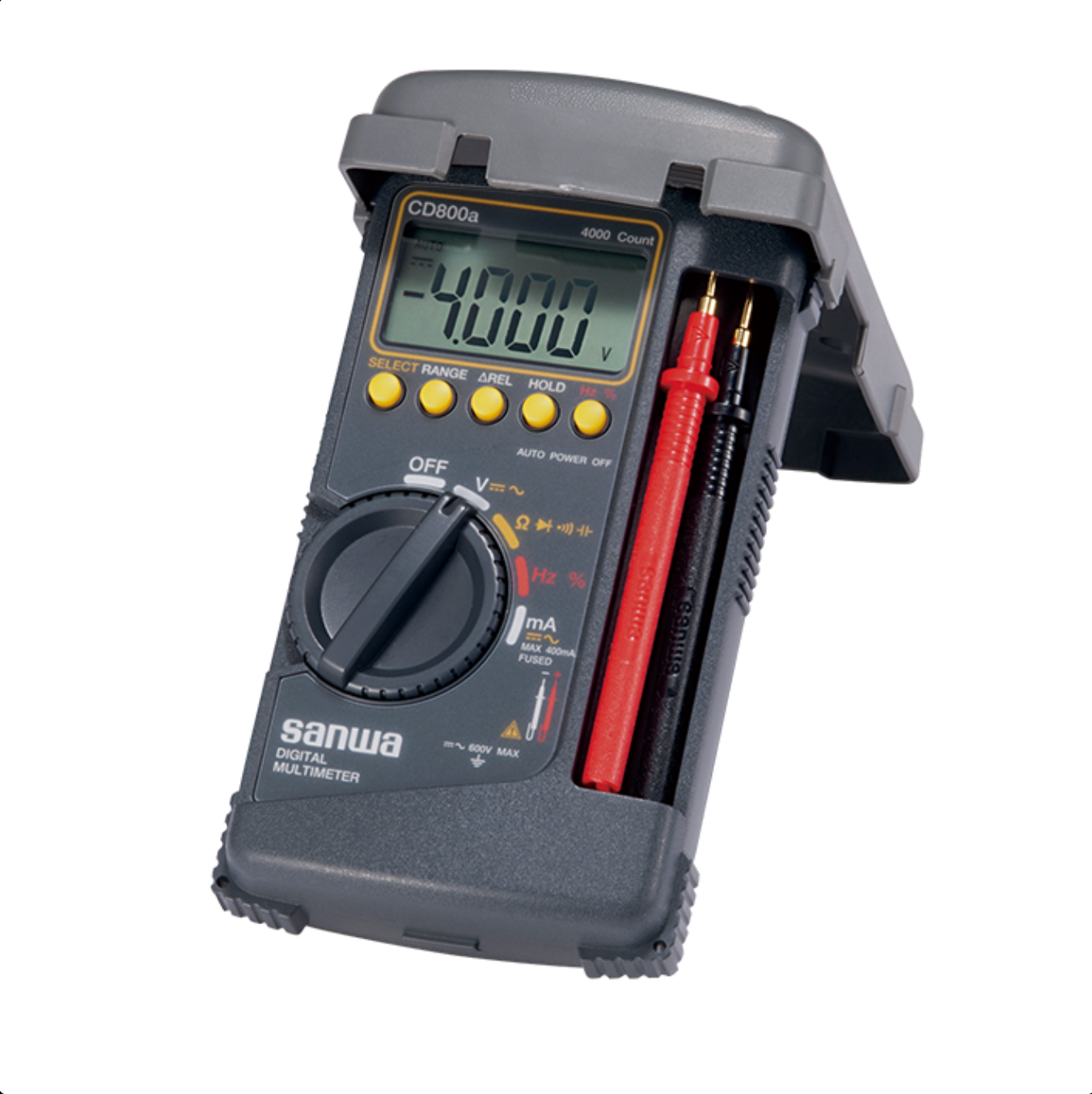

| Body Cover / Tilt Stand | Yes | Yes | Yes |
| Chip Holder | Yes | Yes | Yes |
| Safety Rating | CAT III 600V | CAT III 600V | CAT IV 600V |
Package Contents
-
1 × Sanwa CD800a2 Digital Multimeter
-
1 × Test Lead Set
-
1 × Protective Body Cover
-
1 × User Manual
-
2 × AA Batteries
Warranty Term
-
1-Year Manufacturer Warranty
-
Covers manufacturing & electronic defects
-
Support via Techno Tools Malaysia
