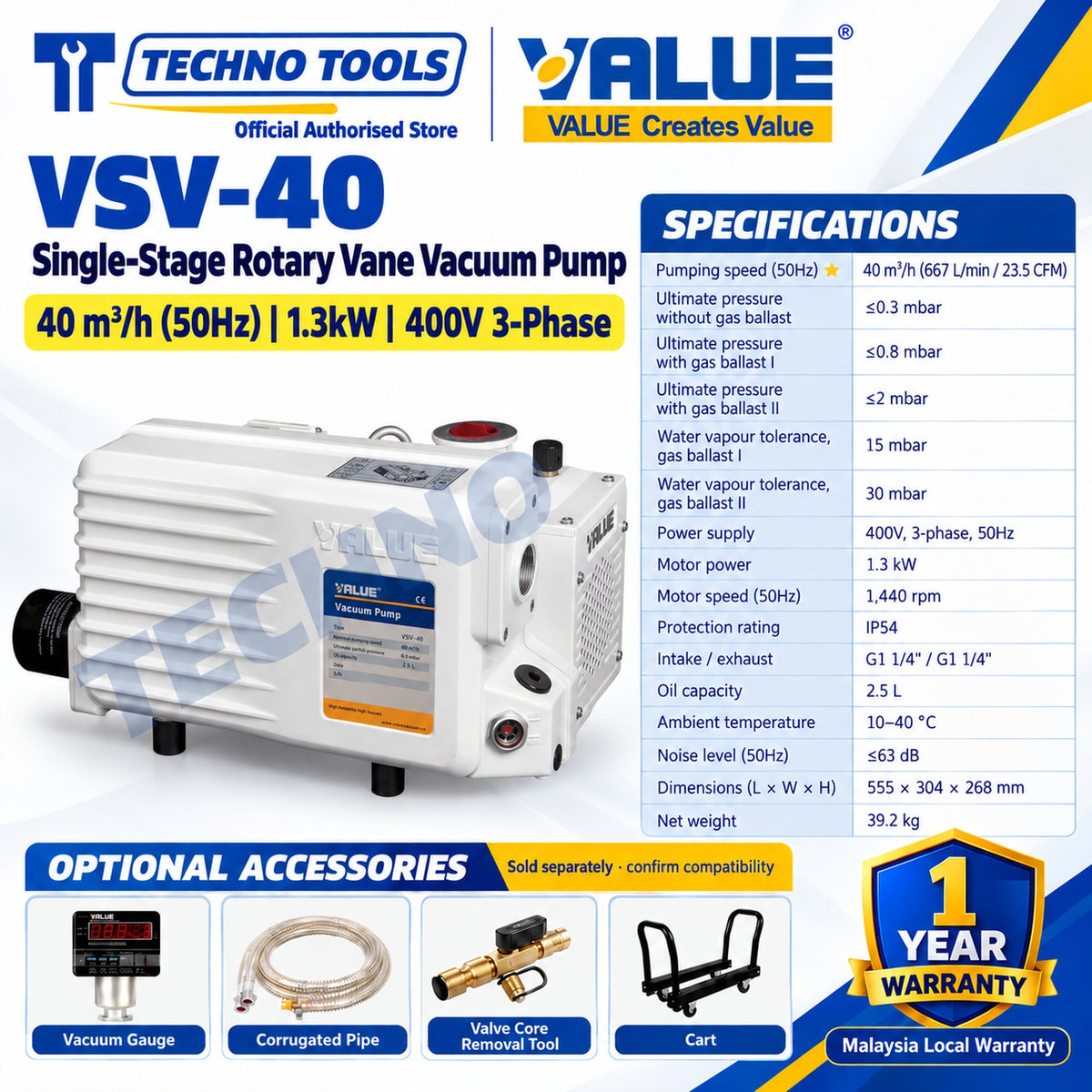

VALUE VSV-40 Single-Stage Rotary Vane Vacuum Pump 40m³/h (50Hz) 1.3kW 400V 3-Phase
- User manual / Instruction Book (PDF) Muat turun
Tidak dapat memuatkan ketersediaan pengambilan
Product Overview
The VALUE VSV-40 Single-Stage Rotary Vane Vacuum Pump is an oil-sealed pump for generating vacuum in closed systems across industrial, laboratory and commercial applications. It delivers 40 m³/h at 50Hz on a 400V 3-phase supply.
A built-in oil mist filter keeps the exhaust clean, the closed lubrication system returns collected oil to the pump, and an anti-suck-back structure protects your vacuum system after shutdown.
Key Features
- 40 m³/h at 50Hz: Single-stage rotary vane design for general-purpose and production vacuum.
- Built-in oil mist filter: Reduces oil discharge at the exhaust for a cleaner workplace.
- Closed lubrication system: Oil collected in the filter returns to the pump by gravity.
- Anti-suck-back structure: Prevents oil flowing back into the vacuum system after shutdown.
- Multi-stage gas ballast: Handles water vapour and different vacuum requirements.
- FKM seals: Improve corrosion resistance and reduce oil leakage.
- Air-cooled: Oil-circulation air cooling, no external water tank needed.
- Low noise and vibration: Integral cylinder design for smooth, reliable running.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | VALUE |
| Model | VSV-40 |
| Pump type | Single-stage oil-sealed rotary vane vacuum pump |
| Pumping speed (50Hz) ⭐ | 40 m³/h (667 L/min / 23.5 CFM) |
| Ultimate pressure without gas ballast | ≤0.3 mbar |
| Ultimate pressure with gas ballast I | ≤0.8 mbar |
| Ultimate pressure with gas ballast II | ≤2 mbar |
| Water vapour tolerance, gas ballast I | 15 mbar |
| Water vapour tolerance, gas ballast II | 30 mbar |
| Power supply | 400V, 3-phase, 50Hz |
| Motor power | 1.3 kW |
| Motor speed (50Hz) | 1,440 rpm |
| Protection rating | IP54 |
| Intake / exhaust | G1 1/4" / G1 1/4" |
| Oil capacity | 2.5 L |
| Ambient temperature | 10–40 °C |
| Noise level (50Hz) | ≤63 dB |
| Dimensions (L × W × H) | 555 × 304 × 268 mm |
| Net weight | 39.2 kg |
⭐ Malaysia standard (50Hz). Specifications are based on VALUE factory data (VSV operating manual).
Package Contents
- 1 × VALUE VSV-40 vacuum pump
Please contact us to confirm whether pump oil and connection fittings are supplied with your order.
Applications
- Vacuum packaging machinery
- Freeze drying and vacuum drying
- Vacuum transfer and vacuum forming
- Medical equipment and vacuum melting
- Analytical instruments and laboratories
- Backing pump for Roots pumps
Warranty
1-year local warranty in Malaysia, supported by Techno Tools & Equipment. Keep your invoice as proof of purchase.
Why Choose VALUE?
VALUE has over 30 years of experience in vacuum technology. The VSV series combines oil mist filtration, closed lubrication and anti-suck-back protection for clean, dependable single-stage vacuum. Buy from Techno Tools for local stock support, a 1-year Malaysia warranty and fast delivery nationwide.
