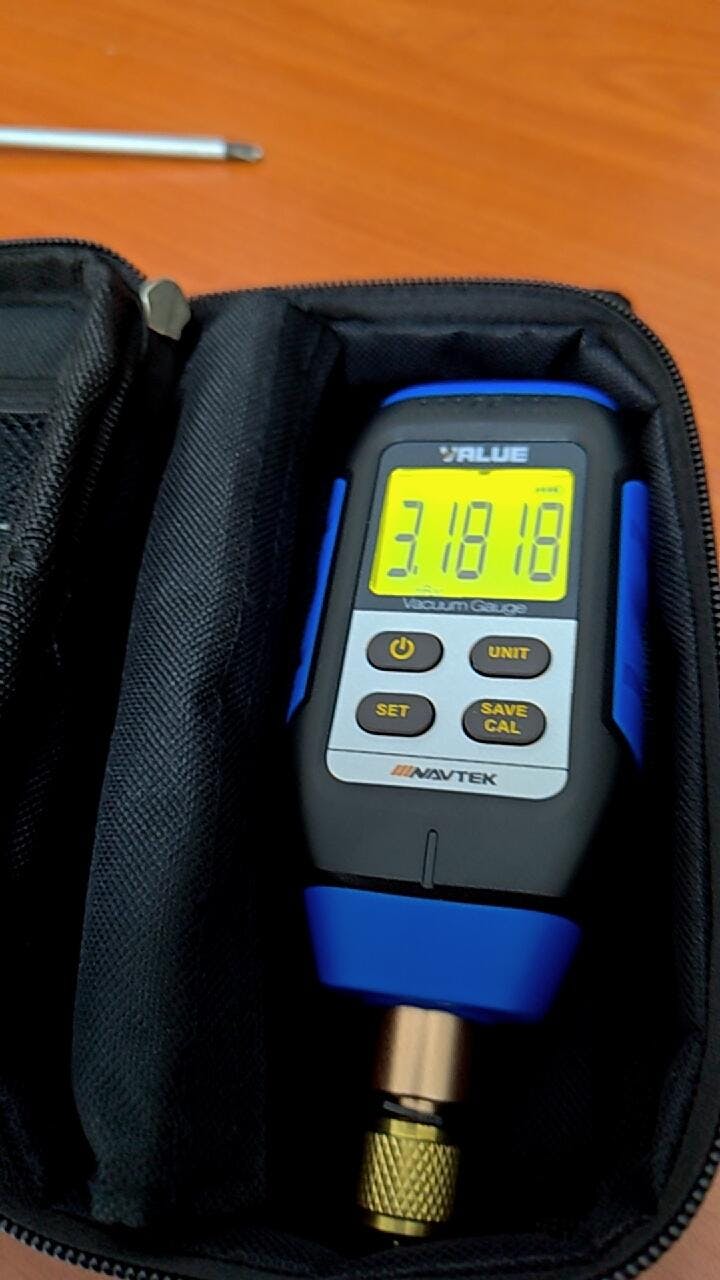

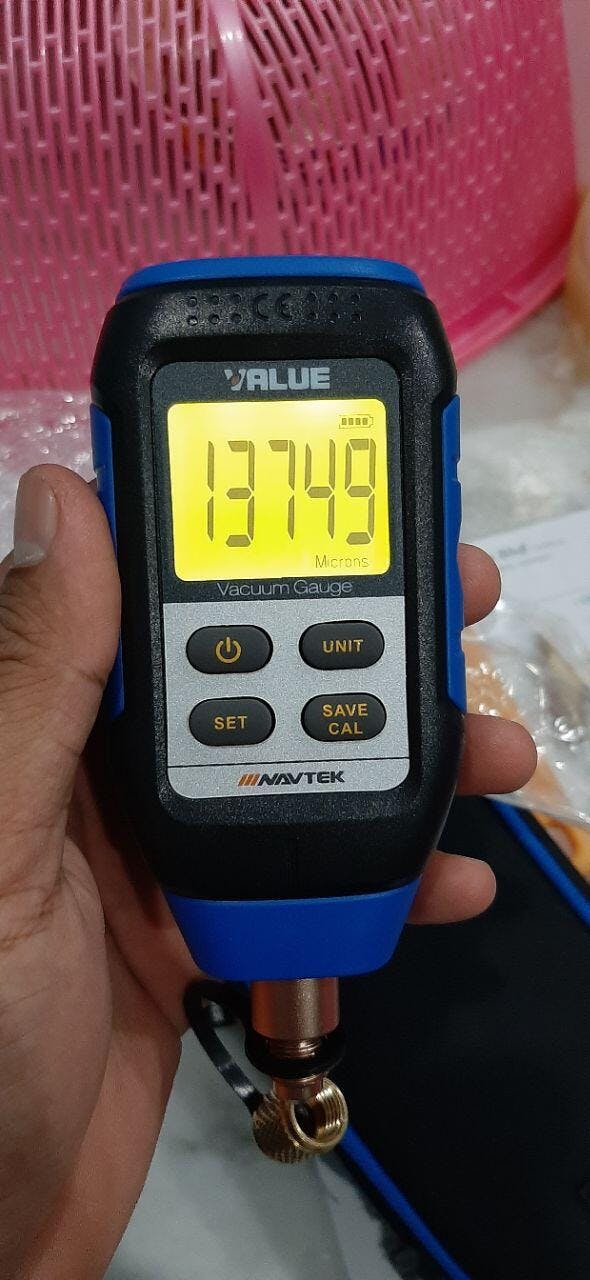

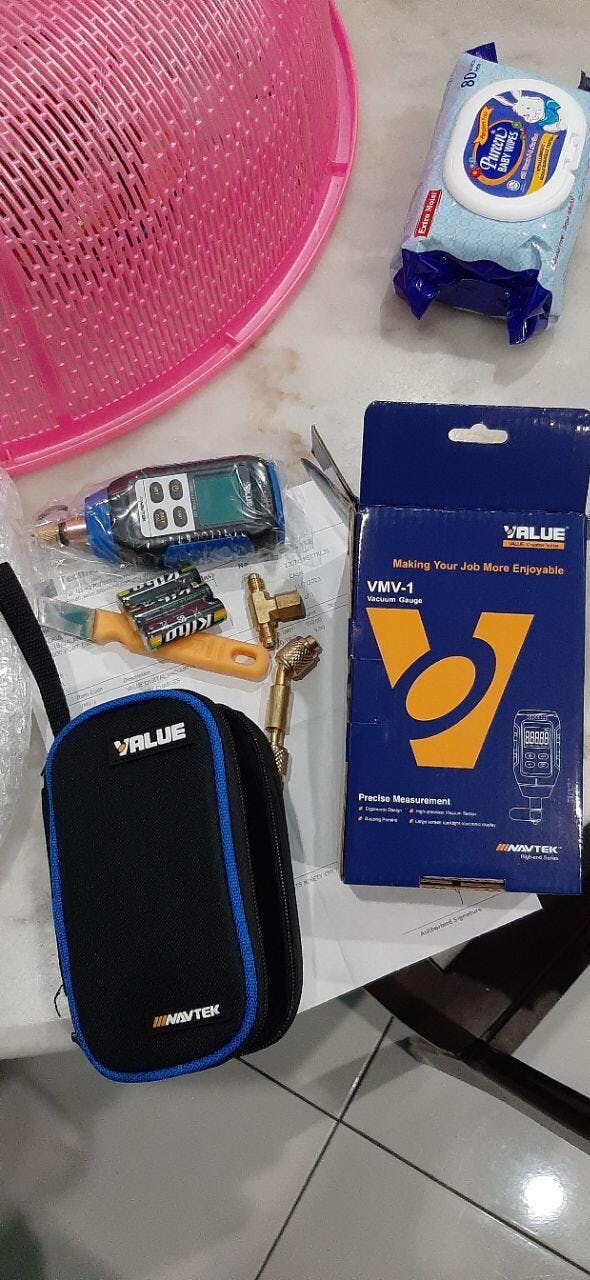

VALUE DIGITAL VACUUM GAUGE VMV-1

In stock - 20 items available
SKU: VMV-1
Regular price RM615.00 MYR

Product Brochure

Click Here: Brochure in PDF

Product Datasheet / User Manual

Click Here: Datasheet in PDF

It uses the Pirani high-precision vacuum sensor to precisely measure vacuum levels. Digital display affords a comprehensive view of vacuum conditions. When reaching the preset vacuum level, it will buzz as a reminder. When the vacuum level decreases from the pre-set vacuum level, it will buzz rapidly and flash the backlight to warn of leaks.



Technical data

Maximum overload pressure 14PSI / 0.1 Mpa

Range 0-10000 Pa, 0-100.00 mBar, 0-75.000 mmHg, 0-75000 Microns

Resolution 0.01 (<10 Pa), 0.0001 (<10 mBar), 0.0001 (<10 mmHg), 1 (<30000 Microns)

Accuracy 2-100 Pa: ± 5% of reading (at 20° C)

Operating temperature 0-50°C

Battery life 45 hours (3x AA)

Units Pa, mBar, mmHg, Mikrony

Sampling rate 0.5 second

Ports 1 x 1/4 SAE

Sensor 1 x Pirani sensor

Automatic power-off after 10 minutes

Backlight time 20 seconds

Alarm buzz 90 db, turns off after 10 seconds

Weight 125g (without battery)

Warranty subject to Manufacturing Default only : 6 months

No warranty after used for all Value electronic products
