ES-300/32C Battery Powered Crimping & Cutting Two-in-One Tool Set | 3 Months Warranty
Tidak dapat memuatkan ketersediaan pengambilan

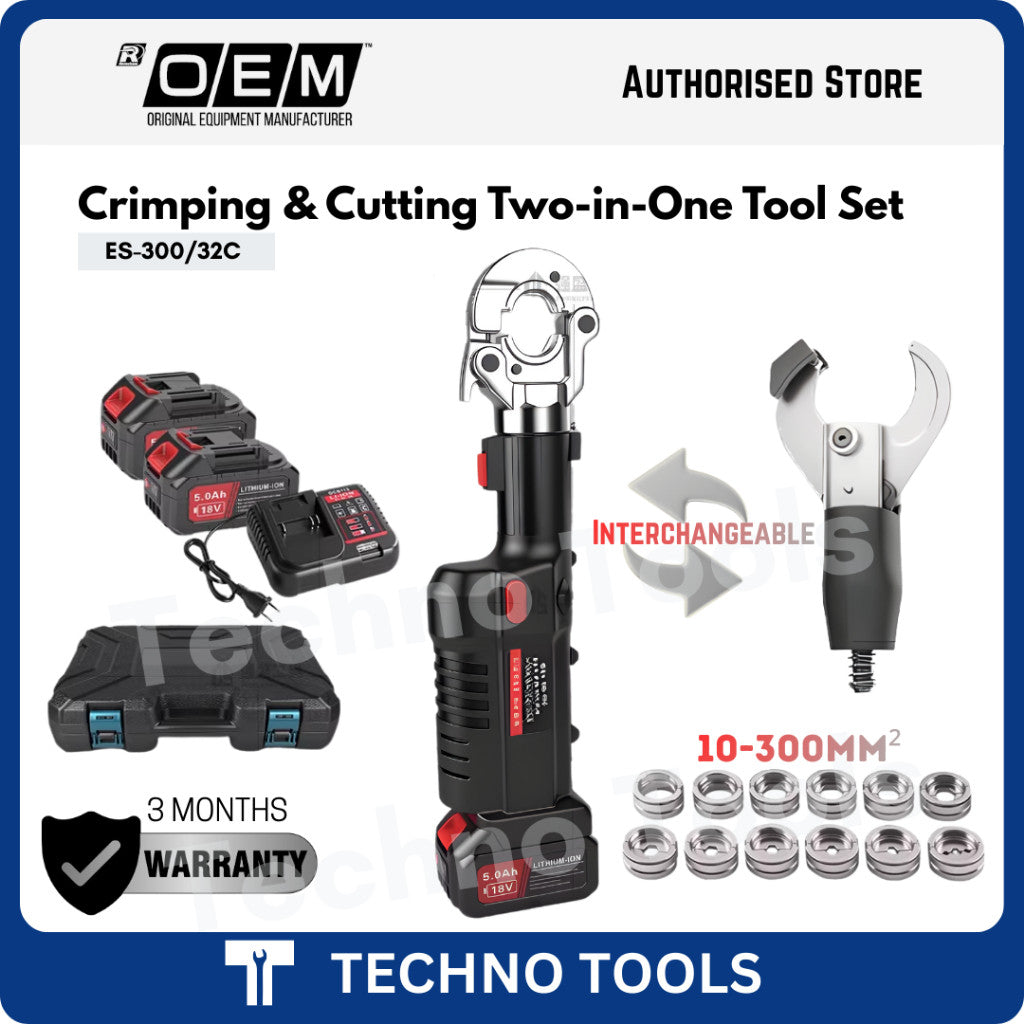

ES-300/32C Battery Powered Crimping & Cutting Two-in-One Tool Set
The ES‑300/32C Cordless Hydraulic Tool Set combines crimping and cutting functions in one compact unit. Delivering 60kN hydraulic force with a 17 mm stroke, it crimps copper cables up to 300 mm² and cuts armored/aluminum cables up to 240 mm². Powered by 18V / 5.0Ah lithium‑ion batteries, it ensures portability, efficiency, and reliability for professional electricians and industrial workshops.
Features:
Dual Functionality: Combines crimping and cutting in one tool

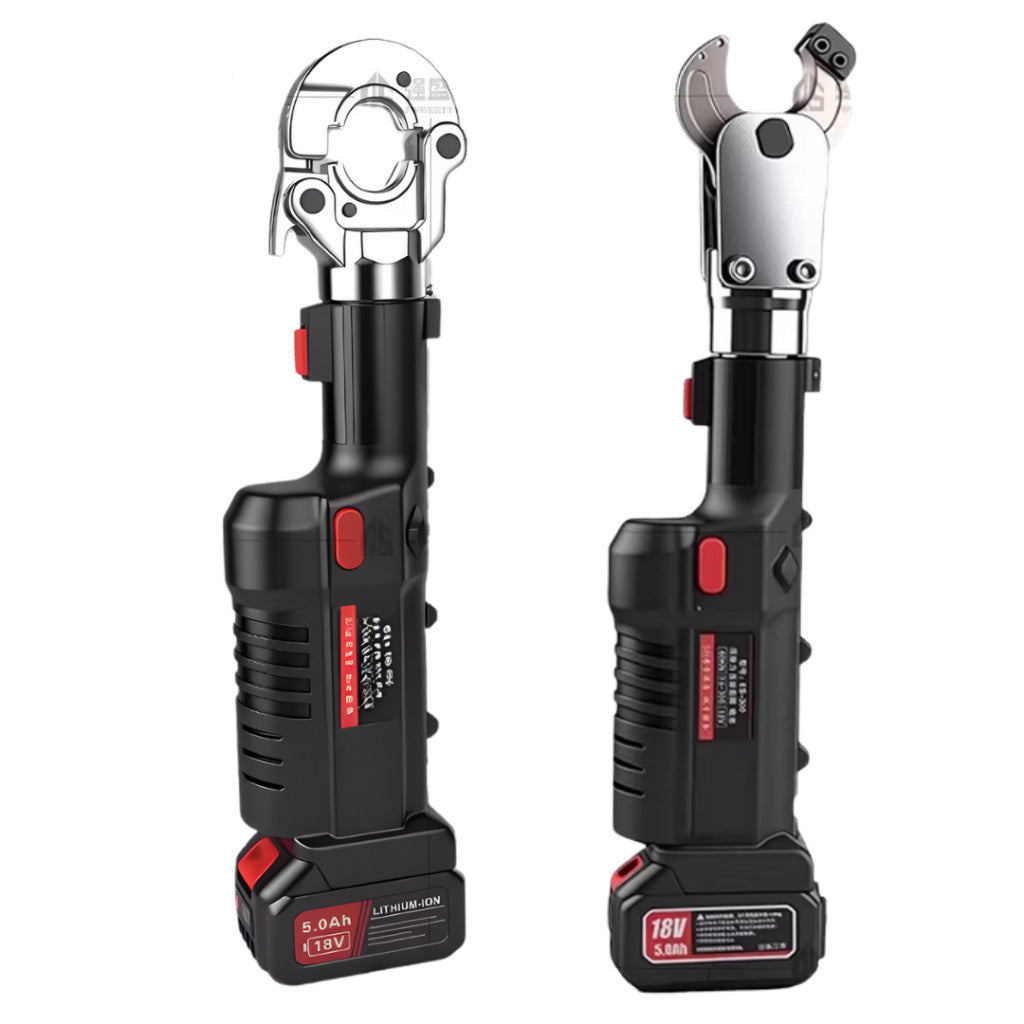

Interchangeable Heads: Quick swap between crimping and cutting functions
Imported Motor: High-performance motor for reliable operation
Portable Design: Battery-powered for field use, no external power needed
Wide Compatibility: Supports a broad range of cable sizes and materials
Rechargeable Electric Crimping Tool - Instant Crimping with Powerful Force
Overhead Work Made Easy - Tool body weighs only 5 kg, upgraded imported motor delivers 50% higher efficiency than standard crimping tools
High-Capacity Lithium Battery - 5.0Ah ultra-large battery, strong battery endurance for high work efficiency
Smart Digital Control - Real-time monitoring system that tracks battery level, temperature, usage count, and other data
Fully Upgraded Motor - Copper wire thickened by 30% with enhanced copper winding for better performance
Intelligent Protection System - Smart chip with real-time monitoring and temperature sensing
Triple-layer protection extends tool lifespan by up to 7×
Outstanding Details with Exceptional Experience
1) 360° Free Rotation - Hydraulic head rotates freely with no blind spots, smoother and more precise operation
2) Durable Power Button - Tested for long-term durability, it supports over 99,999+ activations
3) Ventilation & Heat Dissipation - Special ventilation design enables rapid cooling and prevents overheating during extended use
4) High-Performance Battery - Comes with two 18V high-performance batteries and one charger. It gives long-lasting power for continuous operation
Specifications:
(ES-300C)
Stroke:17mm
Output Force 60kN
Crimping Range-
Copper: up to 300 mm²
Aluminum: up to 240 mm²
(ES-32C)
Stroke: 30mm
Output Force 60kN
Cutting Range-
Copper: up to Φ30mm²
Aluminum: up to Φ30mm²
Net Weight: 5kg
Gross Weight: 10kg
Charging Time: 2hrs

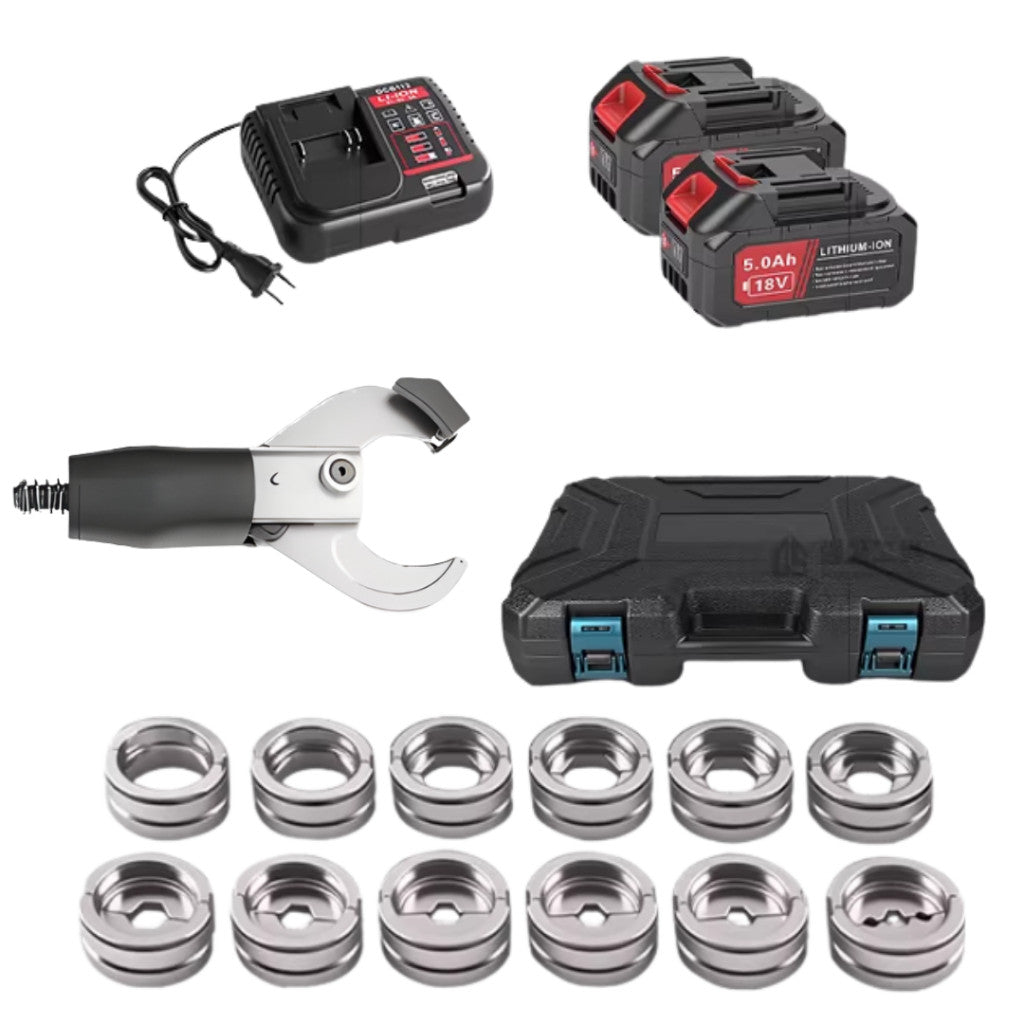

Includes:
Main Tool: Battery-powered hydraulic unit
Interchangeable Heads: Crimping and Cutting heads
Crimping Dies: Sizes for 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, and 300 mm² cables
Battery Pack: 2 × 18V / 5.0Ah lithium-ion batteries
Charger: 1 × compatible charging unit
FAQs
-
What cables can it handle? Crimps copper cables up to 300 mm² and cuts armored/aluminum cables up to 240 mm².
-
How long does the battery last? Each 5.0Ah battery supports extended use; recharge in ~2 hours.
-
Is the head adjustable? Yes, the 360° rotating head allows flexible positioning.
-
Does it include accessories? Yes, crimping dies, cutting blades, 2 batteries, charger, and case are included.
-
Is it safe for continuous use? Smart chip monitoring prevents overheating and overload.
