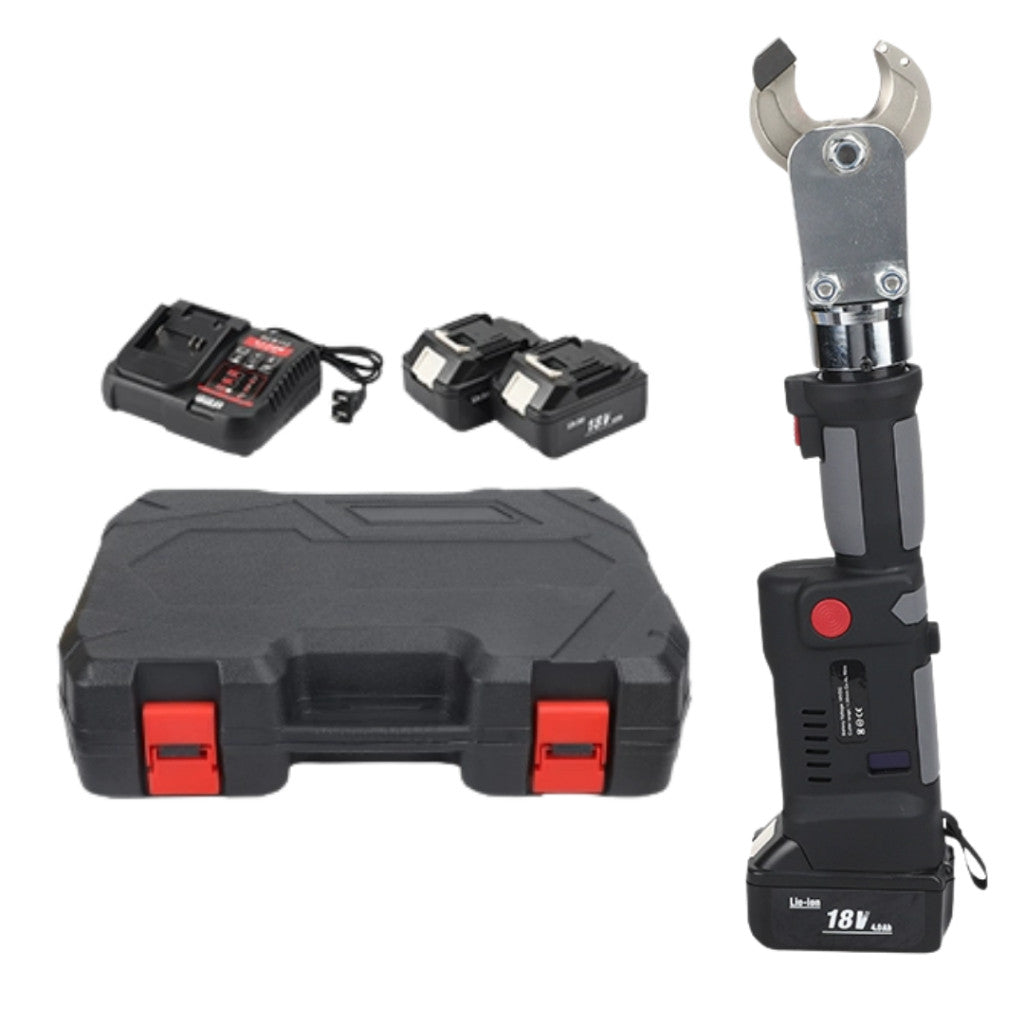

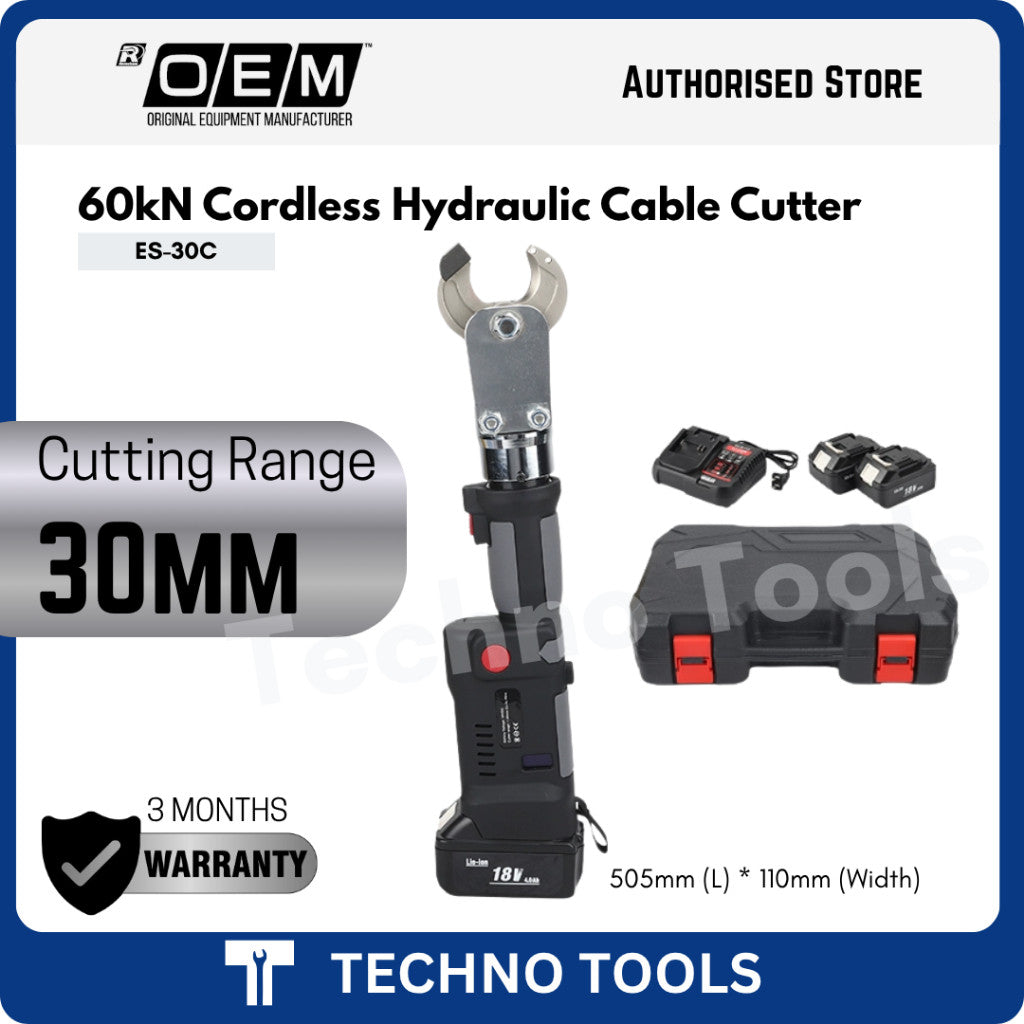

ES‑30C Cordless Hydraulic Cable Cutter
The ES‑30C Cordless Hydraulic Cable Cutter delivers 60kN cutting force powered by an 18V 5.0Ah Li‑ion battery, designed for heavy‑duty copper and aluminum cable cutting up to 105 mm². Its 360° rotating head, smart chip monitoring, and cordless portability make it ideal for professional field work.
Features of ES‑30C Cordless Hydraulic Cable Cutter
-
60kN cutting force — handles thick copper/aluminum cables with ease.
-
18V 5.0Ah battery — long runtime, quick recharge.
-
Cordless portability — lightweight, field‑ready design.
-
360° rotating head — flexible cutting angles in tight spaces.
-
Smart chip monitoring — tracks battery, temperature, and usage.
-
Durable build — reinforced motor with heat dissipation.
Specifications of ES‑30C Cordless Hydraulic Cable Cutter
Model: ES-300
Max Output Force: 60kN
Working Stroke: 17mm
Voltage/Capacity: 18V / 5.0Ah
Net/Gross Weight: 4.75kg (with battery) / 8.75kg
Charging Time: 40 minutes
Cutting Range: Copper & aluminum cables up to 30mm diameter
Packaging Case Size: 520mm × 410mm × 135mm
Accessories: Includes charger, 2 batteries, and carrying case
ES-300 vs ES-300/32C vs ES-30C cordless hydraulic tool comparison
| Model | ES-300 | ES-300/32C | ES-30C (this model) |
|---|---|---|---|
| Function | Crimping | Crimping and cutting (two heads) | Cutting |
| Output force | 60kN | 60kN | 60kN |
| Stroke | 17mm | 17mm crimp / 30mm cut | 17mm |
| Range | Crimps up to 300mm² Cu / 240mm² Al | Crimps up to 300mm² Cu / 240mm² Al; cuts up to Ø30mm | Cuts Cu/Al cable up to Ø30mm |
| Net weight | 5kg | 5kg | 4.75kg (with battery) |
| Best for | Crimping only | One tool for both crimping and cutting | Cutting only |
FAQs
-
What cables can it cut? Copper and aluminum cables up to 105 mm².
-
How long does the battery last? The 5.0Ah Li‑ion battery supports extended field use; recharge in ~90 minutes.
-
Is the head adjustable? Yes, it rotates 360° for flexible positioning.
-
Does it have safety features? Built‑in overload protection and smart chip monitoring.
-
Is it portable for field work? Yes, cordless design with carry case makes it workshop and site‑ready.
| Warranty period | 3 Months Warranty |
|---|---|
| Coverage | Manufacturing defects in materials and workmanship for 3 months from the date of purchase, covering the motor, circuit board and switch. |
| Not covered | Batteries and chargers; carbon brushes; dies, blades and other wear parts; normal wear and tear; cosmetic damage; damage from drops, impact, water ingress, misuse or overloading. |
| Warranty void if | The product has been connected to the wrong voltage, modified, opened or repaired by unauthorised persons, or proof of purchase cannot be shown. |
Contact Techno Tools via WhatsApp or sales@techno.com.my with your invoice number and photos or a video of the defect. Return the unit complete with all accessories. Defective units or parts will be repaired or replaced after inspection.
