CPC-50H - 100H / 7-12Ton Split Design Hydraulic Cable Cutting Tool for Cu-Al Armored Cable Cutter

HYDRAULIC CABLE CUTTER HEADS - WITH BUILT IN SAFETY VALVE
- Cuts armored AL and Cu cables.

FEATURES
- Lock pin type cutter head, blades can be replaced easily.
- Carry handle for easy shift in job sites.
- More safety with remote operation.
- Operated by hydraulic pump with rated pressure 700 bar.
- Spring steel blades, the blades are quenched and it is high strength and durable
- No oil leakage of precision oil cylinder, it is easy to cut off with powerful strength
- Easy to connect with pumps by quick connectors, both manual and electric hydraulic pumps can be used


SPECIFICATIONS:

CPC-50H
Cutting Range Cu-Al Armored Cable ≤ø50mm
Weight 4.5kg
Max Force 7 Ton
Shipping Carton 380*140*110mm

CPC-75H
Cutting Range Cu-Al Armored Cable ≤ø75mm
Weight 7.5kg
Max Force 8 Ton
Shipping Carton 450*200*110mm

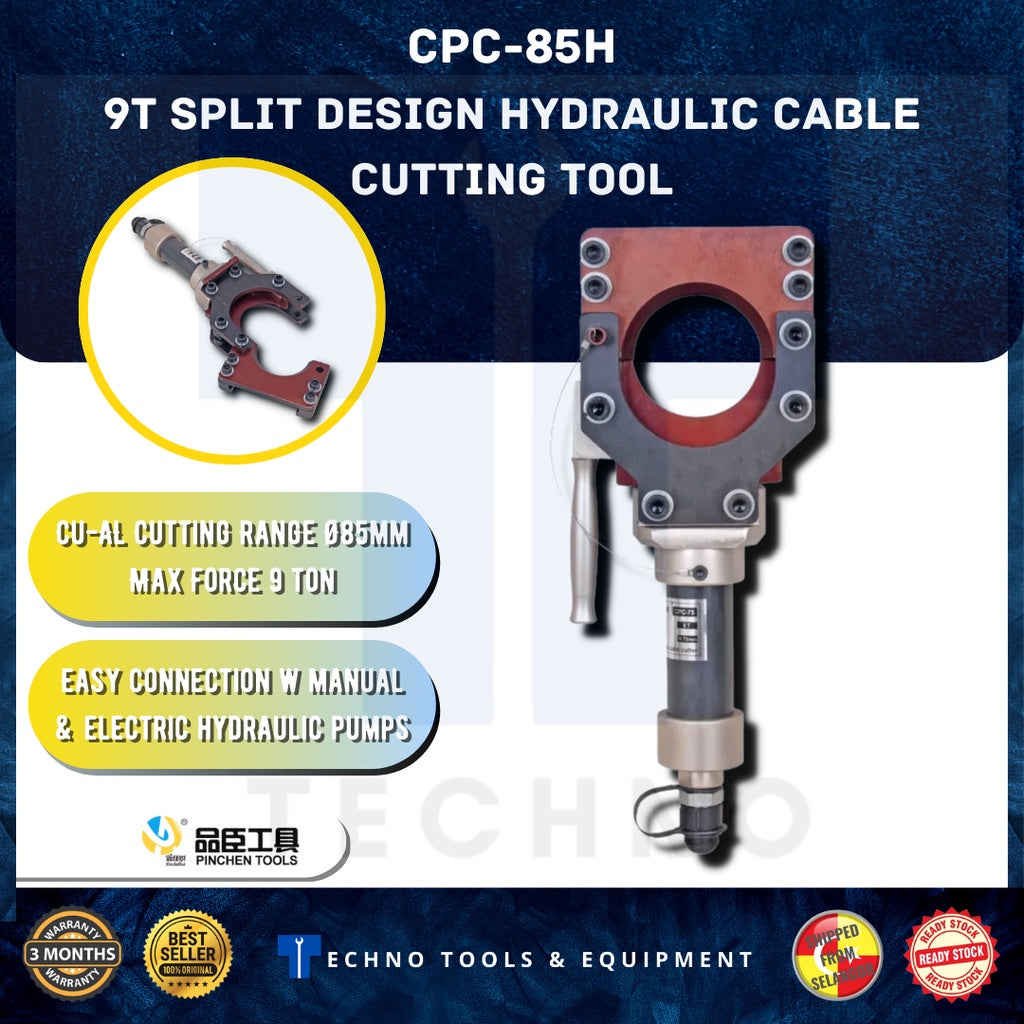

CPC-85H
Cutting Range Cu-Al Armored Cable ≤ø85mm
Weight 7.5kg
​​​​​​​Max Force 9 Ton
Shipping Carton 450*200*110mm

CPC-95H
Cutting Range Cu-Al Armored Cable ≤ø95mm
Weight 8kg
​​​​​​​Max Force 10 Ton
Shipping Carton 520*200*110mm

CPC-100H
Cutting Range Cu-Al Armored Cable ≤ø100mm
Weight 11.5kg
​​​​​​​Max Force 12 Ton
Shipping Carton 590*260*110mm

PACKING INFORMATION
- 1 UNIT
