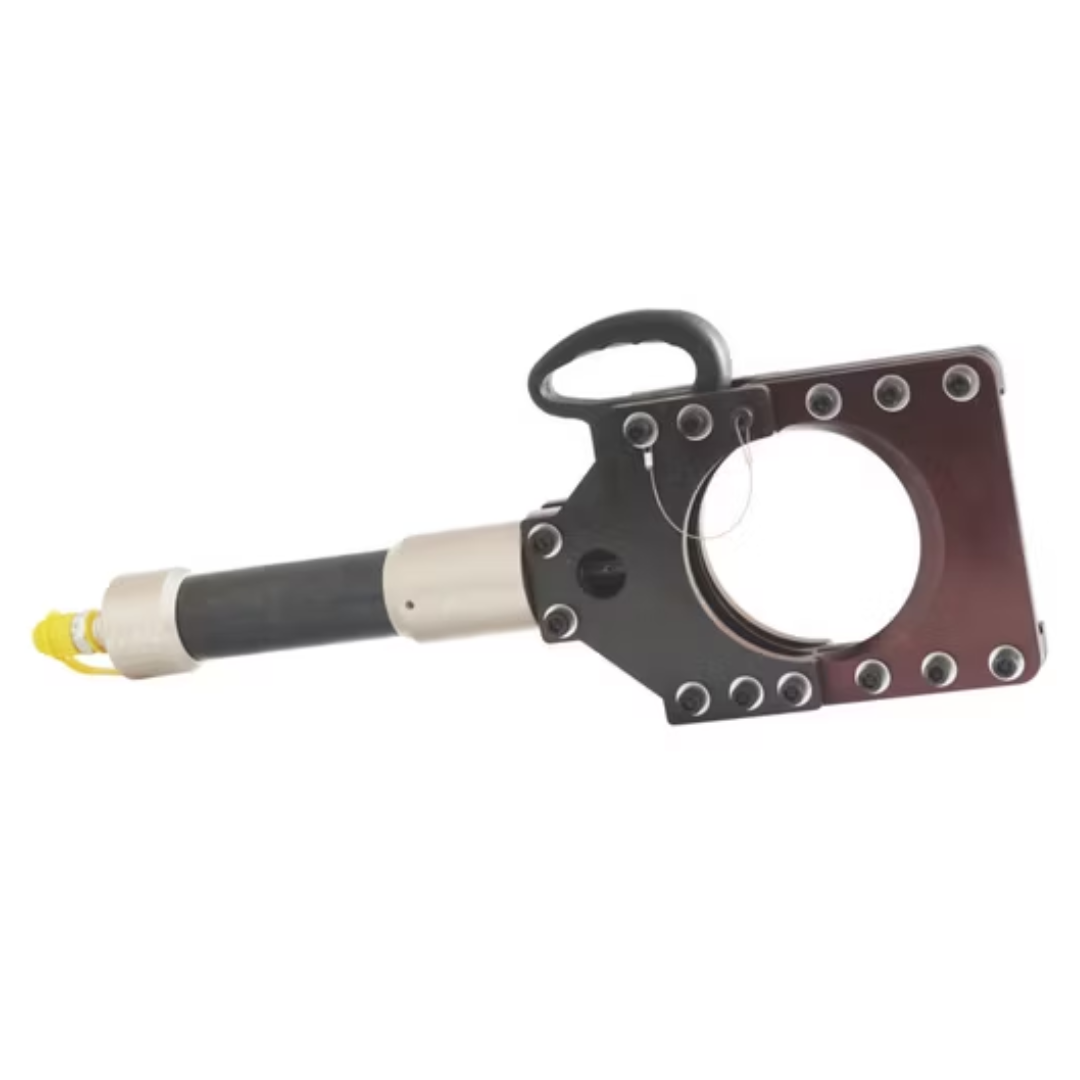

7-12Ton Split Design Hydraulic Cable Cutting Tool

Features of Split Design Hydraulic Cable Cutting Tool

-Lock pin type cutter head, blades can be replaced easily.
- Carry handle for easy shift in job sites.
- More safety with remote operation.
- Operated by hydraulic pump with rated pressure 700 bar.
- Spring steel blades, the blades are quenched and it is high strength and durable
- No oil leakage of precision oil cylinder, it is easy to cut off with powerful strength
- Easy to connect with pumps by quick connectors, both manual and electric hydraulic pumps can be used
- Cut armored AL and Cu cables.
-Built in safety valve

Specifications of Split Design Hydraulic Cable Cutting Tool

CPC-50H
Cutting Range Cu-Al Armored Cable ≤ø50mm
Weight4.5kg
Max Force 7 Ton
Shipping Carton 380*140*110mm

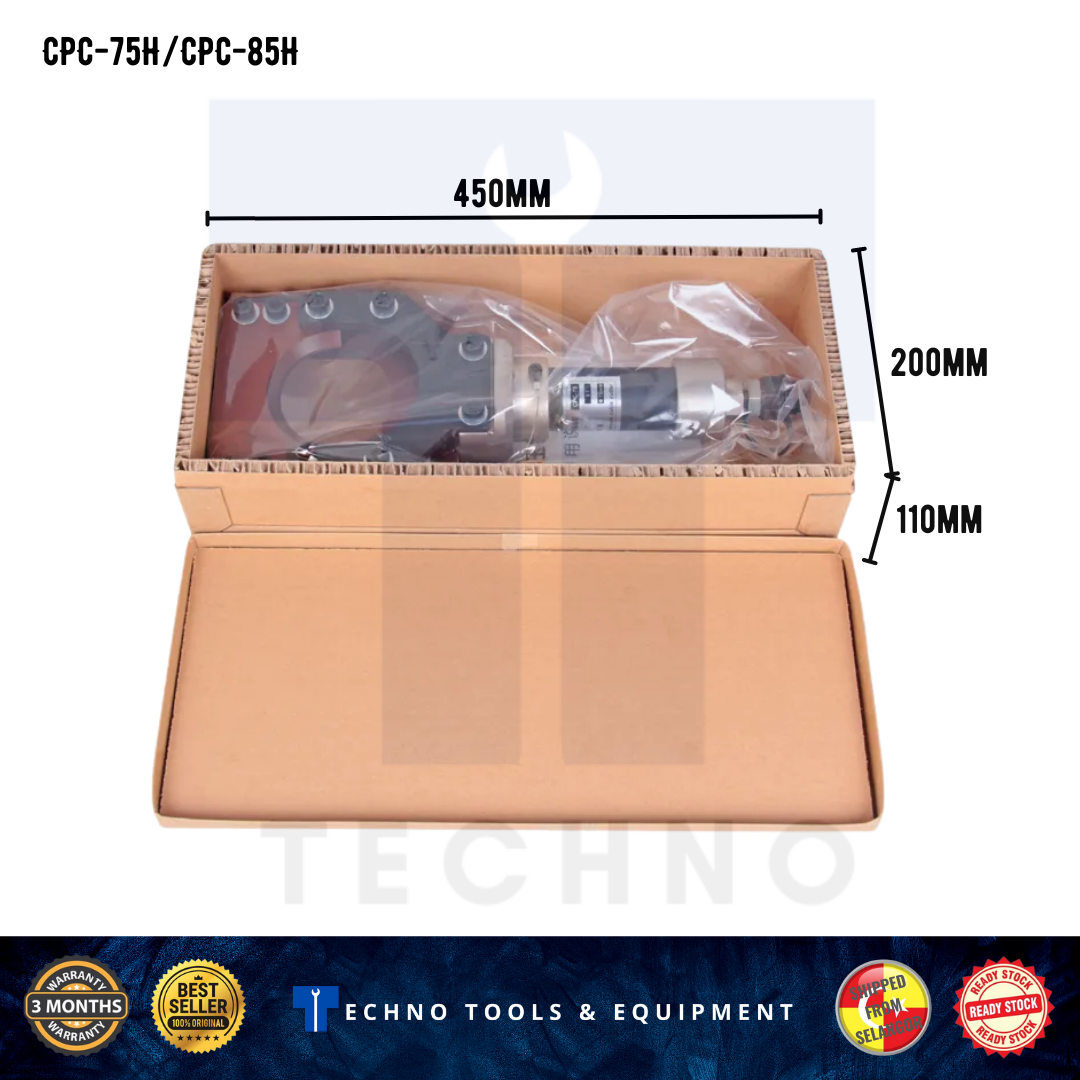

CPC-75H
Cutting Range Cu-Al Armored Cable ≤ø75mm
Weight7.5kg
Max Force 8 Ton
Shipping Carton 450*200*110mm

CPC-85H
Cutting Range Cu-Al Armored Cable ≤ø85mm
Weight7.5kg
Max Force 9 Ton
Shipping Carton 450*200*110mm

CPC-95H
Cutting Range Cu-Al Armored Cable ≤ø95mm
Weight 8kg
Max Force 10 Ton
Shipping Carton 520*200*110mm

CPC-100H
Cutting Range Cu-Al Armored Cable ≤ø100mm
Weight11.5kg
Max Force 12 Ton
Shipping Carton 590*260*110mm

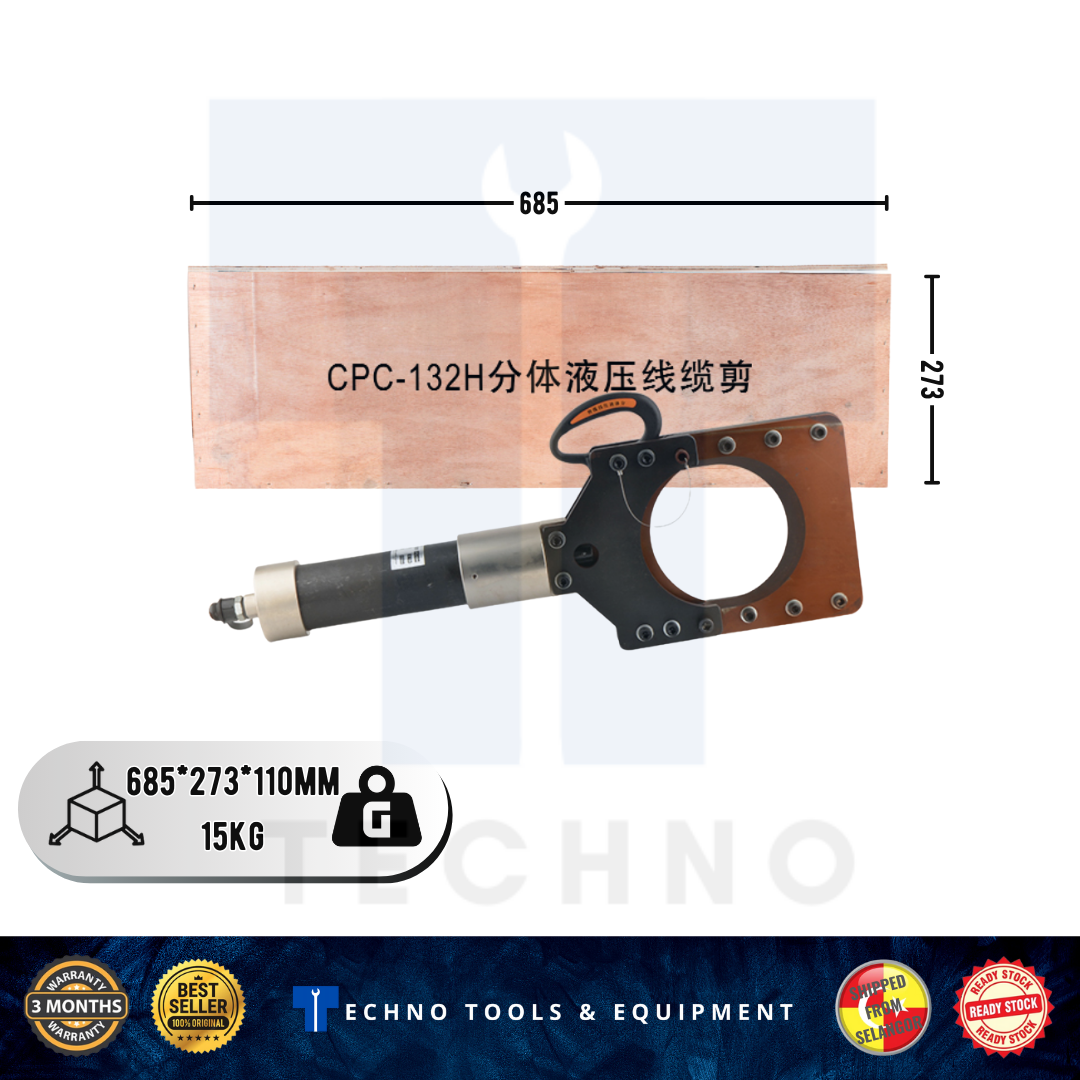

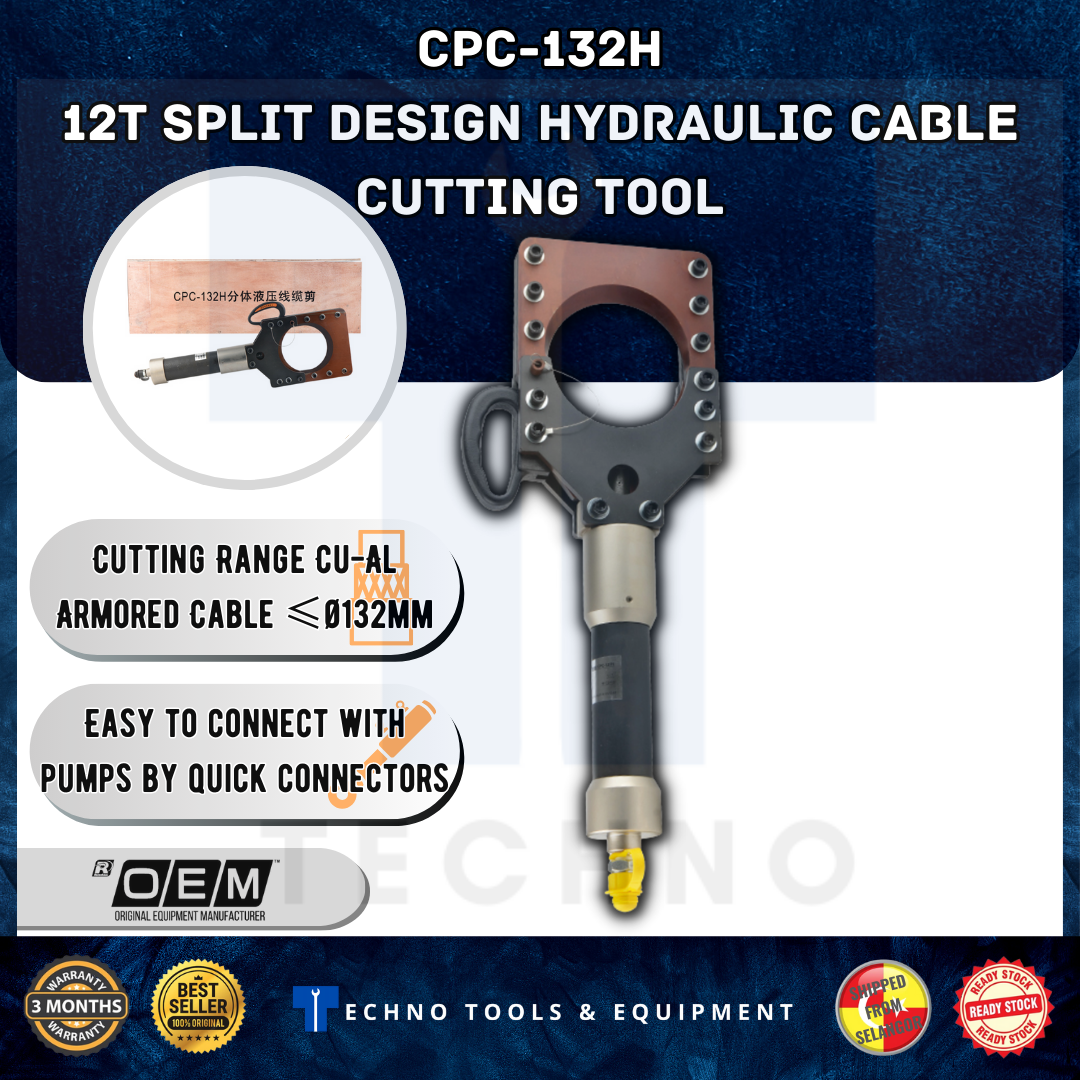

CPC-132H
Cutting Range Cu-Al Armored Cable ≤ø132mm
Weight 15kg
Max Force 12 Ton
Shipping Carton 685*273*110mm

PACKING INFORMATION
- 1 UNIT

FAQs

1. What cables can it cut?

• Designed for Cu-Al armored cables.

• Cutting capacity varies by model (CPC-50H ≤ Ø50 mm, CPC-100H up to Ø100 mm, CPC-132H larger sizes).

2. How is it powered?

• Operated by a hydraulic pump with a rated pressure of 700 bar.

• Remote operation is possible for added safety.

3. Is it safe to use?

• Yes, it includes a built-in safety valve to prevent overload.

• Lock-pin type cutter head ensures secure operation.

4. Can the blades be replaced?

• Yes, the blades are replaceable, making maintenance easier.

5. What’s included in the package?

• Cutter head, manual, quality certificate, extra seal set, and wooden box for storage.
