Digital Angle Ruler 5422 Model - 200mm 300mm 500mm
Helpful Documents
- Product Brochure Download
Couldn't load pickup availability
Digital Angle Ruler – English Datasheet

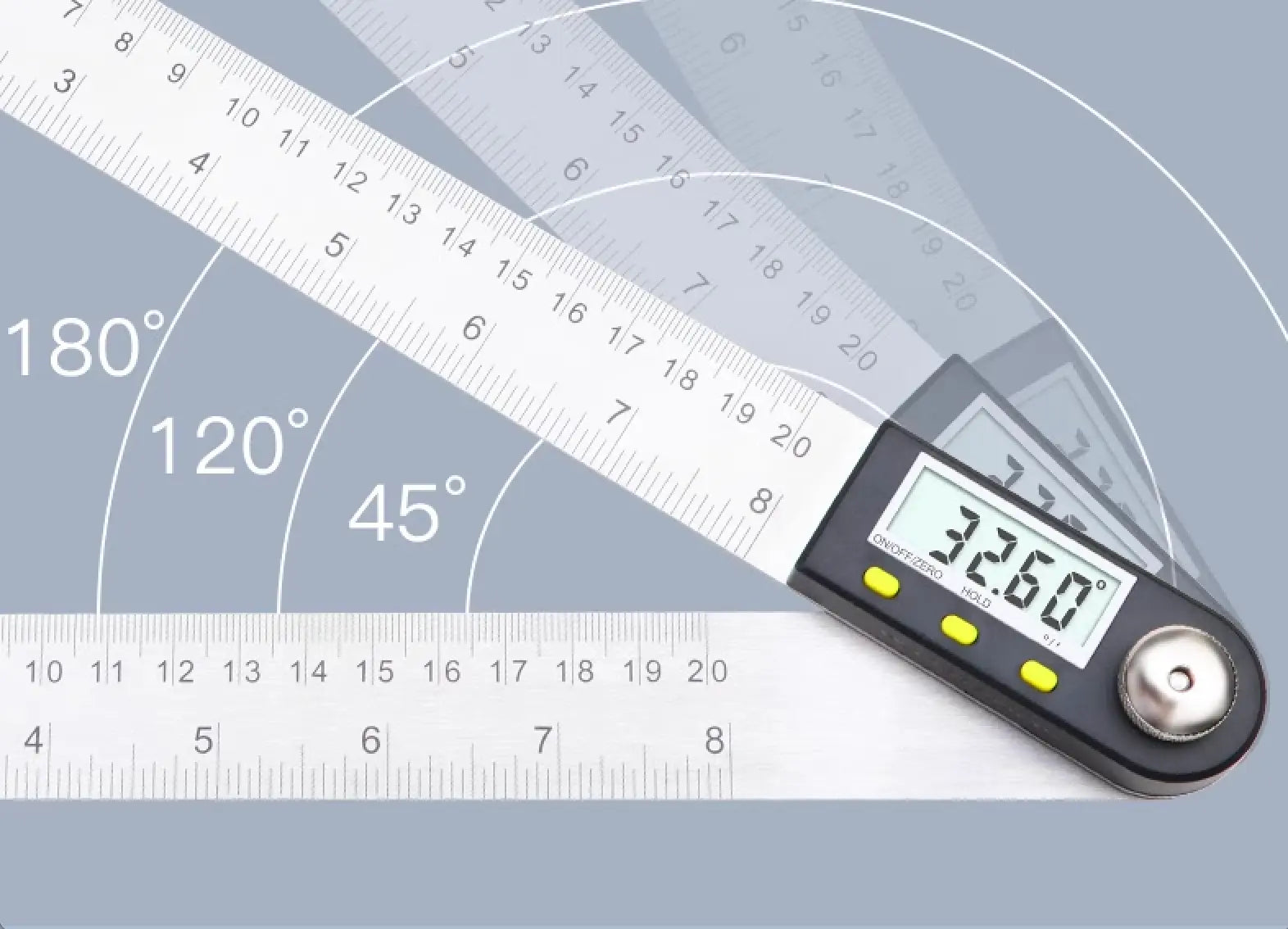

Digital Angle Ruler Overview

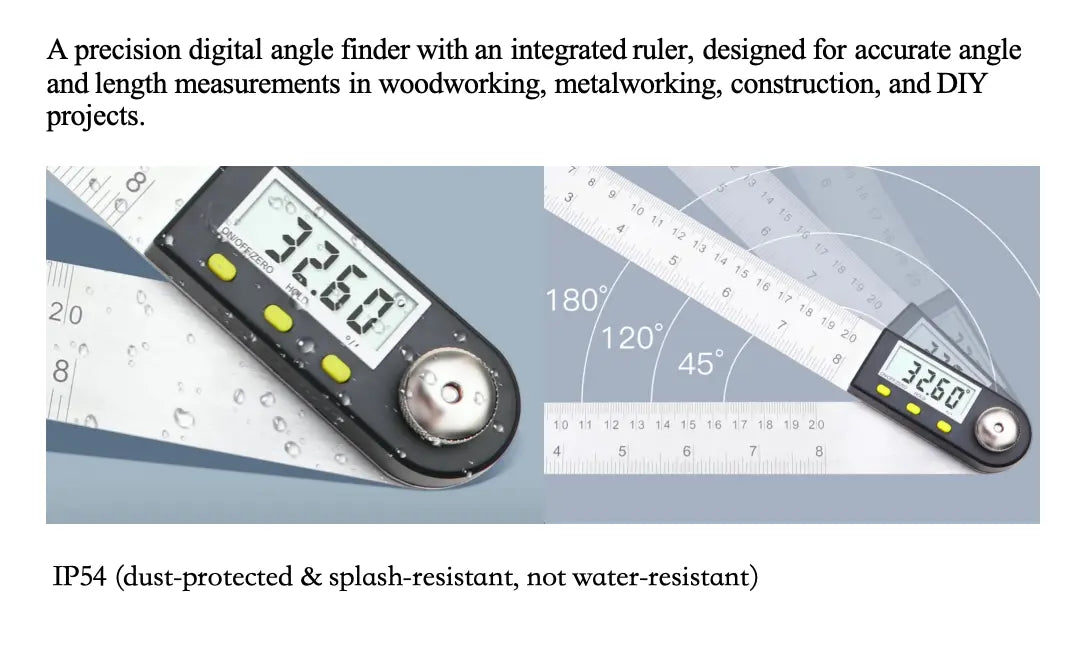

The digital angle ruler designed for accurate angle and length measurements in woodworking, metalworking, construction, and DIY projects.
Brand: SanLiang

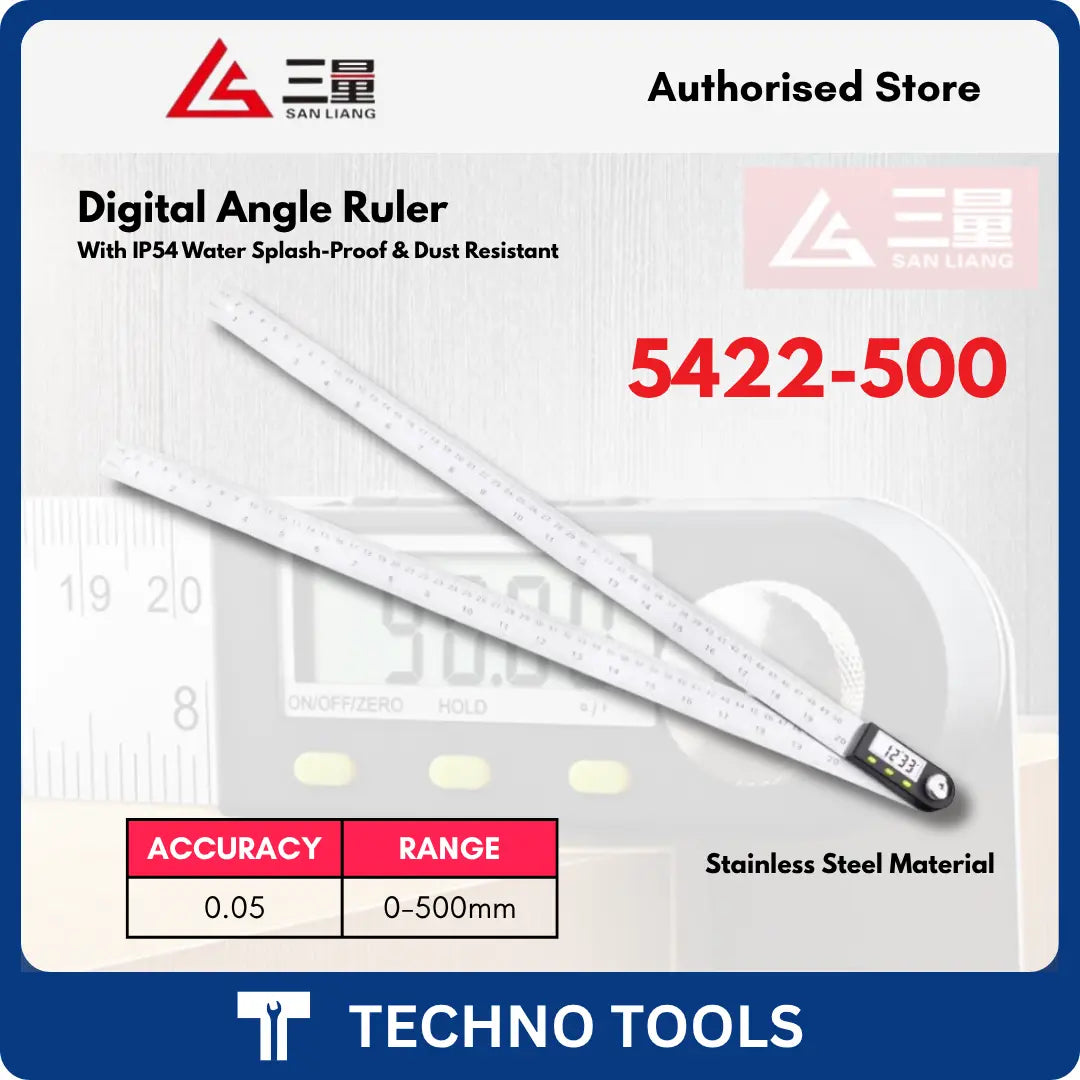

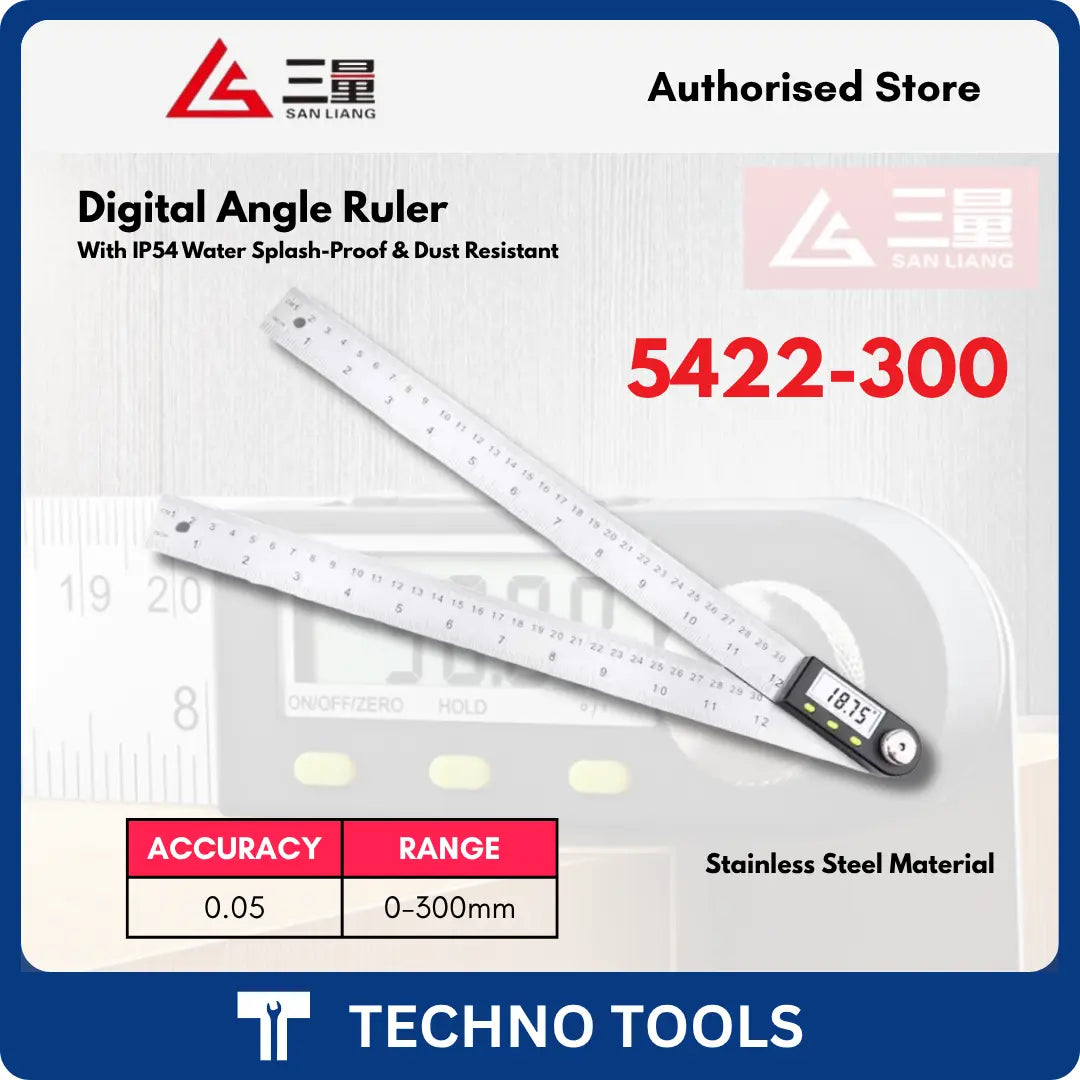

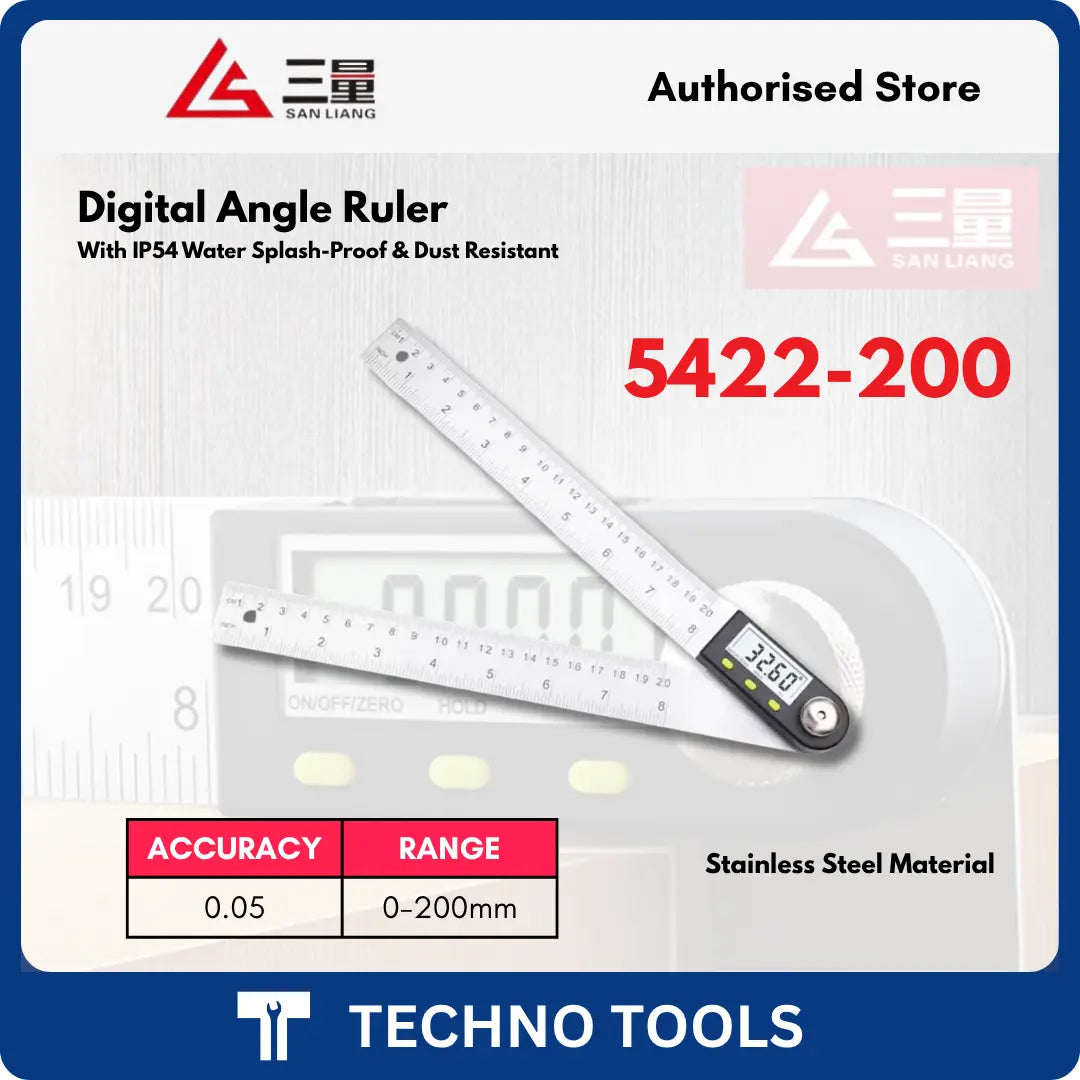

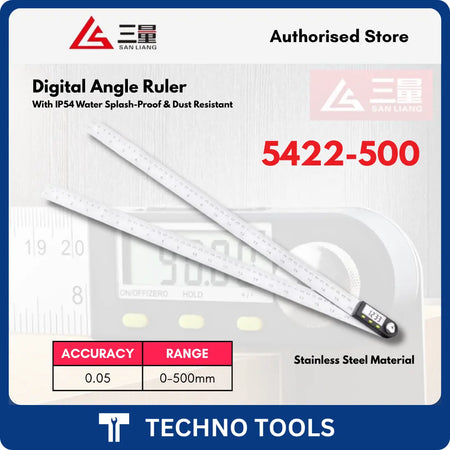

Model Series: 5422-200 / 5422-300 / 5422-500


IP54 (dust-protected & splash-resistant, not water-resistant)
2. Key Features
|
Parameter |
Specification |
|
Measurement Range |
0 – 360° |
|
Length Options |
200 mm / 300 mm / 500 mm |
|
Resolution |
0.05° |
|
Accuracy |
±0.3° |
|
Thickness |
1.2 mm |
|
Material (Body) |
High-quality stainless steel |
|
Display |
Large LCD with backlight |
|
IP Rating |
IP54 (dust-protected & splash-resistant) |
|
Power |
3V CR2032 battery (included) |
|
Functions |
Zero set, Hold, On/Off, Unit switch (°/%) |

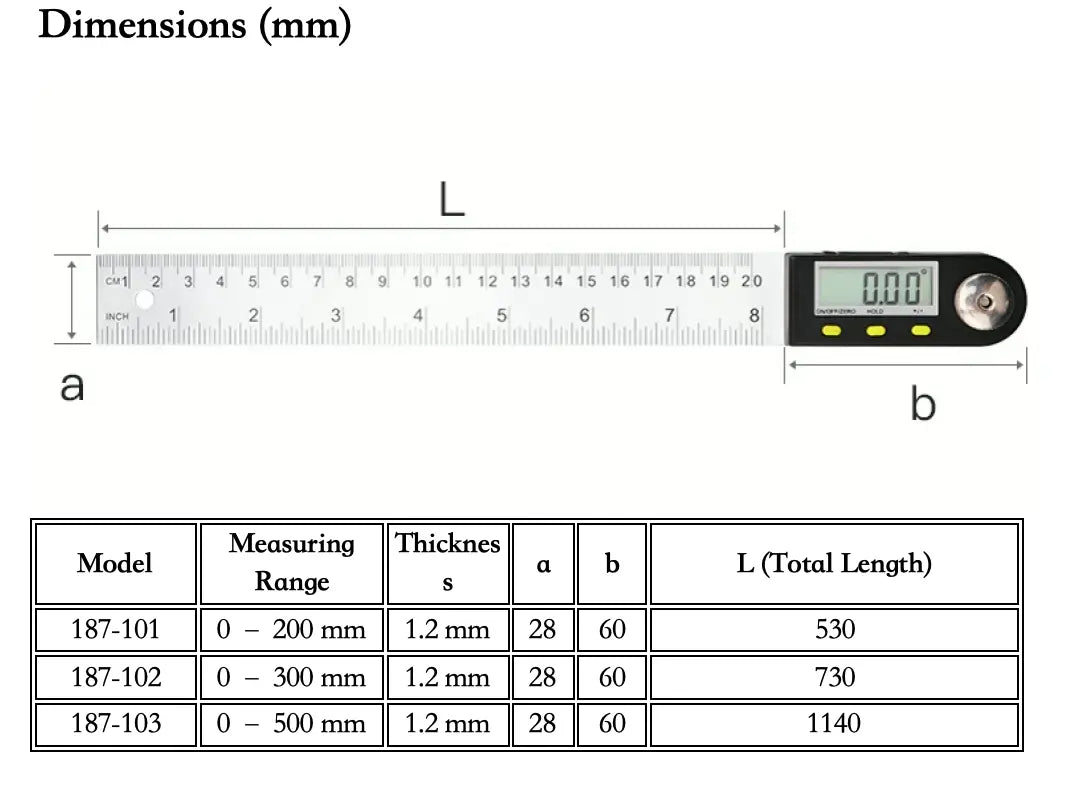

Dimensions (mm)

|
Model |
Measuring Range |
Thickness |
a |
b |
L (Total Length) |
|
5422-200 |
0 – 200 mm |
1.2 mm |
28 |
60 |
530 |
|
5422-300 |
0 – 300 mm |
1.2 mm |
28 |
60 |
730 |
|
5422-500 |
0 – 500 mm |
1.2 mm |
28 |
60 |
1140 |
Diagram Reference:
· a: Width of ruler blade
· b: Width of display head
· L: Total unfolded length

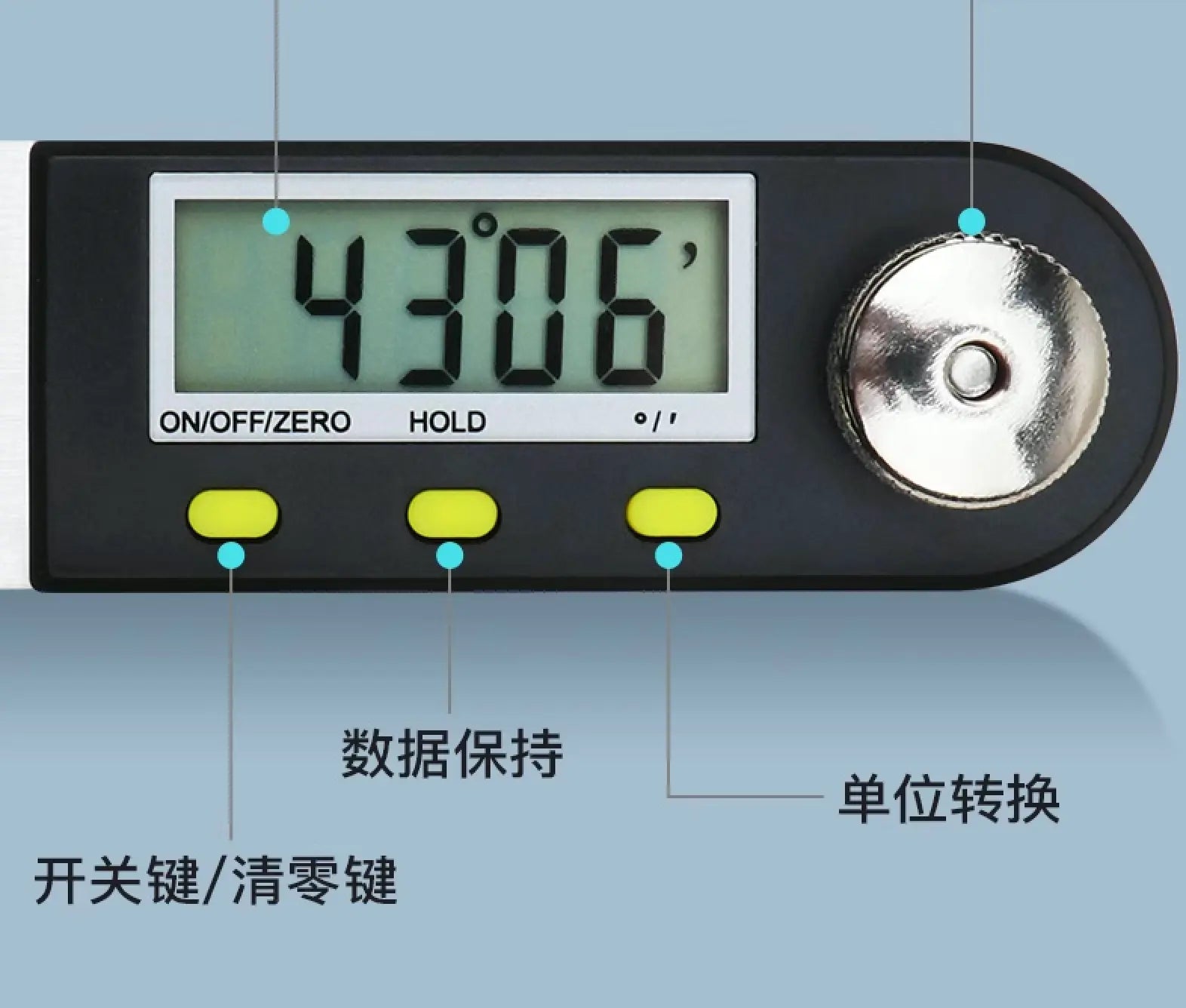

4. Display & Operation

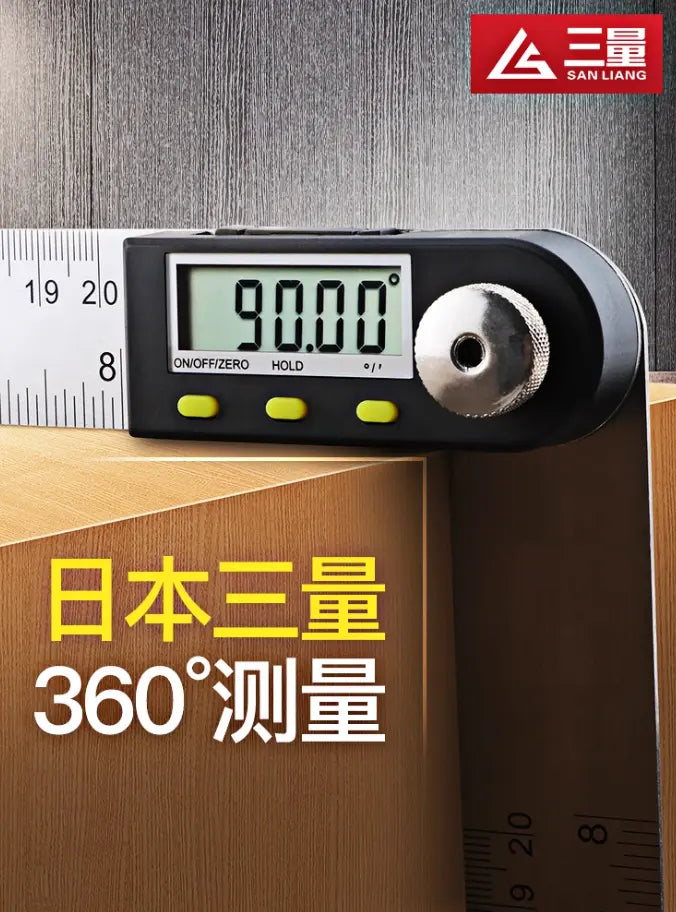

· Real-time angle display in degrees (0.0° – 360.0°)
· Hold function freezes reading.
· Zero calibration at any position.
· Auto power-off after 5 minutes of inactivity.
· Low battery indicator.
5. Applications
· Bevel & miter angle setting
· Crown molding cuts
· Staircase & railing layout
· Frame alignment
· Machinery setup & alignment
6. Safety & Maintenance
· Avoid exposure to strong magnetic fields
· Clean with dry or slightly damp cloth
· Do not disassemble the display unit
· Do not use the it under water
· Store in dry environment
