Fluke 87V/E2 Industrial Electrician Combo Kit | True-RMS Digital Multimeter CAT IV 600V
- Product Brochure Download
Couldn't load pickup availability

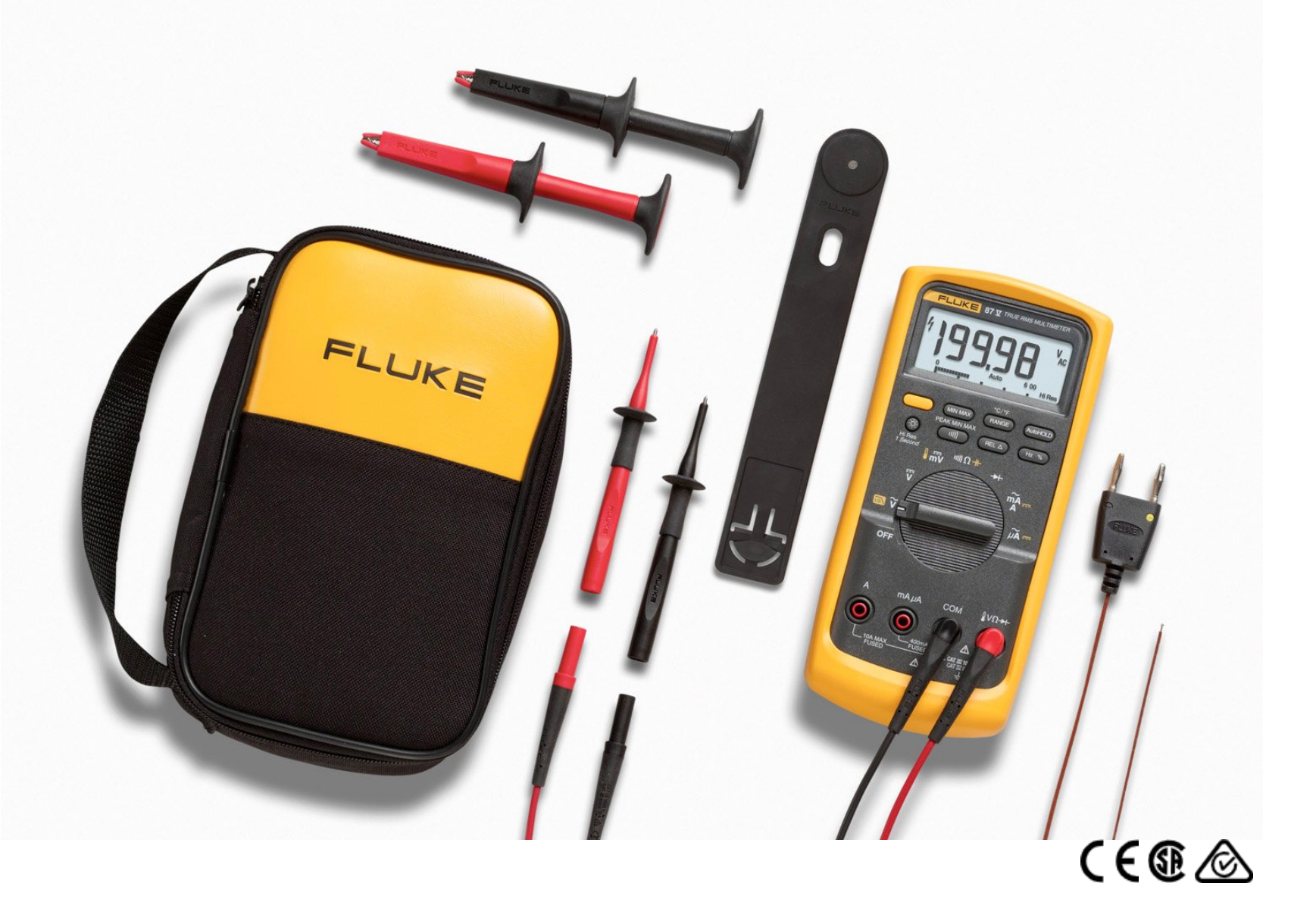

Fluke 87V/E2 Industrial Electrician Combo Kit — True-RMS | CAT IV 600V | Assembled in USA
The Fluke 87V/E2 Industrial Electrician Combo Kit is built around the Fluke 87V, the most widely used industrial digital multimeter in the world. Designed for professional electricians working in high-energy environments, this kit combines the full functionality of the 87V multimeter with essential accessories — delivering 15% savings compared to purchasing all items individually. Assembled in the USA and backed by a lifetime warranty.
What's Included
- Fluke 87V Industrial Multimeter
- TL224 SureGrip Insulated Test Leads
- AC220 SureGrip Alligator Clips
- TL238 SureGrip Test Probes (3mm fully insulated, exposed metal tips)
- ToolPak Magnetic Meter Hanging Kit
- 80BK-A DMM Temperature Probe
- C35 Soft Carrying Case
- 9V Battery (installed)
Accuracy Specifications
| Function | Range | Accuracy | Resolution |
|---|---|---|---|
| DC Voltage | 1000V | ±(0.05%+1) | 10µV |
| AC Voltage | 1000V | ±(0.7%+2) True RMS | 0.1mV |
| DC Current | 10A (20A/30s max) | ±(0.2%+2) | 0.01µA |
| AC Current | 10A (20A/30s max) | ±(1.0%+2) True RMS | 0.1µA |
| Resistance | 50MΩ | ±(0.2%+1) | 0.1Ω |
| Capacitance | 9,999µF | ±(1%+2) | 0.01nF |
| Frequency | 200kHz | ±(0.005%+1) | 0.01Hz |
| Duty Cycle | 99.9% | ±(0.2% per kHz+0.1%) | 0.1% |
| Temperature | -200°C to 1090°C | — | — |
| Conductance | 60.00nS | ±(1.0%+10) | 0.01nS |
| Diode | 3V | ±(2%+1) | 1mV |
General Specifications
| Specification | Details |
|---|---|
| Display | 6000 counts (4/sec); 19,999 counts high resolution mode |
| Analog Bar Graph | 32 segments, updates 40/sec |
| AC Bandwidth | 20kHz with low-pass filter; 3dB @ 1kHz |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +60°C |
| Safety Rating | CAT IV 600V / CAT III 1000V (EN 61010-1) |
| Agency Approvals | UL, CSA, TÜV, VDE listed |
| Operating Altitude | 2000m |
| Size | 201 x 98 x 52mm (with holster) |
| Weight | 355g / 624g with holster |
| Battery Life | ~400 hours typical (without backlight) |
| Drop Test | 1 metre per IEC 61010-1:2001 |
| Warranty | 1 Year Supplier Warranty |
Features & Benefits
-
True-RMS AC Measurements
True-RMS voltage and current measurement ensures accurate readings on non-linear loads, VFDs and distorted waveforms common in industrial environments. -
Industry-Leading 0.05% DC Accuracy
Exceptional 0.05% DC voltage accuracy for precise measurements in power distribution and calibration-level diagnostics. -
VFD/VSD Accurate Measurement
Low-pass filter enables accurate voltage, current and frequency measurements on the output side of variable speed and frequency drives — at the drive or motor terminals. -
Peak Capture — 250µS
Captures glitches, spikes and intermittent signals as short as 250µS, identifying irregular power quality events that standard meters miss. -
Wide Temperature Measurement
Measures temperature from -200°C to 1090°C using the included 80BK-A temperature probe — suitable for motor, mechanical and process temperature checks. -
10,000µF Capacitance Range
High capacitance range covers motor capacitors and large industrial components for comprehensive diagnostics. -
Fully Insulated 3mm Test Probes
TL238 SureGrip test probes feature fully insulated bodies with 3mm exposed metal tips — specifically designed for electricians working in high-energy environments. -
ToolPak Magnetic Hanging Kit
TPAK magnetic strap attaches the meter to any ferrous surface — cabinets, iron pipes and panels — freeing both hands for safer, more efficient operation. -
CAT IV 600V / CAT III 1000V Safety Rating
All inputs protected to CAT IV 600V and CAT III 1000V, withstanding impulse spikes in excess of 8,000V for maximum electrical safety. -
Large Backlit Display with Analog Bar Graph
Large digit display with two-level backlight and 32-segment analog bar graph for visibility in low light and monitoring of rapidly changing signals. -
Touch Hold Technology
Holds readings on display after removing probes, allowing safe viewing away from the measurement point.
Applications
- Industrial electrical maintenance and troubleshooting
- VFD/VSD motor drive diagnostics and commissioning
- Power distribution and power quality checking
- In-plant automation and electromechanical equipment
- Motor temperature and capacitor testing
- High-energy environment electrical work
Why Choose Fluke 87V/E2 Combo Kit?
- World's most widely used industrial digital multimeter
- 15% savings vs purchasing accessories individually
- True-RMS for accurate non-linear load measurements
- 0.05% DC accuracy for precision diagnostics
- Peak capture 250µS for intermittent fault detection
- Fully insulated probes for high-energy environments
- CAT IV 600V / CAT III 1000V safety rated
- Magnetic hanging kit for hands-free operation
- Assembled in USA — backed by lifetime warranty
