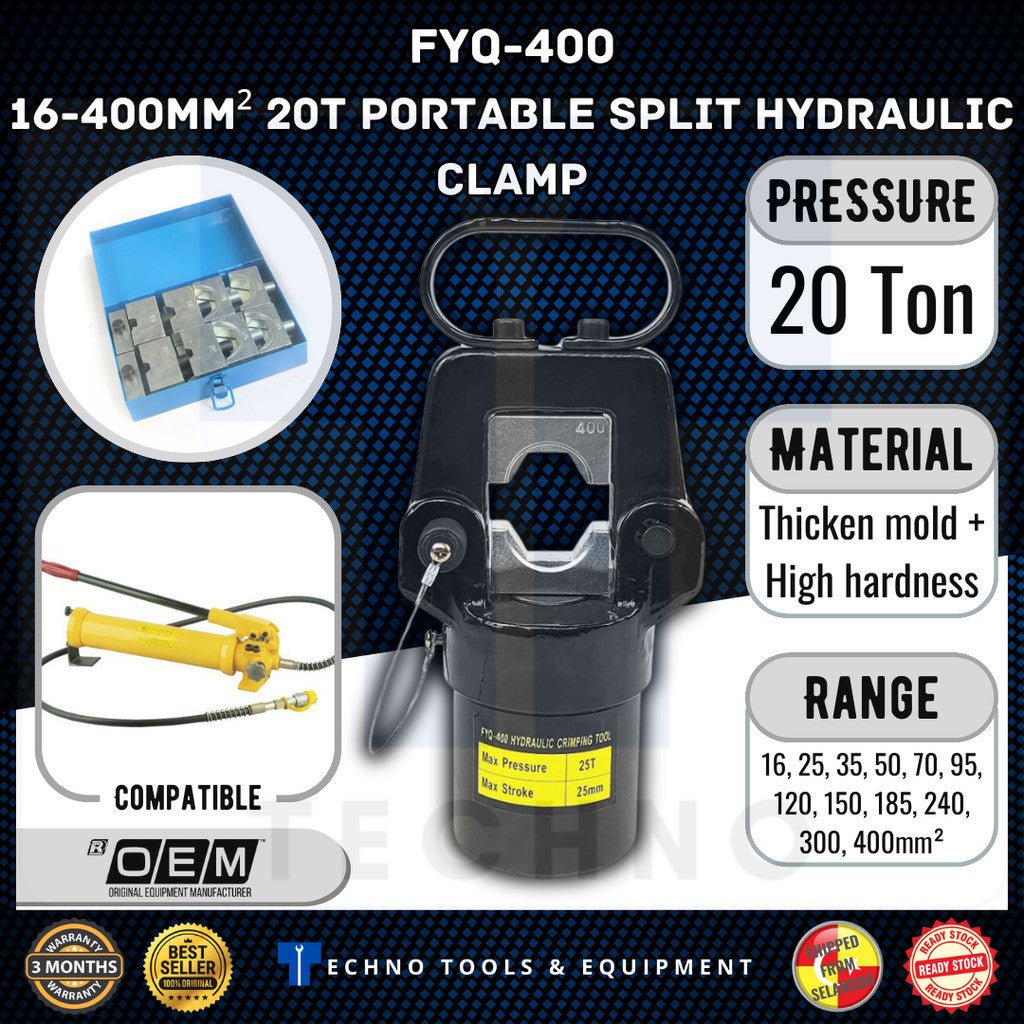

FYQ-300 / FYQ-400 / FYQ-500 Split Hydraulic Crimping Tool, 20T Output
Couldn't load pickup availability
Overview Summary

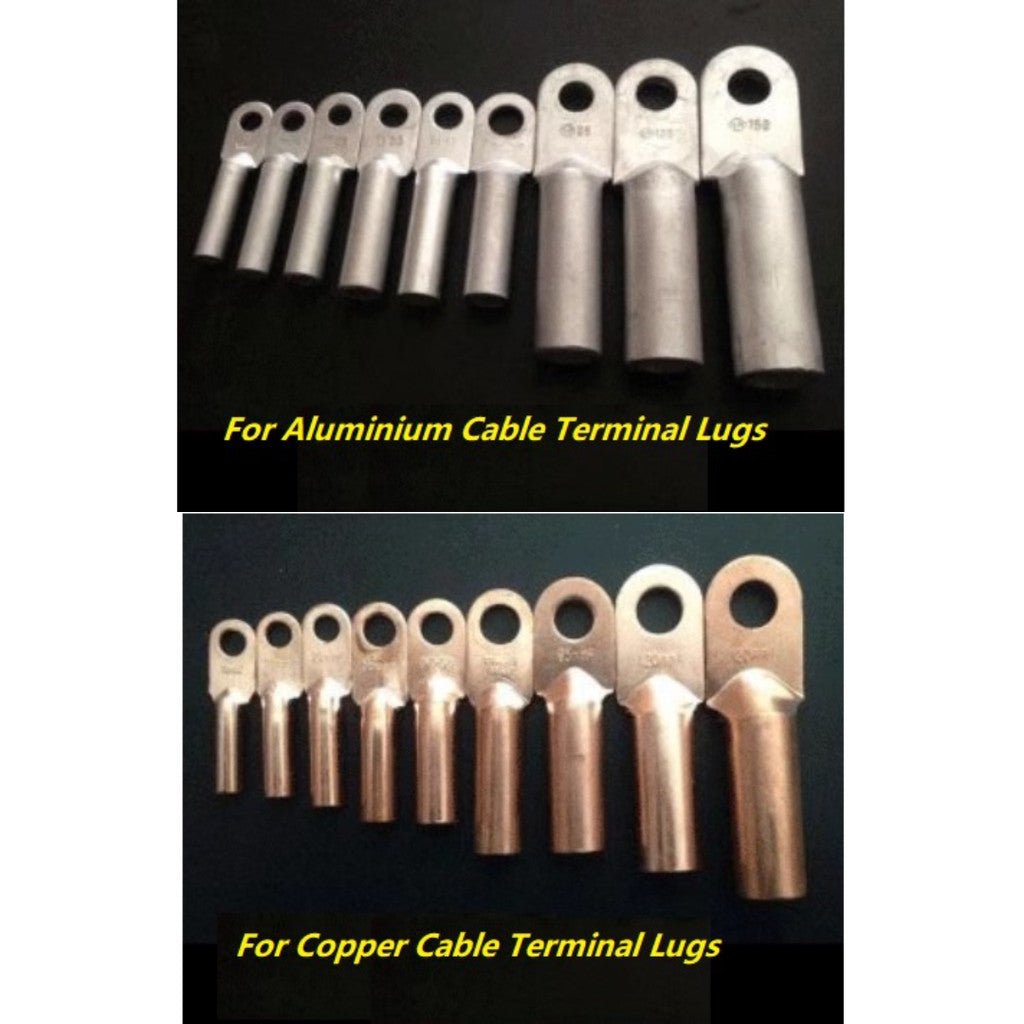

The FYQ Series Split Hydraulic Crimping Tools are built for professional electrical and industrial applications. Delivering up to 20 tons of crimping force, these portable crimp heads provide reliable, precise crimping on copper and aluminum cable lugs. With models available up to 500 mm², the FYQ series is ideal for heavy-duty cable terminations in workshops, substations, and construction sites.
Key Features
-
Strong hydraulic output: up to 20 tons (FYQ-400 & FYQ-500).
-
Wide crimping range: handles 16 mm² – 500 mm² cable lugs.
-

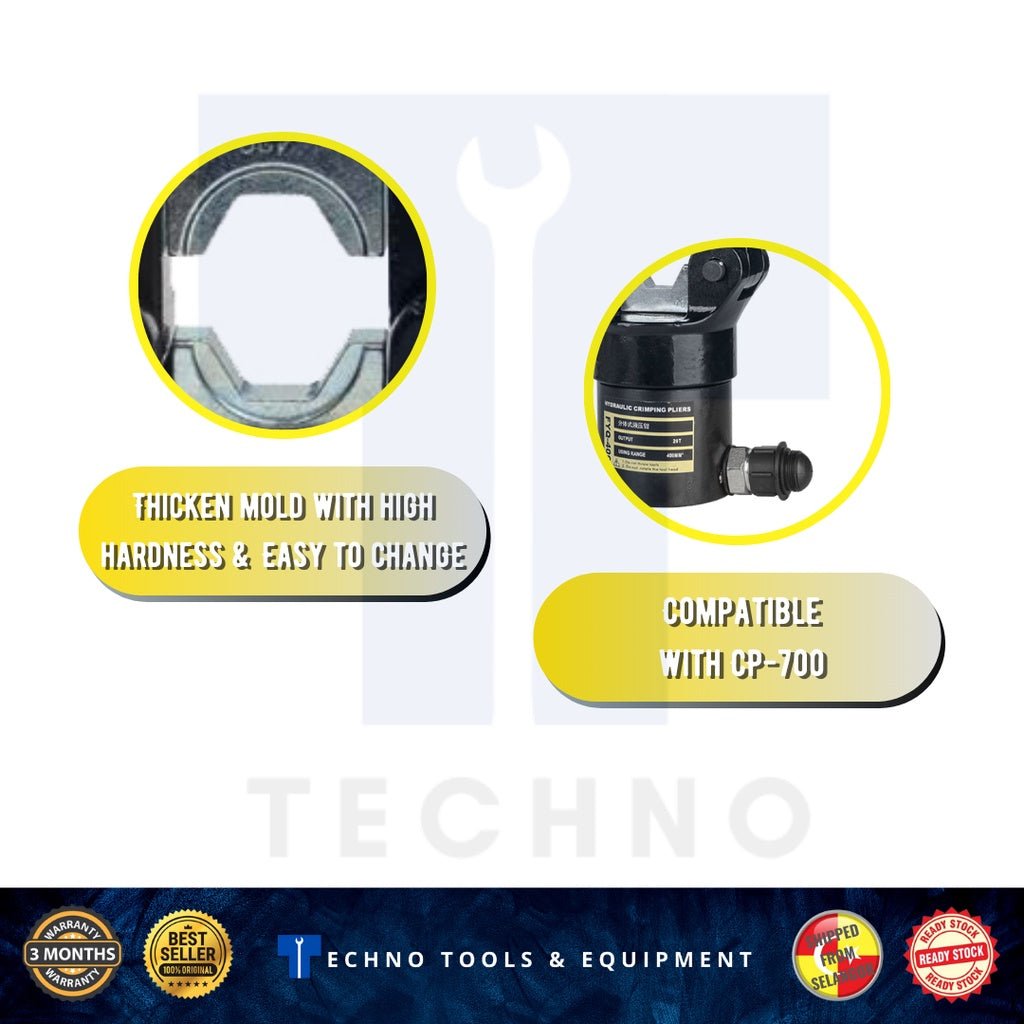

Split-head design: easy die change and compact storage.
-
High-hardness alloy steel body ensures long service life.
-

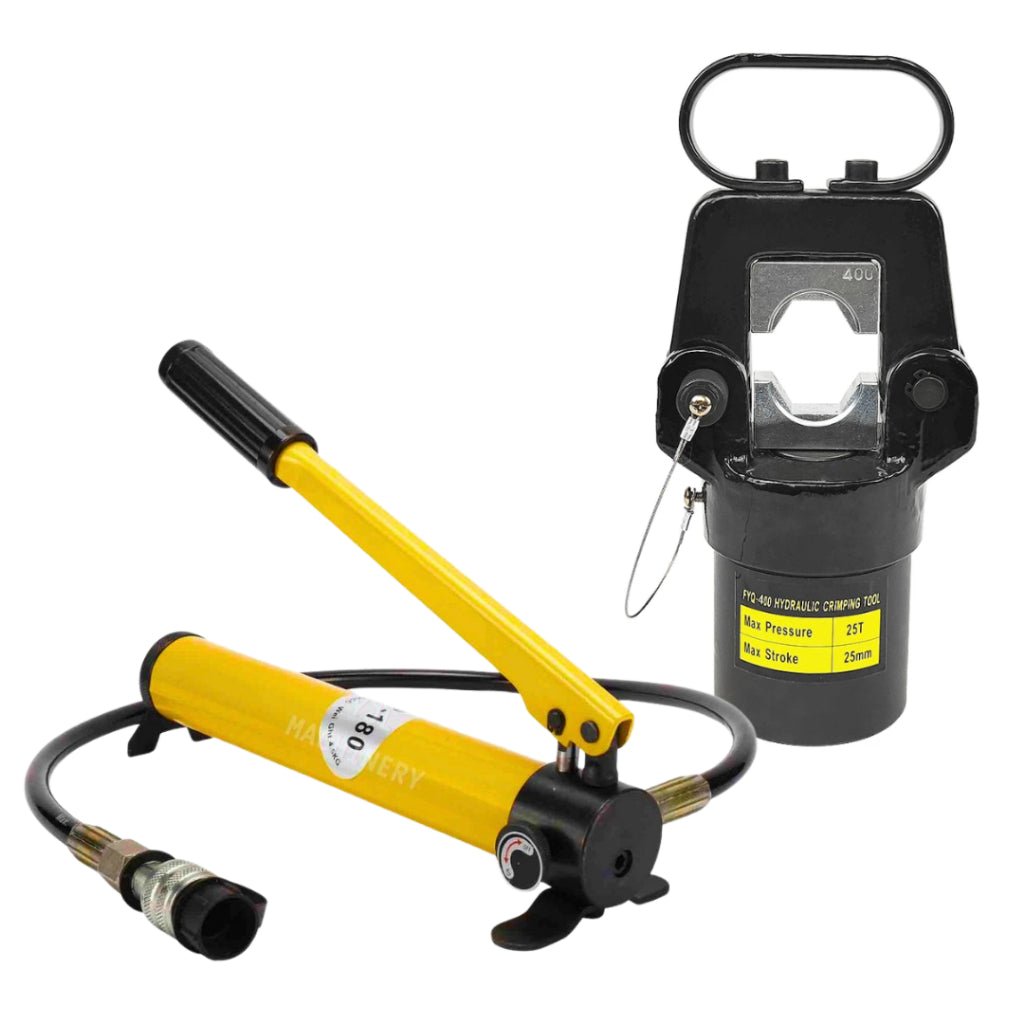

Compatible with manual or electric pumps (CP-180 / CP-700).
-

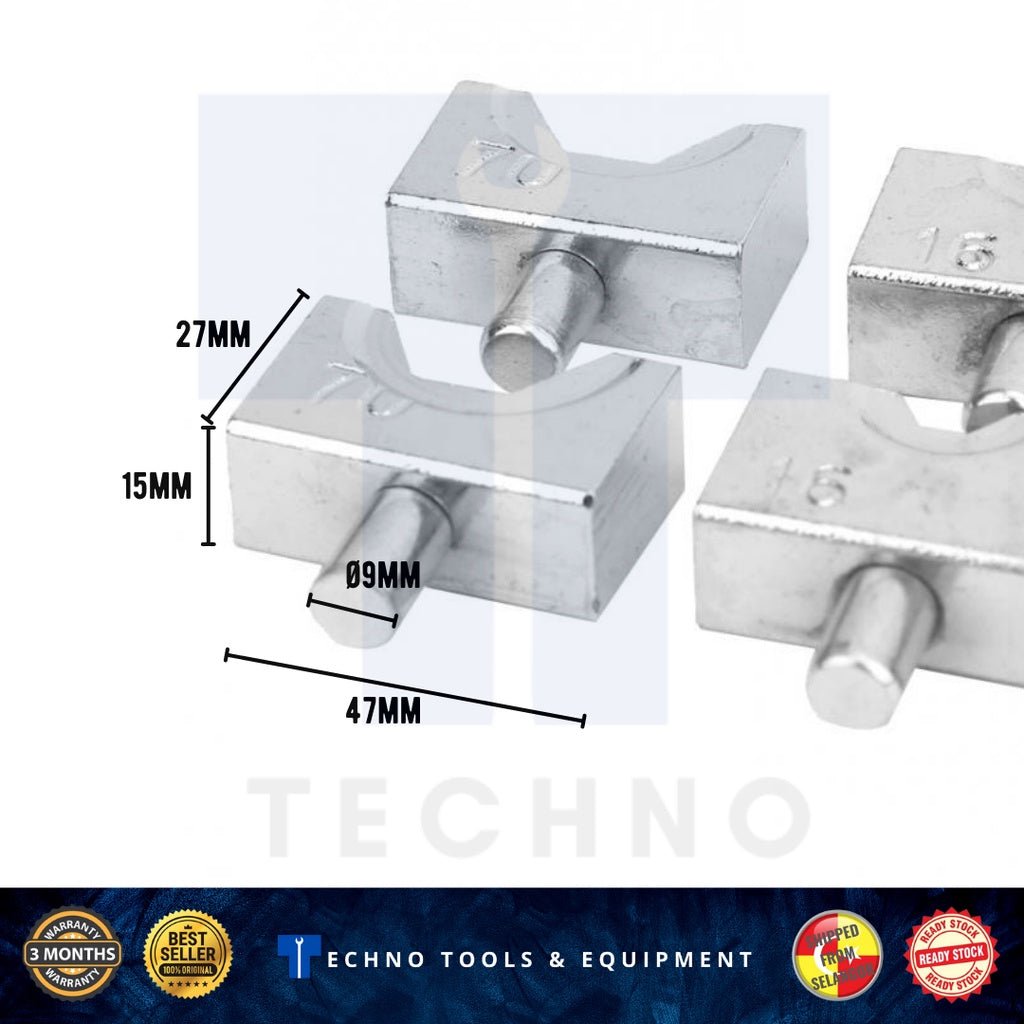

Precision hexagonal dies for secure, uniform crimps.
-
Portable, durable, and easy to maintain.
Specification Table

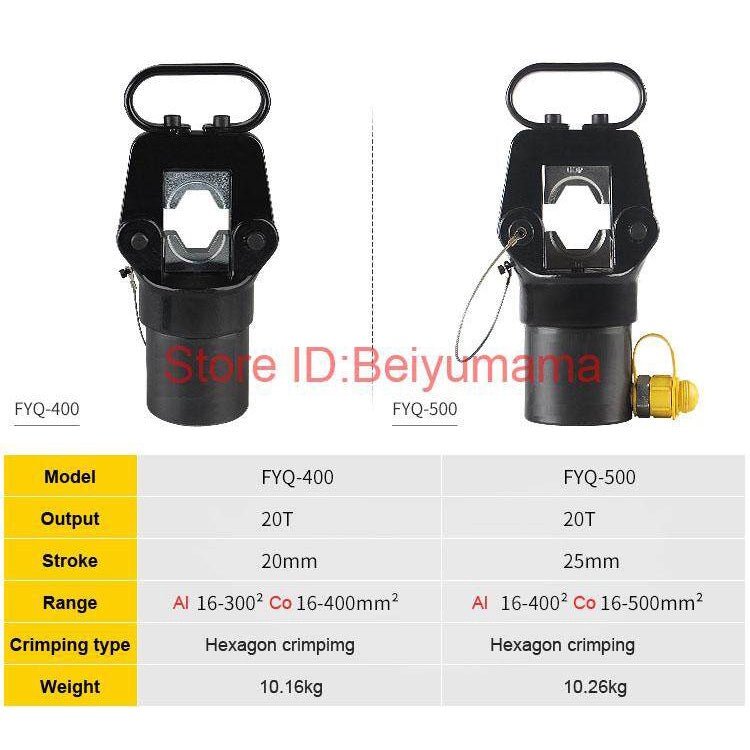

| Specification | FYQ-240 | FYQ-300 | FYQ-400 | FYQ-500 |
|---|---|---|---|---|
| Crimping Force | 16 Ton | 16 Ton | 20 Ton | 20 Ton |
| Crimping Range | 16–240mm² | 16–300mm² | 16–400mm² | 16–500mm² |
| Stroke | 20mm | 20mm | 25mm | 25mm |
| Crimp Type | Hexagonal | Hexagonal | Hexagonal | Hexagonal |
| Material | High-Hardness Alloy Steel | High-Hardness Alloy Steel | High-Hardness Alloy Steel | High-Hardness Alloy Steel |
| Compatible Pump | CP-180 / CP-700 | CP-180 / CP-700 | CP-180 / CP-700 | CP-180 / CP-700 |
| Approx. Weight | 3.8kg | 4.2kg | 11kg | 11kg |

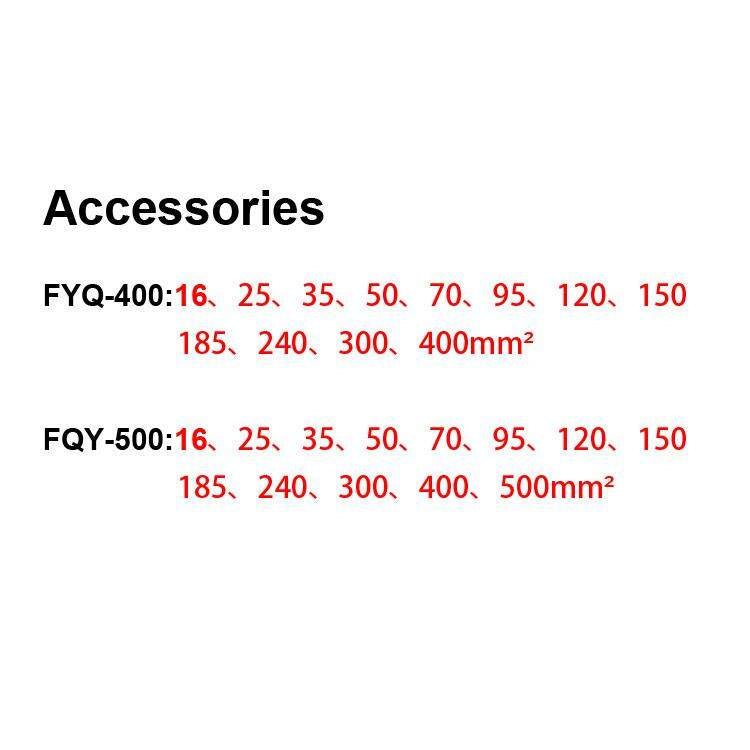

| Included Dies (mm²) | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500 |

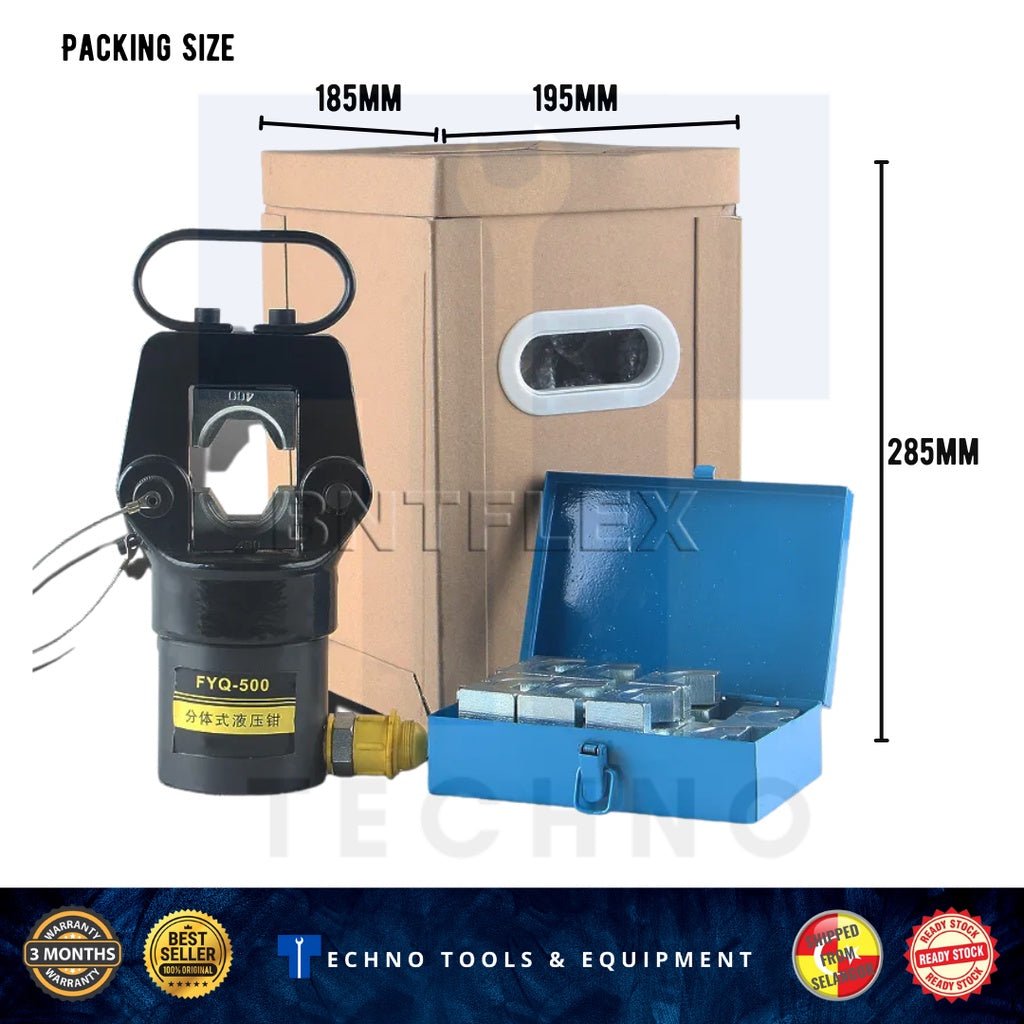

📦 Package Content
-
1 × FYQ Hydraulic Crimping Head
-
1 × Quick-connect hydraulic coupling
-
1 × Protective dust cap
-
1 × Carrying case or box
-
Optional: Hydraulic Pump (CP-180 / CP-700 sold separately)
🛡️ Warranty Term
Includes a 3-month local warranty covering manufacturing defects.
Excludes wear-and-tear, seal damage, or improper usage.
