100-500mm Travels Hydraulic Oil Cylinder Heavy Duty Bidirectional Lifting Small Wood Splitter 2 Tonnage HSG - 1PC
Couldn't load pickup availability
Output Force: 2 Tons
O.D: φ50mm
I.D: φ40mm
Rod Diameter: φ25mm
Hole Diameter: φ20mm
Rated Pressure: 16Mpa
Port: M18 * 15

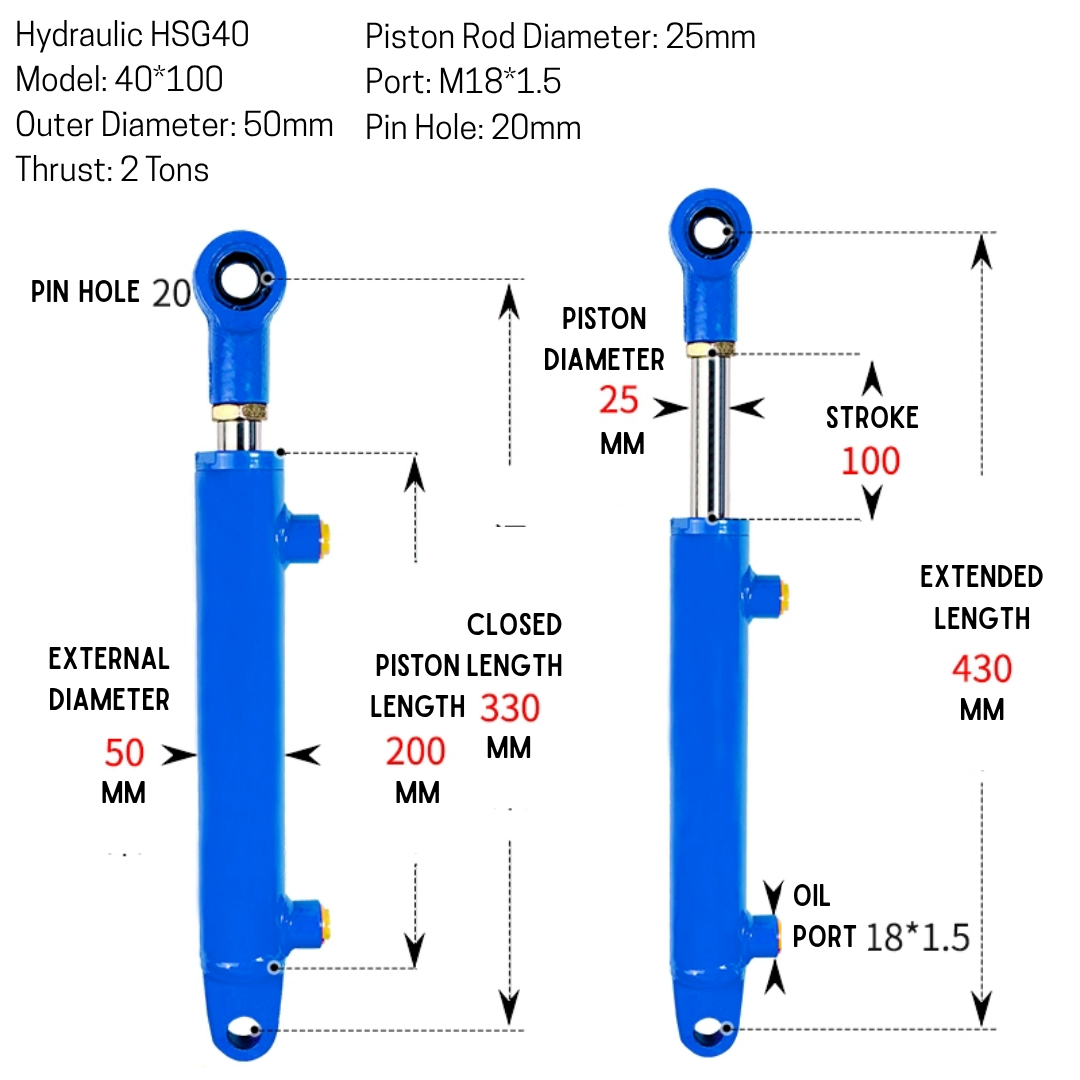

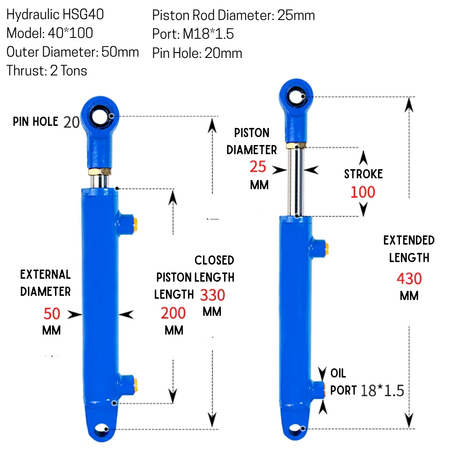

Name: HSG-40-2T-100
Stroke: 100mm
Cylinder Length: 200mm
Overall Length: 320mm
Extended Length: 420mm

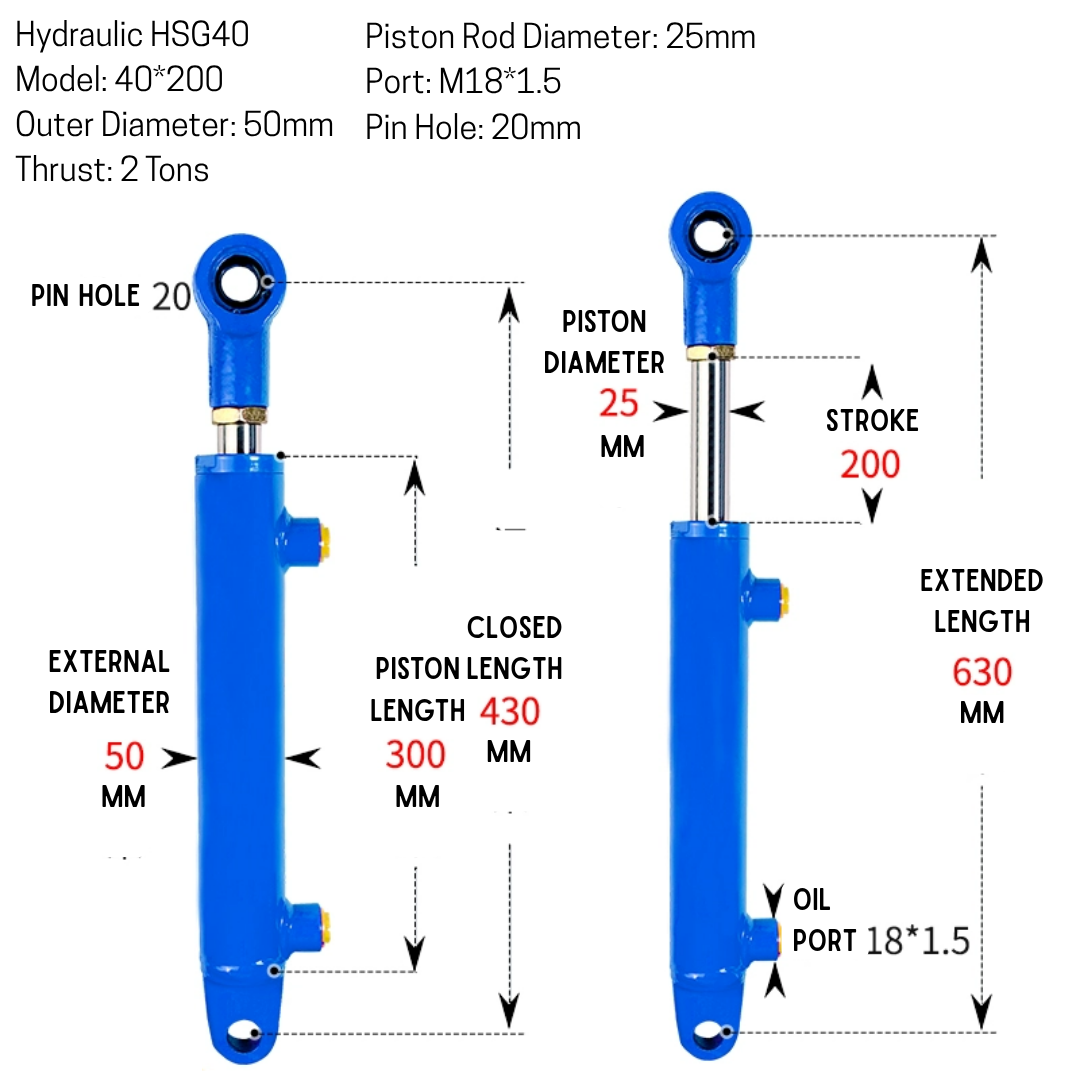

Name: HSG-40-2T-200
Stroke: 200mm
Cylinder Length: 300mm
Overall Length: 420mm
Extended Length: 620mm

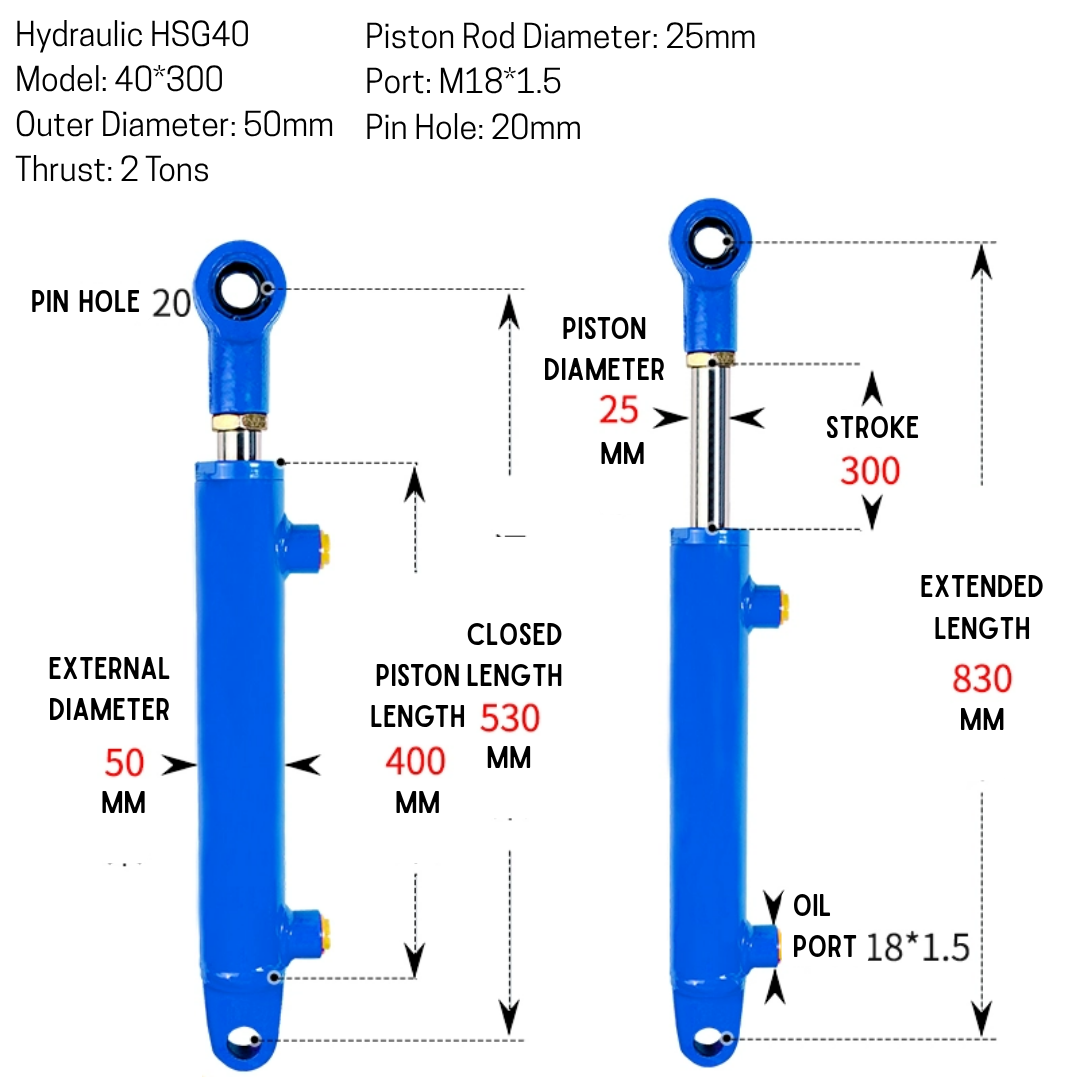

Name: HSG-40-2T-300
Stroke: 300mm
Cylinder Length: 400mm
Overall Length: 520mm
Extended Length: 820mm
Name: HSG-40-2T-400
Stroke: 400mm
Cylinder Length: 500mm
Overall Length: 620mm
Extended Length: 1020mm

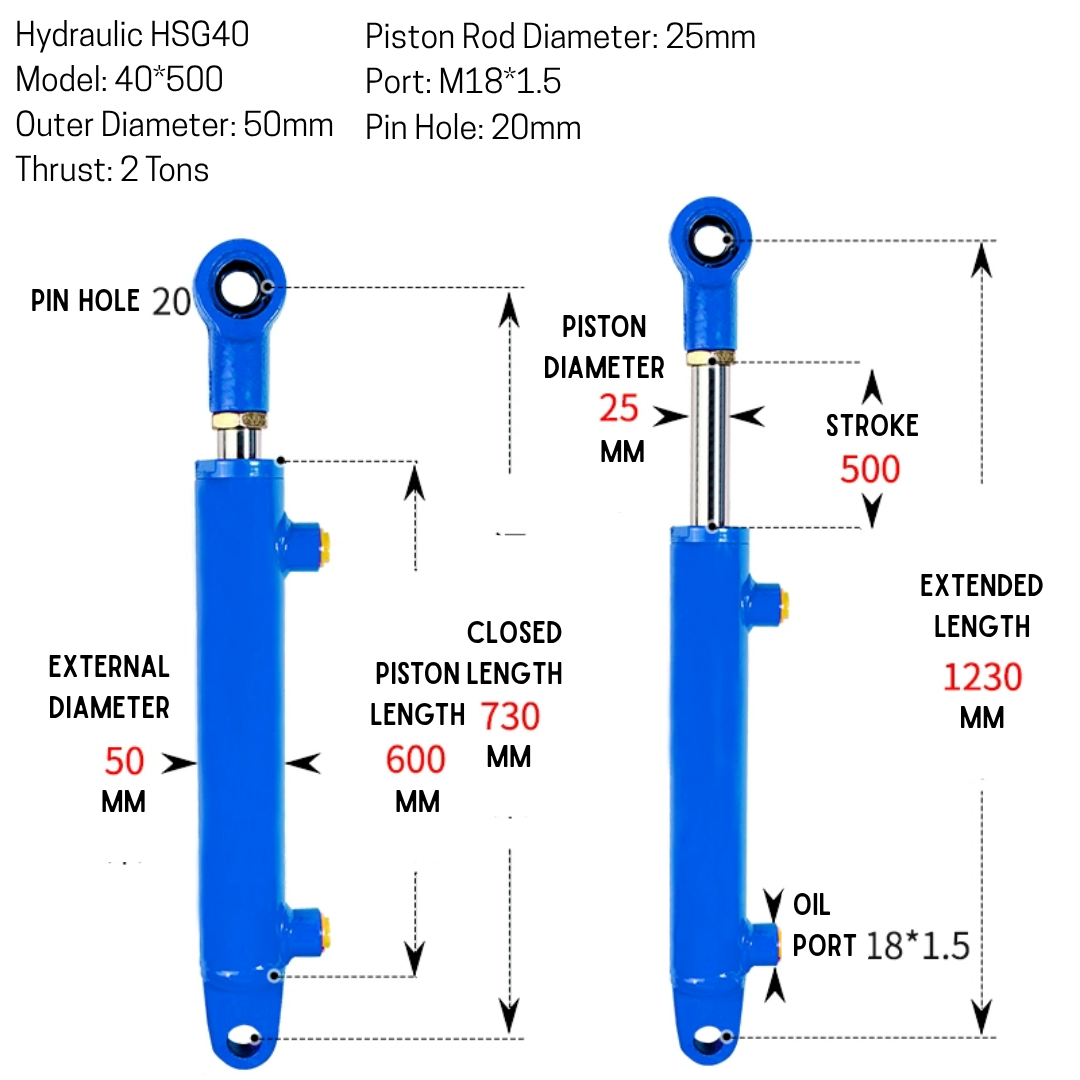

Name: HSG-40-2T-500
Stroke: 500mm
Cylinder Length: 600mm
Overall Length: 720mm
Extended Length: 1220mm
| Warranty period | 3 Months Warranty |
|---|---|
| Coverage | Manufacturing defects in materials and workmanship for 3 months from the date of purchase, covering the pump, body, cylinder and operating mechanism. |
| Not covered | Seals and O-rings worn through normal use; oil leakage caused by overloading or contaminated oil; dies, blades, cutting heads and other wear parts; hoses and couplers; normal wear and tear; cosmetic damage; damage from drops, impact, misuse or use beyond the rated capacity. |
| Warranty void if | The product has been modified, opened or repaired by unauthorised persons, used beyond its rated tonnage or pressure, or proof of purchase cannot be shown. |
Contact Techno Tools via WhatsApp or sales@techno.com.my with your invoice number and photos or a video of the defect. Return the unit complete with all accessories. Defective units or parts will be repaired or replaced after inspection.
