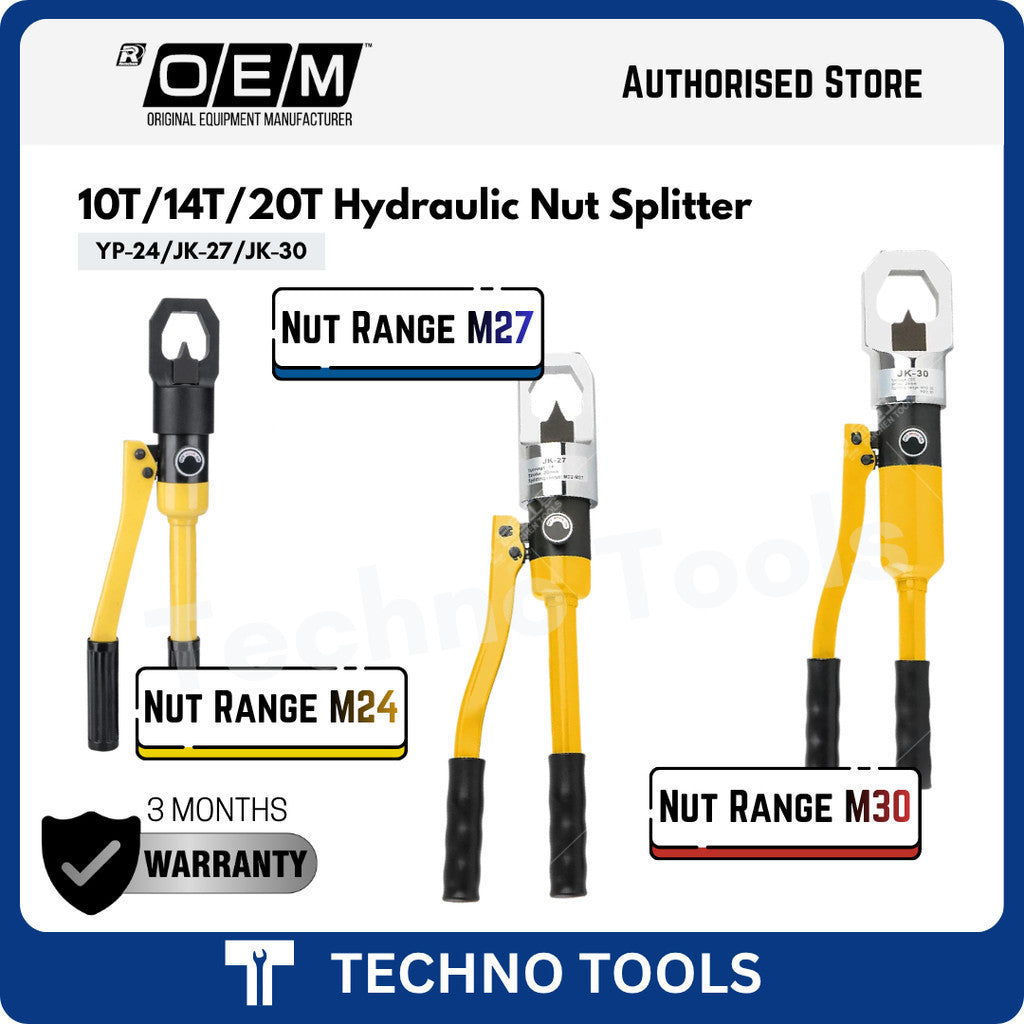

10T/14T/20T Hydraulic Nut Splitter YP-24/JK-27/JK-30

The hydraulic nut splitter series is engineered for safe and efficient removal of seized or corroded nuts across a wide range of sizes. Designed with integrated hydraulic systems, ergonomic handles, and interchangeable blade heads, these tools deliver reliable cutting force for workshop and industrial maintenance. From compact models for general use to heavy-duty variants for large-scale applications, the lineup ensures versatility and durability in demanding environments.

Features

Integrated hydraulic design for controlled cutting force

Ergonomic dual-handle or single-handle options for operator comfort

Interchangeable blade heads to cover multiple nut size ranges

Reinforced construction for durability in industrial use

Portable designs with balanced weight for field and workshop applications

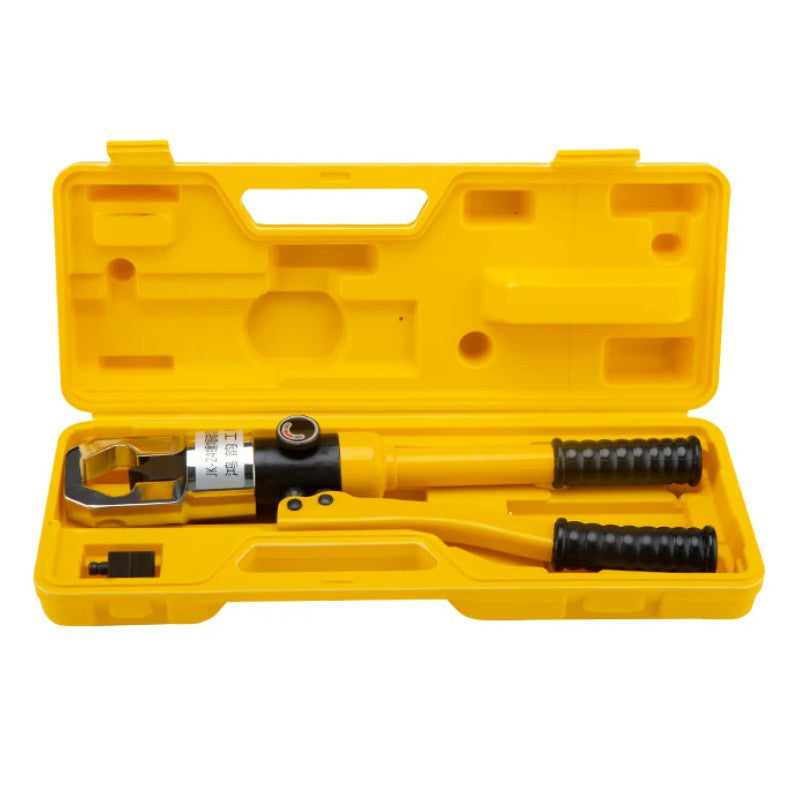

Supplied with accessories such as carrying cases (JK-27) for convenience

YP-24 Specifications:

Output force: 10T

Stroke: 20mm

Nut size range: M8–M24

Weight: 3.15Kg

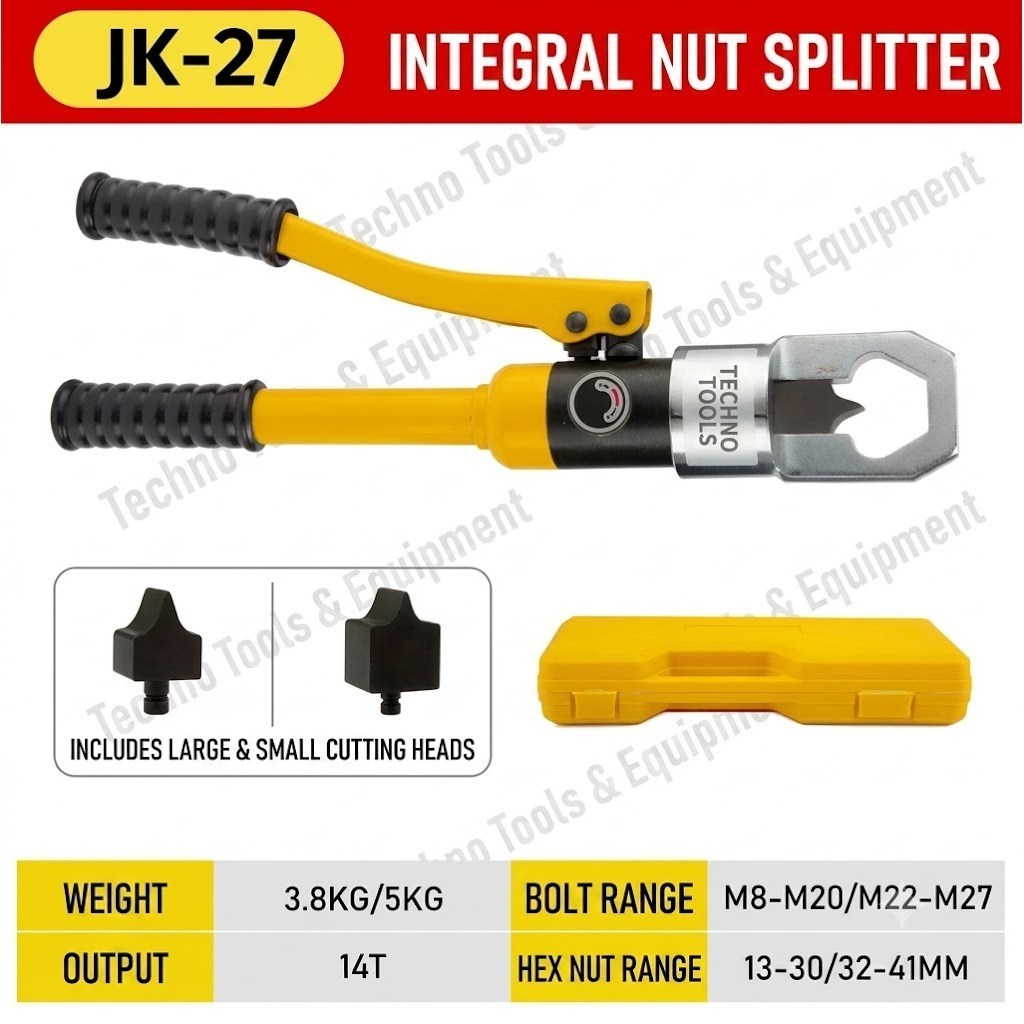

JK-27 Specifications:

Output force: 14T

Cutting range:

Small blade: M8–M20

Large blade: M22–M27

Hex nut range: 13–30mm / 32–41mm

Weight: 3.8Kg (small head) / 5Kg (large head)

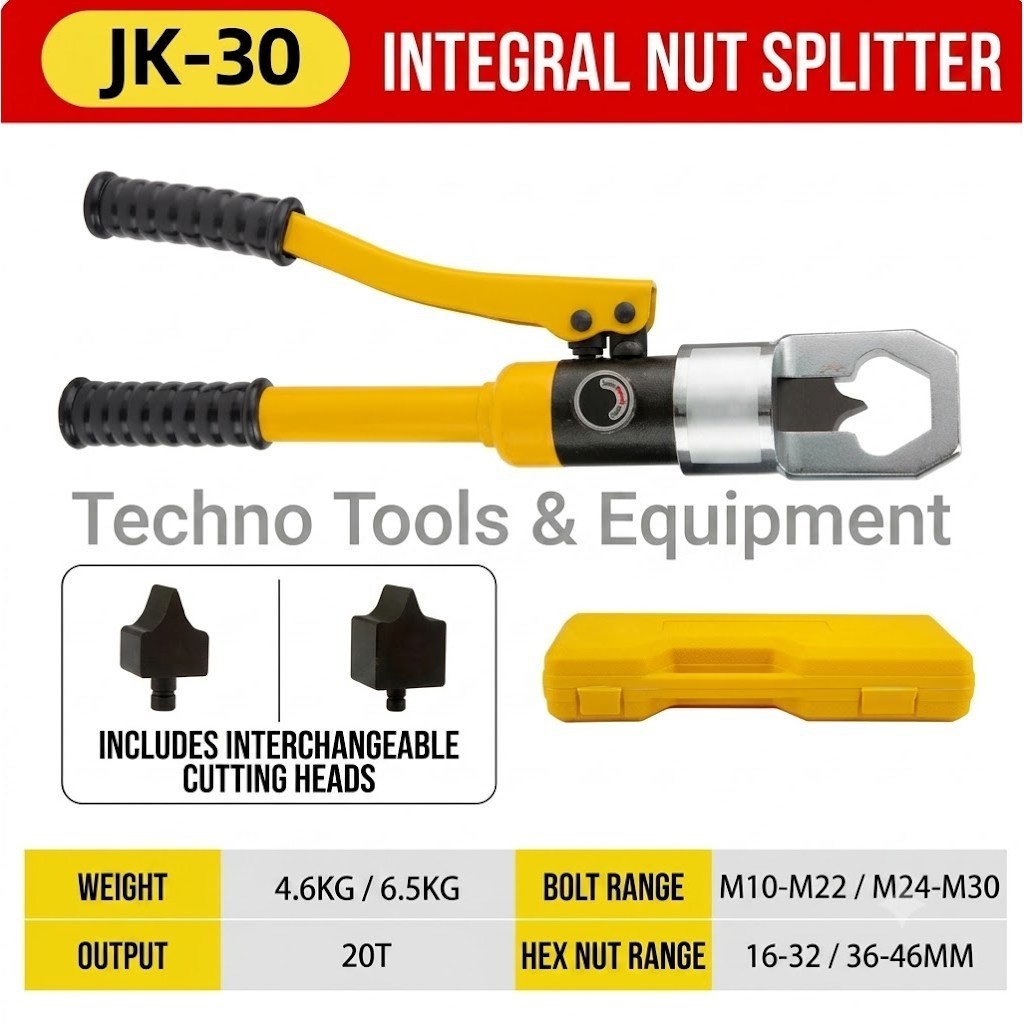

JK-30 Specifications:

Output force: 20T

Cutting range:

Large blade: M10–M22

Small blade: M24–M30

Hex nut range: 16–32mm / 36–46mm

Weight: 4.6Kg (large head) / 6.5Kg (small head)

FAQs

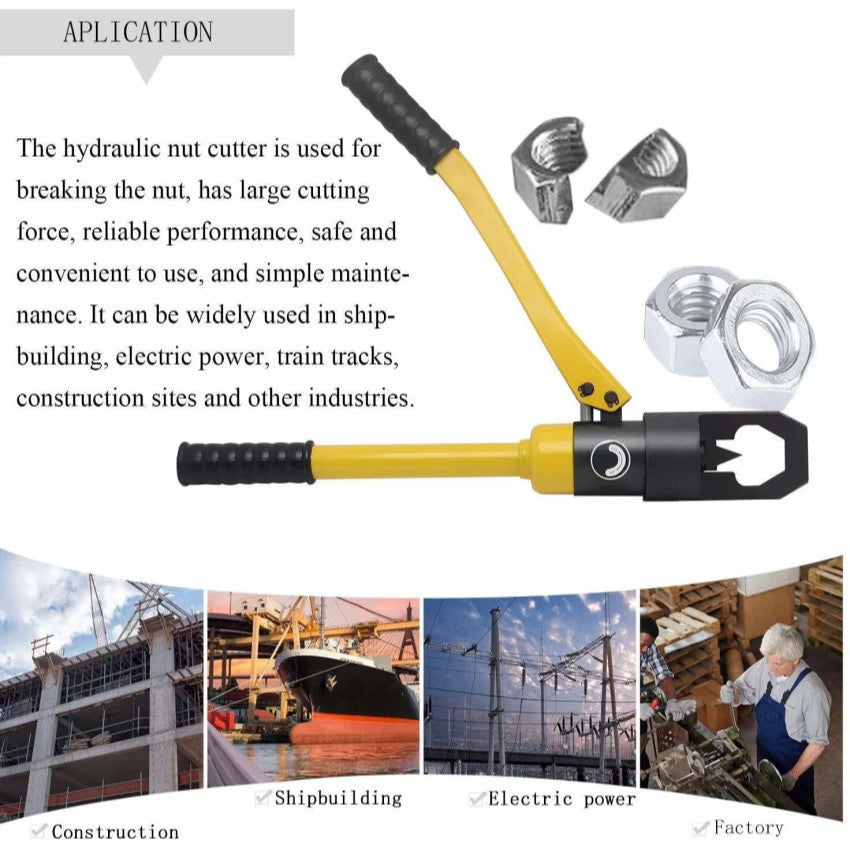

What is a hydraulic nut splitter? A hydraulic nut splitter is a tool designed to safely cut and remove seized, rusted, or corroded nuts without damaging the bolt threads.

Do they come with interchangeable heads? Yes. JK-27 and JK-30 include small and large blade heads to cover different nut ranges. YP-24 comes with two cutting heads for M8–M24.
