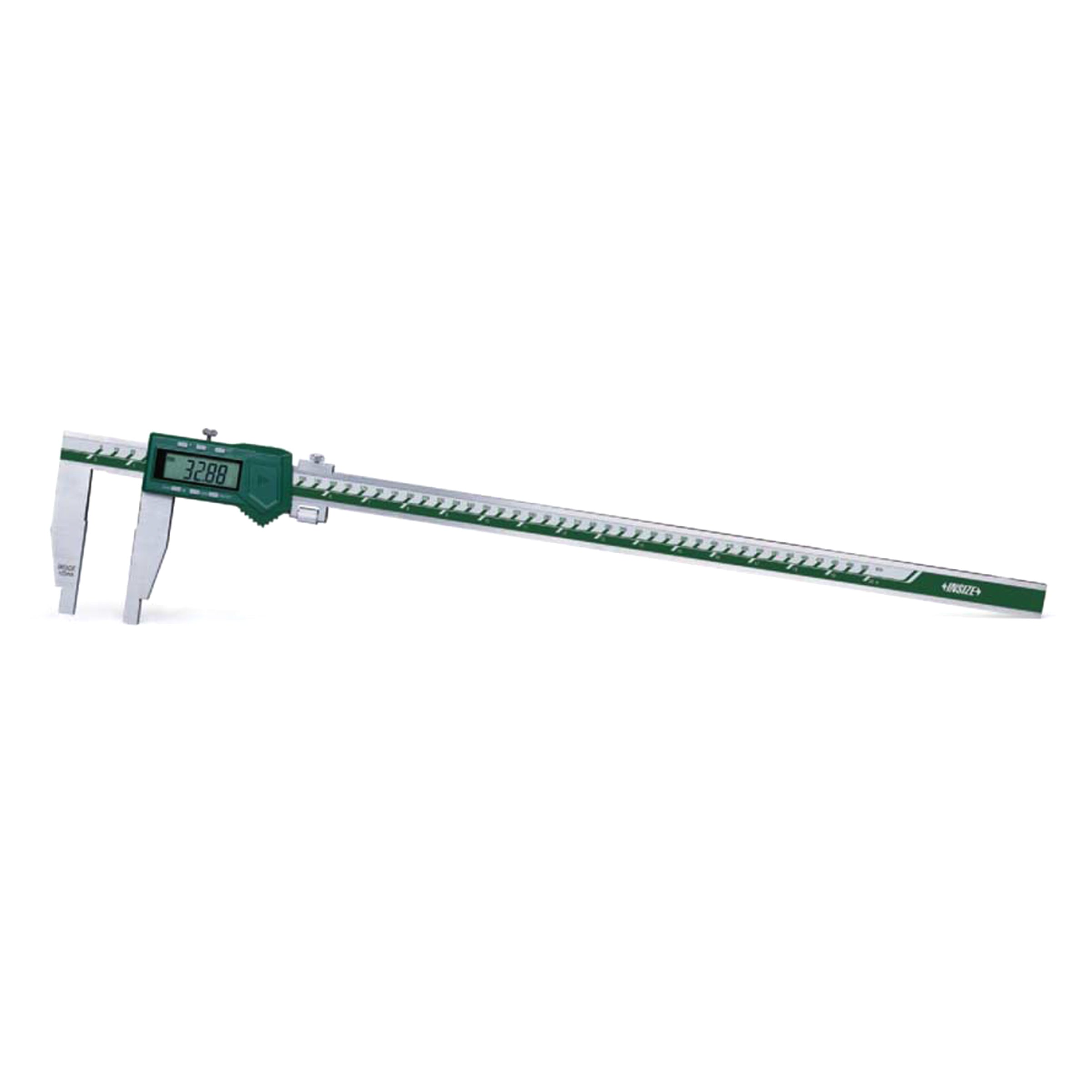

INSIZE 1106-501 Digital Caliper, Range 0-500mm/0-20", Accuracy ±0.05mm
Regular price
RM1,045.00 MYR
Couldn't load pickup availability
Got questions?
Feel free to WhatsApp us
Product Brochure
Click Here: Brochure in PDF
Product Datasheet / User Manual
Click Here: Datasheet in PDF
■ Non waterproof
■ Resolution: 0.01mm/0.0005"
■ Button function: on/off, zero, mm/inch, ABS, data preset
■ Battery CR2032
■ Made of stainless steel
| Code | Range | Accuracy | a | c | d | e | L |
| 1106-301 | 0-300mm/0-12" | ±0.05mm | 18mm | 24mm | 100mm | 20mm | 420mm |
| 1106-302 | 0-300mm/0-12" | ±0.05mm | 18mm | 24mm | 150mm | 20mm | 420mm |
| 1106-451 | 0-450mm/0-18" | ±0.05mm | 18mm | 24mm | 100mm | 20mm | 625mm |
| 1106-501 | 0-500mm/0-20" | ±0.05mm | 18mm | 24mm | 100mm | 20mm | 675mm |
| 1106-502 | 0-500mm/0-20" | ±0.06mm | 18mm | 24mm | 150mm | 20mm | 675mm |
| 1106-503 | 0-500mm/0-20" | ±0.06mm | 24mm | 31mm | 200mm | 20mm | 675mm |
| 1106-505 | 0-500mm/0-20" | ±0.08mm | 24mm | 42mm | 300mm | 20mm | 675mm |
| 1106-601 | 0-600mm/0-24" | ±0.05mm | 18mm | 24mm | 100mm | 20mm | 770mm |
| 1106-602 | 0-600mm/0-24" | ±0.06mm | 18mm | 24mm | 150mm | 20mm | 770mm |
| 1106-603 | 0-600mm/0-24" | ±0.06mm | 24mm | 31mm | 200mm | 20mm | 770mm |
| 1106-802 | 0-800mm/0-32" | ±0.07mm | 24mm | 31mm | 150mm | 20mm | 1025mm |
| 1106-1002 | 0-1000mm/0-40" | ±0.08mm | 24mm | 31mm | 150mm | 20mm | 1220mm |
| 1106-1003 | 0-1000mm/0-40" | ±0.08mm | 24mm | 31mm | 200mm | 20mm | 1220mm |
| 1106-1005 | 0-1000mm/0-40" | ±0.10mm | 24mm | 42mm | 300mm | 20mm | 1220mm |
| 1106-1502 | 0-1500mm/0-60" | ±0.11mm | 24mm | 42mm | 150mm | 20mm | 1780mm |
| 1106-1503 | 0-1500mm/0-60" | ±0.12mm | 24mm | 42mm | 200mm | 20mm | 1780mm |
| 1106-2002 | 0-2000mm/0-80" | ±0.14mm | 24mm | 42mm | 150mm | 20mm | 2290mm |
| 1106-2003 | 0-2000mm/0-80" | ±0.14mm | 24mm | 42mm | 200mm | 20mm | 2290mm |
| 1106-2502 | 0-2500mm/0-100" | ±0.22mm | 24mm | 42mm | 150mm | 20mm | 2800mm |
| 1106-3002 | 0-3000mm/0-120” | ±0.26mm | 24mm | 42mm | 150mm | 20mm | 3300mm |
