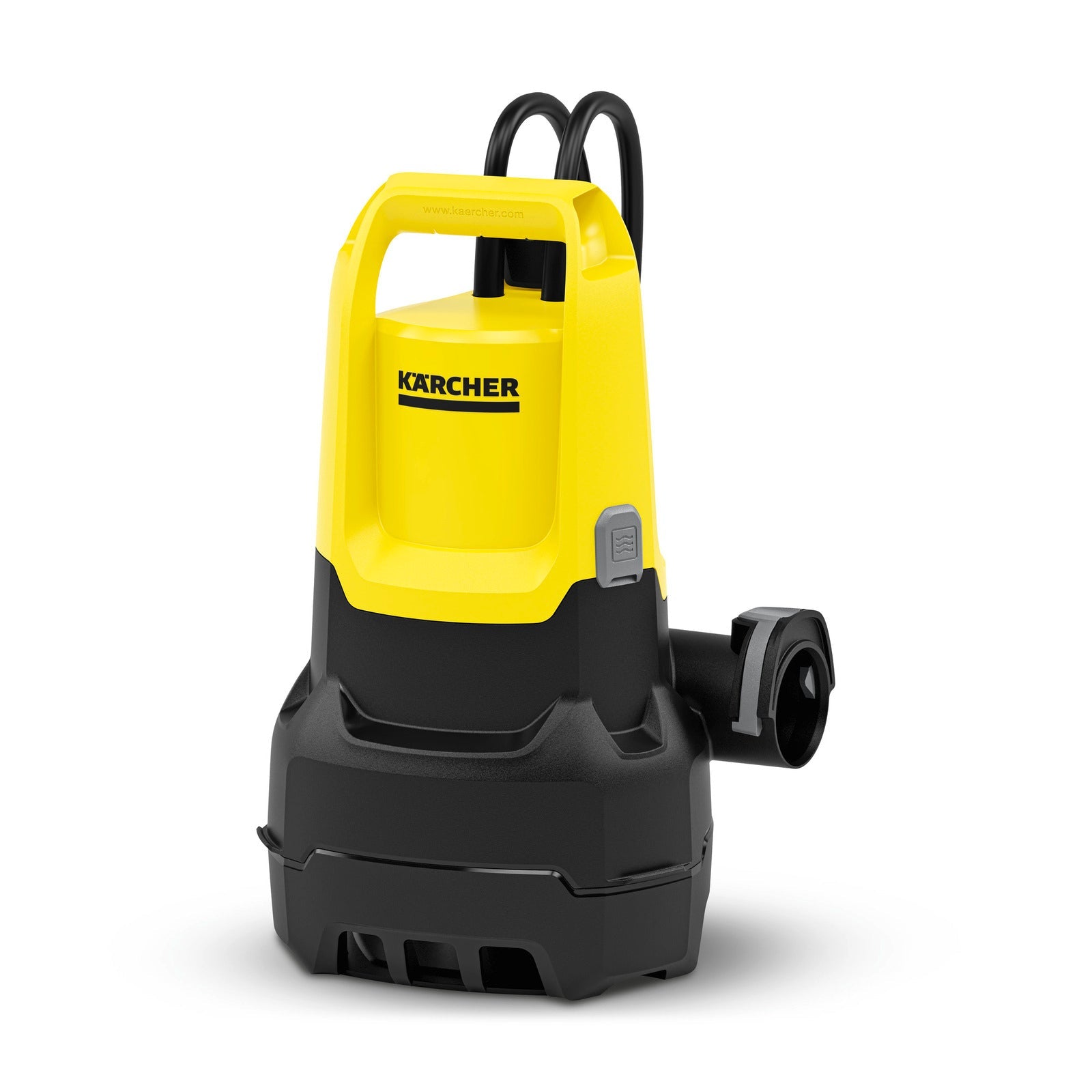

Karcher SP 16.000 Dirt Submersible Pump 16000L/h – 1.645-830.0
Couldn't load pickup availability
The Karcher SP 16.000 Dirt Submersible Pump (1.645-830.0) is a high-capacity dirty-water pump that moves up to 16,000 litres per hour with particles up to 20 mm. A 550 W motor gives an 8 m delivery head, and the height-adjustable float switch lets you set exactly when it starts and stops. It is well suited to serious flood response, large ponds and site drainage.
Key Features & Benefits
- Designed for dirty water: reliably pumps water containing dirt particles up to 20 mm in size.
- Up to 16,000 l/h: a 550 W motor gives a delivery head of 8 m and a maximum pressure of 0.8 bar.
- Height-adjustable float switch: set the switching level on the rail to suit the job, with automatic or fixed continuous operation.
- Low residual water: in manual mode the pump draws water down to just 25 mm.
- Quick Connect hose connection: fast, secure hose fitting, with a connector supplied for G1, 1", 1 1/4" and 1 1/2" hoses.
- Carrying handle and rope holder: comfortable to carry, and the handle doubles as an attachment point for lowering the pump.
- Ceramic face seal: designed for a long service life.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SP 16.000 Dirt |
| Order number | 1.645-830.0 |
| Rated input power | 550 W |
| Max. flow rate | 16000 l/h |
| Max. delivery head | 8 m |
| Max. pressure | 0.8 bar |
| Max. grain size | 20 mm |
| Max. immersion depth | 7 m |
| Max. water temperature | 35 °C |
| Min. residual water (manual) | 25 mm |
| Connection thread | G1 1/2 |
| Pressure-side connection thread | G1/2 internal thread |
| Power cable | 10 m |
| Voltage | 230–240 V |
| Frequency | 50 Hz |
| Colour | Yellow |
| Weight without accessories | 4.9 kg |
| Weight incl. packaging | 5.7 kg |
| Dimensions (L x W x H) | 229 x 238 x 303 mm |
What's in the Box
- SP 16.000 Dirt submersible pump with float switch and 10 m power cable
- Hose connection piece for G1, 1", 1 1/4" and 1 1/2" hoses
Compatible With
- Karcher prefilter for SP Dirt pumps (sold separately; protects the impeller from heavy soiling)
- Karcher pump hoses and fabric hose sets
Applications / Ideal For
- Pumping out flooded basements, car parks, porches and low-lying areas

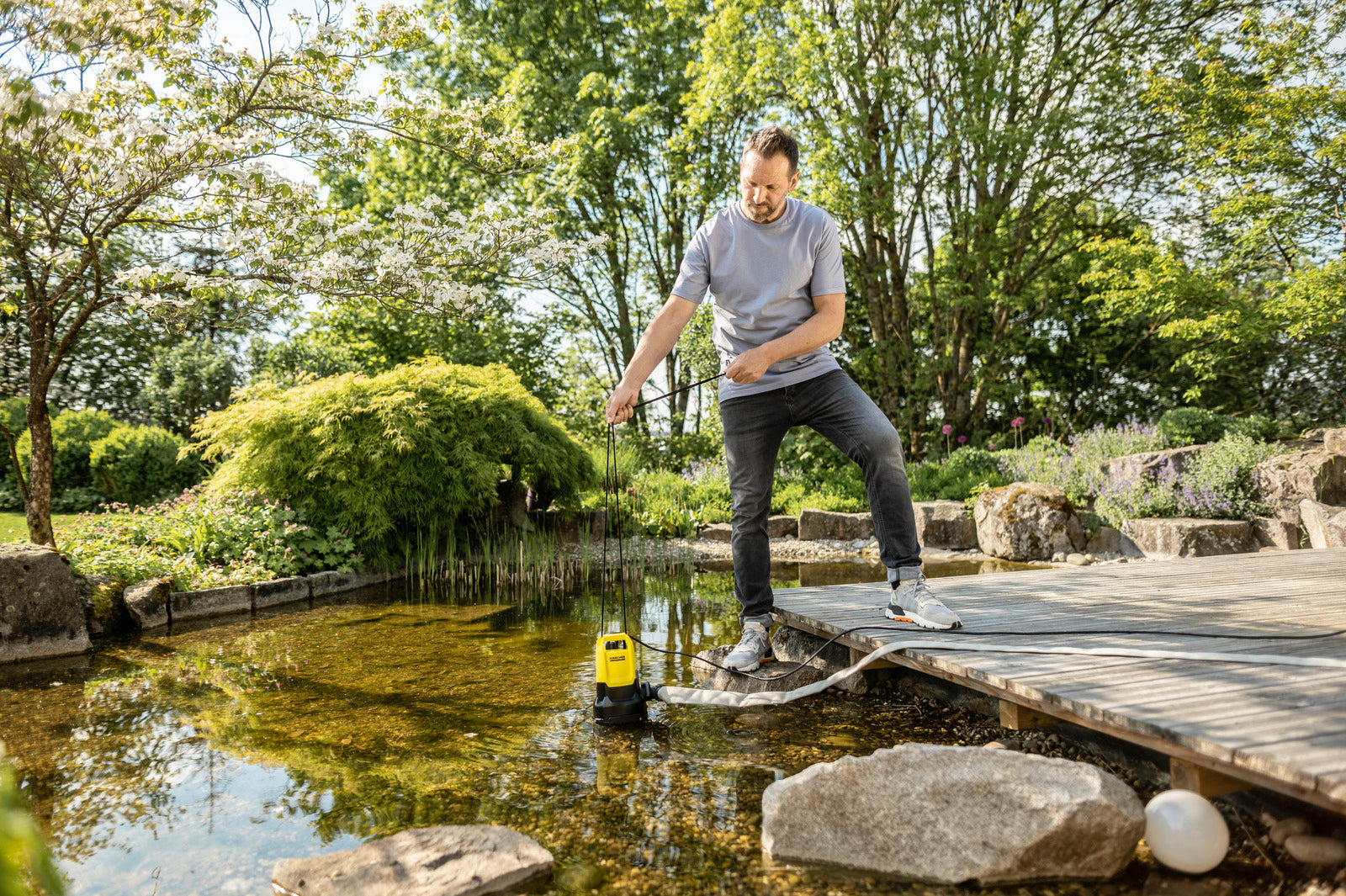

- Draining and emptying garden ponds and water features
- Removing dirty water from pits, trenches and tanks
- Transferring water containing leaves, sand and small debris
- Larger drainage jobs where higher flow rate saves time
Why Buy from Techno Tools
- Genuine Karcher equipment, supplied through official Malaysian channels
- Official user manual and datasheet available on this page
- Fast delivery across Malaysia, with same-day delivery for Klang Valley customers
- Local sales and after-sales support from our Ampang, Selangor team
| Warranty period | 1 Year Warranty |
|---|---|
| Coverage | Manufacturing defects in material and workmanship for 1 year from the date of purchase, for household use. Applies to WD-series wet and dry vacuum cleaners and submersible pumps. Batteries: 1 replacement within the warranty period. |
| Not covered | Commercial, rental, hotel, restaurant, laundry or other multi-user use; consumable and wear parts such as filters, filter bags, brushes, hoses, seals and O-rings; damage from natural disasters or improper storage; non-approved or corrosive cleaning agents. |
| Warranty void if | Misuse, neglect, unauthorised modification or repair; not following the operating instructions or using non-approved accessories or parts; connection to unstable voltage or unsuitable or coiled extension leads; the product is used or shipped outside Malaysia and Brunei. |
Contact Techno Tools with your proof of purchase (invoice or receipt). Kärcher decides whether to repair or replace at an authorised Kärcher service centre; delivery to and from the service centre is at the customer's cost. A repair or replacement does not extend the original warranty period.
