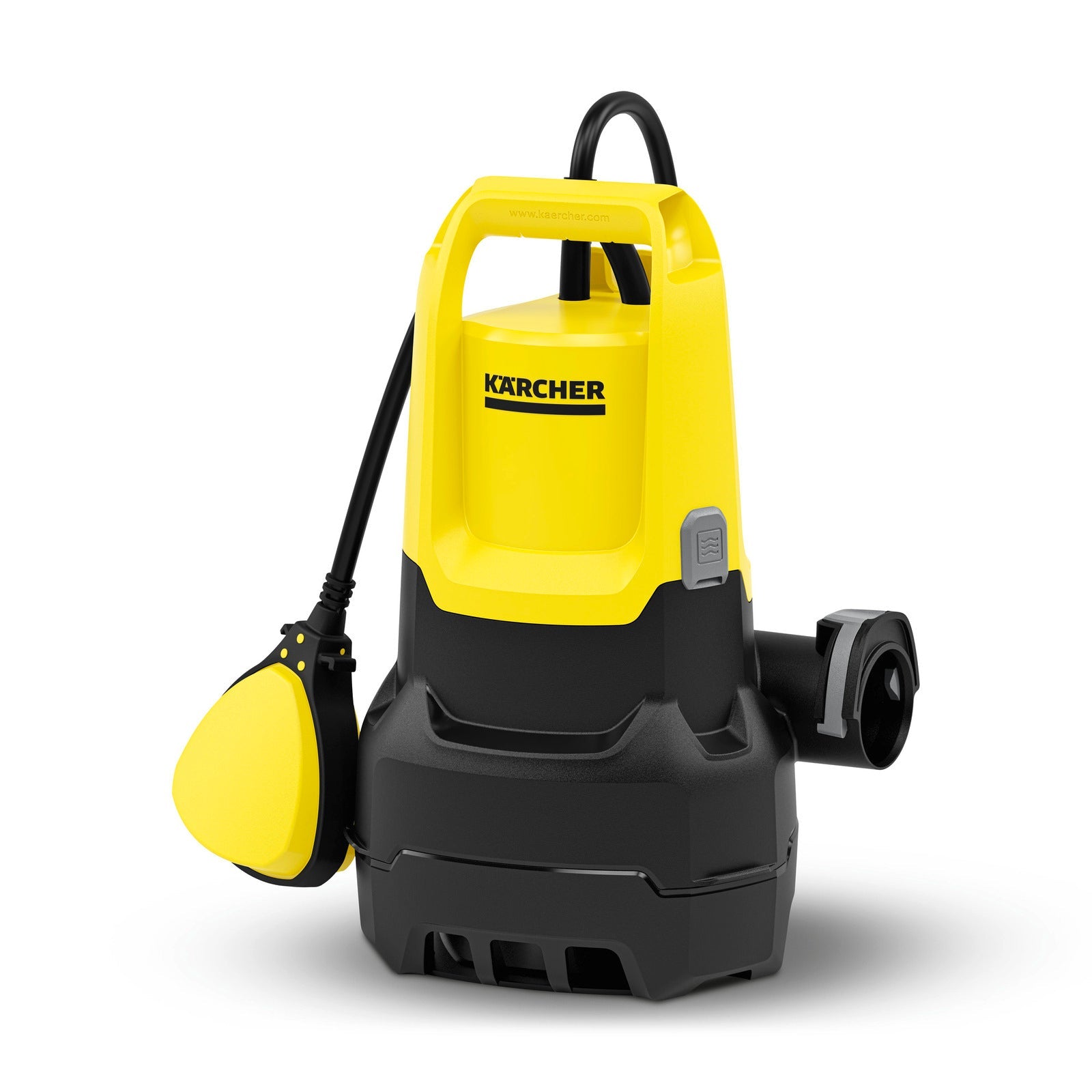

Karcher SP 9.500 Dirt Submersible Pump 9500L/h – 1.645-800.0
Couldn't load pickup availability
The Karcher SP 9.500 Dirt Submersible Pump (1.645-800.0) is a compact dirty-water pump that moves up to 9,500 litres per hour and handles dirt particles up to 20 mm. A float switch runs it automatically as the water level rises and falls, or it can be fixed for continuous manual operation. It is a practical choice for homeowners dealing with flooding, pond maintenance and general drainage.
Key Features & Benefits
- Designed for dirty water: reliably pumps water containing dirt particles up to 20 mm in size.
- Up to 9,500 l/h: a 280 W motor gives a delivery head of 6 m and a maximum pressure of 0.6 bar.
- Automatic or manual operation: in auto mode the float switch turns the pump on and off with the water level; fix the float for continuous running.
- Low residual water: in manual mode the pump draws water down to just 25 mm.
- Quick Connect hose connection: fast, secure hose fitting, with a connector supplied for G1, 1", 1 1/4" and 1 1/2" hoses.
- Carrying handle and rope holder: comfortable to carry, and the handle doubles as an attachment point for lowering the pump.
- Ceramic face seal: designed for a long service life.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SP 9.500 Dirt |
| Order number | 1.645-800.0 |
| Rated input power | 280 W |
| Max. flow rate | 9500 l/h |
| Max. delivery head | 6 m |
| Max. pressure | 0.6 bar |
| Max. grain size | 20 mm |
| Max. immersion depth | 7 m |
| Max. water temperature | 35 °C |
| Min. residual water (manual) | 25 mm |
| Connection thread | G1 1/2 |
| Pressure-side connection thread | G1/2 internal thread |
| Power cable | 10 m |
| Voltage | 230–240 V |
| Frequency | 50 Hz |
| Colour | Yellow |
| Weight without accessories | 3.8 kg |
| Weight incl. packaging | 4.6 kg |
| Dimensions (L x W x H) | 229 x 238 x 303 mm |
What's in the Box
- SP 9.500 Dirt submersible pump with float switch and 10 m power cable
- Hose connection piece for G1, 1", 1 1/4" and 1 1/2" hoses
Compatible With
- Karcher prefilter for SP Dirt pumps (sold separately; protects the impeller from heavy soiling)
- Karcher pump hoses and fabric hose sets
Applications / Ideal For
- Pumping out flooded basements, car parks, porches and low-lying areas
- Draining and emptying garden ponds and water features
- Removing dirty water from pits, trenches and tanks
- Transferring water containing leaves, sand and small debris
