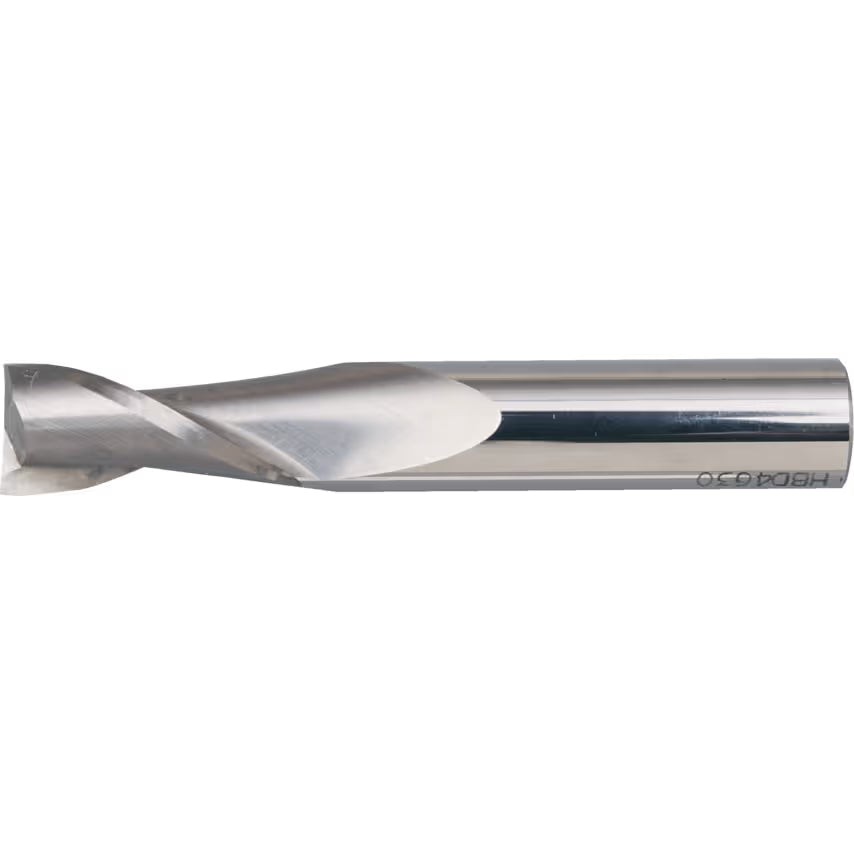

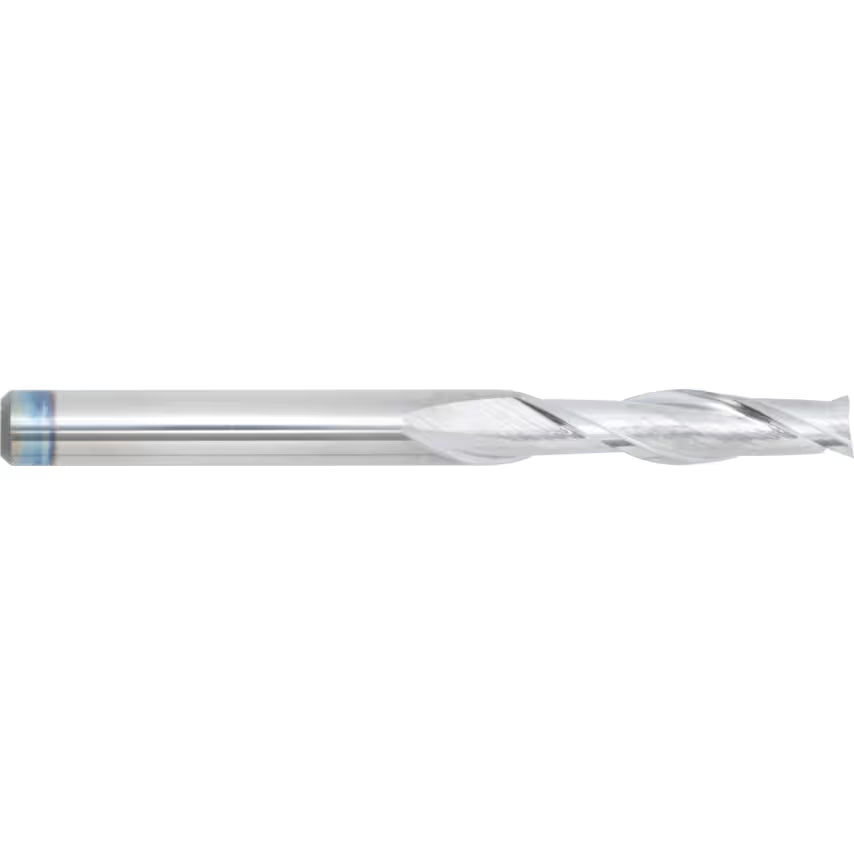

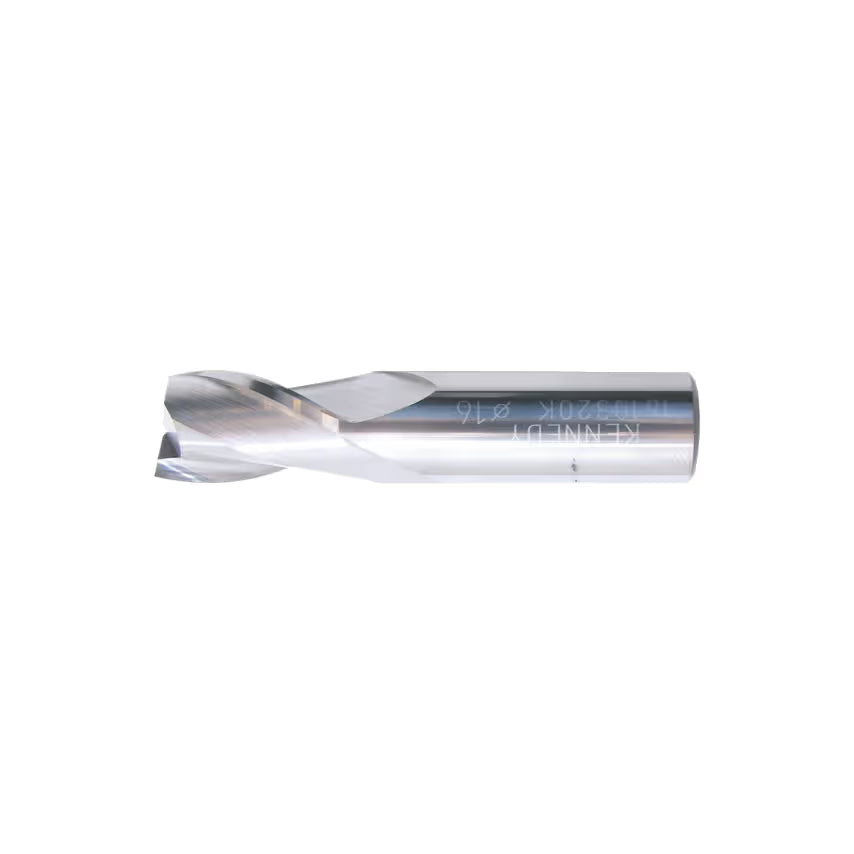

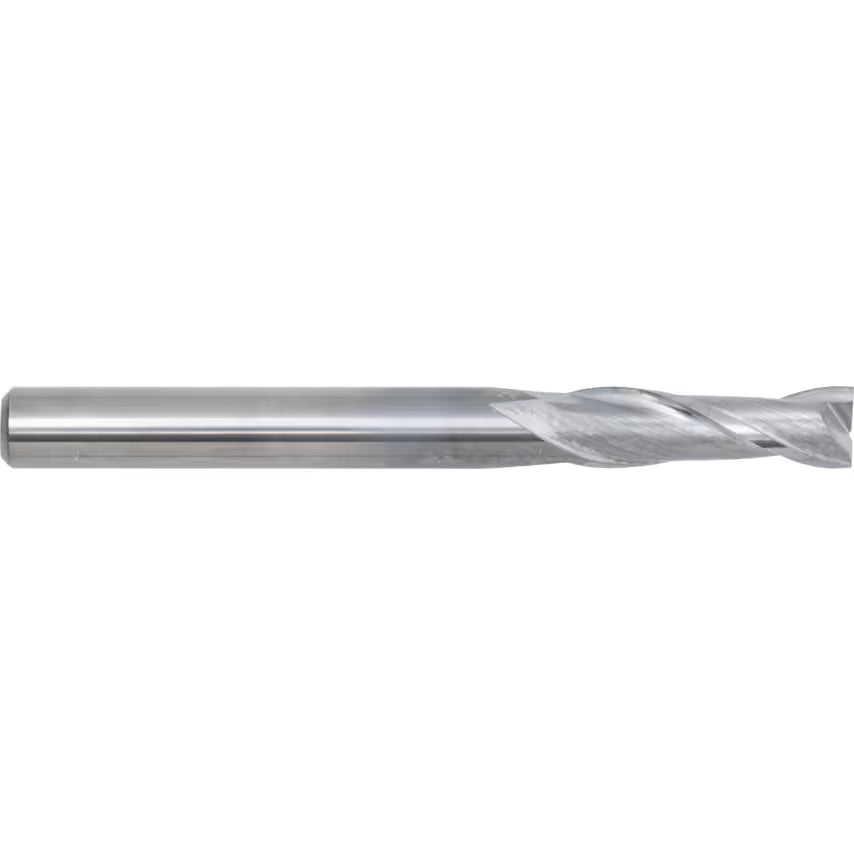

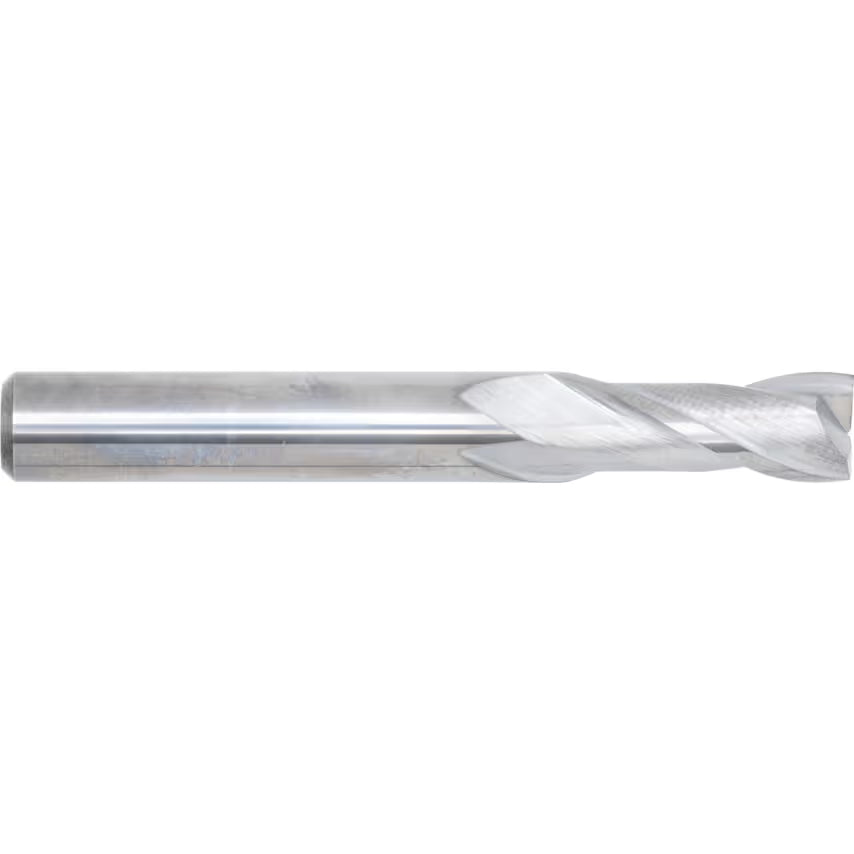

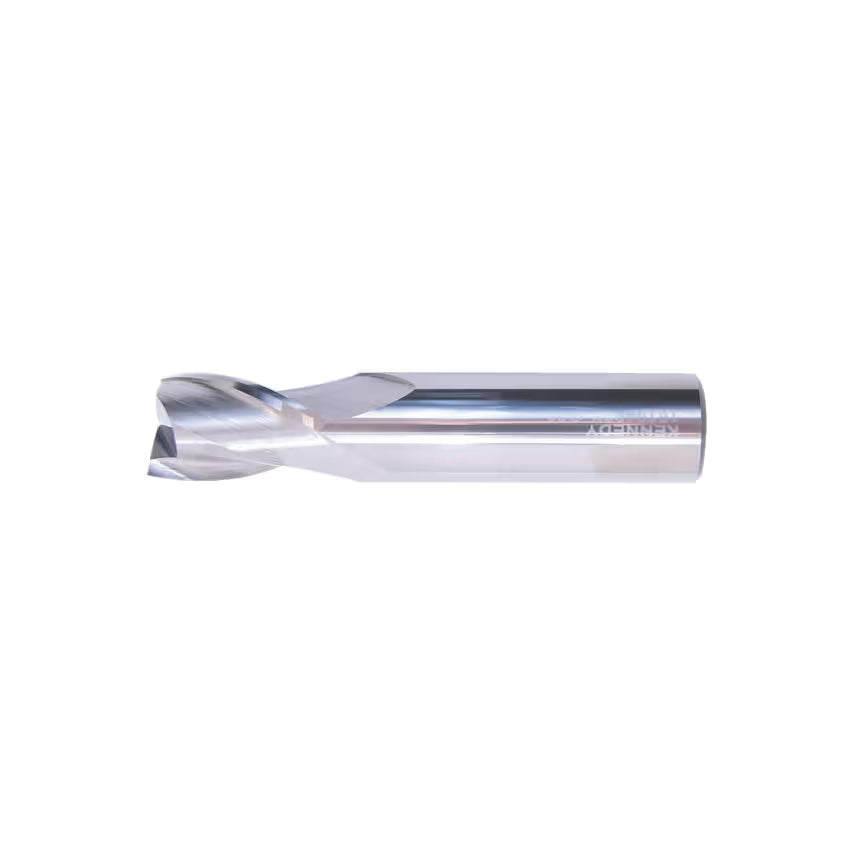

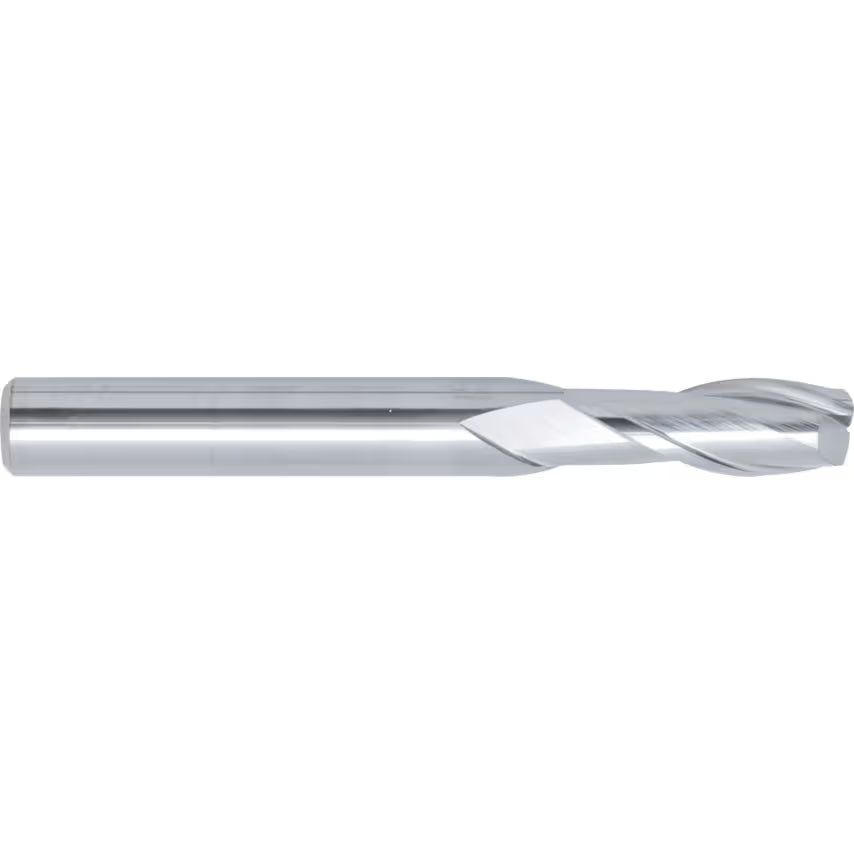

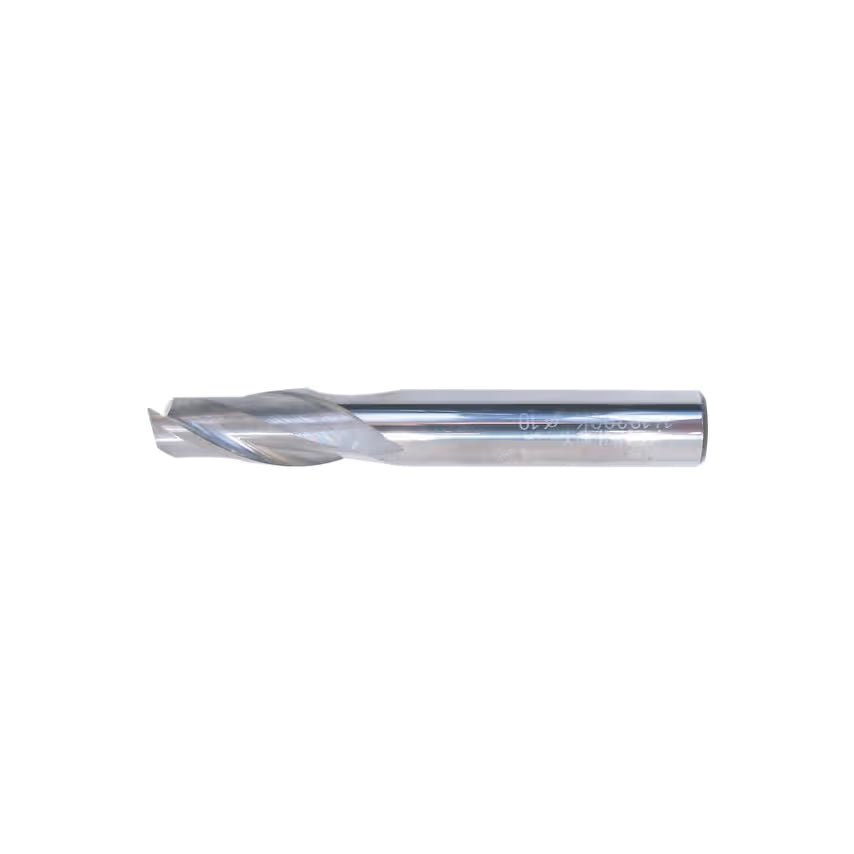

KENNEDY 2FL Standard Carbide Slot Drill Metric Regular Series
Couldn't load pickup availability
OVERVIEW SUMMARY
The KENNEDY 2 Flute Standard Carbide Slot Drill is designed for precision machining of aluminium, brass, non-ferrous metals, and other soft materials. Manufactured from durable micrograin carbide, these regular series slot drills provide excellent toughness, smooth cutting action, and efficient swarf evacuation. Ideal for plunging, slotting, and routing operations, the 2-flute geometry ensures reliable performance and superior chip clearance in high-speed machining applications.
KEY FEATURES
- Premium micrograin carbide construction for durability
- 2 flute design for enhanced chip evacuation
- Excellent for slotting, plunging, and routing
- Optimized for aluminium, brass, and soft materials
- Centre cutting capability for plunge operations
- Regular series design for versatile machining tasks
- Helical flute geometry improves cutting efficiency
- Manufactured to strict works standards
MULTI-VARIATION SPECIFICATION TABLE
| Model No | Cutter Diameter | Overall Length | Flute Length |
|---|---|---|---|
| KEN1610020K | 1.0mm | 40mm | 3mm |
| KEN1610040K | 2.0mm | 32mm | 8mm |
| KEN1610060K | 3.0mm | 32mm | 12mm |
| KEN1610080K | 4.0mm | 40mm | 12mm |
| KEN1610100K | 5.0mm | 50mm | 14mm |
| KEN1610120K | 6.0mm | 50mm | 16mm |
| KEN1610140K | 7.0mm | 60mm | 20mm |
| KEN1610160K | 8.0mm | 60mm | 20mm |
| KEN1610180K | 9.0mm | 60mm | 20mm |
| KEN1610200K | 10.0mm | 70mm | 22mm |
| KEN1610220K | 11.0mm | 70mm | 22mm |
| KEN1610240K | 12.0mm | 70mm | 22mm |
| KEN1610320K | 16.0mm | 75mm | 25mm |
| KEN1610400K | 20.0mm | 100mm | 32mm |
