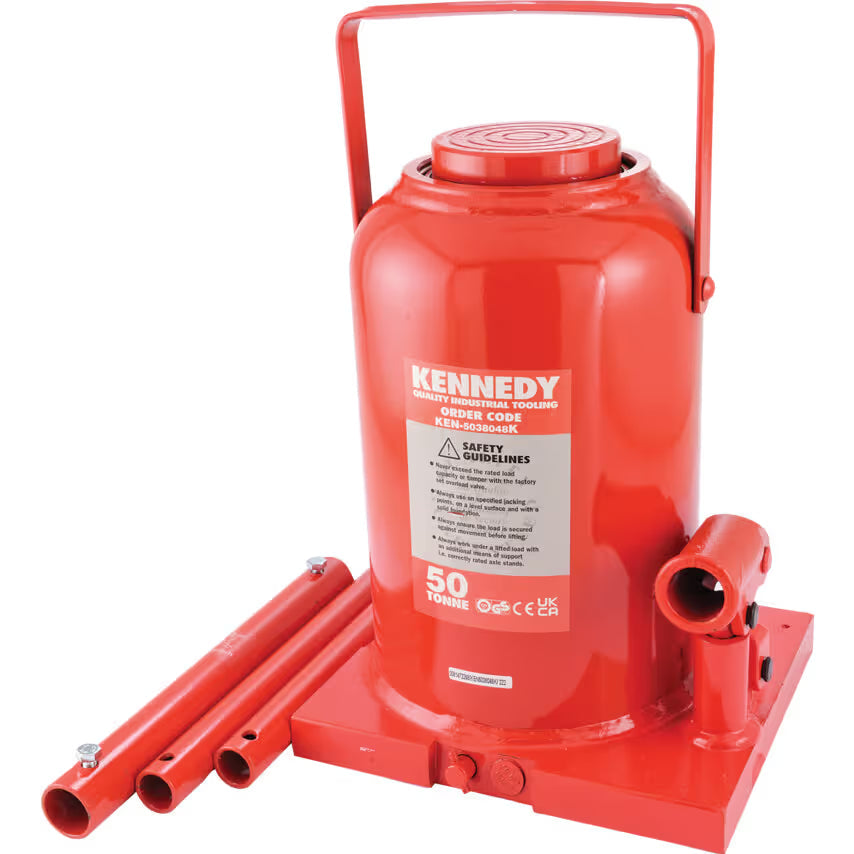

KENNEDY Bottle Jack 2T to 50T Hydraulic Car Lifting Jack Range
Couldn't load pickup availability
Overview
The KENNEDY Bottle Jack range is designed for safe, efficient, and powerful lifting of vehicles, machinery, and structural loads. Built with a sealed hydraulic system, these jacks provide reliable lifting performance in both vertical and slightly angled positions (up to 3°).
With capacities ranging from 2 tonnes up to 50 tonnes, this range is suitable for automotive workshops, industrial maintenance, construction support, and heavy-duty lifting applications.
Each jack features reinforced stress points, a stable wide base, and an overload protection valve for enhanced safety and durability.
Key Features
- Heavy-duty hydraulic bottle jack range: 2T to 50T
- Sealed hydraulic unit for reliable performance
- Wide, stable cast iron base for safety
- Reinforced stress points for long service life
- Overload protection valve for safe operation
- Can operate vertically or up to 3° angled
- Handle doubles as hydraulic release control
- Suitable for automotive and industrial lifting
Multi-Variation Specification Table
| Model No. | Lifting Capacity | Lifting Height Max | Lifting Height Min | Maximum Saddle Adjustment | Weight Each |
|---|---|---|---|---|---|

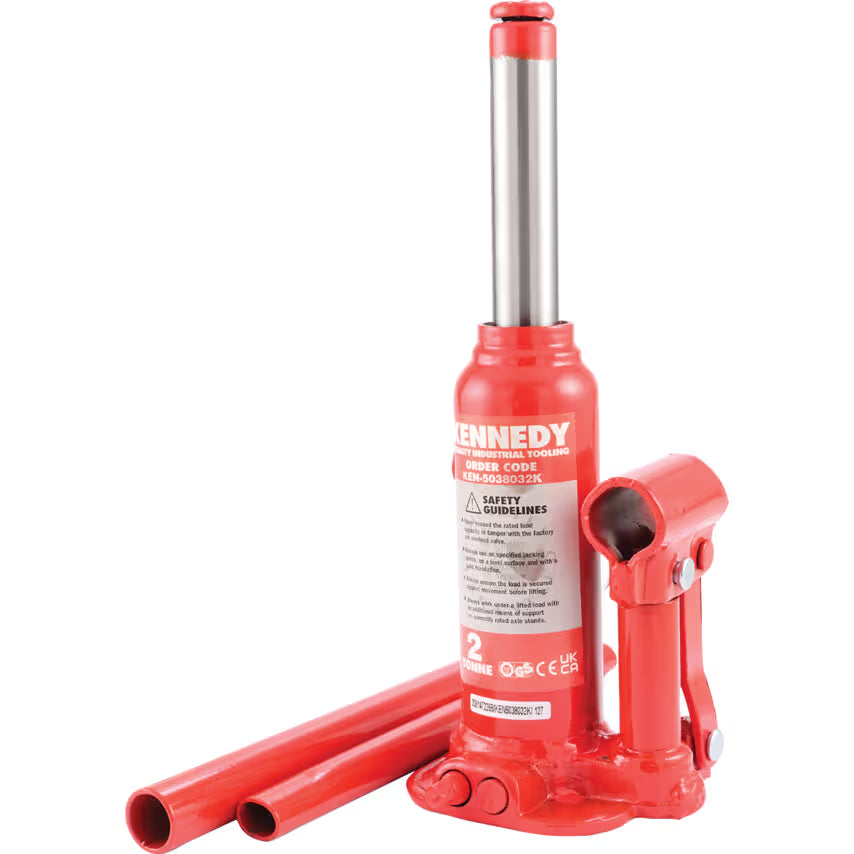

| KEN5038032K | 2t | 316mm | 168mm | 48mm | 2.4kg |

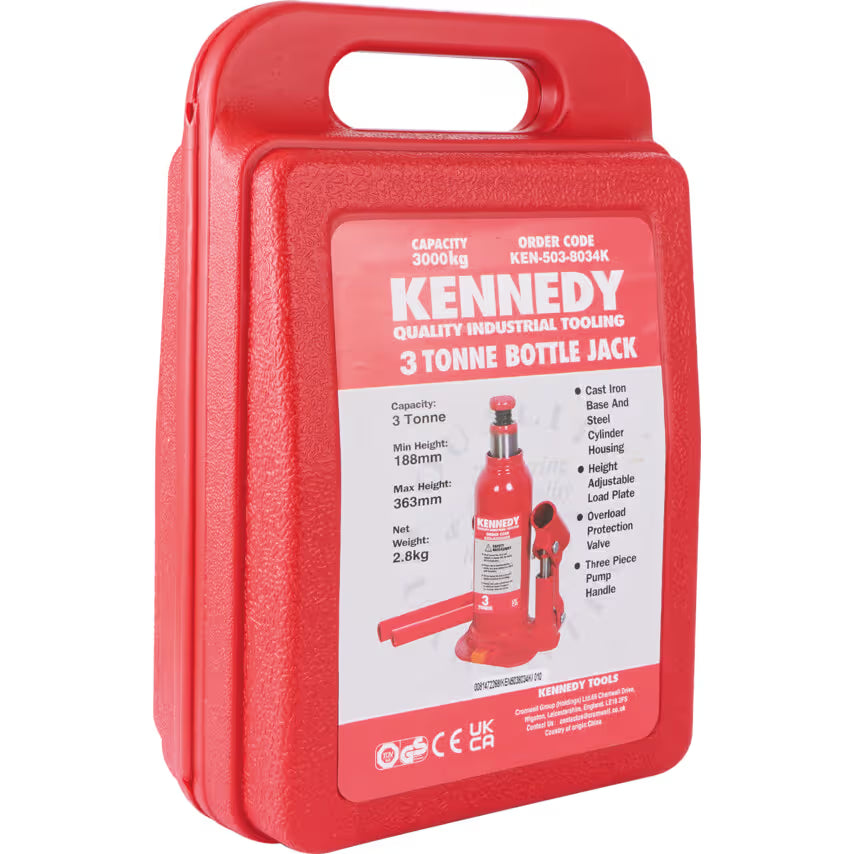

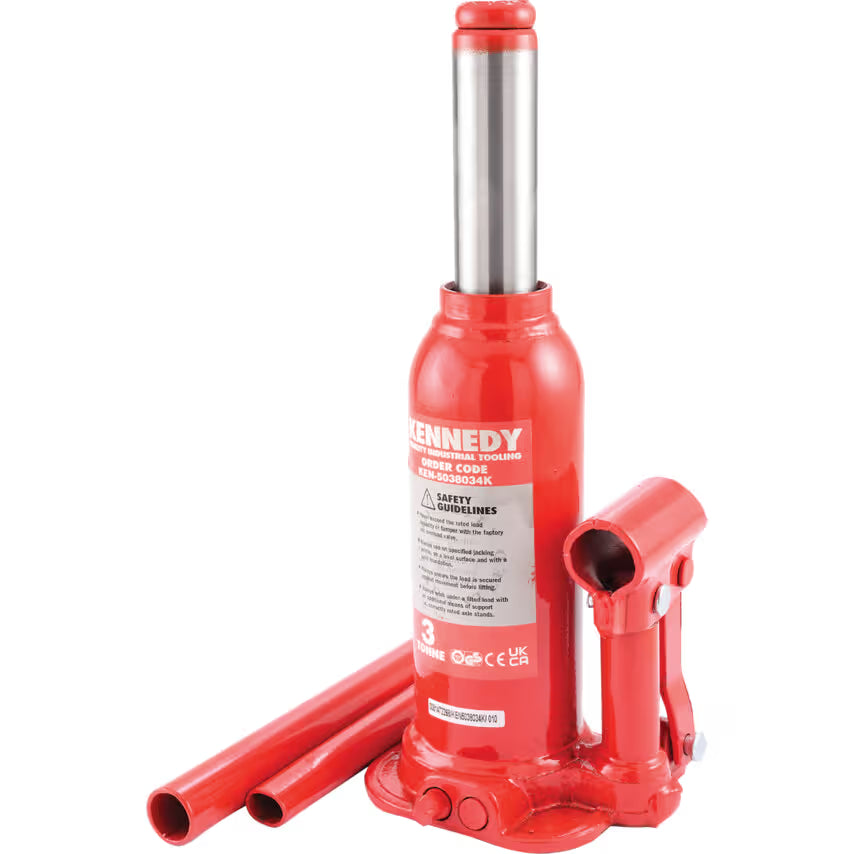

| KEN5038034K | 3t | 326mm | 168mm | 60mm | 3.1kg |

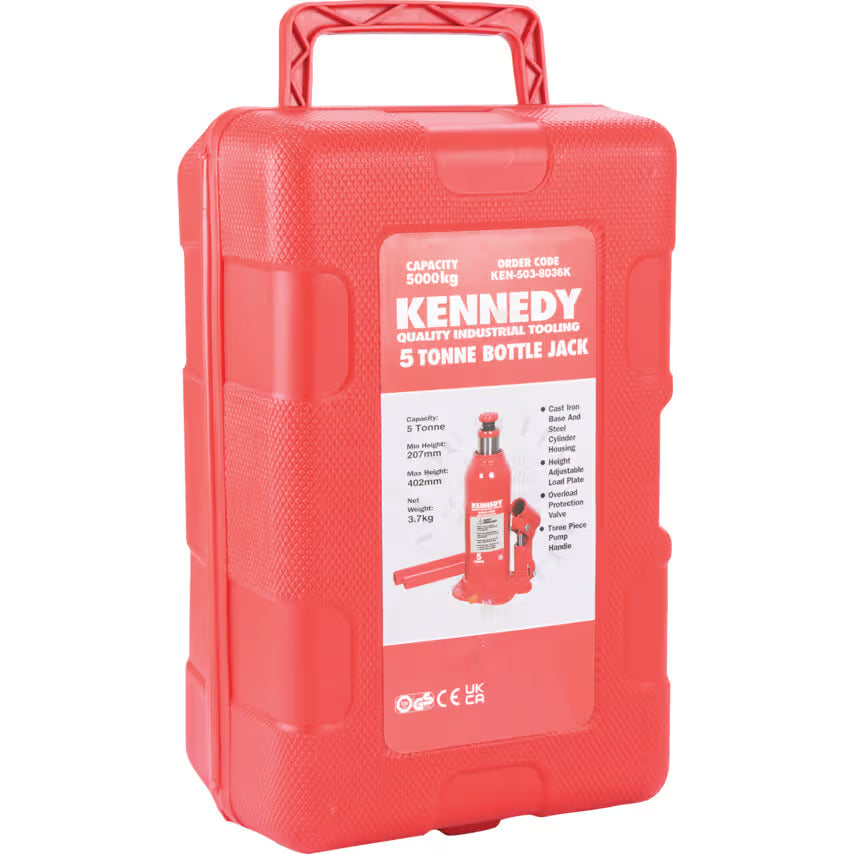

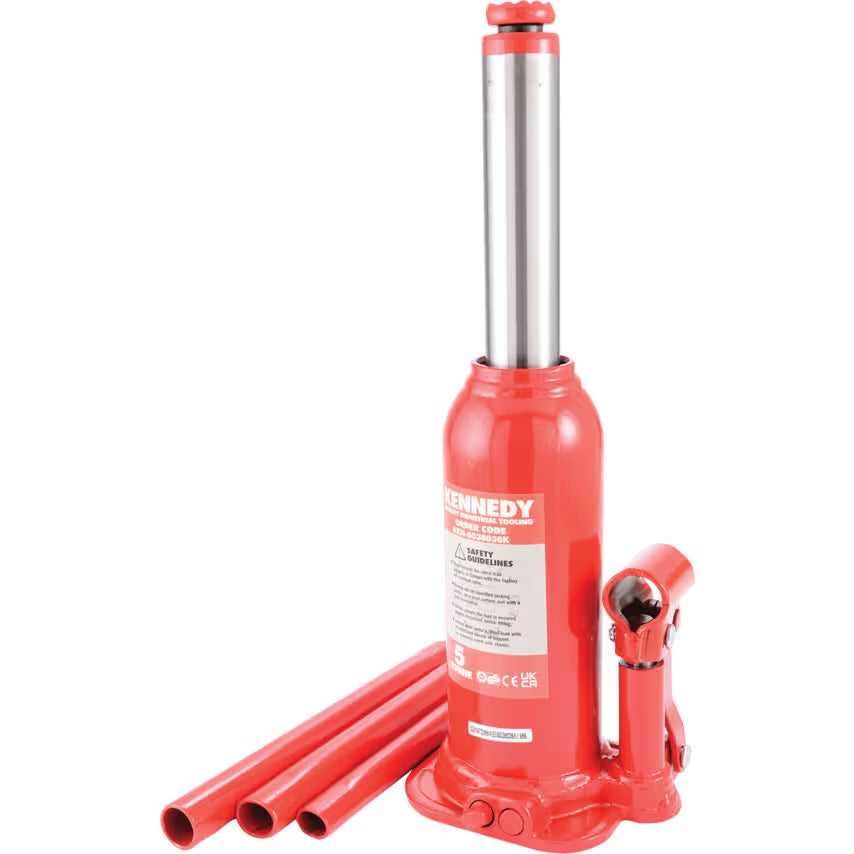

| KEN5038036K | 5t | 355mm | 185mm | 60mm | 4.1kg |

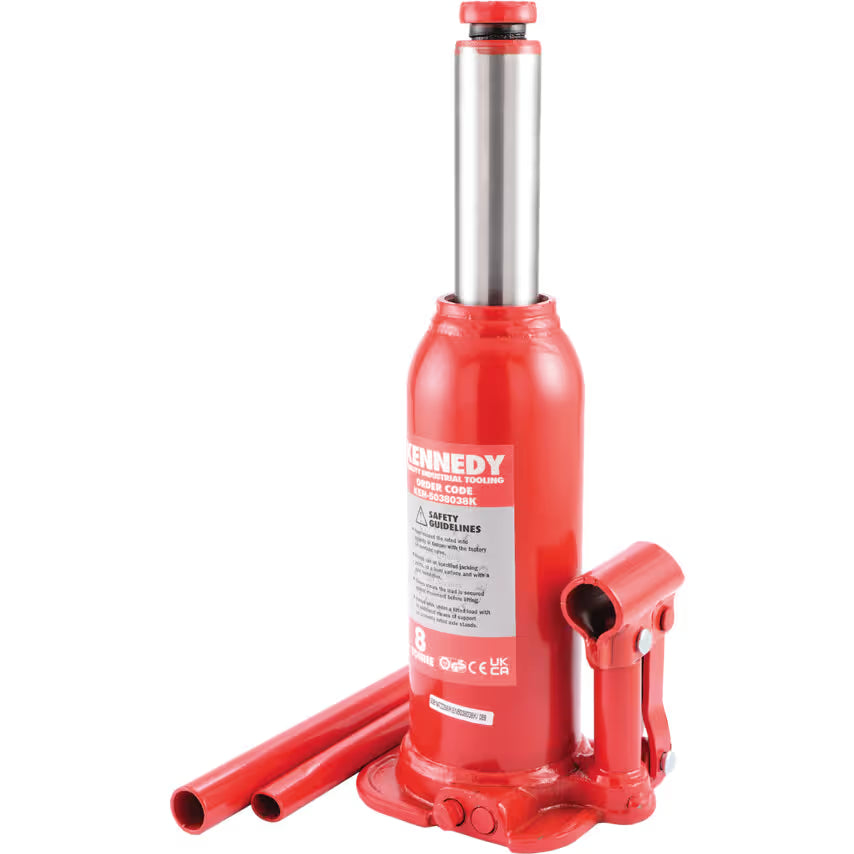

| KEN5038038K | 8t | 365mm | 190mm | 60mm | 4.9kg |

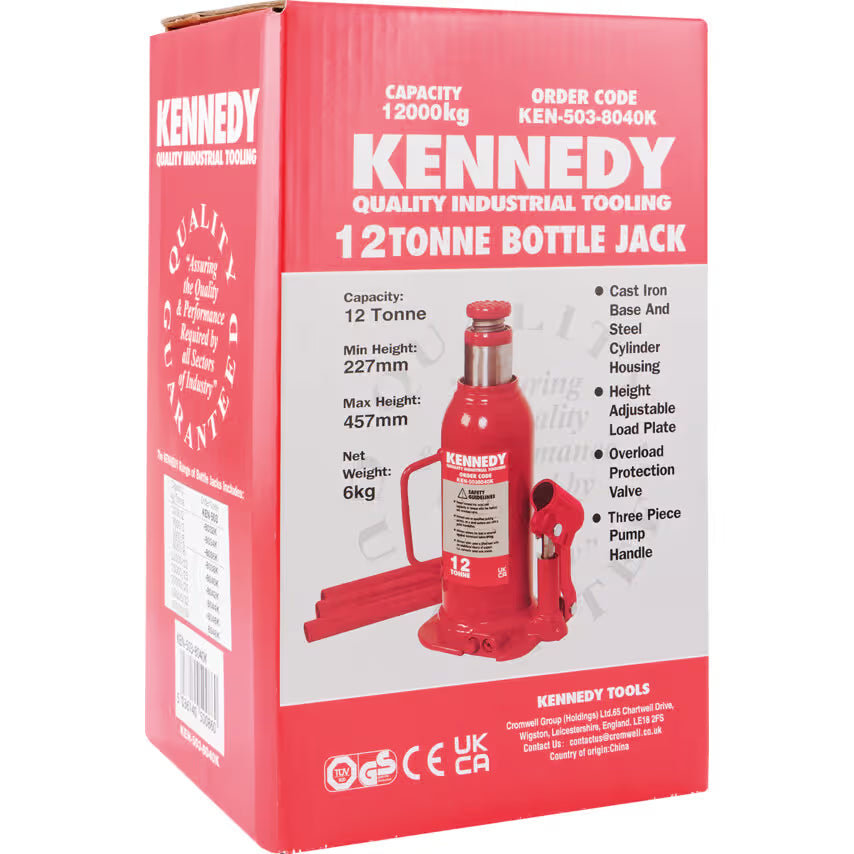

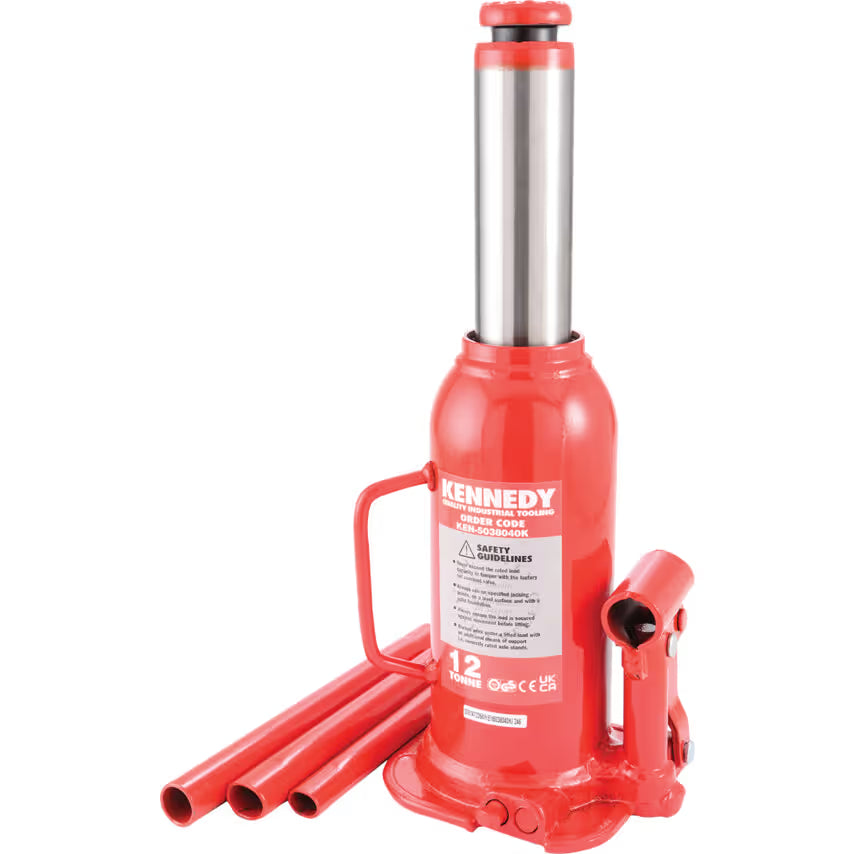

| KEN5038040K | 12t | - | 227mm | - | - |

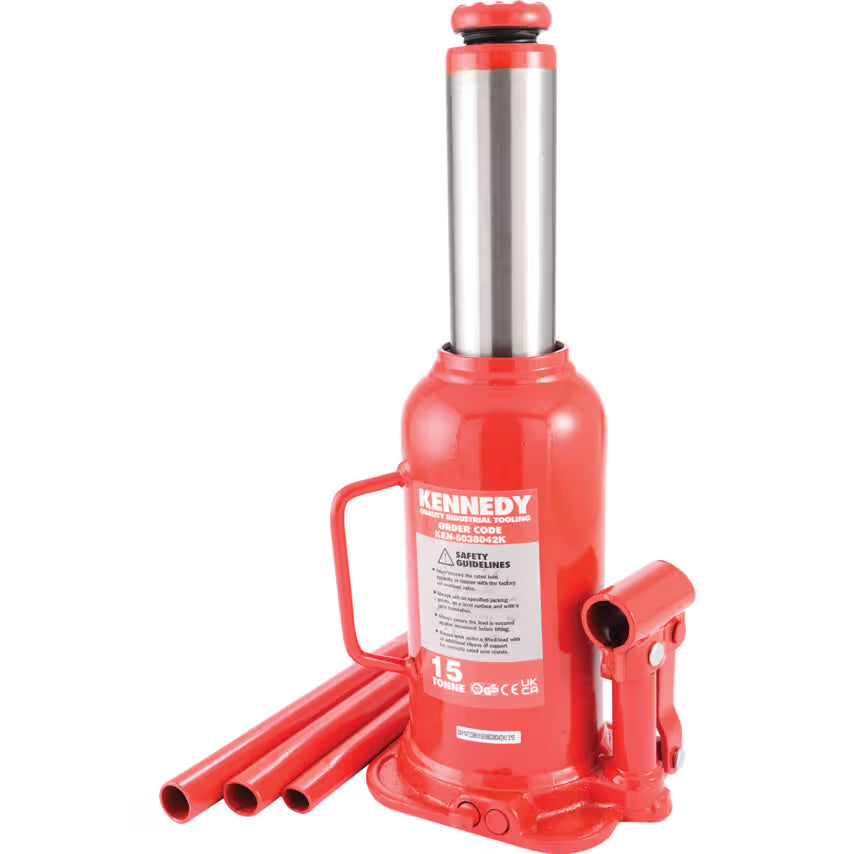

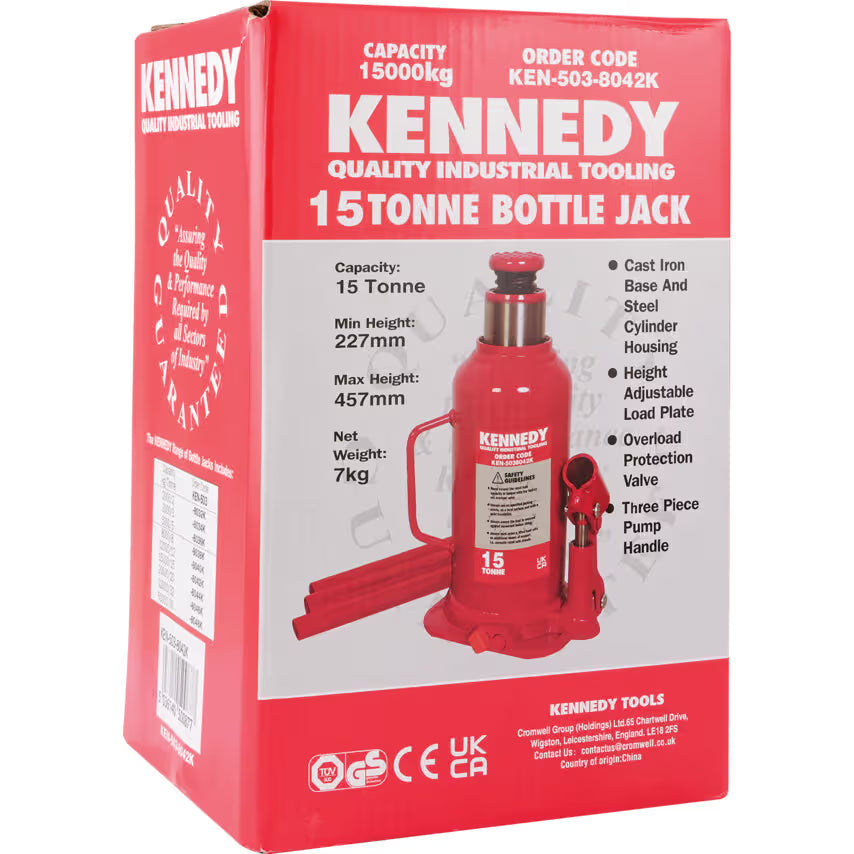

| KEN5038042K | 15t | 390mm | 205mm | 60mm | 7.7kg |

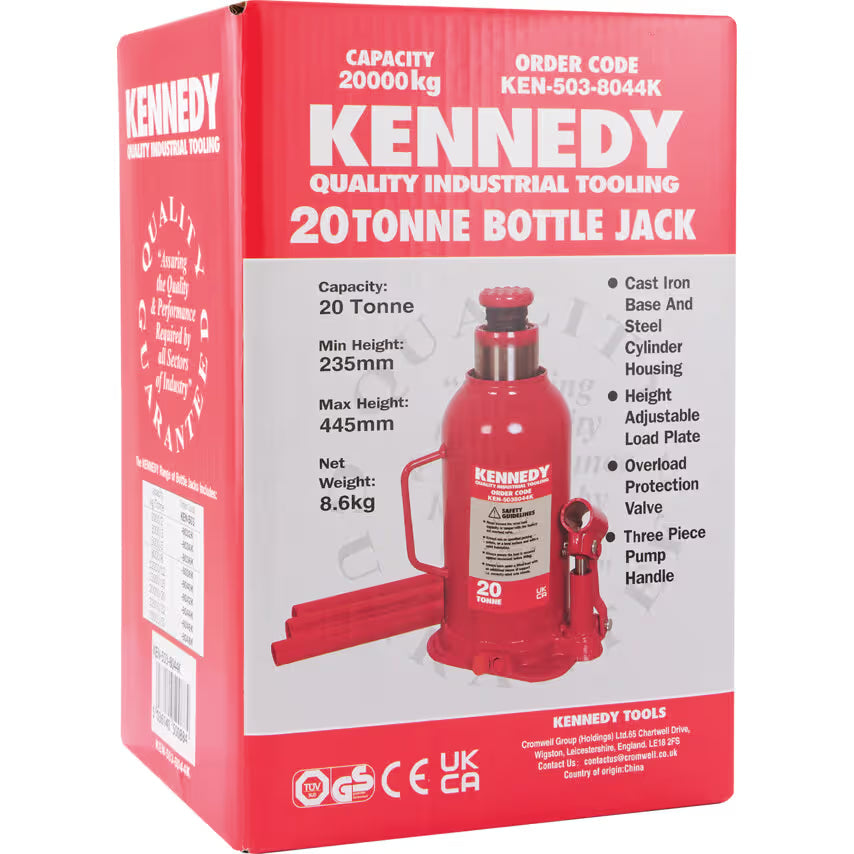

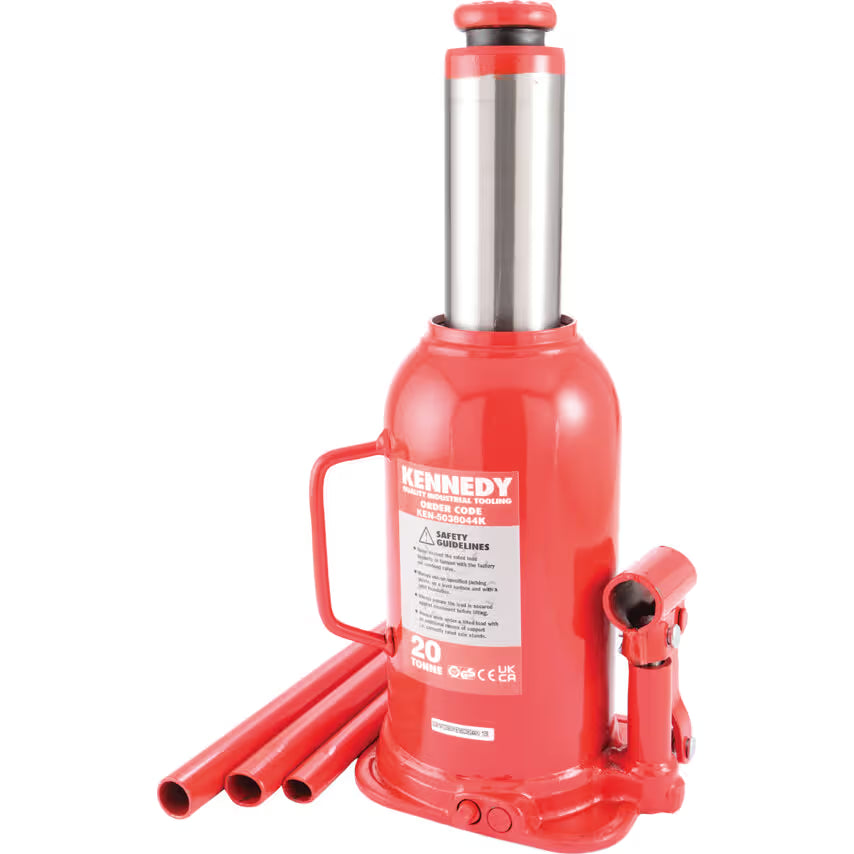

| KEN5038044K | 20t | 407mm | 217mm | 60mm | 9.8kg |

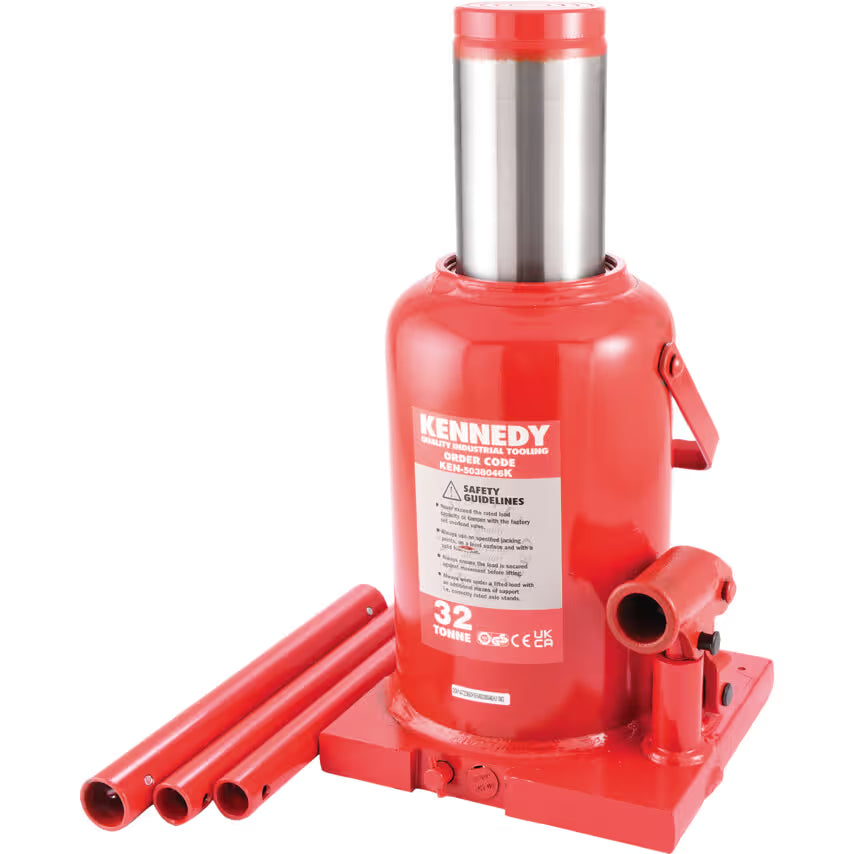

| KEN5038046K | 32t | 360mm | 230mm | - | 15.89kg |

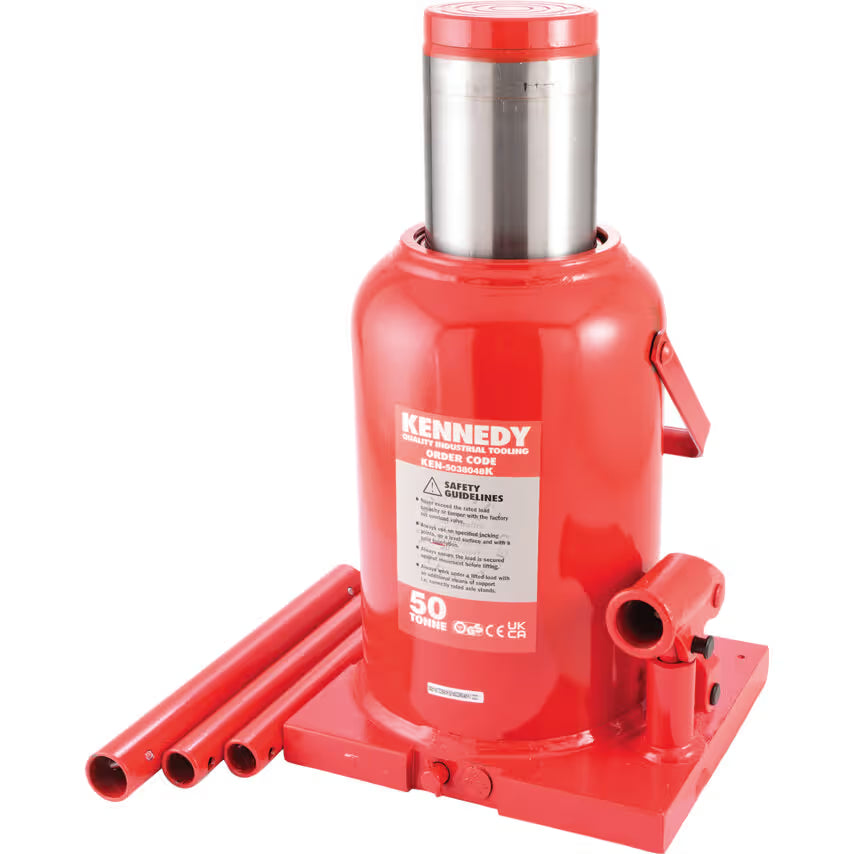

| KEN5038048K | 50t | 370mm | 240mm | - | 25.38kg |
General Technical Specifications
| Attribute | Specification |
|---|---|
| Brand | Kennedy |
| Product Type | Hydraulic Bottle Jack |
| System Type | Sealed Hydraulic Unit |
| Base Material | Cast Iron |
| Cylinder Material | Steel |
| Operation Angle | Vertical / up to 3° |
| Safety Feature | Overload Protection Valve |
| Certification | EC Machinery Directive Compliant |
| Approval | GS & TÜV Approved |
| Application | Vehicle, Machinery & Structural Lifting |
| System of Measurement | Metric |
| UNSPSC Code | 24101612 |
Package Contents
- 1 x KENNEDY Bottle Jack (selected capacity variant)
- 1 x Operating Handle
Warranty Terms
KENNEDY products are covered against manufacturing defects under normal professional use conditions. Warranty excludes misuse, overloading, improper operation, or normal wear and tear.
Why KENNEDY?
KENNEDY is a trusted engineering and automotive equipment brand known for strength, safety, and reliability. Designed for demanding workshop and industrial environments, KENNEDY lifting tools deliver consistent performance, durability, and professional-grade safety standards.
