KENNEDY K20 Brazed Carbide Cranked Turning Tool RH
Couldn't load pickup availability
OVERVIEW SUMMARY

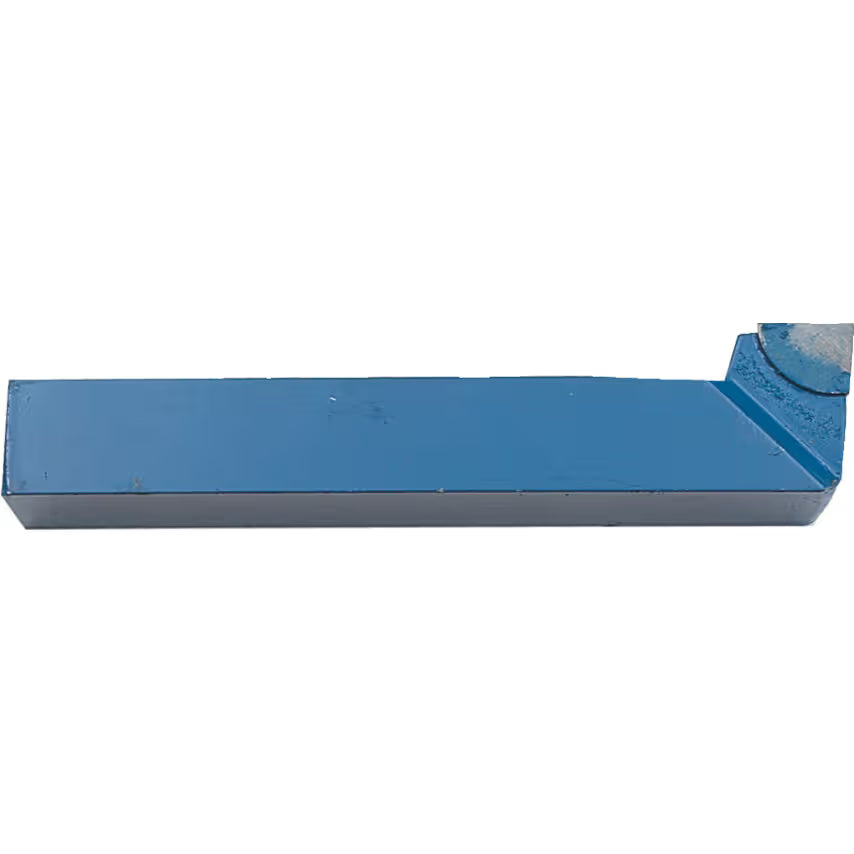

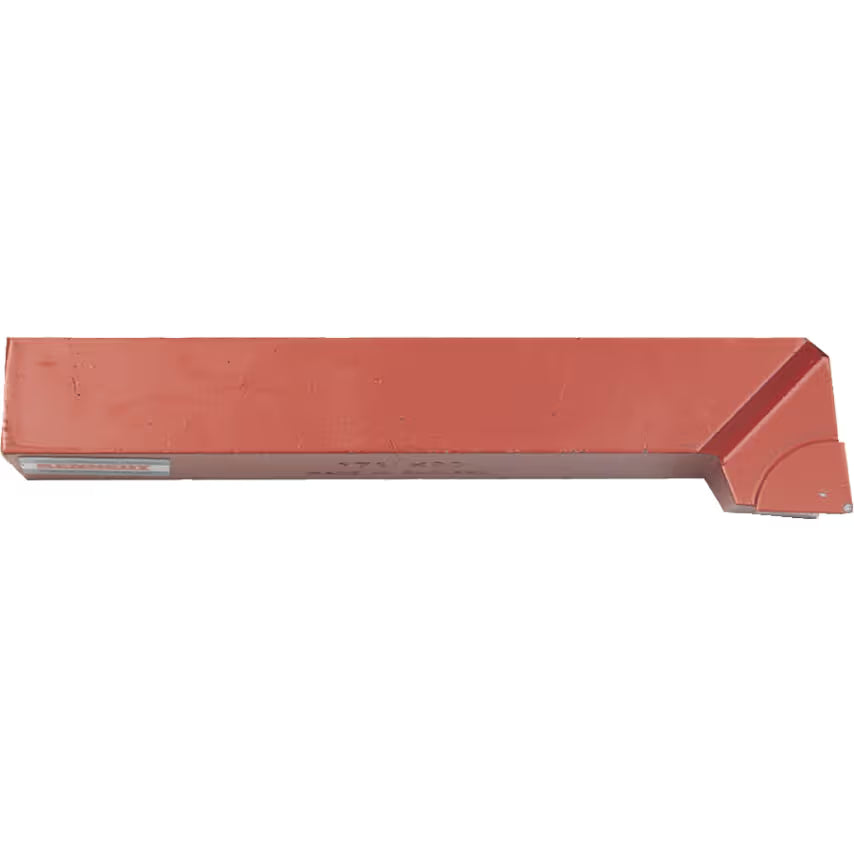

The KENNEDY K20 Brazed Carbide Cranked Turning Tool (Right Hand) is a versatile machining solution designed for cast iron and non-ferrous materials. Manufactured to ISO DIN BHMA standards, it features a durable carbide tip that balances wear resistance and toughness. The cranked design improves accessibility in complex machining operations, delivering reliable performance at moderate speeds and high feed rates.
KEY FEATURES
- K20 carbide grade for general-purpose machining
- Ideal for cast iron and non-ferrous materials
- Cranked design for improved access in tight areas
- Right-hand cutting direction
- Suitable for turning and boring applications
- Brazed carbide tip for durability and long tool life
- Optimized for moderate speeds and high feed rates
- Manufactured to ISO DIN BHMA standards
MULTI-VARIATION SPECIFICATION TABLE
| Model No | Tool Number | Overall Length | Shank Height / Width |
|---|---|---|---|
| KEN1002790K | 160 | 3-1/2" | 3/8" |
| KEN1002860K | 162 | 4" | 1/2" |
| KEN1002880K | 163 | 4" | 1/2" |
| KEN1002990K | 167 | 5" | 5/8" |
| KEN1003070K | 170 | 5-1/2" | 3/4" |
| KEN1003090K | 171 | 5-1/2" | 3/4" |
GENERAL TECHNICAL SPECIFICATIONS
| Attribute | Value |
|---|---|
| Brand | KENNEDY |
| Tool Type | Cranked Turning Tool |
| Tip Material | Carbide |
| ISO Grade | K20 |
| ISO Category | K |
| Material Application | Cast Iron, Non-Ferrous Metals |
| Cutting Direction | Right Hand |
| Clearance Angle | 6° |
| Lead Angle | 5° |
| Shank Size | 3/8" × 3/8" |
| Overall Length | 3-1/2" |
| Standards | ISO DIN BHMA |
APPLICATION
- Cranked turning operations
- Machining cast iron
- Working with non-ferrous materials
- Boring and internal machining
- High feed machining at moderate speeds
GRADE INFORMATION
- K20: General-purpose grade offering a balance of toughness and wear resistance
- Ideal for rough turning at moderate speeds
- Suitable for high feed rate machining
PACKAGE CONTENT
- 1 × KENNEDY K20 Brazed Carbide Cranked Turning Tool (Right Hand, Selected Size)
WARRANTY
- 6 Months Manufacturer Warranty
- Covers manufacturing defects only
- Excludes wear, misuse, or improper application
WHY KENNEDY
KENNEDY is a globally trusted tooling brand known for precision engineering, durability, and industrial-grade performance. Designed for demanding machining environments, KENNEDY tools deliver consistent results, long service life, and reliable cutting performance.
