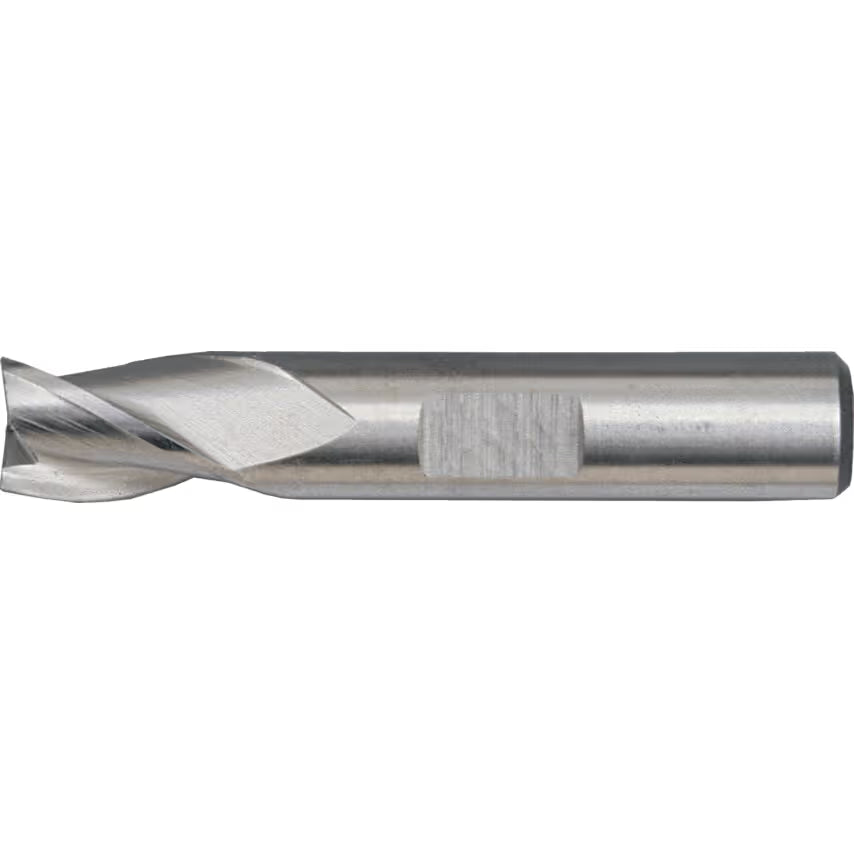

KENNEDY KC3 HSS Cobalt Throwaway End Mill 3 Flute Metric
Couldn't load pickup availability
OVERVIEW SUMMARY
The KENNEDY KC3 HSS Cobalt Throwaway End Mill range is engineered for high-performance slot drilling and end milling. Manufactured from M35 cobalt high speed steel (5% cobalt), these cutters offer superior toughness, allowing higher speeds and feeds for increased productivity. Designed for quick tool changes with a Weldon flat shank, they are ideal for professional machining applications.
KEY FEATURES
- M35 Cobalt High Speed Steel (5% Co) for enhanced durability
- 3 flute design for higher feed rates and efficiency (except small sizes)
- Short series for improved rigidity
- Centre cutting for plunging capability
- Weldon flat shank for secure clamping and quick change
- Suitable for slot drilling and end milling
- Compatible with adaptors/chucks using set screw locking
- Available in uncoated, TiN, and TiCN coatings
MULTI-VARIATION SPECIFICATION TABLE
| Model No | Cutter Diameter | Overall Length | Flute Length |
|---|---|---|---|
| KEN0620010K | 1mm | 24.5mm | 2mm |
| KEN0620040K | 2mm | 25.5mm | 2mm |
| KEN0620080K | 3mm | 28mm | 4.5mm |
| KEN0620120K | 4mm | 32.5mm | 6.5mm |
| KEN0620160K | 5mm | 36mm | 7.5mm |
| KEN0620200K | 6mm | 36mm | 9.5mm |
| KEN0620240K | 8mm | 47.5mm | 11mm |
GENERAL TECHNICAL SPECIFICATIONS
| Attribute | Value |
|---|---|
| Brand | KENNEDY |
| Material | Cobalt High Speed Steel (M35) |
| Milling Cutter Type | Throwaway Slot Drill |
| Cutter Style | Square End |
| Number of Flutes | 3 (1mm & 2mm = 2 flutes) |
| Flute Type | Helical |
| Length Type | Short |
| Finish / Coating | Uncoated |
| Plunge Type | Centre Cutting |
| Coolant Delivery | External |
| Shank Type | Weldon Flat |
| System of Measurement | Metric |
| ISO Category | H, K, P, N |
SHANK DETAILS
- Ø1mm – Ø6mm: 6mm shank
- Ø7mm – Ø10mm: 10mm shank
METRIC TOLERANCES
- Ø1.00mm – 3.00mm: +0.013 / -0.033
- Ø3.00mm – 6.00mm: +0.020 / -0.020
COATING OPTIONS (AVAILABLE RANGE)
- Uncoated – General purpose machining
- TiN – ~2300HV hardness, improved wear resistance
- TiCN – ~3000–3500HV, high wear & heat resistance (ideal for harder materials)
PACKAGE CONTENT
- 1 × KENNEDY KC3 HSS Cobalt Throwaway End Mill (Selected Size)
WARRANTY
- 6 Months Manufacturer Warranty
- Covers manufacturing defects only
- Excludes wear, misuse, or improper application
WHY KENNEDY
KENNEDY is a globally trusted tooling brand known for durability, precision, and performance. Designed for industrial applications, KENNEDY cutting tools deliver consistent results, higher productivity, and reliable machining quality.
