OVERVIEW SUMMARY

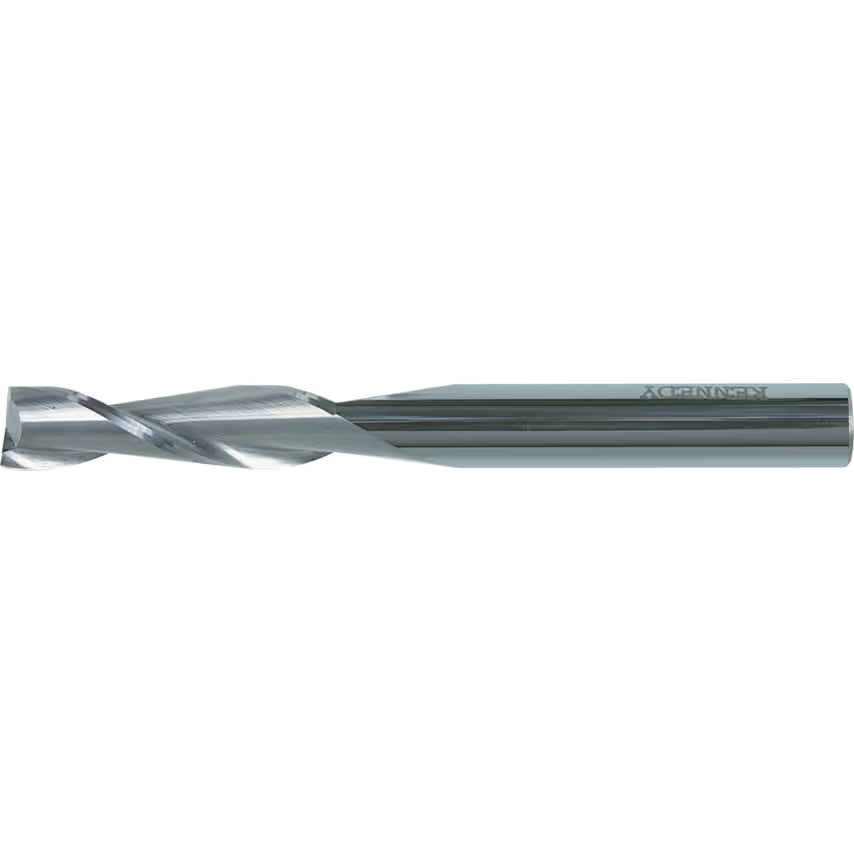

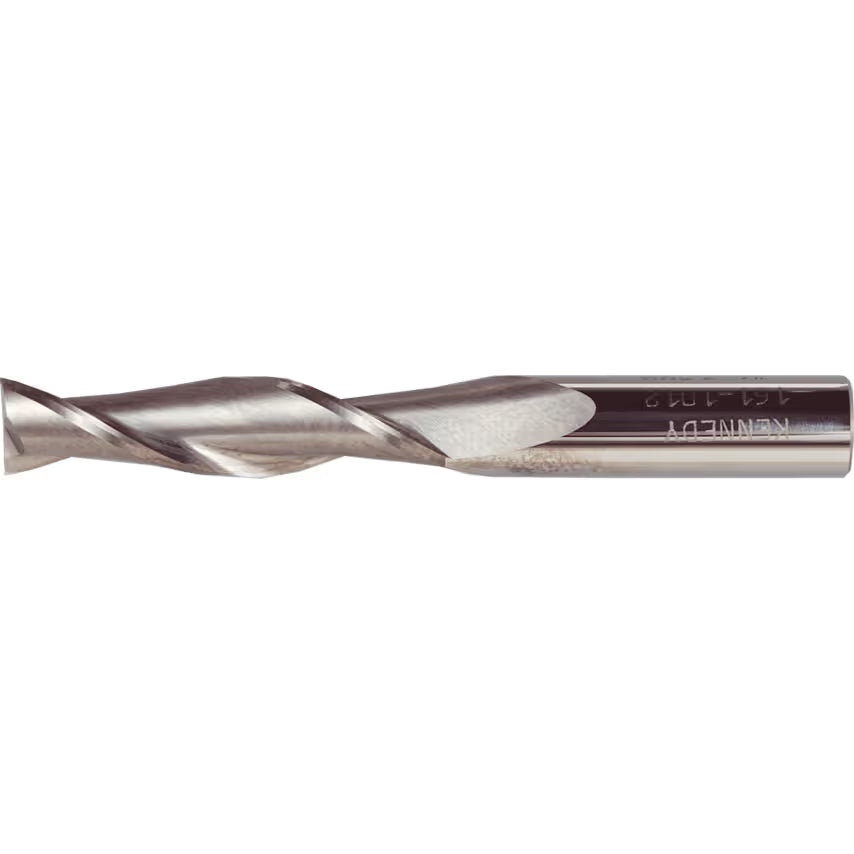

The KENNEDY Long Series 2 Flute Carbide Slot Drill is engineered for high-performance machining of aluminium, brass, light alloys, and non-ferrous materials. Featuring a long series design for deeper reach applications, these solid carbide cutters deliver outstanding swarf removal, smooth cutting performance, and reliable plunge cutting capability. Manufactured to USCTi standards, the 2-flute geometry enhances chip evacuation during slotting, routing, and plunging operations.

KEY FEATURES

Long series design for extended reach machining
Solid carbide construction for durability and wear resistance
2 flute geometry for efficient chip evacuation
Ideal for aluminium, brass, and non-ferrous materials
Centre cutting design for plunge milling applications
Smooth helical flute improves cutting efficiency
Excellent swarf removal during slotting and routing
Manufactured to USCTi standards

MULTI-VARIATION SPECIFICATION TABLE

Model No	Cutter Diameter	Overall Length	Flute Length
KEN1611003K	3.0mm	60mm	20mm
KEN1611004K	4.0mm	60mm	20mm
KEN1611005K	5.0mm	75mm	25mm
KEN1611006K	6.0mm	75mm	30mm
KEN1611008K	8.0mm	75mm	30mm
KEN1611010K	10.0mm	100mm	40mm
KEN1611012K	12.0mm	100mm	45mm
KEN1611016K	16.0mm	150mm	65mm

GENERAL TECHNICAL SPECIFICATIONS

Attribute	Value
Brand	KENNEDY
Product Type	Carbide Slot Drill
Milling Cutter Type	Slot Drill
Cutter Style	Square End
Material	Solid Carbide
Number of Flutes	2
Flute Type	Helical
Helix Angle	30°
Length Type	Long Series
Plunge Type	Centre Cutting
Finish/Coating	Uncoated
Coolant Delivery	External
Shank Type	Plain Round
Cutter Diameter Tolerance	h10
Shank Diameter Tolerance	h6
Standards Met	USCTi
System of Measurement	Metric

METRIC TOLERANCES

Diameter Range	Tolerance
Over 1.00mm up to 6.00mm	+0.000 / -0.050
Over 6.00mm up to 25.00mm	+0.000 / -0.080

APPLICATIONS

Suitable for machining:

Aluminium
Brass
Light alloys
Non-ferrous metals
Soft engineering materials

Ideal for:

Deep slotting
Routing
Plunging
Extended reach milling operations

PACKAGE CONTENT

1 × KENNEDY Long Series 2 Flute Carbide Slot Drill (Selected Size)

WARRANTY

6 Months Manufacturer Warranty
Covers manufacturing defects only
Excludes misuse, wear, and incorrect machining applications

WHY KENNEDY

KENNEDY is a respected industrial tooling brand trusted by engineers and machinists worldwide. Known for precision manufacturing and dependable performance, KENNEDY cutting tools are built to handle demanding workshop and industrial applications with excellent accuracy, durability, and long service life.
