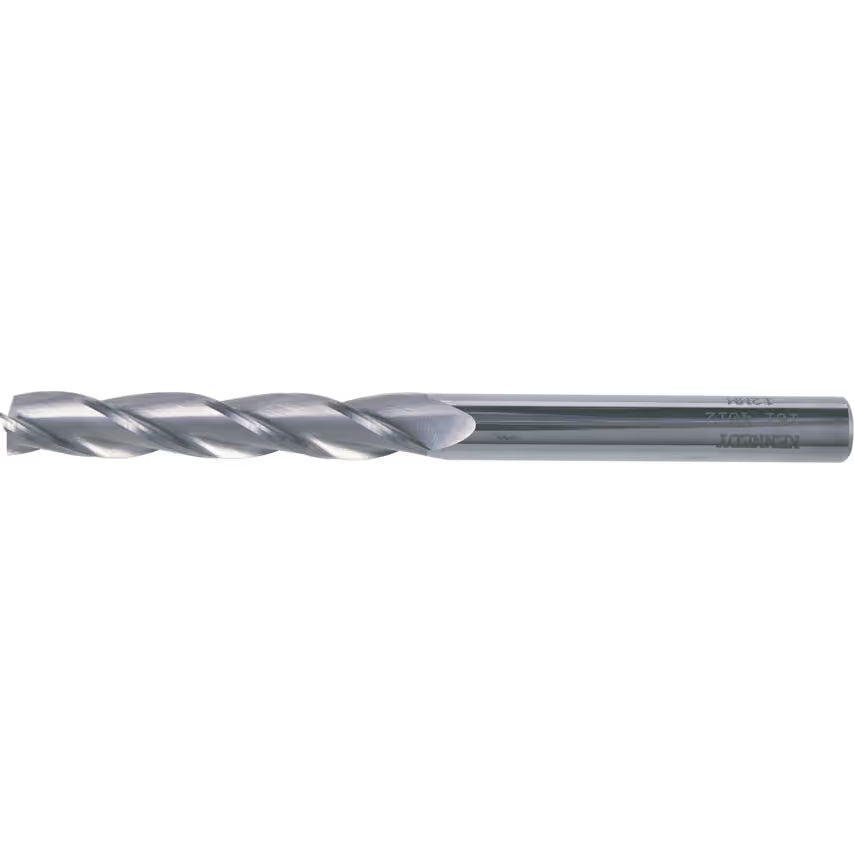

KENNEDY Long Series 3FL Carbide End Mill Metric Cutter
Couldn't load pickup availability
OVERVIEW SUMMARY
The KENNEDY Long Series 3 Flute Carbide End Mill is designed for precision machining of aluminium, brass, light alloys, and non-ferrous materials. Featuring a long series design for extended reach applications, these solid carbide end mills provide exceptional swarf removal, smooth cutting performance, and reliable plunge cutting capability. The 3-flute geometry combines excellent chip evacuation with enhanced rigidity, making these cutters ideal for slotting, routing, profiling, and general milling operations.
KEY FEATURES
- Long series design for deep reach machining
- Solid carbide construction for durability and wear resistance
- 3 flute geometry for balanced rigidity and chip evacuation
- Excellent swarf removal during high-speed machining
- Suitable for aluminium, brass, and non-ferrous materials
- Centre cutting design for plunge milling applications
- Helical flutes improve cutting smoothness and stability
- Manufactured to USCTi standards
MULTI-VARIATION SPECIFICATION TABLE
| Model No | Cutter Diameter | Overall Length | Flute Length |
|---|---|---|---|
| KEN1614004K | 4.0mm | 75mm | 25mm |
| KEN1614006K | 6.0mm | 75mm | 25mm |
| KEN1614008K | 8.0mm | 75mm | 25mm |
| KEN1614012K | 12.0mm | 100mm | 50mm |
| KEN1614016K | 16.0mm | 150mm | 75mm |
GENERAL TECHNICAL SPECIFICATIONS
| Attribute | Value |
|---|---|
| Brand | KENNEDY |
| Product Type | Carbide End Mill |
| Milling Cutter Type | End Mill |
| Cutter Style | Square End |
| Material | Solid Carbide |
| Number of Flutes | 3 |
| Flute Type | Helical |
| Length Type | Long Series |
| Plunge Type | Centre Cutting |
| Finish/Coating | Uncoated |
| Coolant Delivery | External |
| Shank Type | Plain Round |
| Cutter Diameter Tolerance | h10 |
| Shank Diameter Tolerance | h6 |
| Standards Met | USCTi |
| System of Measurement | Metric |
METRIC TOLERANCES
| Diameter Range | Tolerance |
|---|---|
| Over 1.00mm up to 6.00mm | +0.000 / -0.050 |
| Over 6.00mm up to 25.00mm | +0.000 / -0.080 |
APPLICATIONS
Suitable for machining:
- Aluminium
- Brass
- Non-ferrous metals
- Light alloys
- Soft engineering materials
Ideal for:
- Slotting
- Routing
- Profiling
- Plunging
- Deep reach milling applications
PACKAGE CONTENT
- 1 ร KENNEDY Long Series 3 Flute Carbide End Mill (Selected Size)
WARRANTY
- 6 Months Manufacturer Warranty
- Covers manufacturing defects only
- Excludes wear, misuse, and improper machining applications
