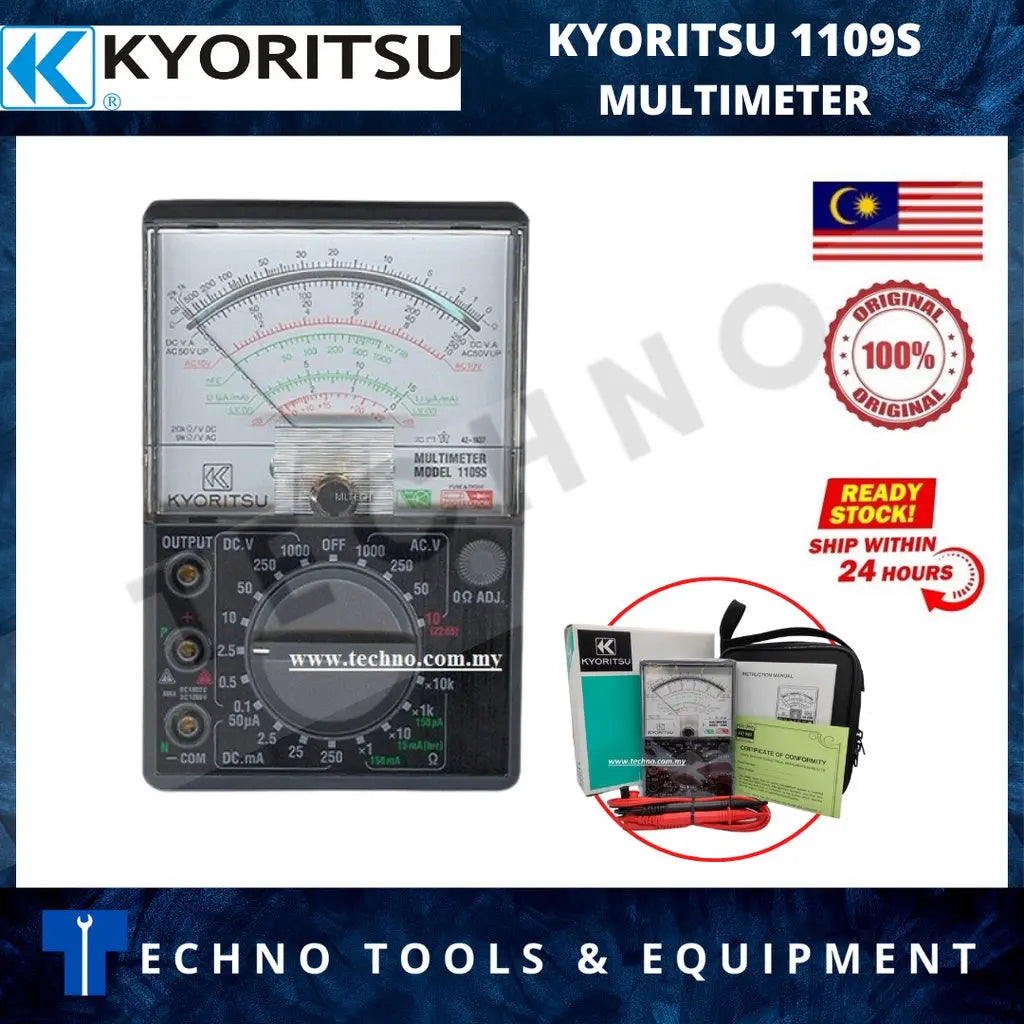

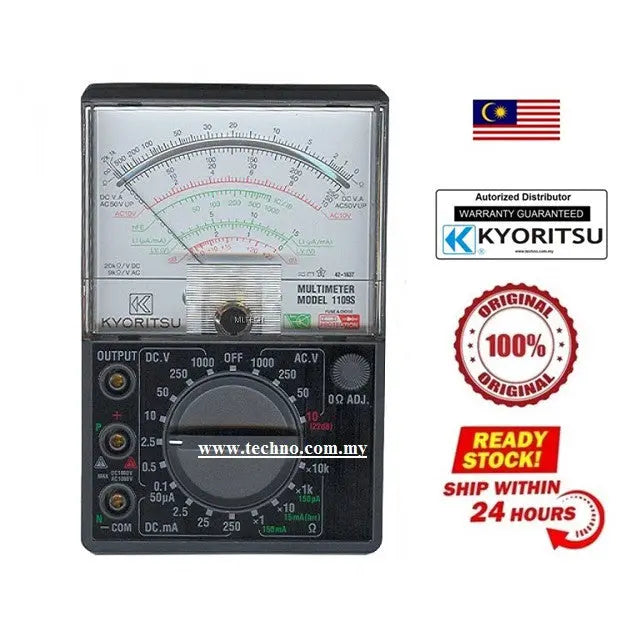

KEW 1109S Analogue Multimeter
The KYORITSU 1109S analogue multimeter is a precision instrument for measuring AC and DC voltage up to 1000V safely and reliably. The KYORITSU 1109S analogue multimeter ensures accurate readings for electricians, engineers, and maintenance professionals in industrial, commercial, and residential electrical environments.
Key Features:
- Mirrored Scale: Enables precise and easy readings.
- DC Component Cutoff: Output terminal eliminates DC components during AC voltage measurements.
- Safety-Designed Input Terminals: Ensures safe operation with included test leads.
- Durable Construction: Built to handle everyday electrical testing needs.
Specifications Table
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage (DCV) | 0.1 / 0.5 / 2.5 / 10 / 50 / 250 / 1000V | ±3% of FS (20kΩ/V) |
| AC Voltage (ACV) | 10 / 50 / 250 / 1000V | ±3% of FS (9kΩ/V) |
| DC Current (DCA) | 50µA / 2.5 / 25 / 250mA | ±3% of FS |
| Resistance (Ω) | 2 / 20kΩ / 2 / 20MΩ | ±3% of scale length |
| Decibel (dB) | -10 to +62dB | ±3% of scale length |
| hFE (Transistor Gain) | 0 - 1000 (Ω × 10) | ±3% of scale length |
General Specifications
| Feature | Details |
|---|---|
| Power Source | 2 × R6 (AA) (1.5V), 1 × 6F22 (9V) |
| Dimensions | 150 mm × 100 mm × 47 mm |
| Weight | Approx. 330g |
| Accessories Included | Test leads (7066A), 0.5A/250V fuses (1 installed, 1 spare), R6 (AA) batteries × 2, 6F22 battery × 1, instruction manual |
| Optional Accessories | Carrying case (9168) |
Note: Do not make voltage measurements on industrial power lines of 250V or higher.
| Warranty period | 1 Year Warranty |
|---|---|
| Coverage | Free repair or replacement for defects in material and workmanship arising during normal use within 1 year from the date of purchase. Test leads, probes and plug leads supplied with the instrument are covered for 1 year against production defects. |
| Not covered | Fuses and batteries; normal wear of test leads and probes (cuts, burns, broken tips, worn insulation); damage from accident, dropping, overload, misuse, or use outside the instrument's rated specifications. |
| Warranty void if | The instrument has been opened, repaired or modified by a party not authorised by Kyoritsu or its Malaysian distributor. |
