KYORITSU 2002PA AC Digital Clamp Meter (KEWSNAP 2002PA)
Regular price
RM1,044.00 MYR
Regular price
-18%
RM1,280.00 MYR
Sale price
RM1,044.00 MYR
Couldn't load pickup availability
Got questions?
Feel free to WhatsApp us
Product Brochure
Click Here: Brochure in PDF
Product Datasheet / User Manual
Click Here: Datasheet in PDF
MODEL 2002PA AC Clamp Meter
The MODEL 2002PA AC Clamp Meter is a high-performance tool capable of measuring large AC currents up to 2000A. With its peak hold function and φ55mm large tear drop shaped jaws, it is perfect for high-current measurement in industrial applications. This meter offers precise readings, with a minimum resolution of 0.1A and a wide frequency response range of 40Hz to 1kHz. Its robust design and advanced functionality make it a reliable tool for professional use.
Key Features:
- High Current Measurement: Capable of measuring AC currents up to 2000A with high accuracy.
- Peak Hold Function: Captures transient peak values for accurate measurements.
- Large Tear Drop Shaped Jaws: φ55mm jaws are designed for easy clamping of thick conductors in tight spaces.
- High Resolution: Minimum resolution of 0.1A ensures precision even in low-current measurements.
- Compact Design: The clamp meter is compact yet powerful, perfect for industrial and fieldwork use.
Specifications Table
| Function | Range | Accuracy |
|---|---|---|
| AC Current (AC A) | 400A (0 - 400A) | ±1%rdg ±3dgt (50/60Hz); ±2%rdg ±3dgt (40Hz - 1kHz) |
| AC Current (AC A) | 2000A (0 - 1500A) | ±1%rdg ±3dgt (50/60Hz); ±3%rdg ±3dgt (40Hz - 1kHz) |
| AC Current (AC A) | 2000A (1500 - 2000A) | ±3.0%rdg (50/60Hz) |
| AC Voltage (AC V) | 40V / 400V / 750V | ±1%rdg ±2dgt (50/60Hz); ±1.5%rdg ±3dgt (40Hz - 1kHz) |
| DC Voltage (DC V) | 40V / 400V / 1000V | ±1%rdg ±2dgt |
| Resistance (Ω) | 400Ω / 4kΩ / 40kΩ / 400kΩ | ±1.5%rdg ±2dgt |
| Continuity Buzzer | Buzzer sounds below 50 ±35Ω | — |
| Diode Test | 2.000V | ±3.0%rdg ±5dgt (Open-circuit voltage: approx. 2.7V) |
| Capacitance (F) | 400.0nF / 4.000µF / 40.00µF | ±2.5%rdg ±10dgt |
| Frequency | AC A: 99.99Hz / 400Hz; AC V: 99.99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 300.0kHz | ±0.2%rdg ±2dgt (100Hz); ±0.1%rdg ±1dgt (1000Hz / 10kHz / 300kHz) |
| Conductor Size | φ55mm max. | — |
General Specifications
| Feature | Details |
|---|---|
| Safety Standard | IEC 61010-1 CAT III 600V / CAT II 1000V |
| Power Source | 2 × R6 (AA) (1.5V) |
| Dimensions | 247 mm × 105 mm × 49 mm |
| Weight | Approx. 470g |

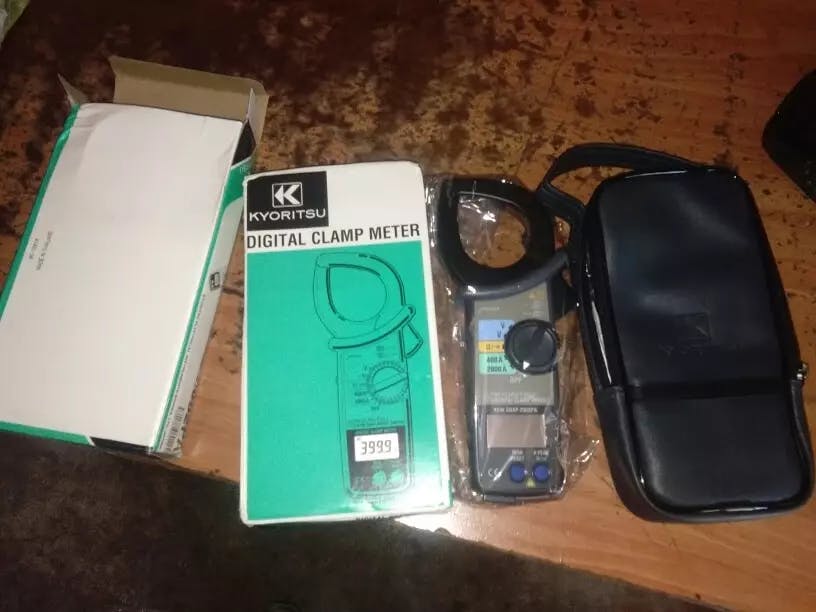

| Accessories Included | Test leads (7107A), carrying case (9094), 2 × R6 (AA) batteries, instruction manual |
| Optional Accessories | Output cord (7256) |
Warranty: 1 Year
Made In: Thailand
