KEW 2046R AC/DC Clamp Meter

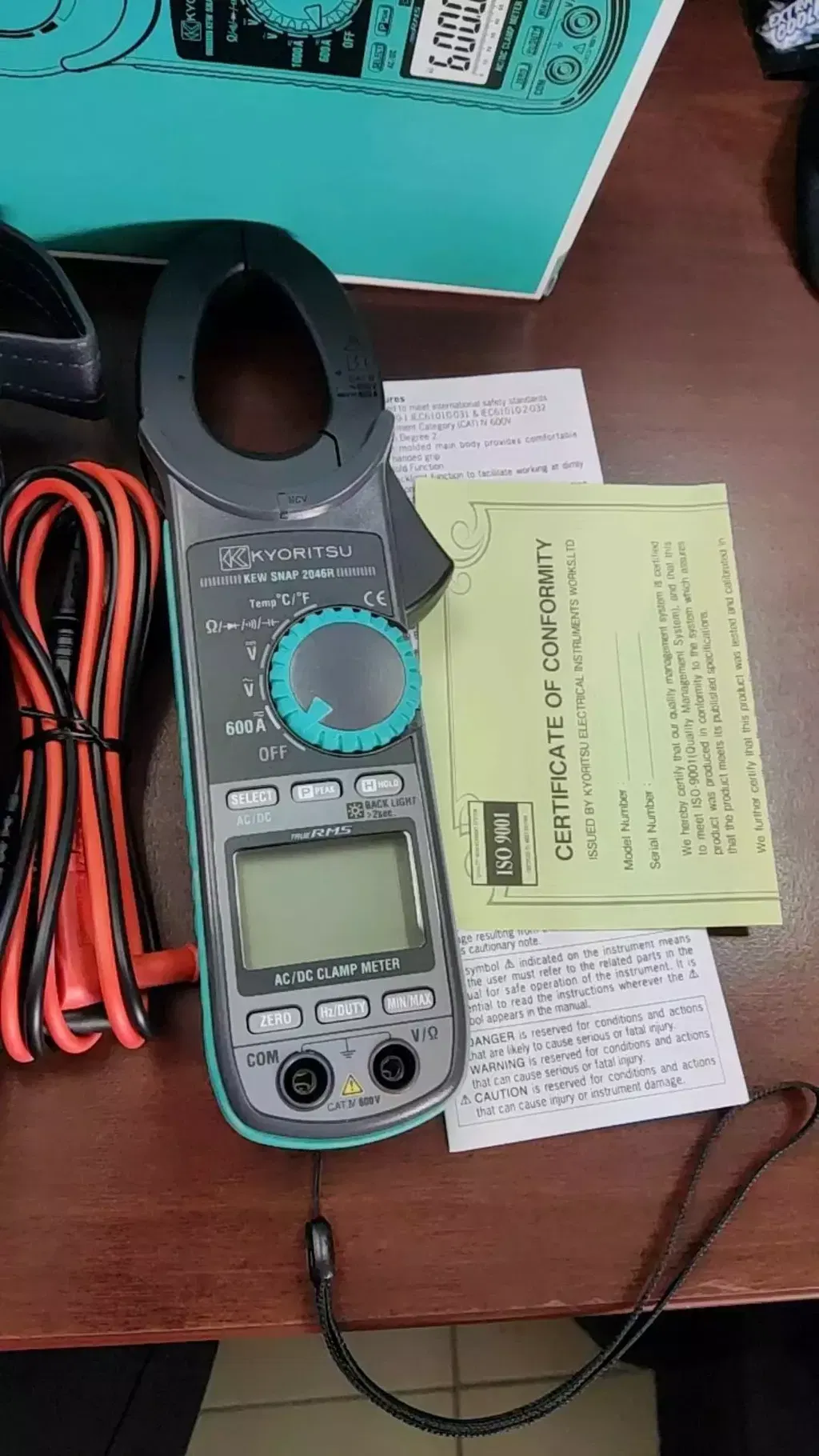

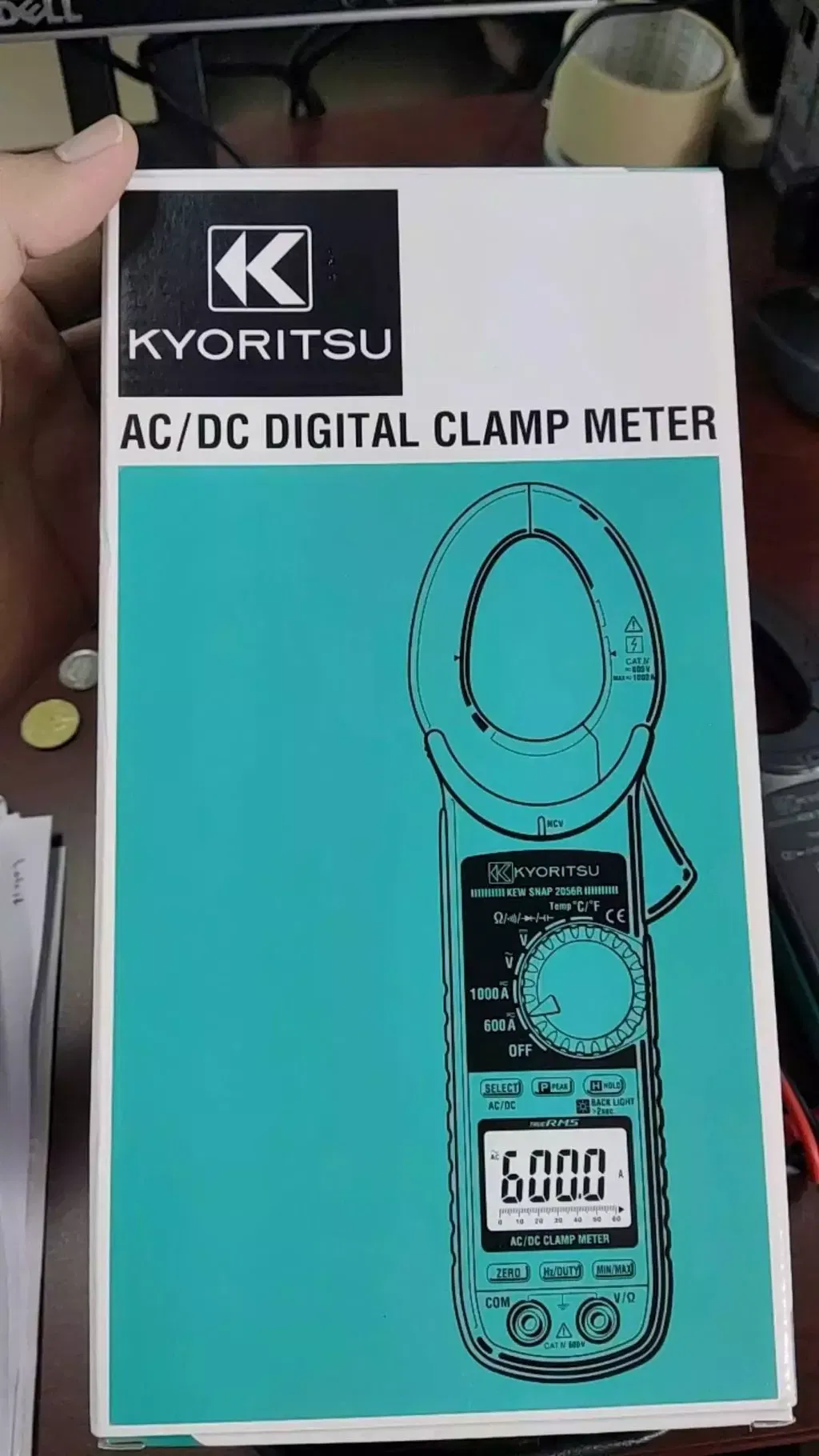

KYORITSU 2046R Clamp Meter
The KYORITSU 2046R Clamp Meter is a high-precision instrument designed for safe and accurate AC/DC current measurements in residential, commercial, and industrial electrical systems. The KEW 2046R features a compact ergonomic design, clear digital display, and stable readings, ensuring reliable operation. Its portability and performance make the KYORITSU 2046R Clamp Meter ideal for electricians, technicians, and engineers who require precise current measurement for daily field tasks.
Key Features:
- Non-Contact Voltage Detection: Red LED alerts the user to the presence of AC voltage for enhanced safety.
- Double Molding Design: Ensures a comfortable grip during prolonged use.
- Comprehensive Measurement Functions: Measures AC/DC current, AC/DC voltage, resistance, continuity, capacitance, temperature, and frequency.
- High Resolution: Offers a minimum resolution of 0.1A for detailed measurements.
- Safety Standards Compliance: Certified to IEC 61010-1 CAT IV 600V for secure and reliable operation.
Specifications Table
| Function | Range | Accuracy |
|---|---|---|
| AC Current (ACA) | 0 - 600.0A | ±2.0%rdg ±5dgt (50/60Hz); ±3.5%rdg ±5dgt (40 - 500Hz) |
| DC Current (DCA) | 0 - 600.0A | ±1.5%rdg ±5dgt |
| AC Voltage (ACV) | 6V / 60V / 600V (Auto-ranging) | ±1.5%rdg ±4dgt (50/60Hz); ±3.5%rdg ±5dgt (40 - 400Hz) |
| DC Voltage (DCV) | 600mV / 6V / 60V / 600V (Auto-ranging) | ±1.0%rdg ±3dgt |
| Resistance (Ω) | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ (Auto-ranging) | ±1%rdg ±5dgt (600Ω - 6MΩ); ±5%rdg ±8dgt (60MΩ) |
| Continuity Buzzer | — | Buzzer sounds below 100Ω |
| Capacitance | 400nF / 4μF / 40μF (Auto-ranging) | — |
| Temperature | -50°C to +300°C (with Temperature Probe 8216) | — |
| Frequency | 10Hz / 100Hz / 1kHz / 10kHz (Auto-ranging) | — |
| Duty Cycle | 0.1% - 99.9% | — |
| Conductor Size | Ø33mm max. | — |
General Specifications
| Feature | Details |
|---|---|
| Safety Standards | IEC 61010-1 CAT IV 600V; IEC 61010-031; IEC 61010-2-032; IEC 61326 |
| Power Source | 2 × R03 (AAA) (1.5V) |
| Dimensions | 243 mm × 77 mm × 36 mm |
| Weight | Approx. 300g |

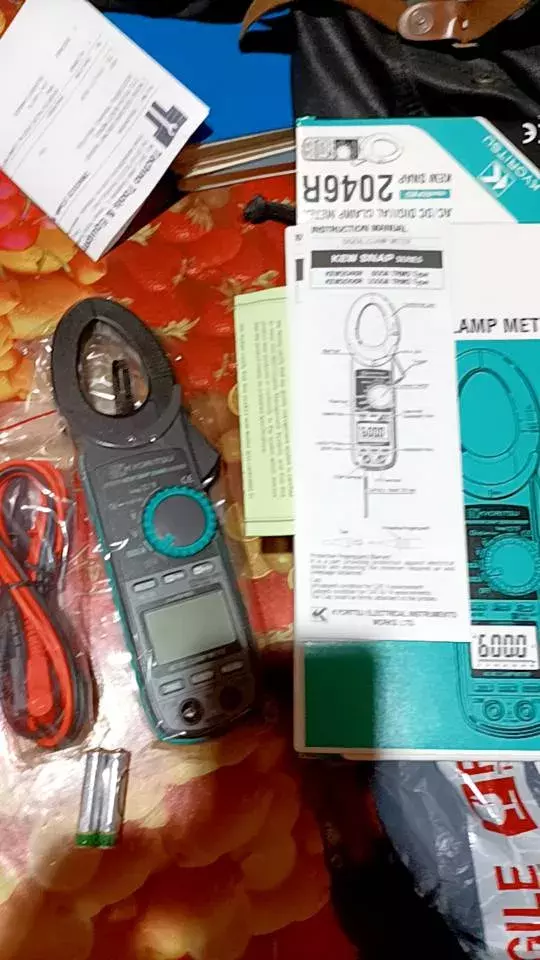

| Accessories Included | Test leads (7066A), carrying case (9094), instruction manual |
| Optional Accessories | Temperature probe (8216) |
