DIGITAL INSULATION / CONTINUITY TESTER MODEL 3005A
KYORITSU 3005A Insulation / Continuity Tester
The KYORITSU 3005A insulation tester is a precision instrument designed for accurate measurement of insulation resistance and continuity. The KYORITSU 3005A insulation tester is ideal for electricians, engineers, and maintenance personnel, providing reliable readings in industrial, commercial, and residential environments.
Key Features:
- Insulation Resistance Measurement: Tests insulation with up to 2000MΩ range.
- Continuity Testing: Measures continuity resistance with a 200mA current.
- AC Voltage Detection: Displays external AC voltage with a flashing symbol.
- Live Circuit Warning: Buzzer sounds to warn of live circuits during testing.
- Easy Discharge: Automatically discharges the charges stored in the circuit after testing.
- Multiple Test Voltages: Selectable test voltages of 250V, 500V, and 1000V for insulation testing.
Specifications Table
| Function | Range | Accuracy |
|---|---|---|
| Insulation Resistance | 250/500/1000V test voltage, 20/200/2000MΩ range | ±1.5%rdg±5dgt (20/200MΩ), ±10%rdg±3dgt (2000MΩ) |
| Continuity Testing | 20/200/2000Ω | ±1.5%rdg±5dgt (20Ω), ±1.5%rdg±3dgt (200/2000Ω) |
| AC Voltage | 0 - 600V AC | ±5%rdg±3dgt |
General Specifications
| Feature | Details |
|---|---|
| Display | Bar graph and LCD display |
| Safety Standards | IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61010-2-031, IEC 61010-2-034, IEC 61557-1,2,4 |
| IP Rating | IEC 60529-IP54 |
| Power Supply | R6 (AA) (1.5V) × 8 |
| Dimensions | 167(L) × 185(W) × 89(D)mm |
| Weight | Approx. 970g (including batteries) |

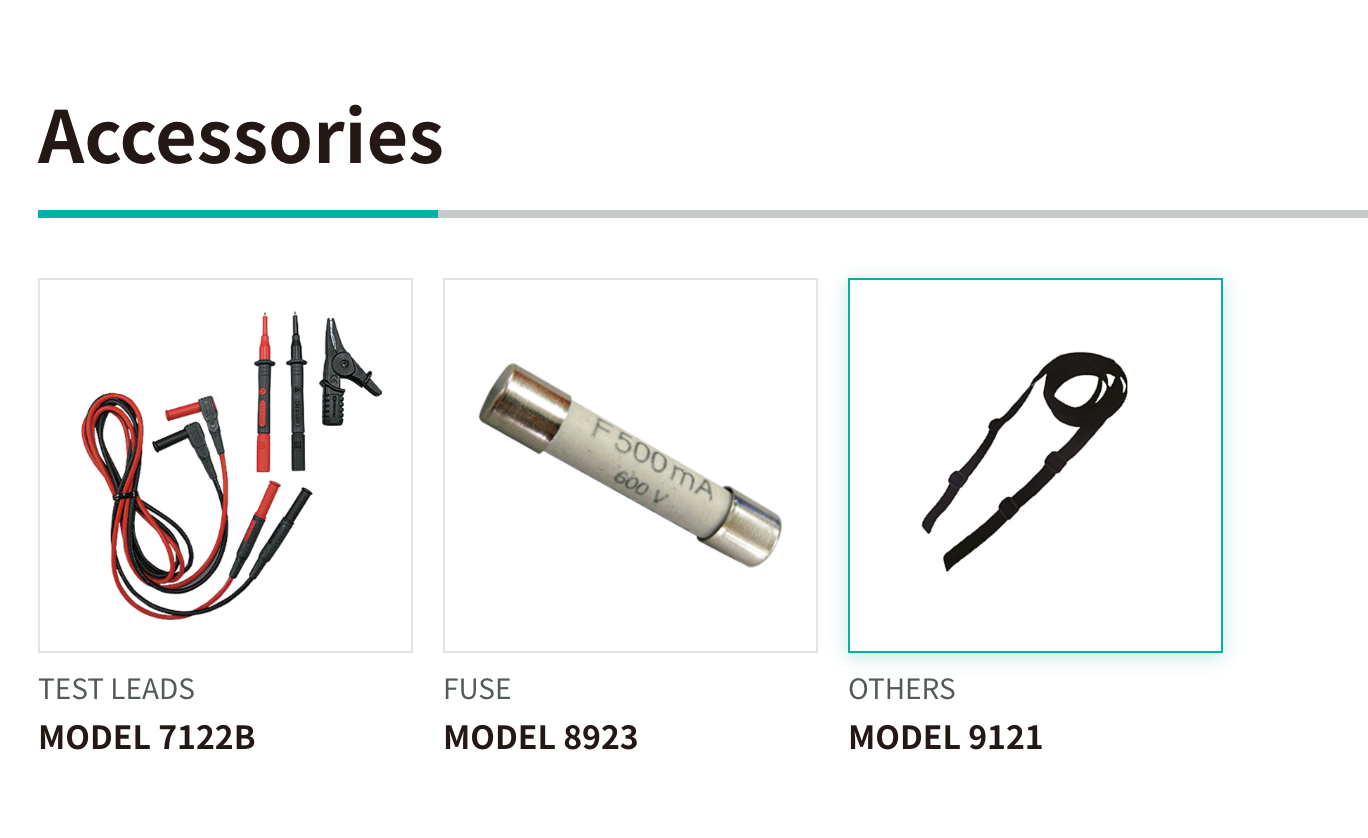

| Accessories Included | Test leads (7122B), fuse (8923), shoulder strap (9121), carrying case (9074) |
| Optional Accessories | Fuse (8923), carrying case (9074), shoulder strap (9121) |
