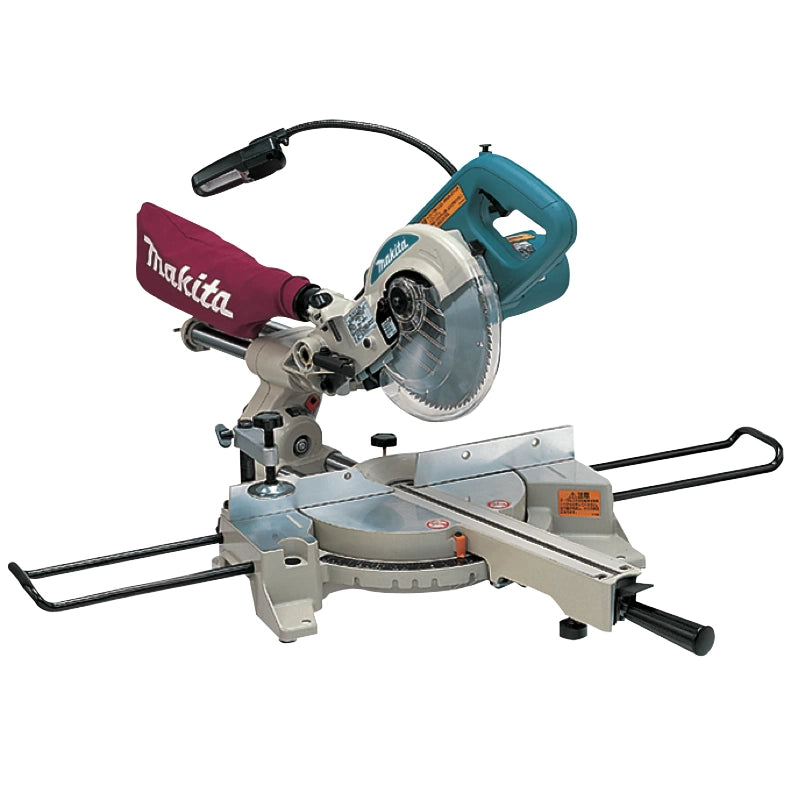

Makita Slide Compound Mitre Saw, 190mm – LS0714
Couldn't load pickup availability
Overview Summary
The Makita LS0714 Slide Compound Saw is designed for clean, accurate crosscuts and miters in a compact form. Its smooth sliding rails extend cutting capacity while maintaining stability and precision. Ideal for carpentry, renovation, and workshop use, the LS0714 delivers professional-grade performance in a portable, space-saving design.
Key Features
-
190mm blade with sliding function for wider cutting capacity
-
High-precision miter and bevel adjustments
-
Smooth, stable rail system for accurate cuts
-
Compact and lightweight for easy transport
-
Powerful motor for consistent cutting performance
-
Built-in safety features for controlled operation
Specification Table
| Continuous Rating Input | 1,010 W |
| Blade Diameter | 190 mm (7-1/2") |
| Miter Angle | 47° L / 57° R |
| Bevel Angle | 45° L / 5° R |
| Max Cutting Capacity | 90°: 52 x 300 mm (2-1/16 x 11-3/4") 45°: 52 x 212 mm (2-1/16 x 8-3/8") |
| No Load Speed (RPM) | 6,000 |
| Dimensions (L x W x H) | 670 x 430 x 458 mm (26-3/8" x 17" x 18") |
| Net Weight | 13.1 kg (28.9 lbs) |
| Power Supply Cord | 2.5 m (8.2 ft) |
Standard Equipment
Carbide-Tipped Saw Blade, Dust Bag, Holder Set, Vertical Vise, Triangular Rule
Package Content
-
1 x Makita LS0714 Slide Compound Saw
-
1 x 190mm TCT Saw Blade
-
1 x Dust Bag
-
1 x Blade Wrench
-
1 x User Manual
Warranty Term
| Warranty period | 12 months |
| Batteries & chargers | 12 months (void if the seal is damaged or removed) |
| Not covered | Wear parts and consumables – carbon brushes & holders, switches, gears, grinding/cutting wheels, bits and saw blades |
| Warranty void if | Tool is disassembled, altered or repaired by others; misused, overloaded or used with abnormal voltage/generator; not used per the instruction manual; or the serial number is defaced/removed |
Faulty units are repaired or replaced free of charge, at Makita's option, at an authorised Makita service centre. Please keep your sales or tax invoice showing the purchase date and tool serial number as proof of purchase.
Full terms: Makita Malaysia Warranty Policy (PDF)
Why Makita
Makita is trusted worldwide for its innovation, durability, and professional-grade engineering. Each tool is built to deliver precision, safety, and long service life. Choosing Makita means investing in reliability, performance, and a brand proven across industries.
| Warranty period | 12 Month Warranty |
|---|---|
| Coverage | Free repair or replacement, at Makita's option, for defects in materials and manufacturing within 12 months from the date of purchase. Covers the tool, battery and charger. |
| Not covered | Normal wear and tear parts such as carbon brushes, brush holders and caps, switches, gears, grinding and cutting wheels, bits and saw blades; damage from improper accessories or non-genuine replacement parts; damage from negligence, accident, disaster, improper storage or maintenance, abuse, misuse or overloading the tool beyond its capacity; damage from abnormal voltage, use with a generator, or use not in accordance with the operating manual. |
| Warranty void if | The tool has been disassembled, tampered with, altered or repaired in any way that affects its performance; the serial number on the tool, or the seal on the battery or charger, has been defaced or removed; the receipt or invoice showing the date of purchase cannot be shown. |
Faulty units are repaired or replaced free of charge, at Makita's option. To claim, bring the product with your sales or tax invoice (showing the purchase date and tool serial number) to Techno Tools or any Makita Authorised Service Centre. Full terms: Makita Malaysia Warranty Policy (PDF)
