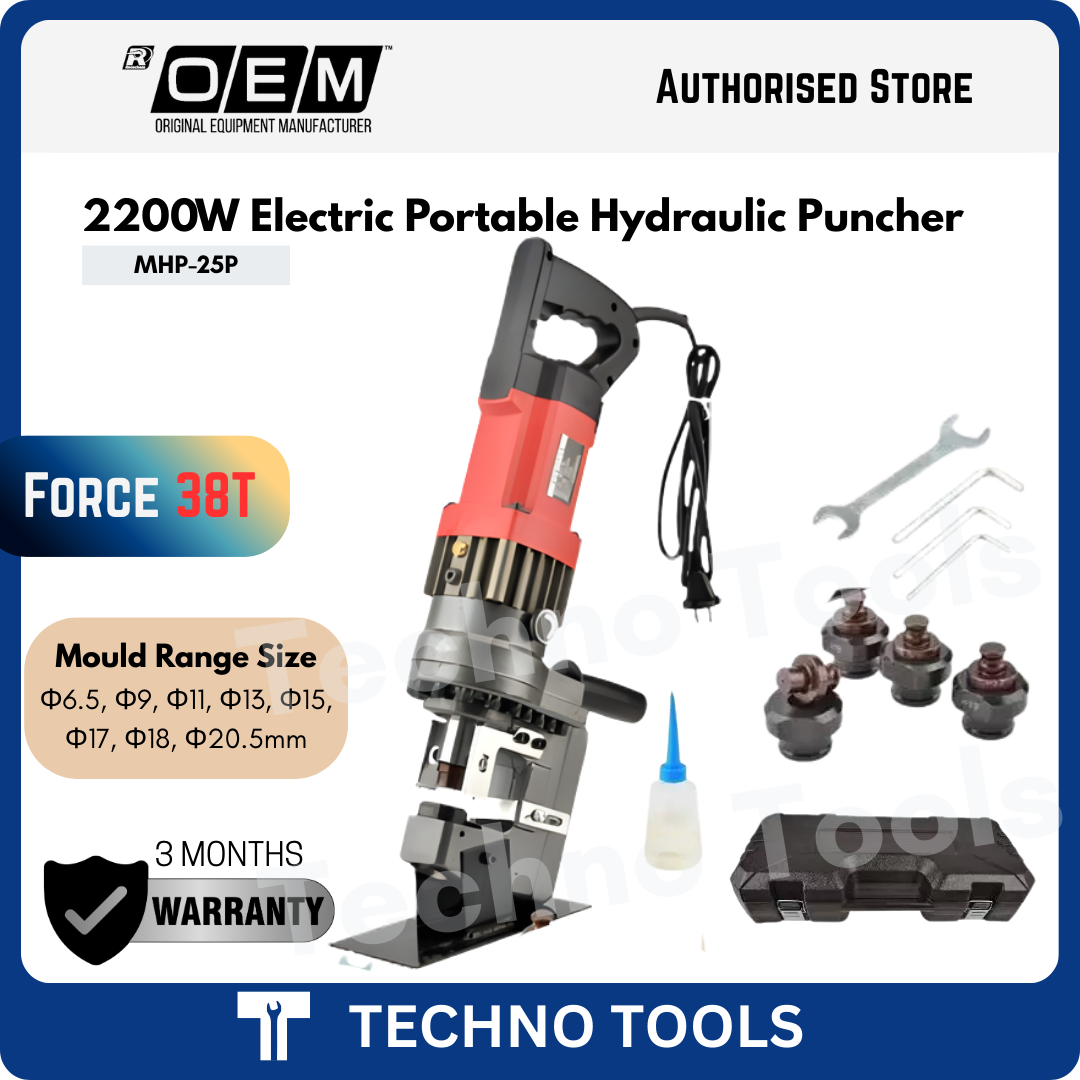

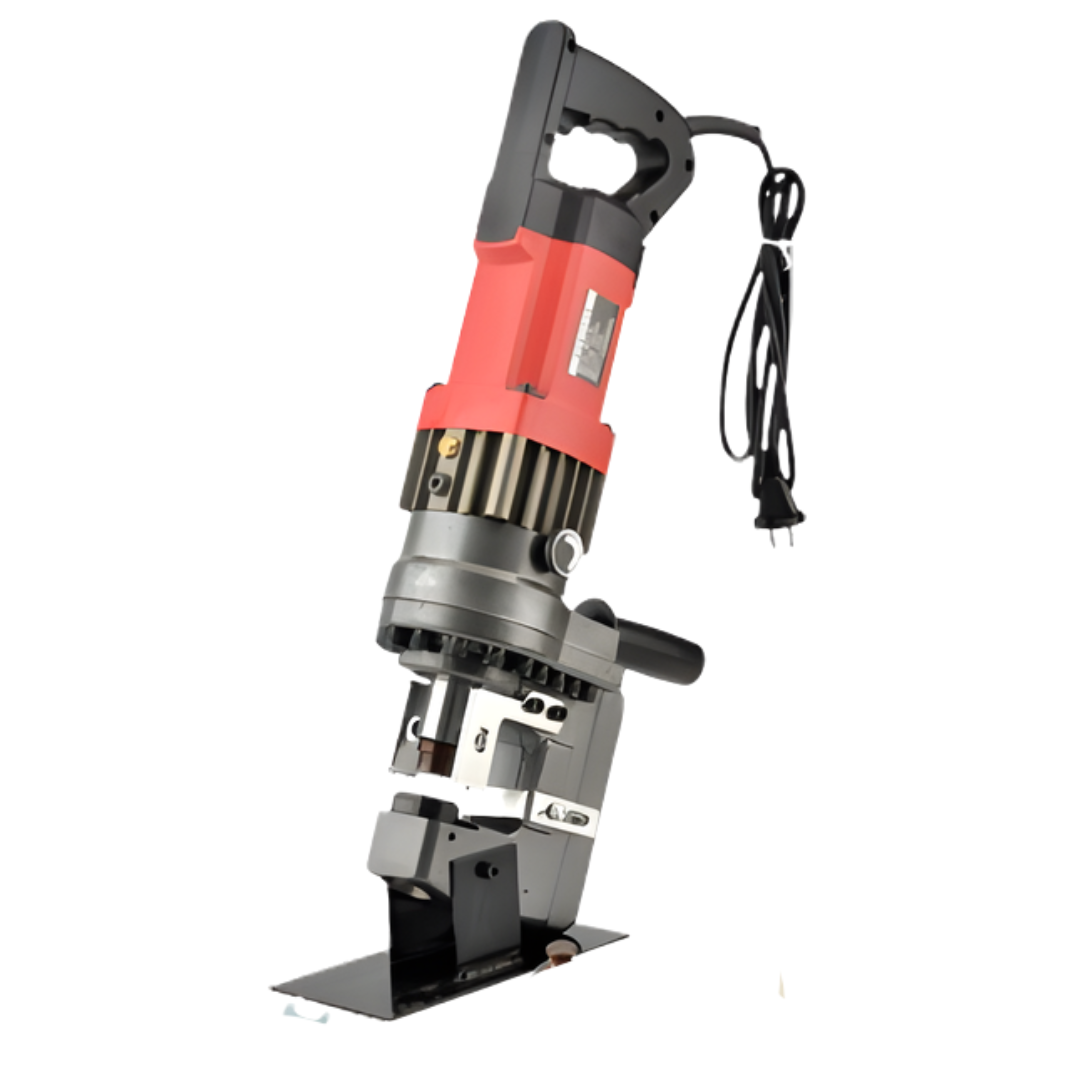

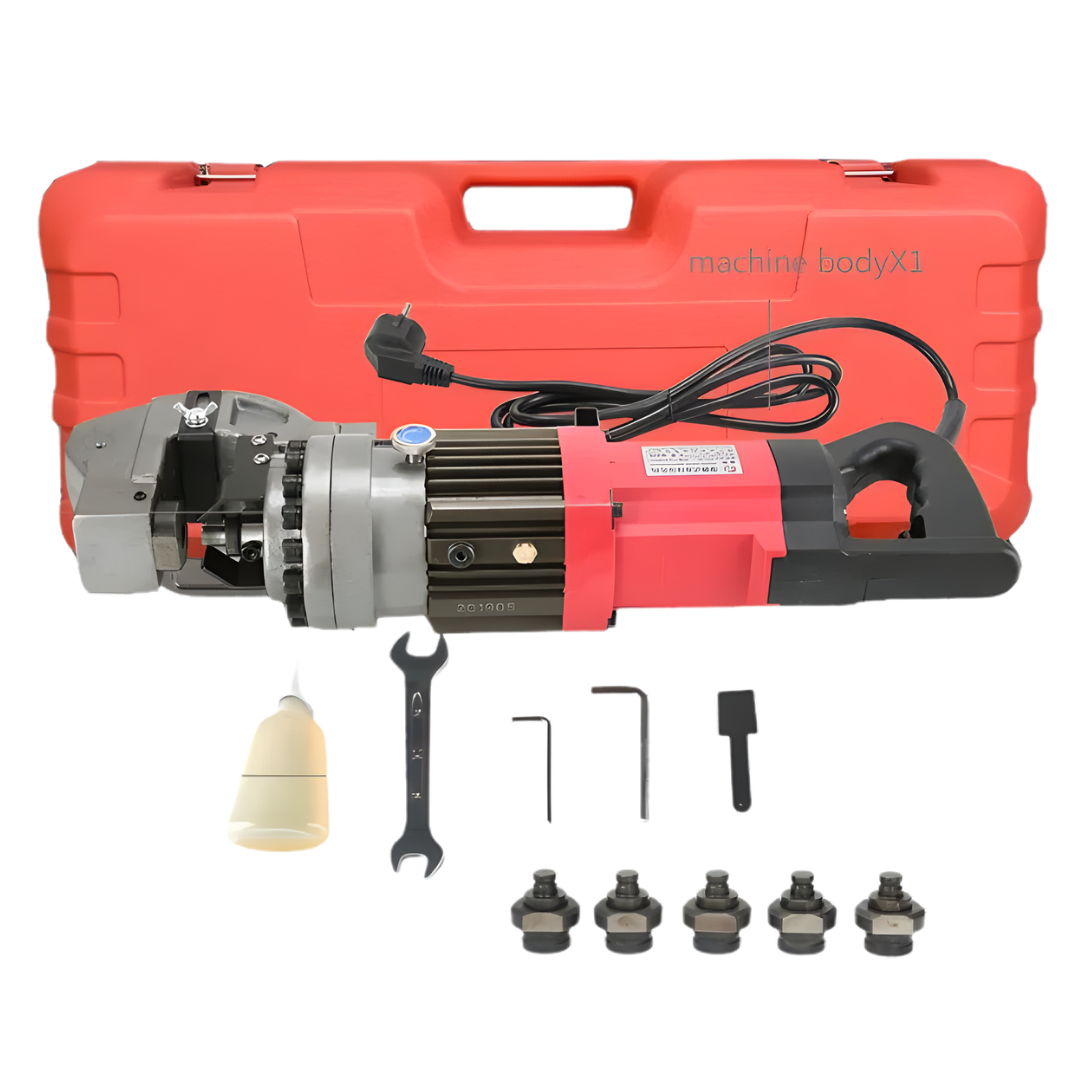

MHP-25P / CPM-25 Electric Portable Hydraulic Steel Punching Tool | 3 Months Warranty
Couldn't load pickup availability
Features of MHP-25P / CPM-25 Electric Portable Hydraulic Steel Punching Tool
1. Portable electric hydraulic puncher is used for punching steel, iron, copper, aluminum, formed steel, U-steel, I-steel and so on.
2. Small in size, light in weight, easy to operate, saves effort, punches fast, and mould can be customized.
Specifications
MHP-25P (Channel steel)
Voltage : 220V
Output Force : 38 Ton
Copper/Aluminum plate : 3-8mm
Iron/Steel plate : 3-8mm
Stroke: 55mm
Power : 2200W
Size : 500 x 195 x 100mm
Weight : 12kg (20kg inclusive box and accessories)
Material & Application Range : Cu/Al plate ≤8mm, Fe/Steel plate ≤6mm
Standard Mold Configuration : Φ6.5, Φ9, Φ11, Φ13, Φ15, Φ17, Φ18, Φ20.5mm
Punching Hole Diameter : Φ6.5 - 20.5mm
Punch Speed : 1s
Channel Steel : 8-10#
Small Channel Steel : 8,10,12,14#

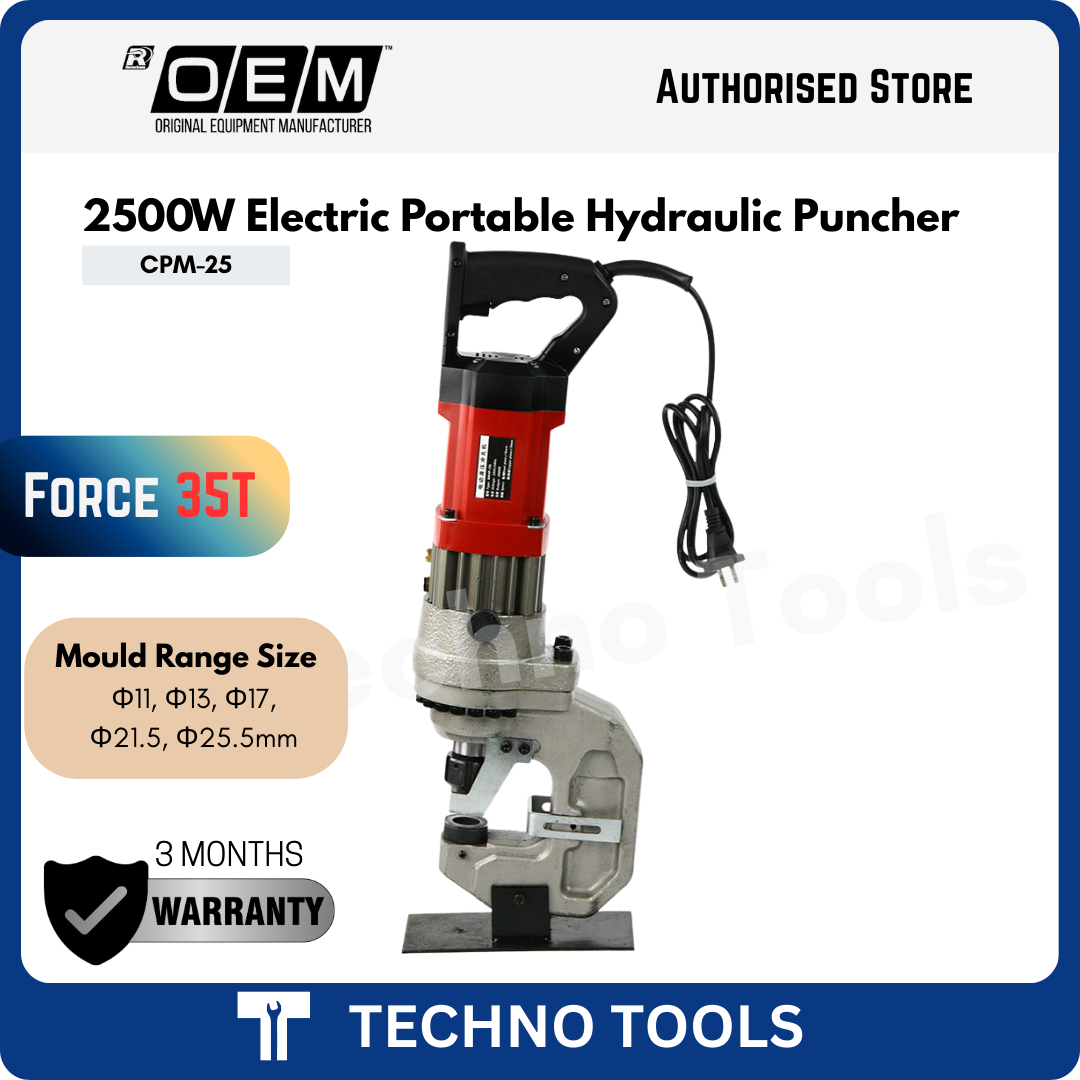

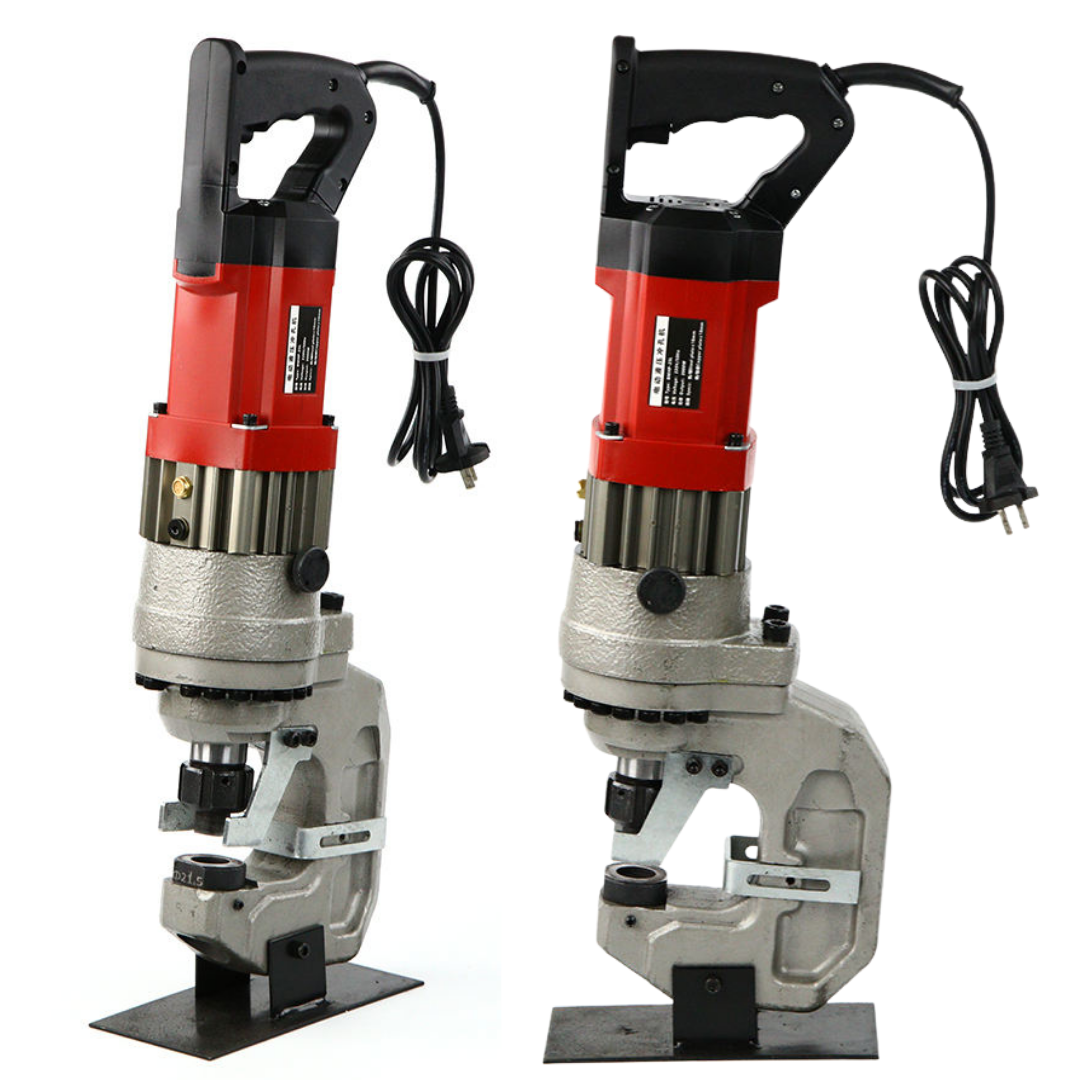

CPM-25
Rated Power: 2500W
Force: 35T
Weight: 17.5kg
Angle Steel Range: 4#, 5#, 6#, 7.5#, 10#
Channel Steel Range: 8#, 10#, 12#
Iron plate thickness: 10mm
Standard Mold Configuration: Φ11, Φ13, Φ17, Φ21.5, Φ25.5mm
Punch Speed: 2-3s
Size : 500 x 195 x 100mm
