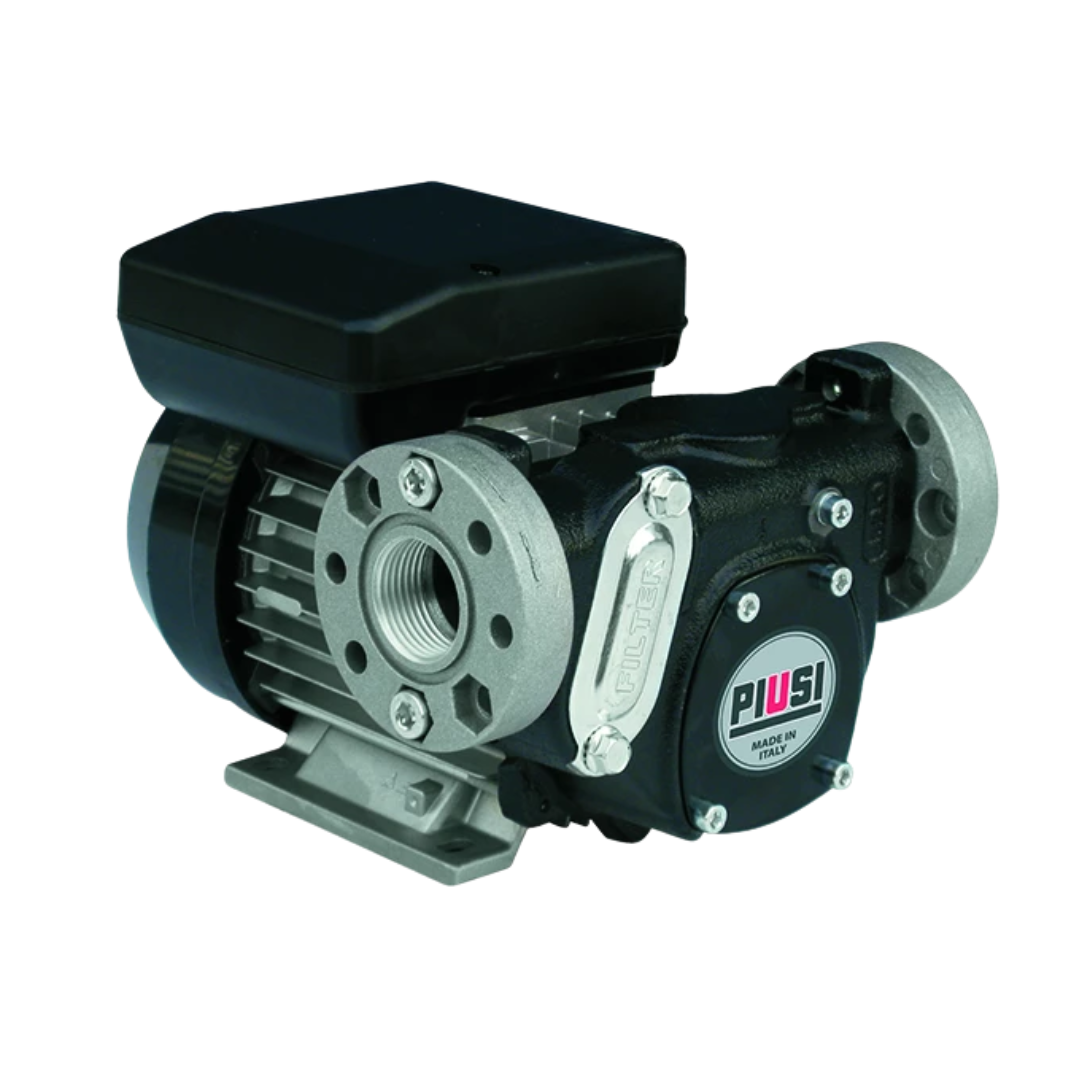

PIUSI Panther 72 AC 1" Pump 500W/70LPM

Model : PIUSI Panther 72 AC 1" Pump 500W/70LPM

The Piusi Panther 72 AC Diesel Transfer Pump is a displacement, self-priming rotary electric vane style pump.
Fitted with a by-pass valve and elevated reliability seal it'll work well and reliably even at low working temperatures. Compact and easy to install they are ideal for dispensers, fixed fuel transferring systems and other industrial applications. With a sturdy cast iron structure, vane pump with sintered steel rotor and acetal resin vanes, induction motor with aluminium casing the Panther never stops purring. It's also suitable for continuous use thanks to a thermal motor overload protection component.

Features :

• Cast iron body for durability
• Self-priming
• On/off switch
• 230vAC/50Hz powered
• 1 BSP female inlet & outlet
• Continuously rated Built in bypass valve
• Thermal protection
• Maximum 72L/minute flow rate
• Maximum pressure 1.9bar
• IP55 Rating
• 850w motor - 4.2 amp power draw

Specifications

- Fitting Size: 1"

- Fitting Type: BSP Fittings

- Flow Rate: 72 LPM

- Single Phase Motor V/Hz: 230V/50Hz

- Power Watt: 500W

- Amp. Max.: 4.2

- RPM: 2900
