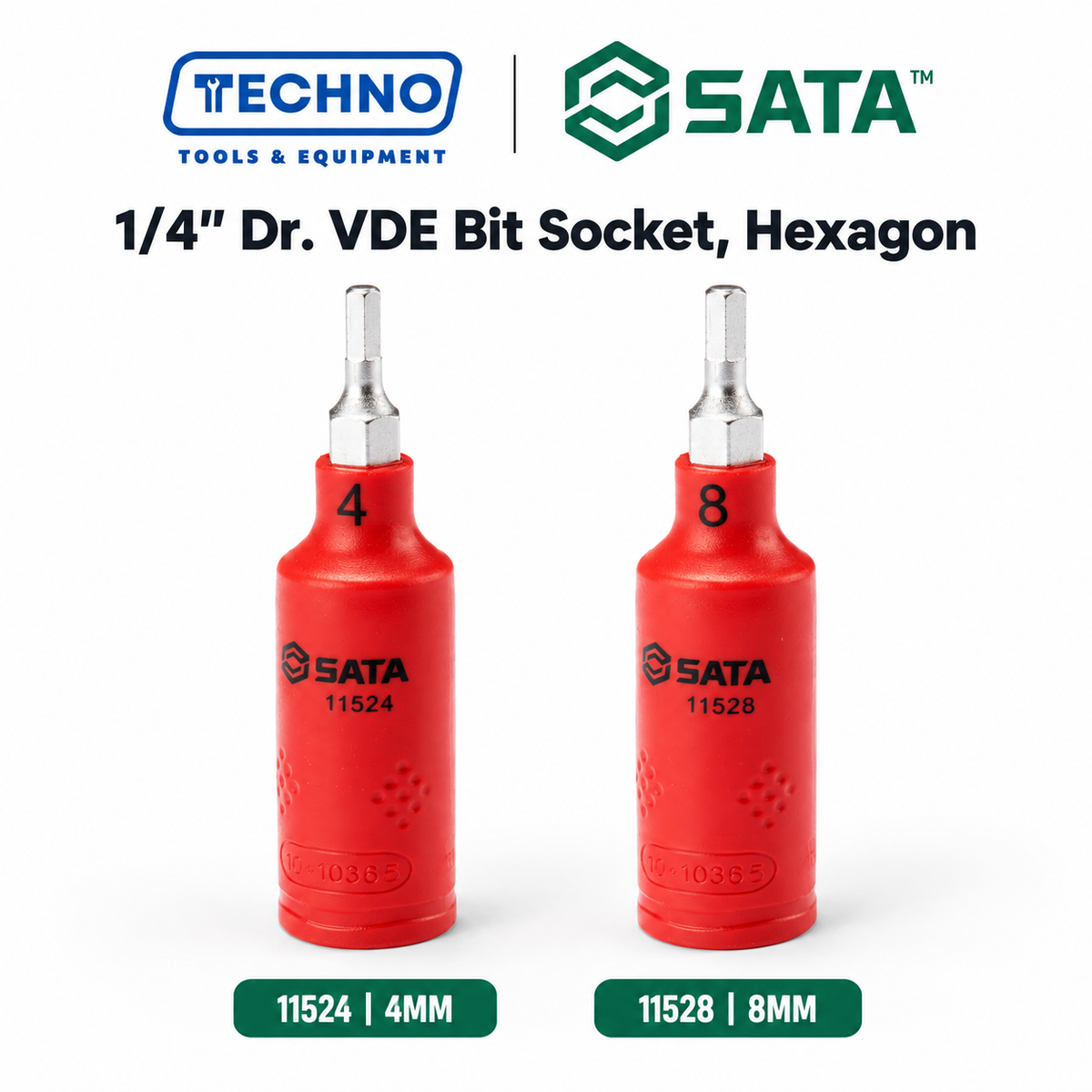

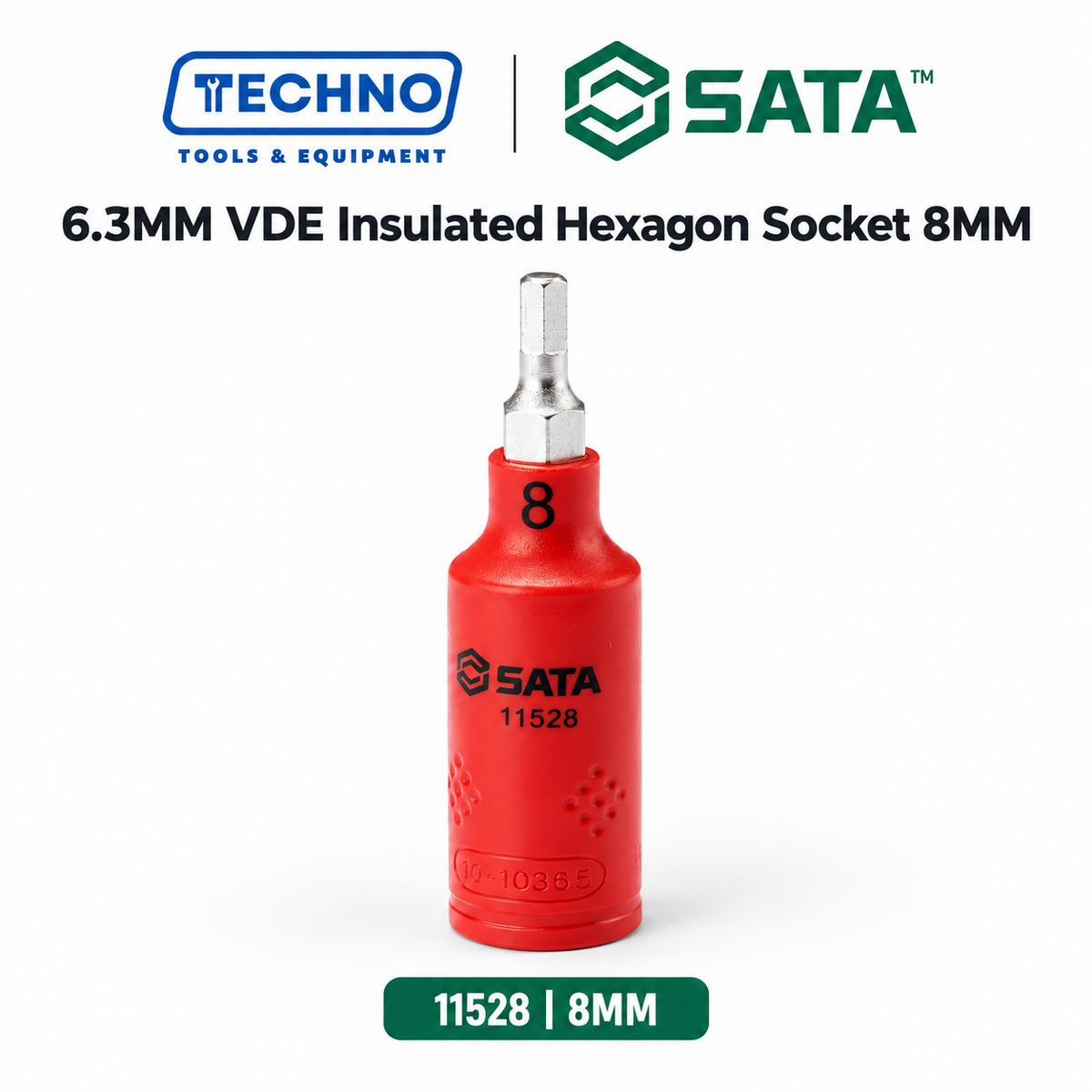

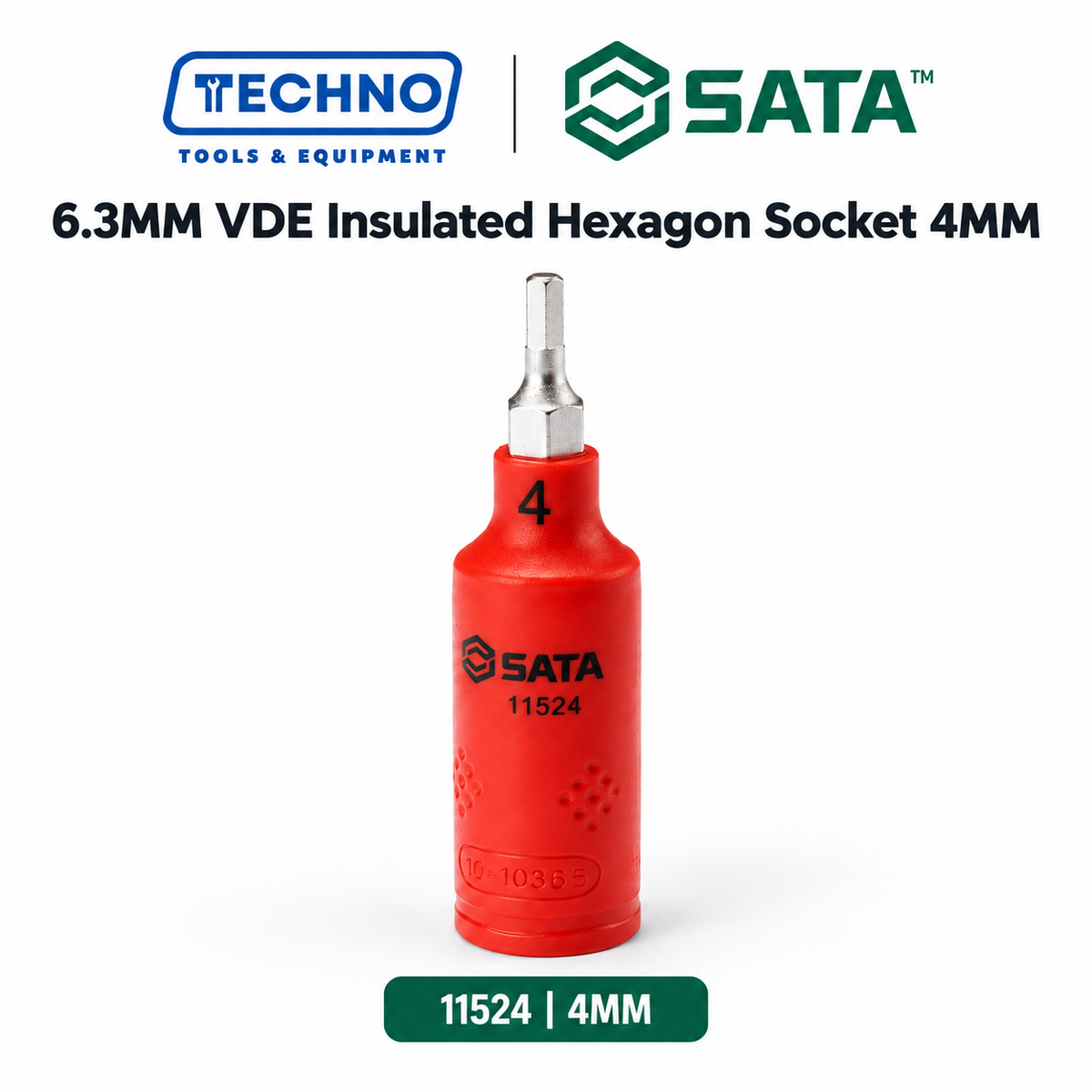

SATA 1/4" Dr. VDE Insulated Hexagon Bit Socket, 1000V | 4&8mm

Product Overview

The SATA 1/4" Dr. 6-Point VDE Insulated Hexagon Bit Socket combines a durable S2-steel hex bit with an insulated socket body, giving electricians and technicians a safe, reliable way to drive hex-socket (Allen-style) fasteners on or near live circuits. Each socket is individually tested to 10,000 volts and certified to the IEC/EN 60900 international standard for live working up to 1000V AC / 1500V DC. The hexagonal bit is made from S2 tool steel for long-lasting strength against rounding and wear, and the socket body features an elegant chrome-plated finish that resists rust and corrosion. Designed for use with 1/4" insulated ratchets and drive tools, this bit socket is available in a range of sizes — shown here in 4mm and 8mm.

Key Features

• VDE certified, tested to 10,000 volts — meets the IEC/EN 60900 standard for live working
• Rated for use up to 1000V AC / 1500V DC — safe for skilled electrical professionals following proper live-work procedures
• Hexagonal bit made of S2 steel — high torsional strength and resistance to rounding
• 1/4" (6.3mm) square drive — compatible with standard 1/4" insulated ratchets and handles
• Chrome-plated finish — resists rust and corrosion for long service life
• SATA lifetime warranty — backed by a globally trusted professional tool brand

⚠️ Safety note: Insulated tools must be inspected before each use, only used within their rated voltage, and used only by trained/skilled persons following applicable live-work safety regulations. Damaged insulation must never be used.

Specification Table

Made in China. Dimensions are approximate and may vary slightly within manufacturing tolerance.

Available Options (Variants)

Select your size from the dropdown:

Package Contents

• 1 × SATA 1/4" Dr. 6-Point VDE Insulated Hexagon Bit Socket (size as selected)

Warranty Terms

Lifetime Warranty. Both the SATA11524 and SATA11528 are covered by SATA's lifetime warranty against manufacturing defects in materials and workmanship when used as intended. The warranty does not cover damage from misuse, exceeding the rated voltage, damaged or compromised insulation, modification, or normal wear and tear.

Why Choose SATA?

SATA has grown into one of the fastest-growing premium-quality mechanics' hand tool brands in the world over the past two decades, trusted by automotive and industrial professionals in more than 50 countries. SATA tools are manufactured in ISO 9001–certified facilities and meet or exceed international standards — including IEC/EN 60900 for insulated, live-working tools like this one. In 1999, SATA became the first hand tool manufacturer in China to offer a lifetime warranty on its products, a commitment to quality that professionals continue to rely on today. As part of Apex Tool Group, SATA combines global manufacturing scale with rigorous testing and certification to deliver tools that protect the people who use them.

• ✅ VDE-certified, tested to 10,000V, per IEC/EN 60900
• ✅ ISO 9001–certified manufacturing
• ✅ S2 steel hex bit for durability against rounding
• ✅ Lifetime warranty on covered products
• ✅ Trusted by professional electricians and technicians worldwide
