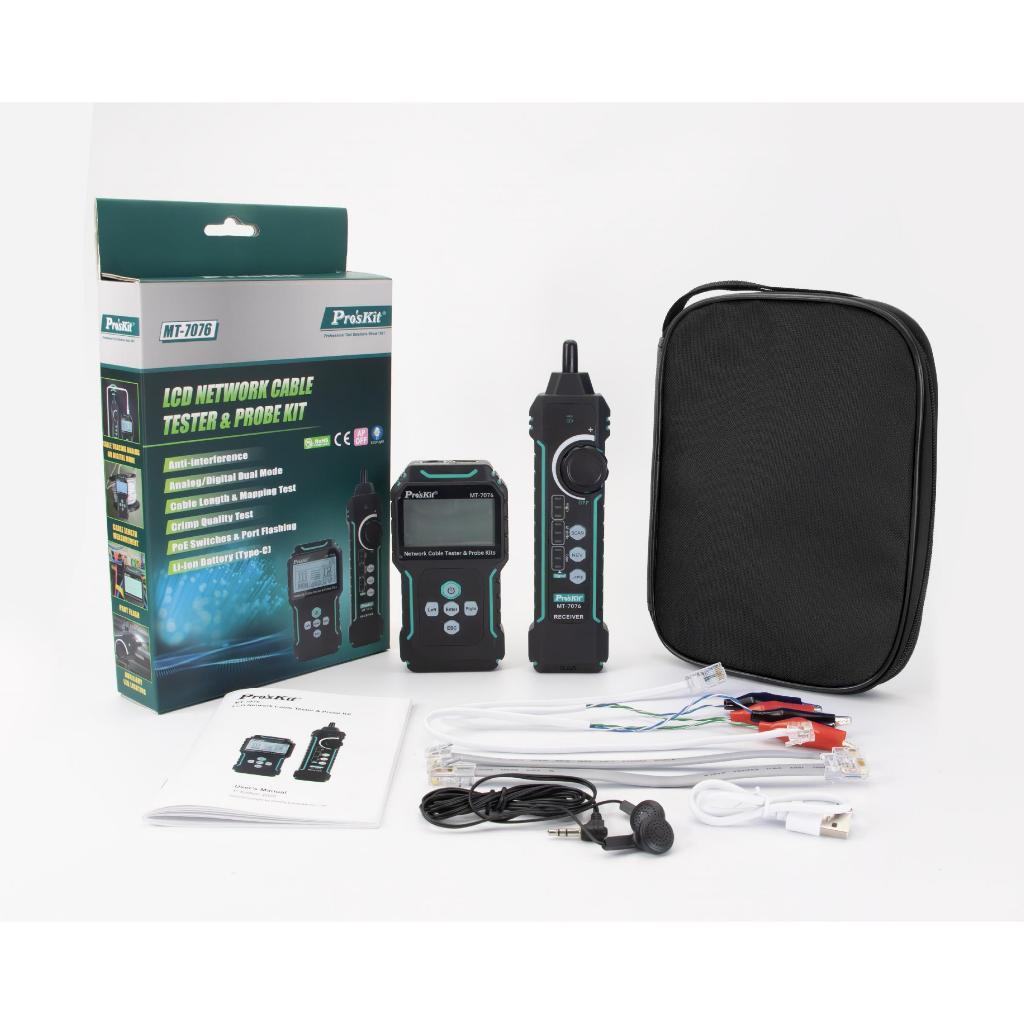

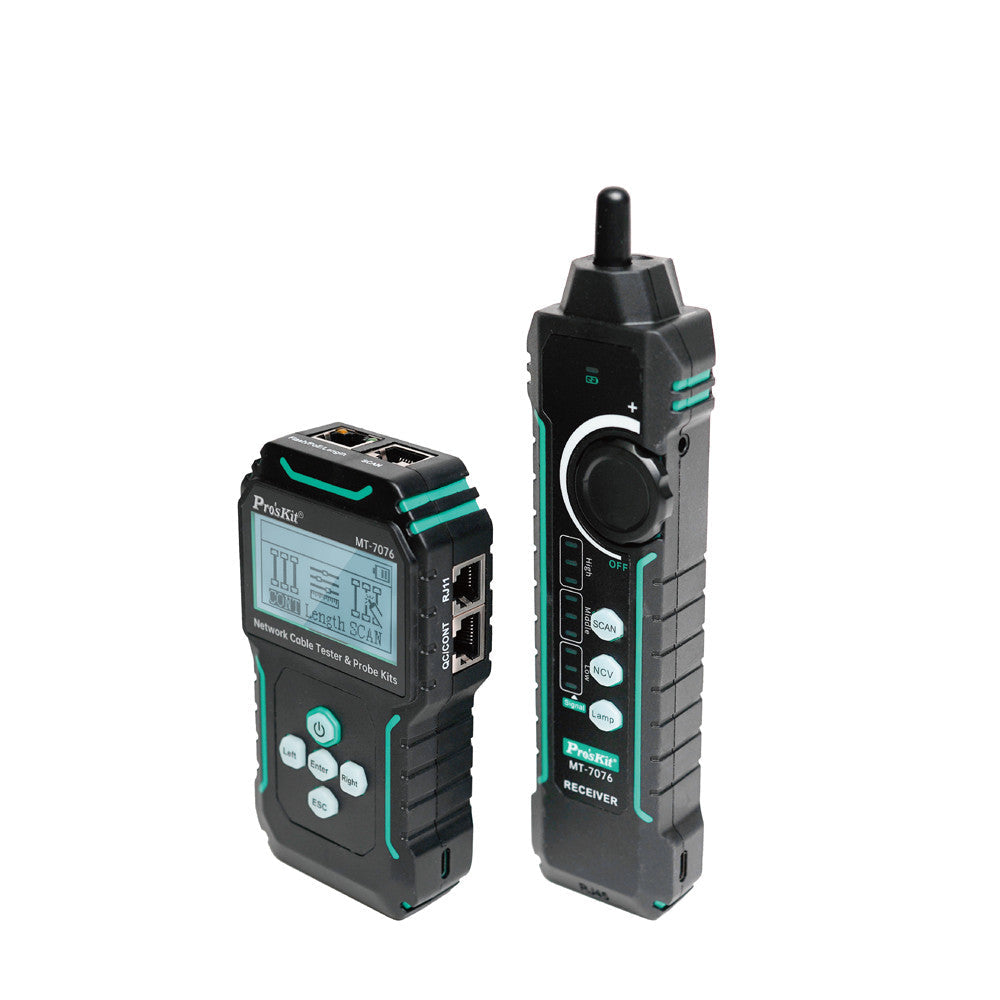

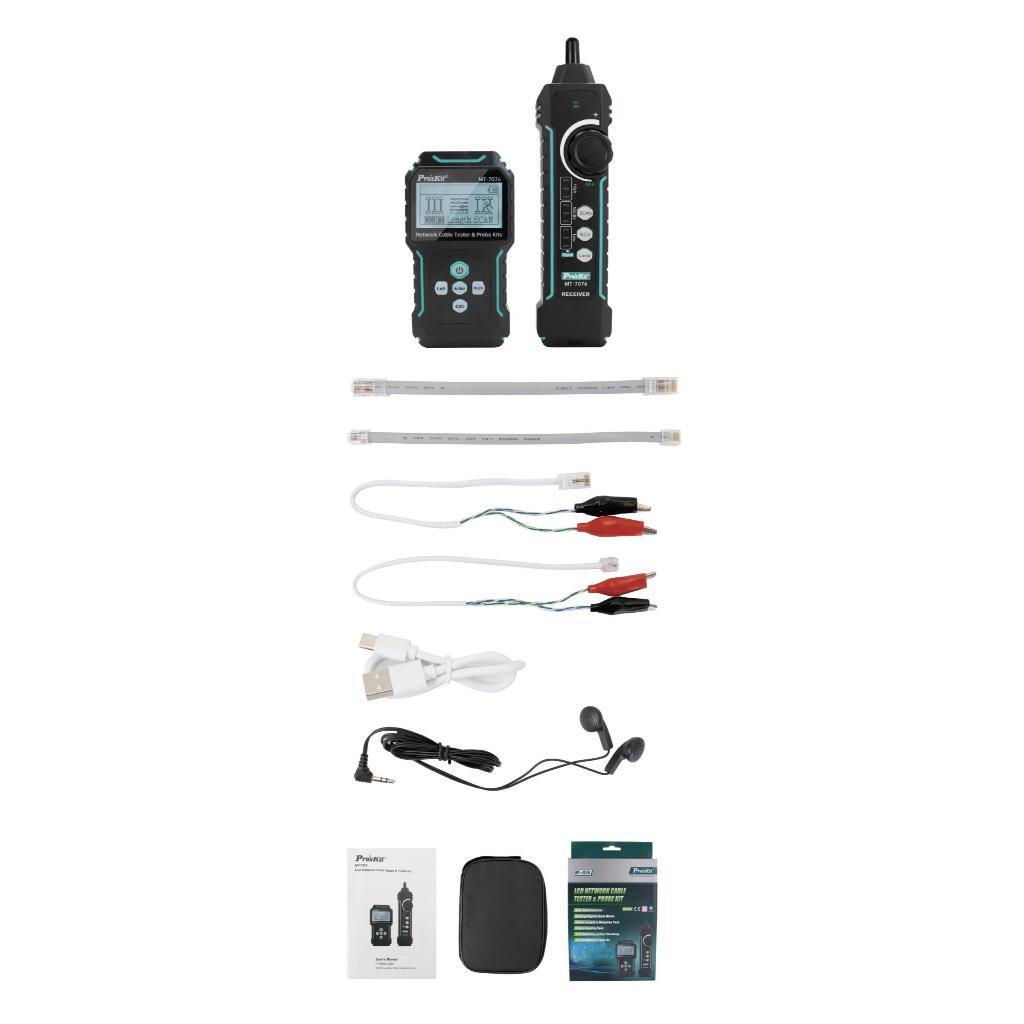

PRO'SKIT MT-7076 LCD Network Cable Tester & Probe Kit
The PRO'SKIT MT-7076 LCD Network Cable Tester & Probe Kit is a versatile diagnostic tool designed for IT technicians and network engineers. Featuring analog/digital dual mode, PoE testing, cable tracing up to 600m, and non-contact voltage detection, it ensures accurate troubleshooting of CAT5, CAT5e, CAT6, and CAT7 cables. Compact, rechargeable via USB Type-C, and equipped with an LCD display, it’s ideal for professional-grade network maintenance and installation.
Key Features of LCD Network Cable Tester & Probe Kit
Dual Mode Operation: Analog and digital signal tracing for flexible diagnostics.
Cable Tracing: Supports up to 600m in digital mode and 1km in analog mode.
Cable Mapping: LCD display shows wire positions for CAT5, CAT5e, CAT6, and CAT7.
Cable Length Measurement: Measures lengths from 2.5m to 200m with high accuracy.

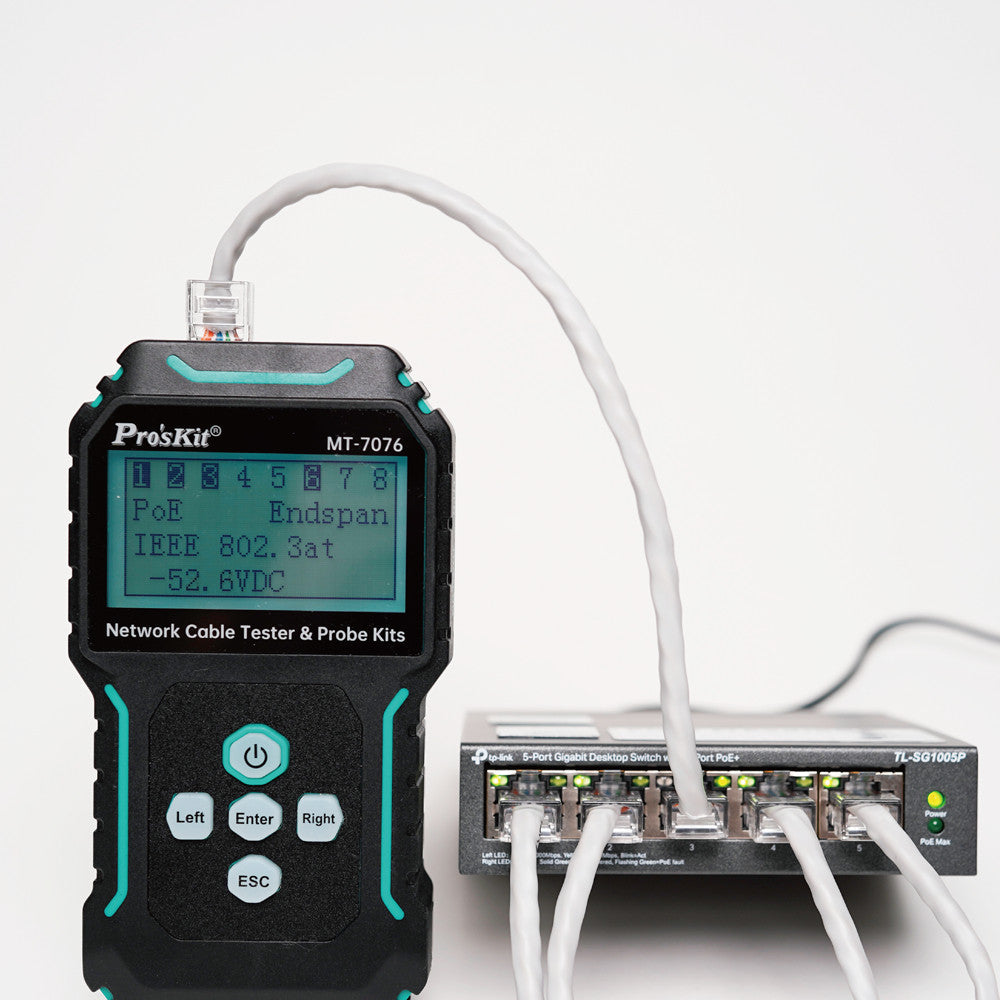

PoE Testing: Detects IEEE802.3af/at and non-standard voltages, including midspan and endspan.
Port Flashing & Link Testing: Identifies switch ports and tests 10/100/1000M connections.
Safety Features: Non-contact voltage detection (70V–1000V AC) and DC 60V input protection.
Battery & Charging: 3.7V 1400mAh Li-ion battery with USB Type-C charging, >10h tracing duration.

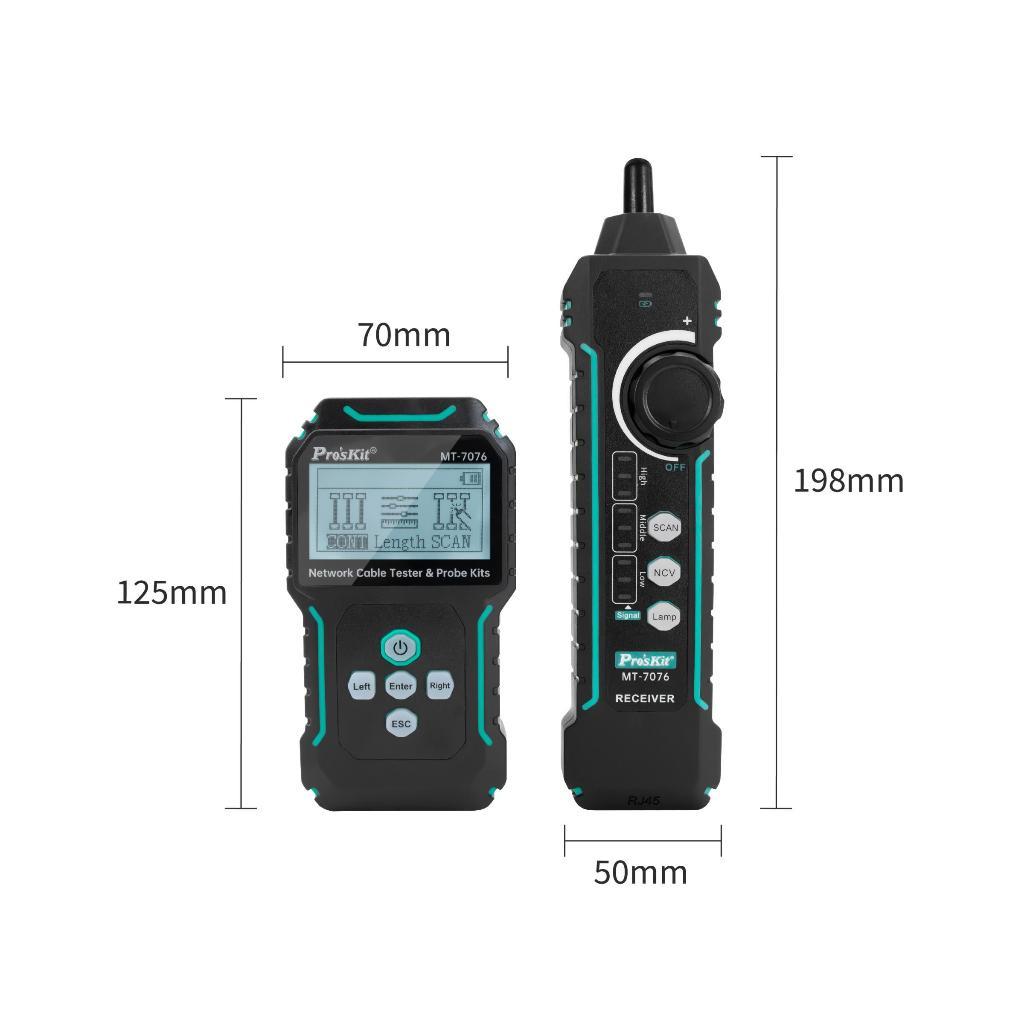

Design: Compact transmitter (125×70×32mm) and receiver (198×50×28mm), ergonomic with flashlight and backlight.
Specifications of MT-7076 Transmitter
Display: 53×29mm LCD, 128×64 dots, bilingual (Chinese/English).
Connectors: RJ45×3, RJ11×1.
Cable Map: Supports CAT5, CAT5e, CAT6, CAT7; max range 300m.
Transmission: Analog/Digital; 455kHz; up to 1km (Analog), 600m (Digital).
Cable Length: 2.5–200m; accuracy ±1.6m to ±3.2m depending on range.
Port Flash: Identifies 10M/100M/1000M links, FDX/HDX, Auto/Non-Auto negotiation.
PoE Testing: IEEE802.3af/at & non-standard; midspan/endspan detection.
Battery: 3.7V 1400mAh Li-ion, USB Type-C charging.
Dimensions: 125×70×32mm.
Specifications of MT-7076 Receiver
Signal Modes: Analog/Digital.
Vocality: Double vocality for clearer tracing.
Sensitivity: Adjustable via knob.
Flashlight: 1 LED.
NCV: Non-contact voltage detection AC 70V–1000V.
Earphone Jack: 3.2mm.
Battery: 3.7V 1400mAh Li-ion.
Dimensions: 198×50×28mm
FAQs of LCD Network Cable Tester & Probe Kit
1. Q: Can it test CAT7 cables?
A: Yes, it supports CAT5, CAT5e, CAT6, and CAT7 cable mapping.
2. Q: Does it support PoE testing?
A: Yes, it detects IEEE802.3af/at and non-standard PoE voltages, including midspan and endspan.
3. Q: What is the maximum cable length it can measure?
A: It measures cable lengths from 2.5m to 200m.
