Sanwa CD800a Digital Multimeter, Compact True-RMS Tester 600V
Helpful Documents
- Product Datasheet / User manual Download
Couldn't load pickup availability
Sanwa CD800a Digital Multimeter, Compact True-RMS Tester 600V

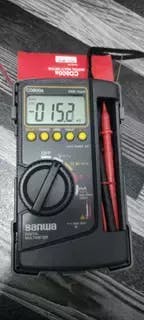

The Sanwa CD800a is designed for those who hate tangled wires and lost probes. Built directly into its own rugged flip-style hard case, this multimeter is the go-to choice for electronics engineers, laboratory technicians, and field service pros who need laboratory-grade precision in a portable, indestructible format.
Top Irresistible Features of CD800a

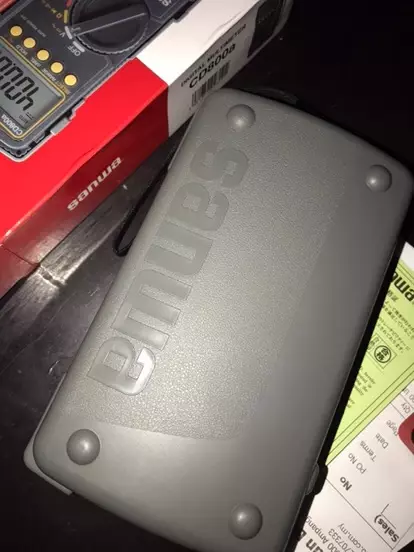

- Integrated Hard Body
- Gold-Plated Probes

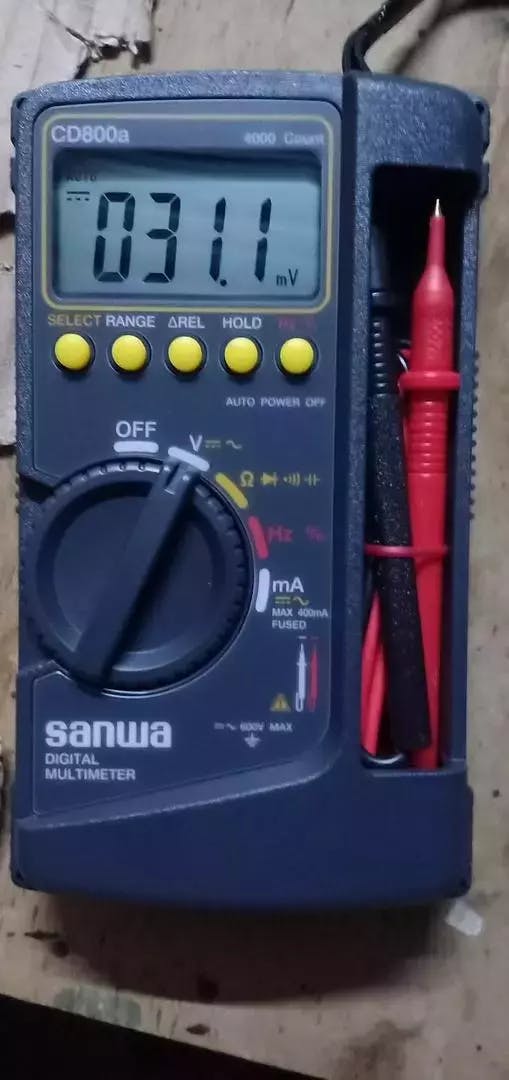

- High-Resolution Display with 4000 counts
- Data Hold & Relative Mode
- Auto Power Save after 30 minutes of inactivity
- Chip resister holder behind the body cover
- Capacitor capacity
- Duty cycle
- Continuity Buzzer Sound
- Best accuracy 0.7％
- Low power ohm(input voltage 0.4V)at continuity range
- Low power ohm
Specifications of CD800a
| CD800a | Measuring range | Best accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| DCV | 400m/4/40/400/600V | ±(0.7%+3) | 0.1mV | 10M～100MΩ |
| ACV | 4/40/400/600V | ±(1.6%+5) | 0.001V | 10M～11MΩ |
| DCA | 40m/400mA | ±(2.2%+5) | 0.01mA | |
| ACA | 40m/400mA | ±(2.8%+5) | 0.01mA | |
| Resistance | 400/4k/40k/400k/4M/40MΩ | ±(1.2%+5) | 0.1Ω | |
| Capacitance | 50n/500n/5μ/50μ/100μF | ±(5%+10) | 0.01nF | |
| Frequency | 5Hz～100kHz | ±（0.5%+3) | ||
| Duty cycle | 20%～80% | ±（0.5%+5) | ||
| Continuity | Buzzer sounds at between 10Ω and 120Ω Open voltage:Approx.0.4V | |||
| Diode test | Open voltage:approx.1.5V | |||
| Display | numeral display 4000 |
| Sampling rate | 3 times/sec. |
| Bandwidth | 40Hz～400Hz |
| Fuse | 0.5A/250V 1.5kA Φ5×20 Ceramic |
| Battery | R6P(1.5V)x2 |
| Battery life | Approx.500h (manganese battery) at DCV range |
| Size/Mass | H176×W104×D46mm/Approx.340g |
| Test lead length/Pin tip | Length: approx. 0.7m/19mm |

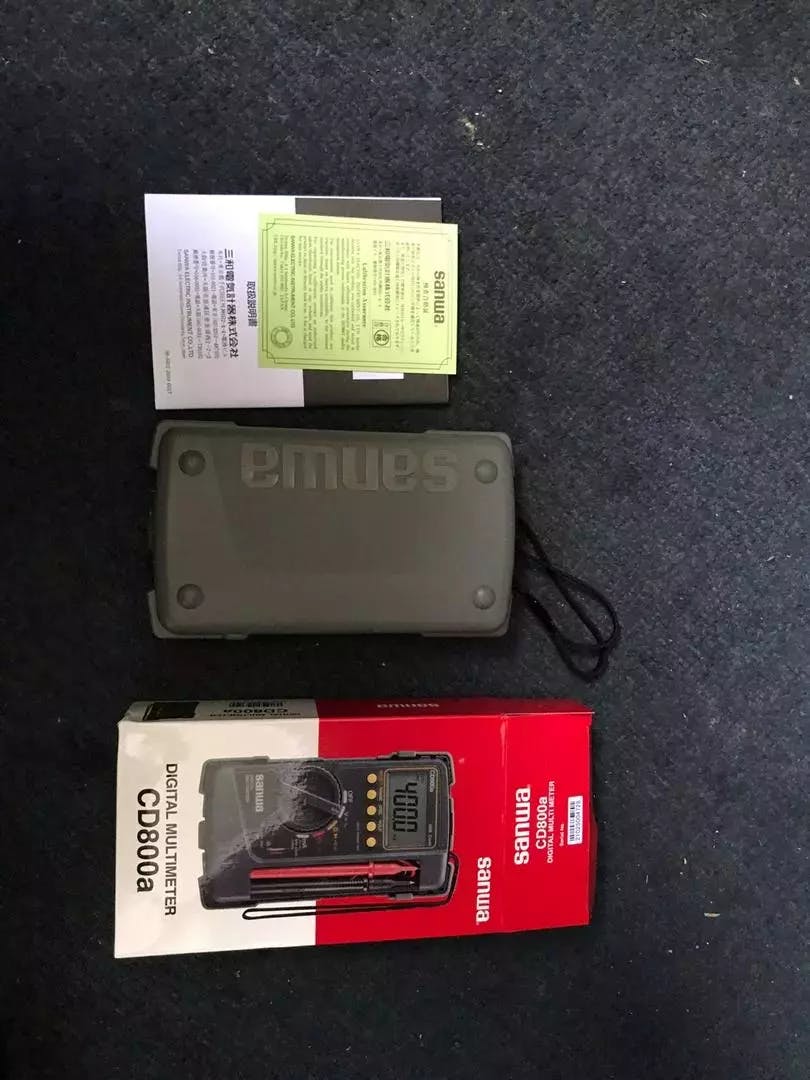

What’s Inside the Box?
-

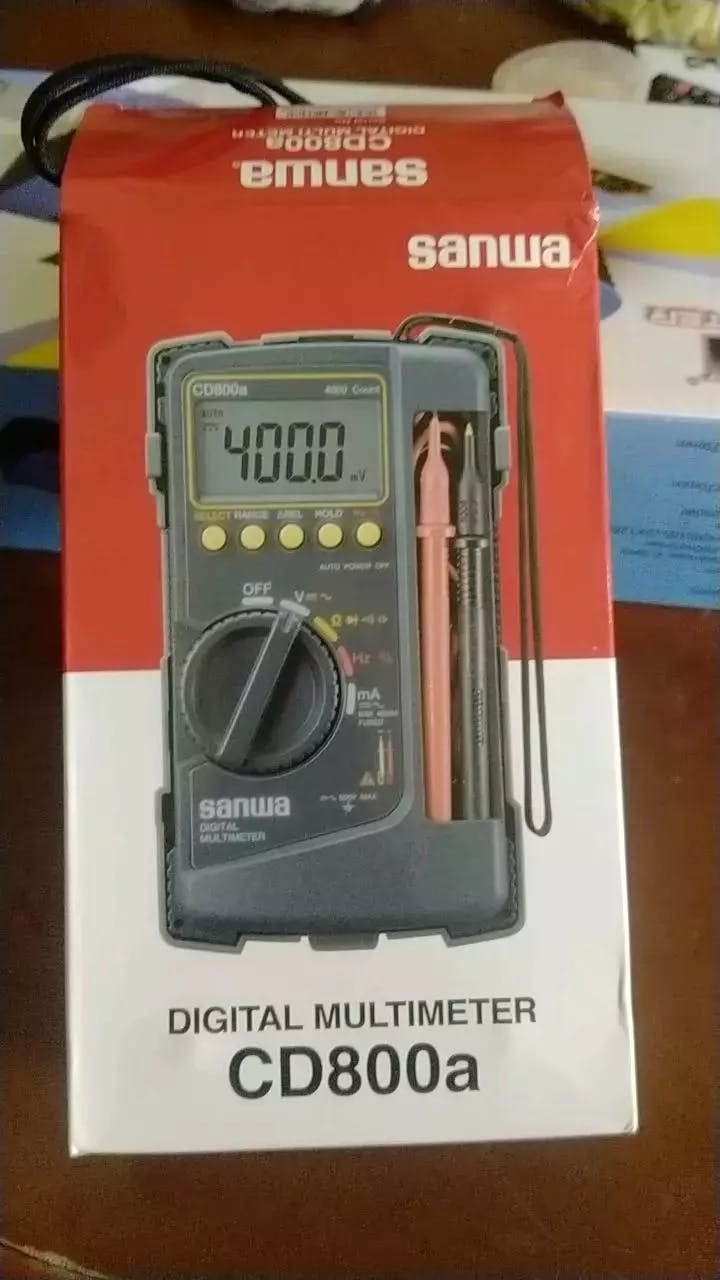

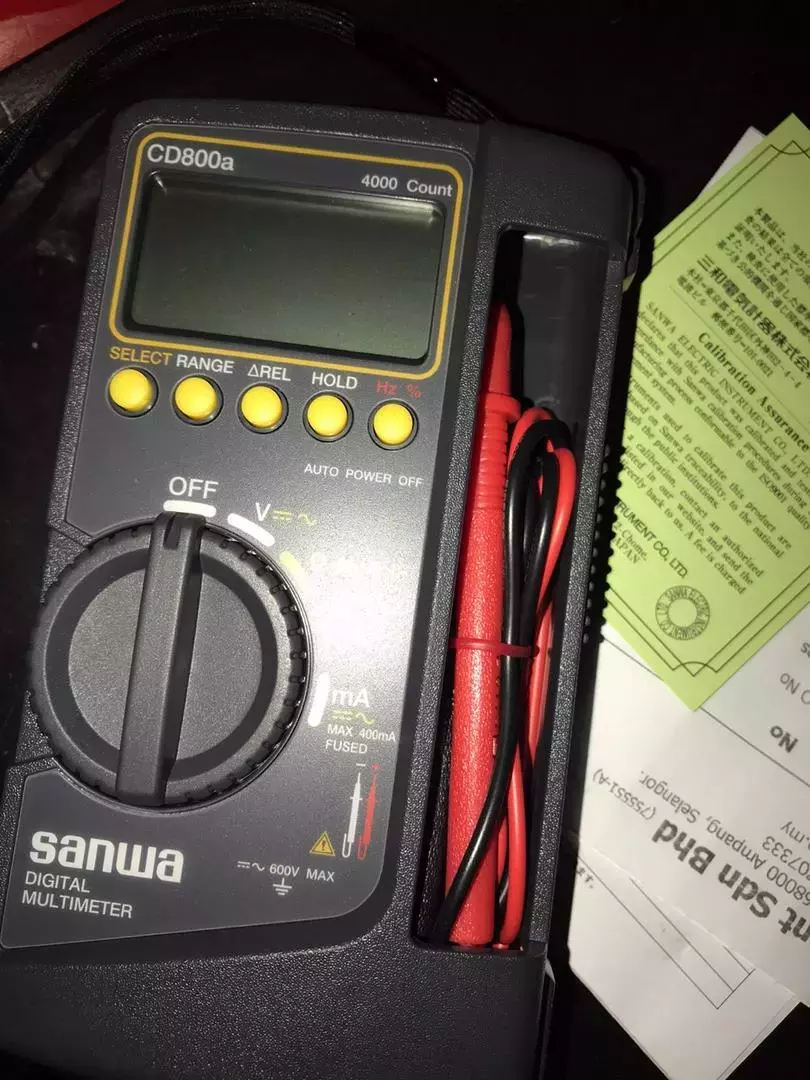

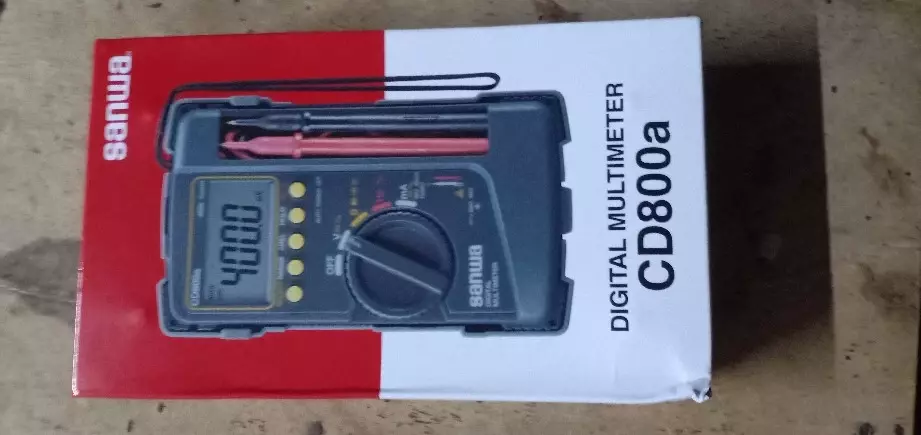

Sanwa CD800a Multimeter (Attached to Hard Case)
-
Integrated Gold-Plated Test Leads
-
Hand Strap for Secure Portability
-
User Manual
Why Choose Sanwa & This Model?
Sanwa is a premier Japanese brand synonymous with craftsmanship. Users choose the CD800a specifically for its integrated design. Unlike other meters where leads get snagged or damaged in a toolbox, the CD800a protects itself. It is widely used in tech labs and schools because it is virtually "student-proof" and remains calibrated for years.
Warranty & Support
1-Year Manufacturer Warranty. It covers internal circuit failures and manufacturing defects under normal operating conditions. However, it does not cover blown internal fuses, physical damage to the integrated leads, or cracked casings due to impact.
