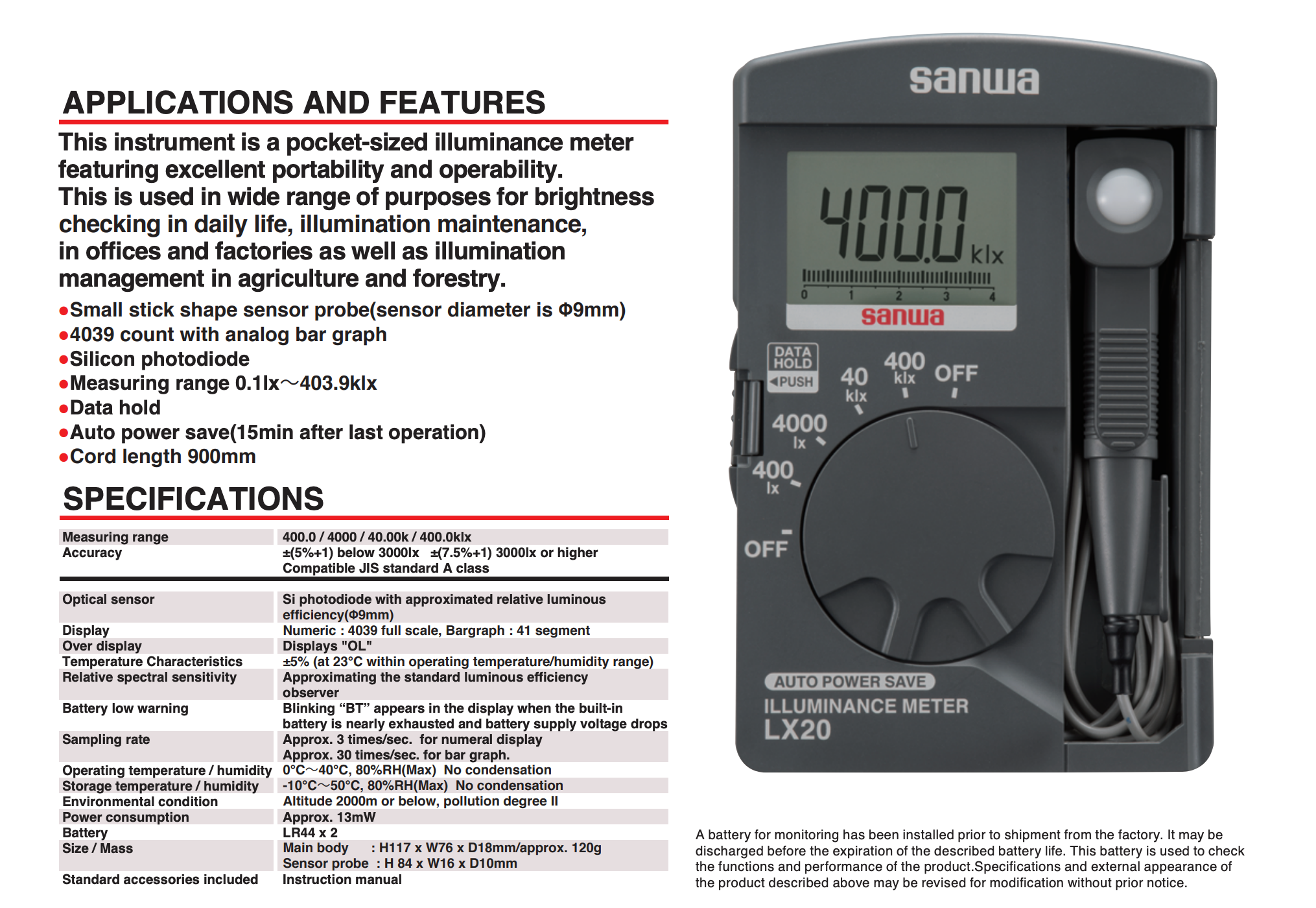

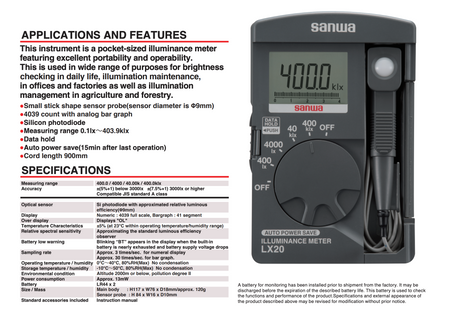

SANWA LX20 Illuminance / LUX Meter (LX20)
Regular price
RM720.00 MYR
Couldn't load pickup availability
Got questions?
Feel free to WhatsApp us
Product Brochure
Click Here: Brochure in PDF
Product Datasheet / User Manual
Click Here: Datasheet in PDF
- Easy-to-carry pocket size.
- Separate, stick-shaped light sensor (window diameter 9 mm) from the main body enables measurement of a narrow position or area. The light sensor can also be integrated with the main body for measurement.
- 4039 full-scale count with a bar graph display.
- Improved measurement accuracy by using a silicon photodiode, which has a spectral sensitivity approximating the relative luminous efficiency specified by CIE (Commission Internationale d'Eclairage), in the light sensor.
- Wide measuring range of 0.1 lx to 403.9 klx (403,900 lx).
- Data hold function.
- Auto power save function prevents wasting of battery power
Specifications
| Light sensor element | Si photodiode with approximated relative luminous efficiency |
| Dispaly | Digital display: 4039 full scale |
| Bar graph display: 41-segment display | |
| Sampling rate | Digital display: Approx. 3 times/sec. |
| Bar graph display: Approx. 30 times/sec. | |
| Ranges | 400 lx range: 0.1 lx to 403.9 lx |
| 4000 lx range: 1 lx to 4039 lx | |
| 40 klx range: 0.01 klx to 40.39 klx | |
| 400 klx range: 0.1 klx to 403.9 klx | |
| Relative spectral sensitivity | Approximating the standard luminous efficiency |
| Power supply | LR44 1.5V×2 |
| Size/Mass | 117(H)×76(W)×18(D)mm / approx. 120 grams |
| Light sensor probe | 84(H)×16(W)×10(D) mm |
| Light sensor probe | Aprox. 0.9 m |
| Accessories | Instruction manual x 1 |
