SATA 03022 AC/DC Clamp Multimeter - Auto Range Digital
Product Overview

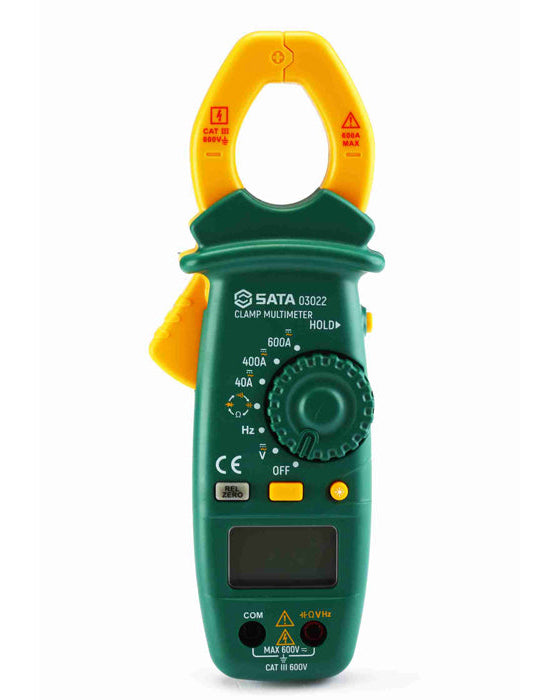

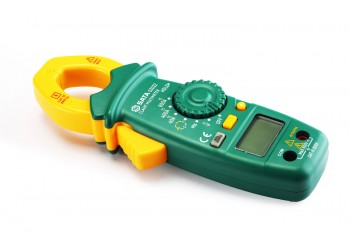

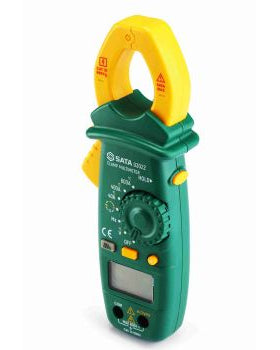

The SATA 03022 AC/DC Clamp Multimeter is a versatile, high-precision testing tool designed for electricians and technicians who need reliable readings across a wide range of electrical measurements. Featuring a 3-3/4 digit LCD display and clamp-style current measurement, the 03022 measures DC/AC voltage, DC/AC current, resistance, capacitance, and frequency, along with diode and continuity testing. With data-hold, backlight, and full-range overload protection, this clamp meter delivers dependable performance for both everyday electrical work and more demanding diagnostic tasks.
Key Features
- 3-3/4 digit LCD display with a maximum frequency reading of 9999
- Measures DC/AC voltage, DC/AC current, resistance, capacitance, and frequency
- Diode test and continuity (buzzer) test built in
- Data-hold function to lock in readings for easy recording
- Backlit display for clear readings in low-light conditions
- Full-range overload protection for safer everyday use
- Clamp-style design for convenient, non-contact current measurement
- Compact and lightweight for on-site or field use
Specifications
| Measurement Function | Range | Resolution | Accuracy |
|---|---|---|---|
| DC Voltage | 400mV | 0.1mV | ±(0.8%+5) |
| 4V / 40V / 400V | 1mV / 10mV / 0.1V | ±(0.8%+5) | |
| 600V | 1V | ±(1.0%+5) | |
| AC Voltage | 4V / 40V | 1mV / 10mV | ±(0.8%+5) |
| 400V | 100mV | ±(1.2%+5) | |
| 600V | 1V | ±(1.5%+5) | |
| DC Current | 400A | 0.1A | ±(3.0%+6) |
| 600A | 1A | — | |
| AC Current | 20A | 0.01A | ±(4%+10) ≤4A: ±(3%+8) |
| 200A | 0.1A | ±(2.5%+5) | |
| 600A | 1A | ±(2.5%+5) | |
| Resistance | 400Ω | 0.1Ω | ±(1.0%+5) |
| 4kΩ / 40kΩ / 400kΩ | 1Ω / 10Ω / 100Ω | ±(1%+5) | |
| 4MΩ | 1kΩ | ±(1.5%+5) | |
| 40MΩ | 10kΩ | ±(3.0%+10) | |
| Capacitance (relative value) | 40nF | 10pF | ±(5.0%+5) |
| 400nF | 100pF | — | |
| 4µF | 1nF | — | |
| 40µF | 10nF | — | |
| 100µF | 100nF | — | |
| Frequency | 9.999Hz | 0.001Hz | ±(1.0%+5) |
| 99.99Hz | 0.01Hz | — | |
| 999.9Hz | 0.1Hz | — | |
| 9.999kHz | 1Hz | — | |
| 99.99kHz | 10Hz | — | |
| 200kHz | 100Hz | — | |
| Continuity Test | Buzzer sounds when R < 20Ω | — | — |
| Diode Test | Shows approx. forward voltage drop; open circuit voltage approx. 3V | — | — |
| Maximum Reading | 3999 | — | — |
| Battery | Two 1.5V AAA batteries | — | — |
| Size | 202.5 x 73.5 x 40 mm | — | — |
| Weight | 220g (battery included) | — | — |
Available Options
- Power Supply: Two 1.5V AAA batteries (standard)
Package Contents
- 1 x SATA 03022 AC/DC Clamp Multimeter
- 2 x 1.5V AAA Batteries
- 1 x Set of Test Leads
- 1 x Instruction Manual
Warranty
2-year warranty, excluding battery and probes.
