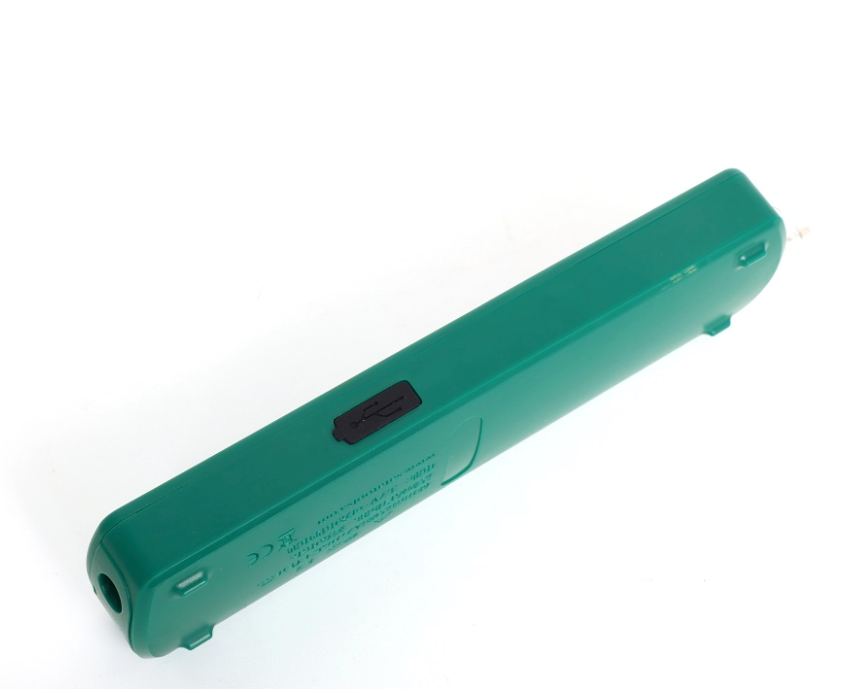

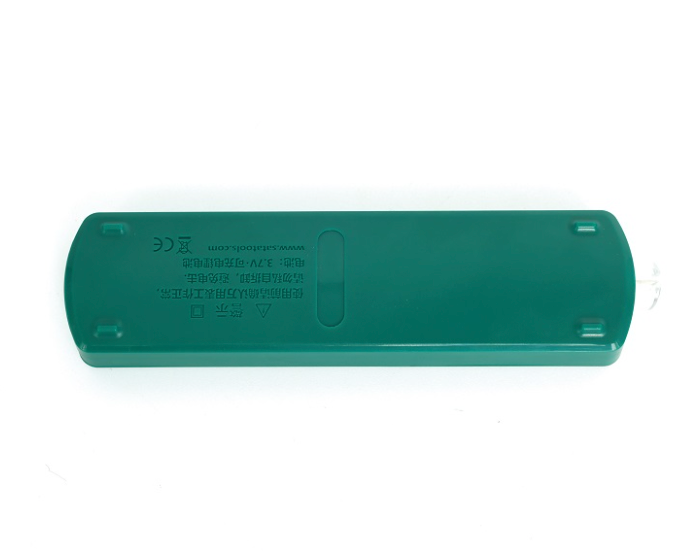

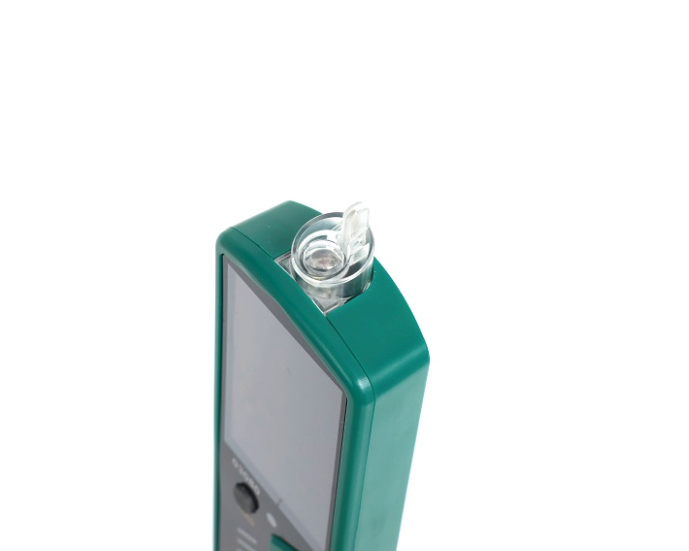

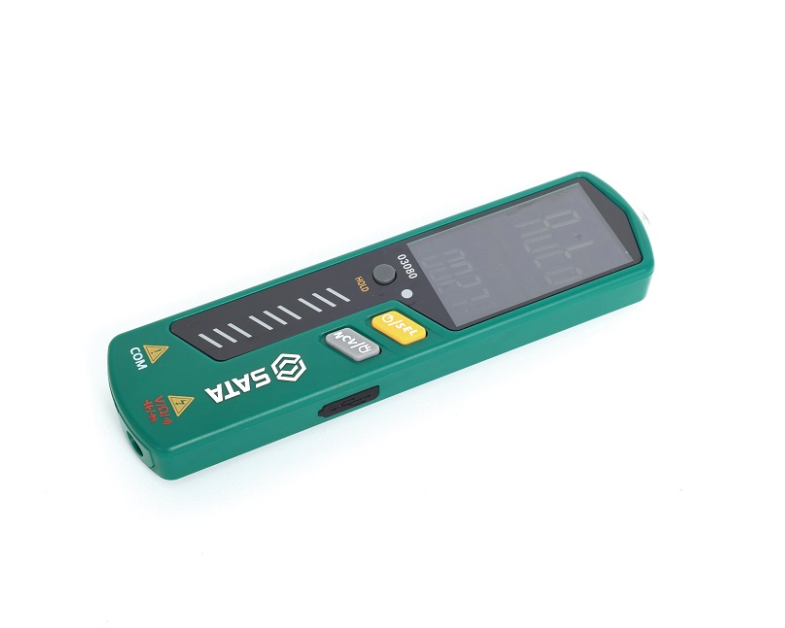

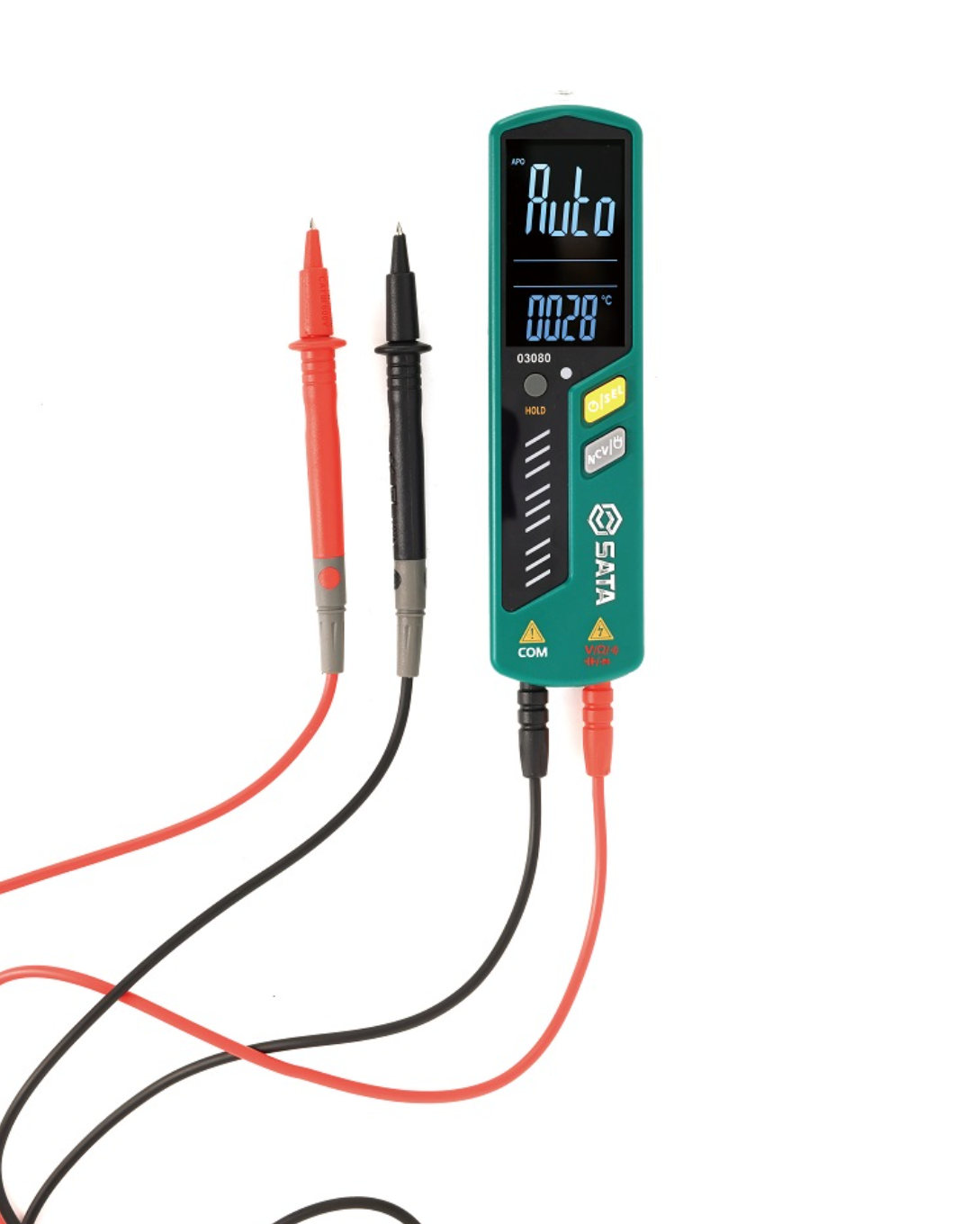

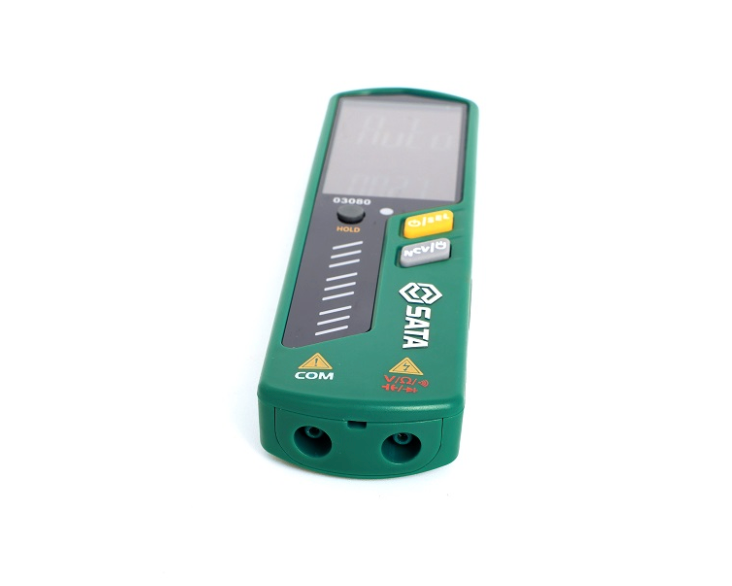

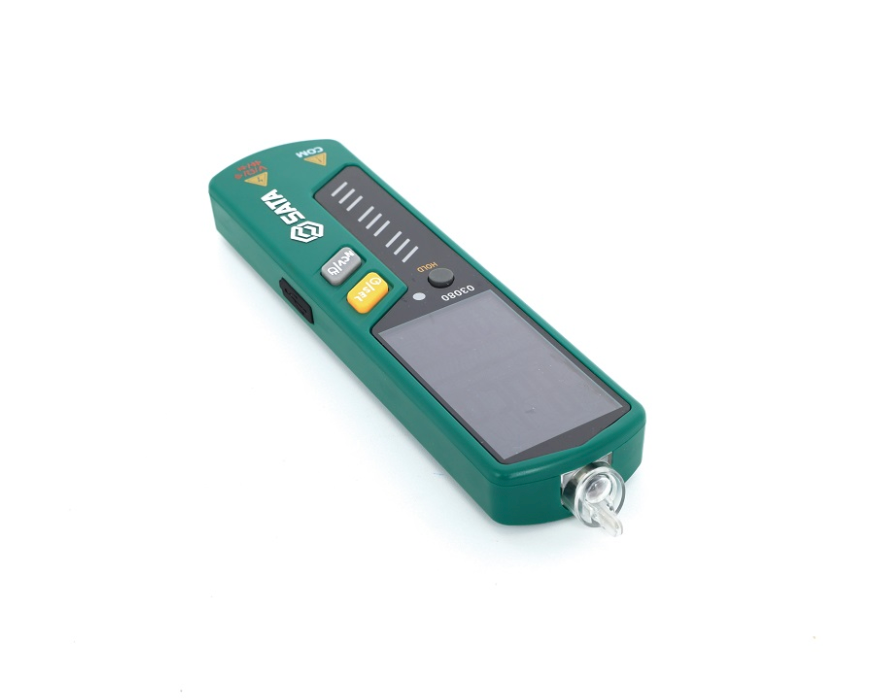

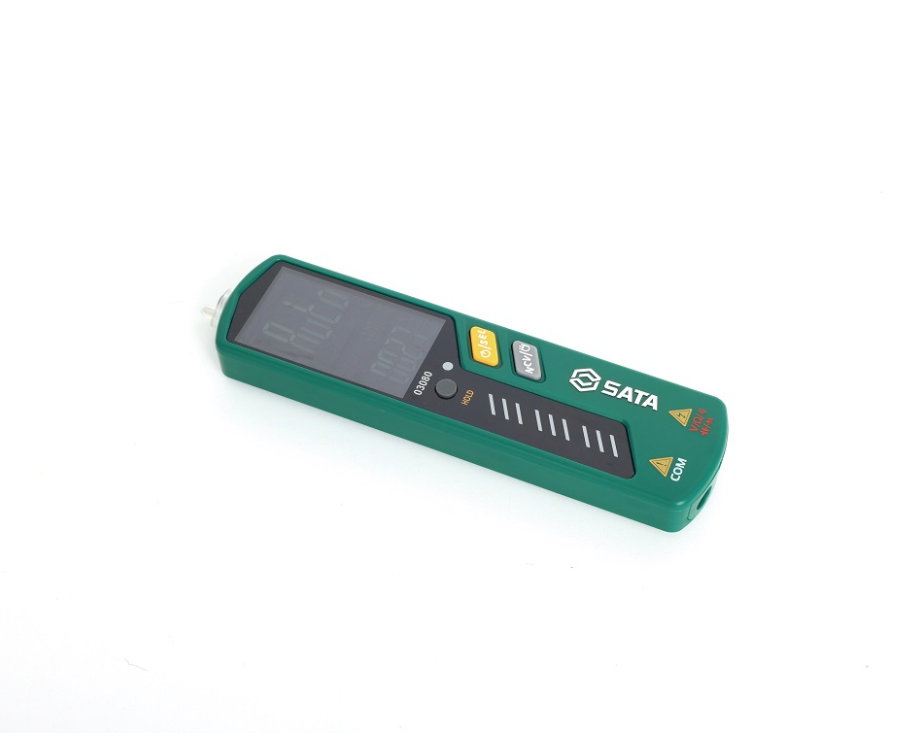

SATA 03080 Multifunctional Pen Multimeter - Auto Range
Couldn't load pickup availability
SATA 03080 Multifunctional Pen Multimeter - Auto Range
Product Overview

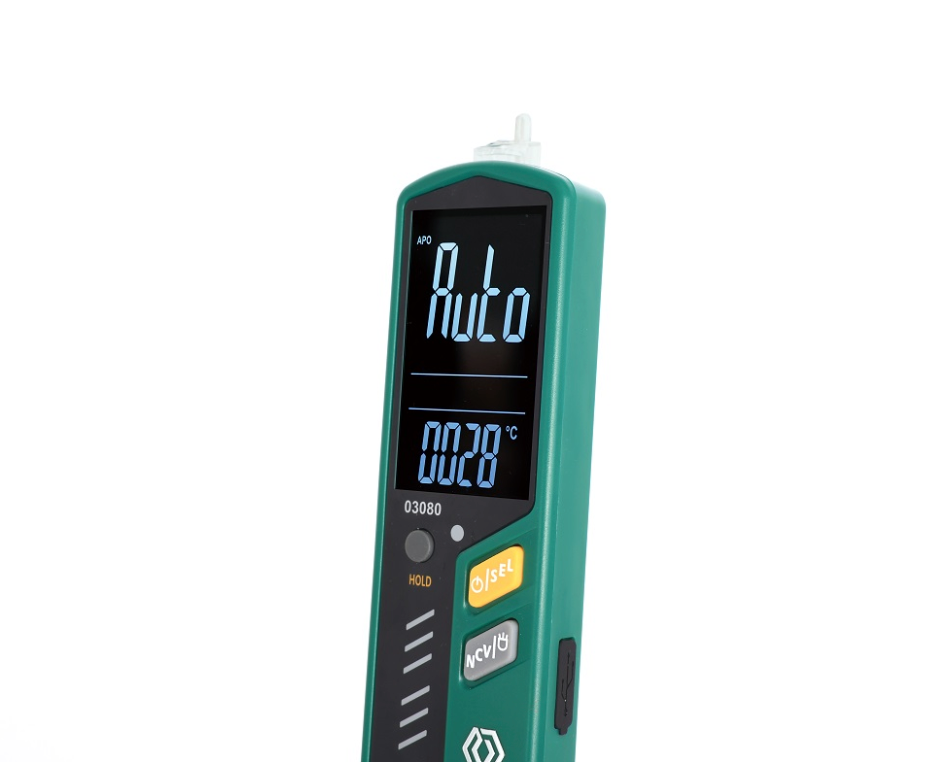

The SATA 03080 Multifunctional Pen Multimeter is a compact, all-in-one testing tool designed for electricians and technicians who need fast, reliable readings in a slim, easy-to-carry form factor. With auto-ranging, full-range overload protection, and a large black crystal display readable up to 5999, this pen multimeter measures AC/DC voltage, frequency, capacitance, resistance, continuity, and diode function, plus built-in temperature monitoring and non-contact voltage (NCV) detection. Type C charging means no more battery replacement hassle, making it a convenient tool for everyday electrical work.
Key Features
- Automatic range with full-range overload protection
- Built-in temperature monitoring function
- Large black crystal display with maximum reading of 5999
- Type C charging — no battery replacement needed
- Measures AC/DC voltage, frequency, capacitance, and resistance
- Continuity (on-off) and diode detection
- Non-contact voltage (NCV) detection
- Low-pass filtering function
- Slim, pen-style design for easy handling and portability
Specifications
| Specification | Detail |
|---|---|
| Product No. | 03080 |
| Made In | China |
| Security Level | CAT II 400V |
| Maximum Reading | 5999 |
| Range Mode | Automatic |
| DC Voltage | 6V / 60V / 400V |
| AC Voltage | 6V / 60V / 400V |
| Frequency | 40–1000 Hz |
| Capacitance | 99.99nF / 999.9nF / 9.999µF / 99.99µF / 999.9µF |
| Resistance | 600Ω / 6KΩ / 60KΩ / 600KΩ / 6MΩ / 60MΩ |
| Temperature Measurement | Yes |
| Low-Pass Filtering | Yes |
| NCV Range | AC 90–1000V |
| NCV Range (Sensitive Mode) | AC 30–1000V |
| Size | 16.5 x 4 x 1.94 cm |
| Weight | 0.13 kg |
Available Options
- Charging: Type C (built-in rechargeable, no battery replacement required)
Package Contents
- 1 x SATA 03080 Multifunctional Pen Multimeter
- 1 x Type C Charging Cable
- 1 x Instruction Manual
Warranty
2-year warranty, excluding fuse, battery, and probe.
Why Choose SATA?
SATA is a trusted name in professional-grade tools, known for combining durability, precision engineering, and everyday usability. The 03080 reflects this standard with its versatile measurement functions, convenient Type C charging, and a comprehensive 2-year warranty — giving electricians and technicians a compact, dependable tool they can rely on for quick, accurate readings on the go.
