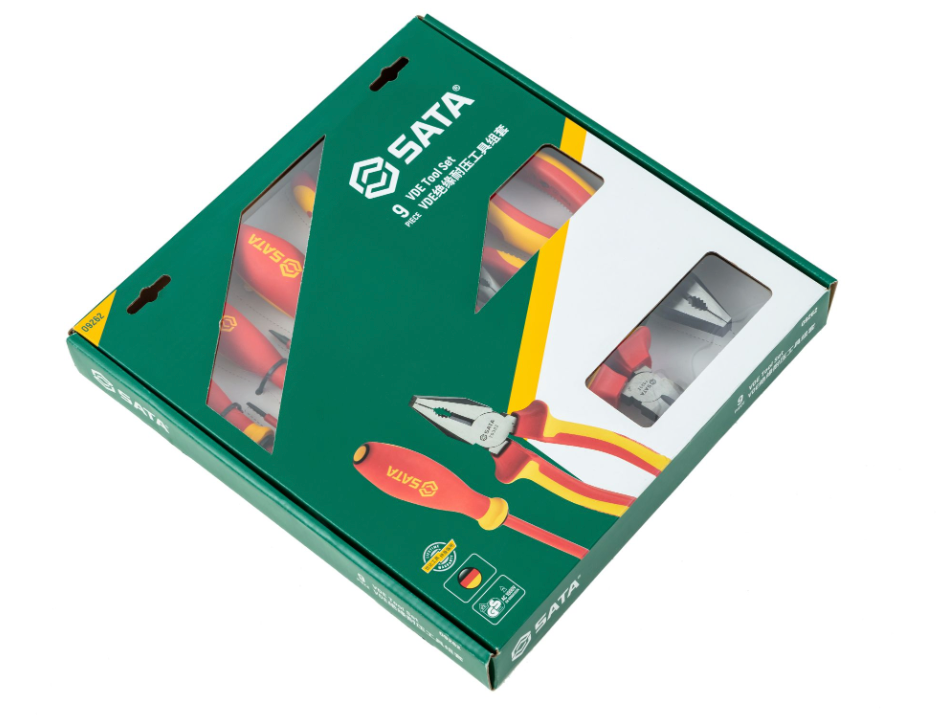

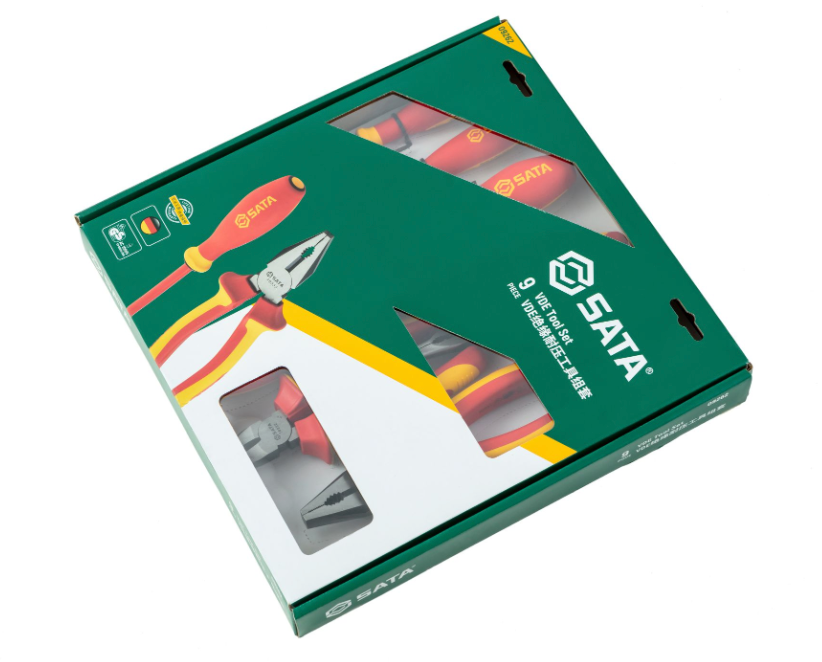

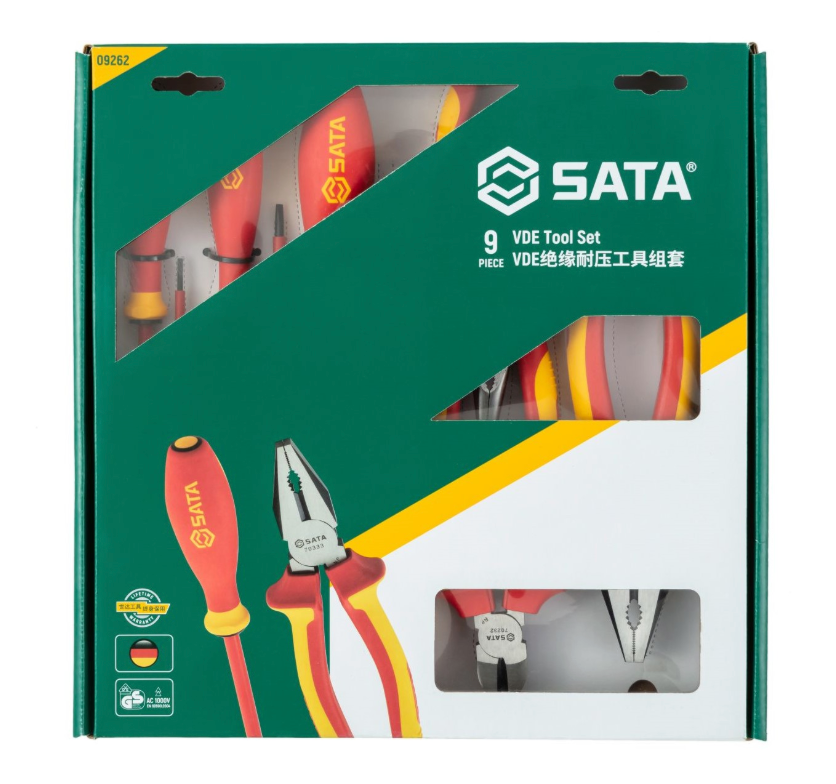

SATA 09262 9Pc VDE Insulated Tool Set 1000V | SATA Tools
Overview Summary
The SATA 09262 9Pc. VDE Insulated Tool Set is a professional-grade insulated tool kit designed for safe work on or near live electrical systems. Every tool in the set is VDE certified to 1000V, with 100% of production units individually tested at 10,000V to ensure reliable insulation protection. The set combines German-standard insulated screwdrivers with 60Cr-V forged pliers, giving electricians and maintenance technicians a complete, safety-rated toolkit for electrical and general workshop use.
Key Features
- VDE certified, 1000V insulated — passes insulation testing to EN/IEC 60900:2004 standard
- 100% individually tested at 10,000V during mass production for guaranteed insulation integrity
- Pliers forged from 60Cr-V steel for high strength and long service life
- Nickel-plated pliers surface for excellent anti-rust protection
- High cutting capacity meeting ASME standards (Combination Pliers B107.20-2004, Long Nose Pliers B107.13-2003, Diagonal Pliers B107.11-2002)
- German-standard VDE screwdrivers meeting DIN 7437 and DIN 7438
- Complete 9-piece kit: slotted & Phillips screwdrivers plus combination, diagonal, and long nose pliers
Specification Table
| Tool | Spec |
|---|---|
| G Series VDE Slotted Screwdriver | 2.5 x 75mm, 4 x 100mm, 5.5 x 125mm |
| G Series VDE Phillips Screwdriver | #0 x 60mm, #1 x 80mm, #2 x 100mm |
| VDE Combination Pliers | 8" |
| VDE Diagonal Pliers | 6" |
| VDE Long Nose Pliers | 6" |
Set Details
| Attribute | Value |
|---|---|
| Product No. | 09262 |
| Pieces per Set | 9 pcs |
| Net Weight | 1.28 kg |
| Outside Dimensions | 30cm (L) x 29.5cm (W) x 4cm (H) |
| Made In | China |
| Certification | German VDE verified; tested to 10,000V insulation; meets IEC/EN 60900 standard |

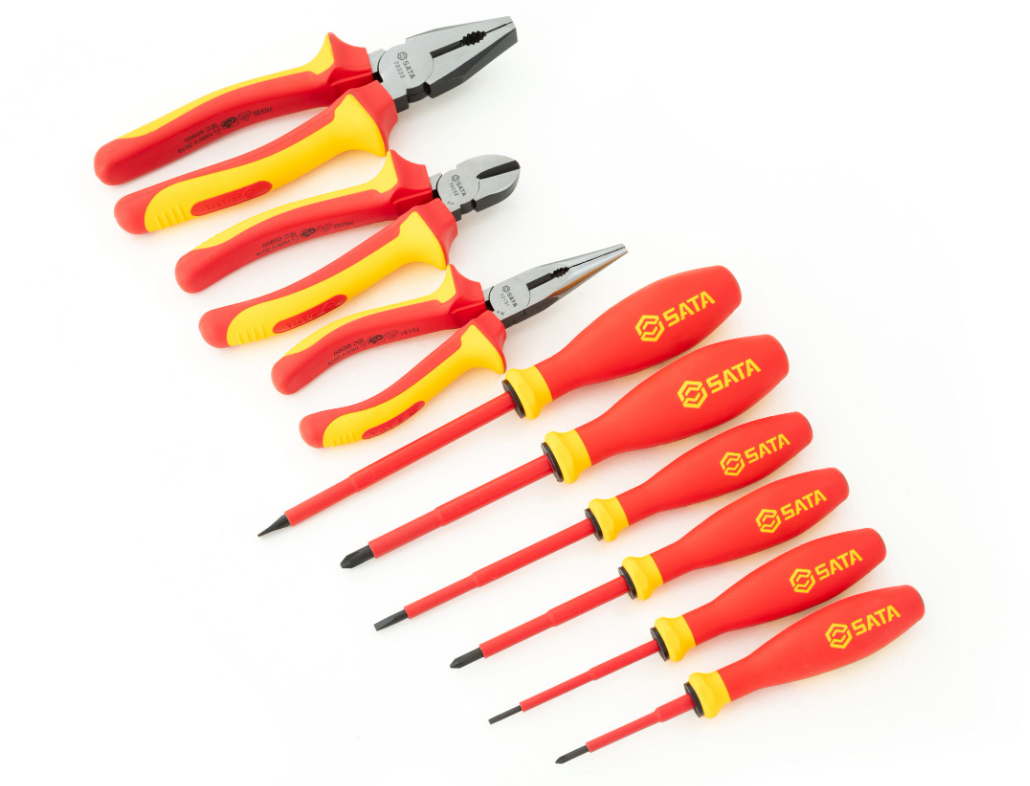

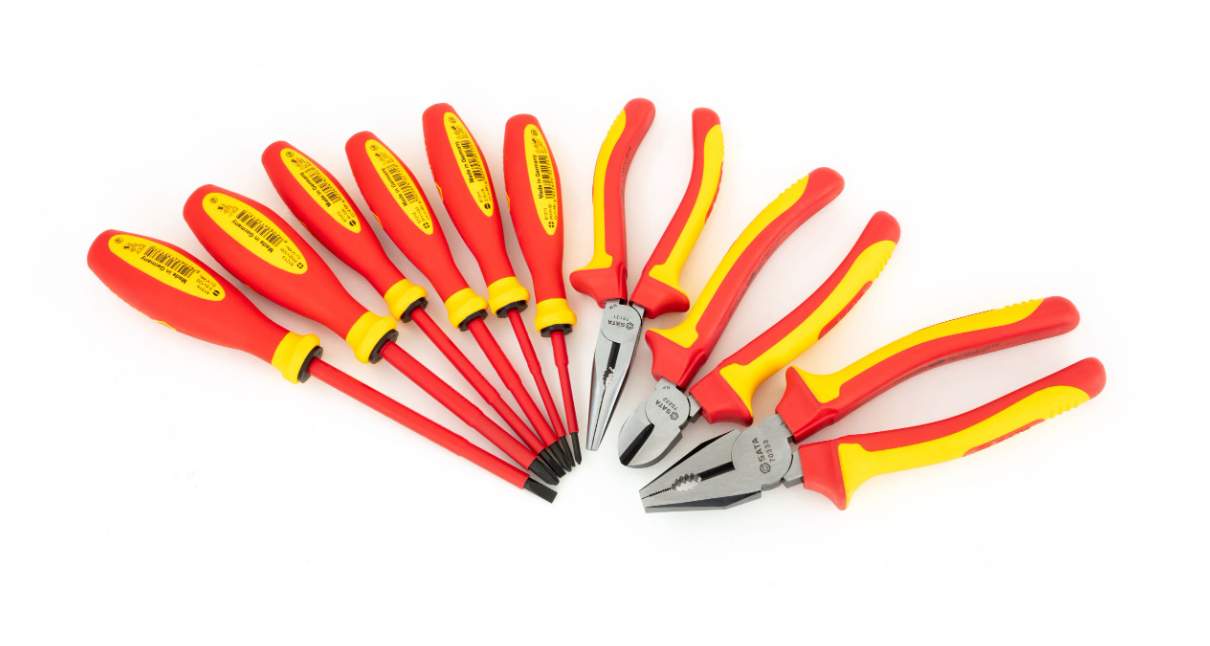

Package Content
- 1 x VDE Slotted Screwdriver — 2.5 x 75mm
- 1 x VDE Slotted Screwdriver — 4 x 100mm
- 1 x VDE Slotted Screwdriver — 5.5 x 125mm
- 1 x VDE Phillips Screwdriver — #0 x 60mm
- 1 x VDE Phillips Screwdriver — #1 x 80mm
- 1 x VDE Phillips Screwdriver — #2 x 100mm
- 1 x VDE Combination Pliers — 8"
- 1 x VDE Diagonal Pliers — 6"
- 1 x VDE Long Nose Pliers — 6"
- 1 x Storage case
Warranty Terms
Warranty coverage follows the warranty terms of each individual product included in this set.
Why Choose SATA?
SATA is a globally trusted professional hand tool brand, engineered for technicians and tradespeople who demand consistent performance and safety under demanding conditions. Every tool in this VDE set undergoes rigorous individual insulation testing, going beyond minimum certification requirements to help protect users working on or near electrical systems. Combined with 60Cr-V forged pliers and DIN-standard screwdrivers, choosing SATA means investing in a toolkit built for both performance and safety, backed by SATA's quality commitment.
