SATA25801-25807 1/2" Dr. 100L Triple Square Bit Socket M5-M16
Couldn't load pickup availability

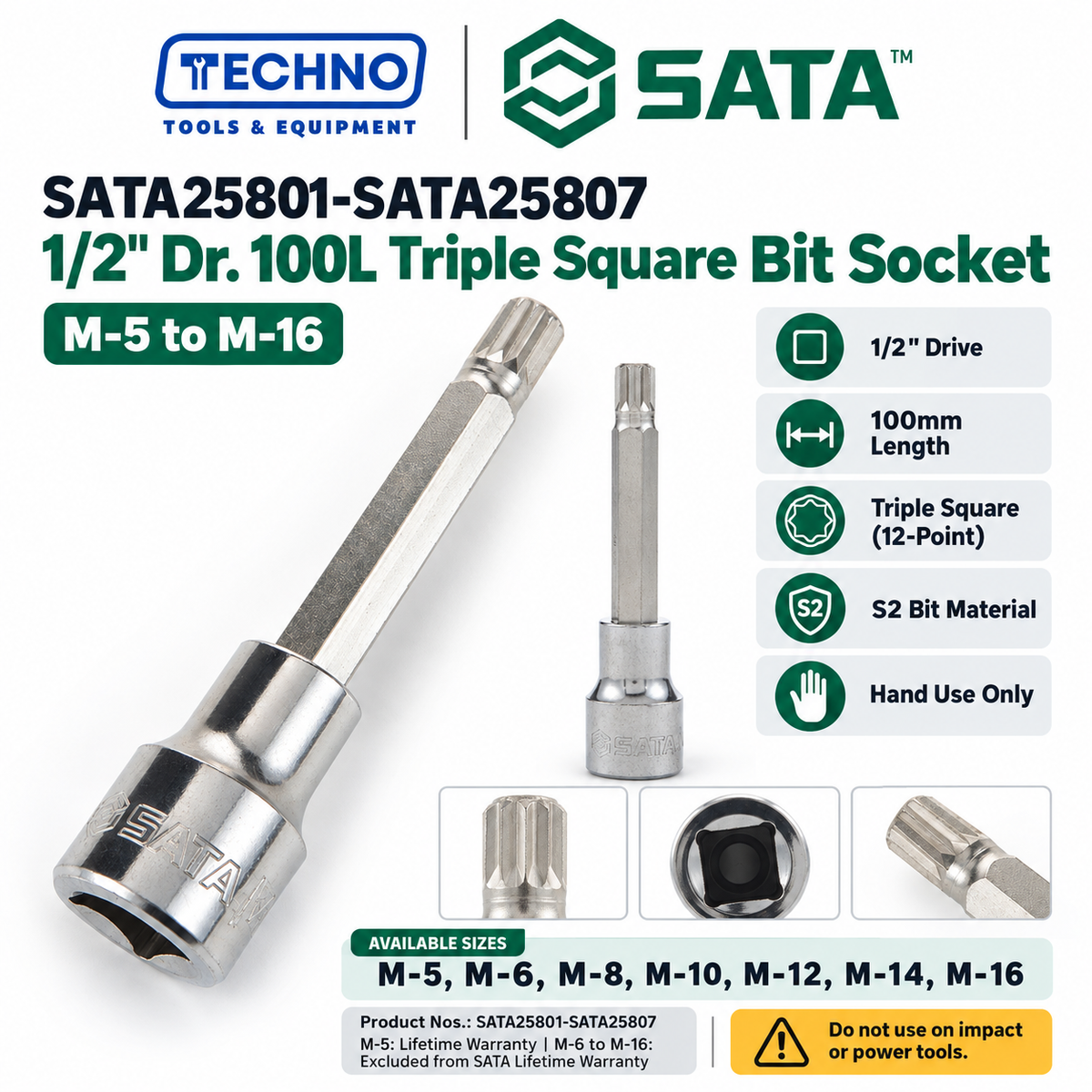

SATA25801-SATA25807 1/2" Dr. 100L Triple Square Bit Socket (M-5 to M-16)
Product Overview
The SATA 1/2" Dr. 100L Triple Square Bit Sockets are hand-tool bit sockets for turning triple square (12-point spline) screws and bolts with a 1/2" drive ratchet or handle. The bit is made from S2 material for durability and anti-slipping, and the 100mm length reaches into recessed fasteners. The range covers seven sizes from M-5 (SATA25801) to M-16 (SATA25807), so you can pick the exact one you need from one product page. They suit automotive repair, machinery maintenance and general workshop use.
What Type of Tool Is This?
This is a 1/2" drive triple square (12-point spline) bit socket, a hand-tool accessory that combines a 1/2" drive socket body with a fixed triple square bit, used to tighten and loosen triple square fasteners.
Key Features
- S2 material bit: made for durability and anti-slipping.
- Triple square profile: 12-point bit for screws and bolts, sizes M-5 to M-16.
- 1/2" square drive: fits 1/2" drive ratchets and handles.
- 100mm length: extra reach for recessed fasteners.
- Seven sizes: M-5, M-6, M-8, M-10, M-12, M-14 and M-16.
Important: these sockets should never be used on power drivers, pneumatic impact wrenches and/or extenders.
Specifications
| Type | 1/2" Dr. triple square bit socket |
|---|---|
| Drive Size | 1/2" |
| Bit Profile | Triple square (12-point), M-5 to M-16 |
| Overall Length | 100mm |
| Bit Material | S2 |
| Made In | China |
| SATA25801 (M-5) dimensions | A 24mm, B 15mm, C 100mm, D 75mm |
| Product No. | Size | Overall Length | Pcs / Pack |
|---|---|---|---|
| SATA25801 | M-5 | 100mm | 6 |
| SATA25802 | M-6 | 100mm | 6 |
| SATA25803 | M-8 | 100mm | 6 |
| SATA25804 | M-10 | 100mm | 6 |
| SATA25805 | M-12 | 100mm | 6 |
| SATA25806 | M-14 | 100mm | 6 |
| SATA25807 | M-16 | 100mm | 6 |
Available Options
| Size | Product No. | Description |
|---|---|---|

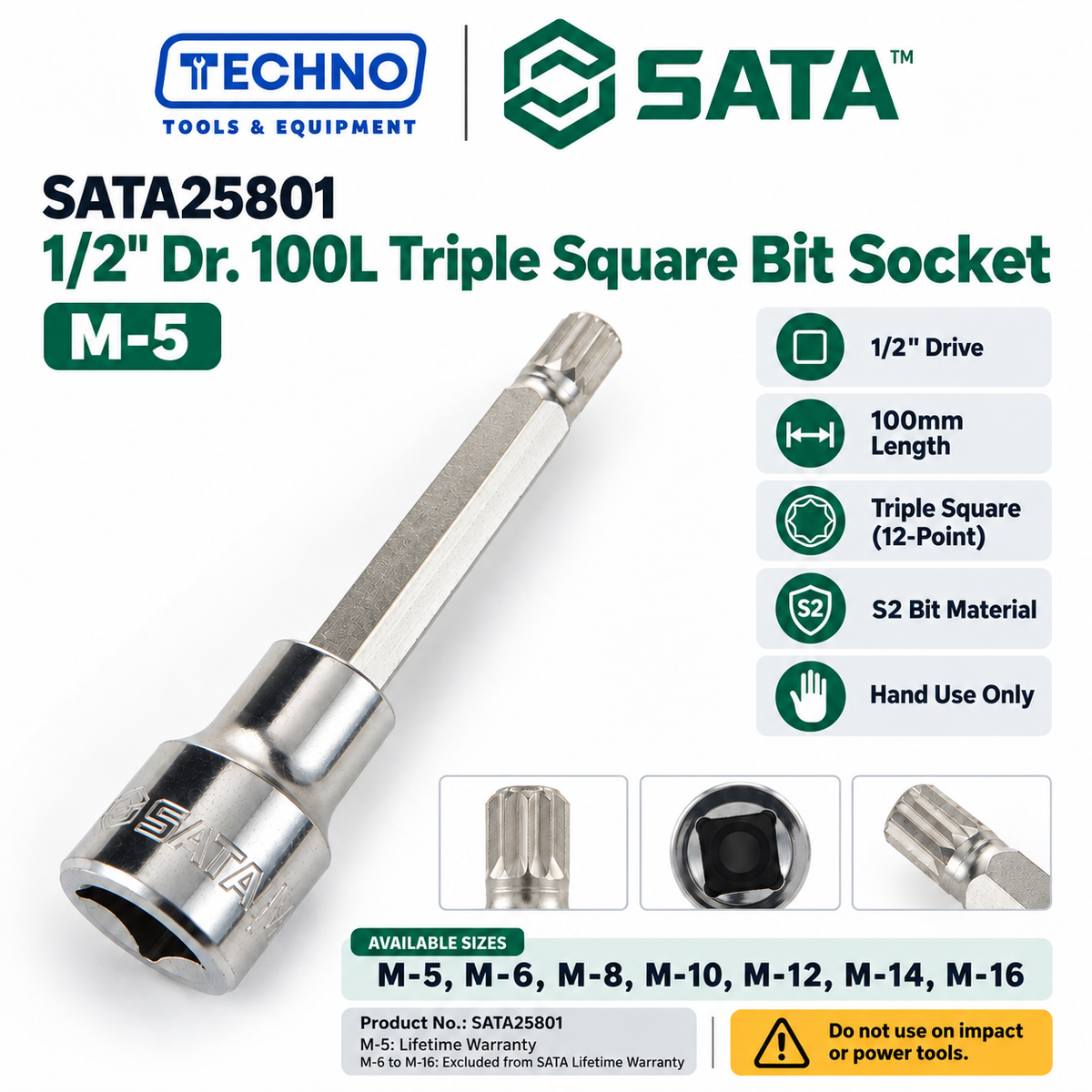

| M-5 | SATA25801 | SATA25801 1/2" Dr. 100L Triple Square Bit Socket M-5 |

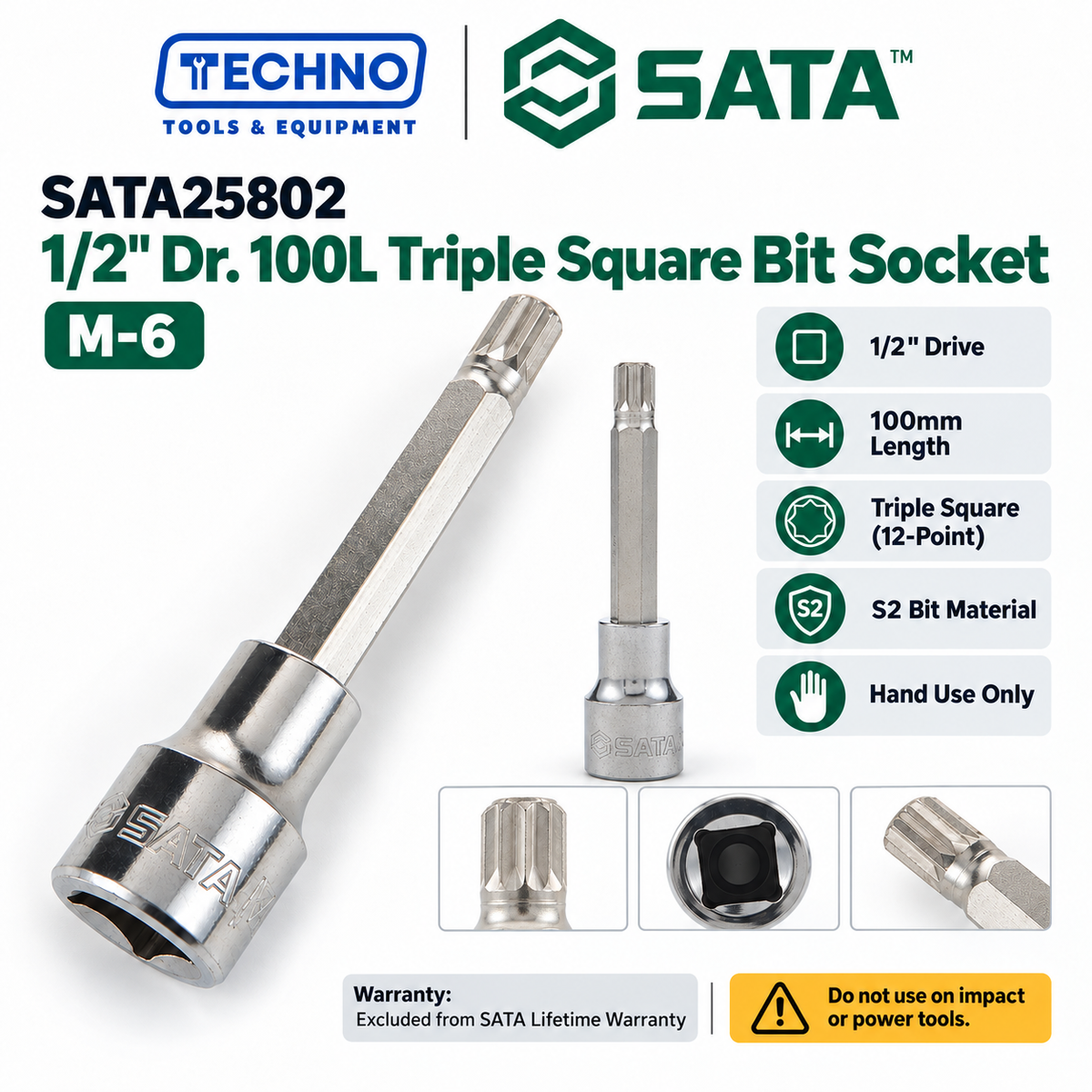

| M-6 | SATA25802 | SATA25802 1/2" Dr. 100L Triple Square Bit Socket M-6 |

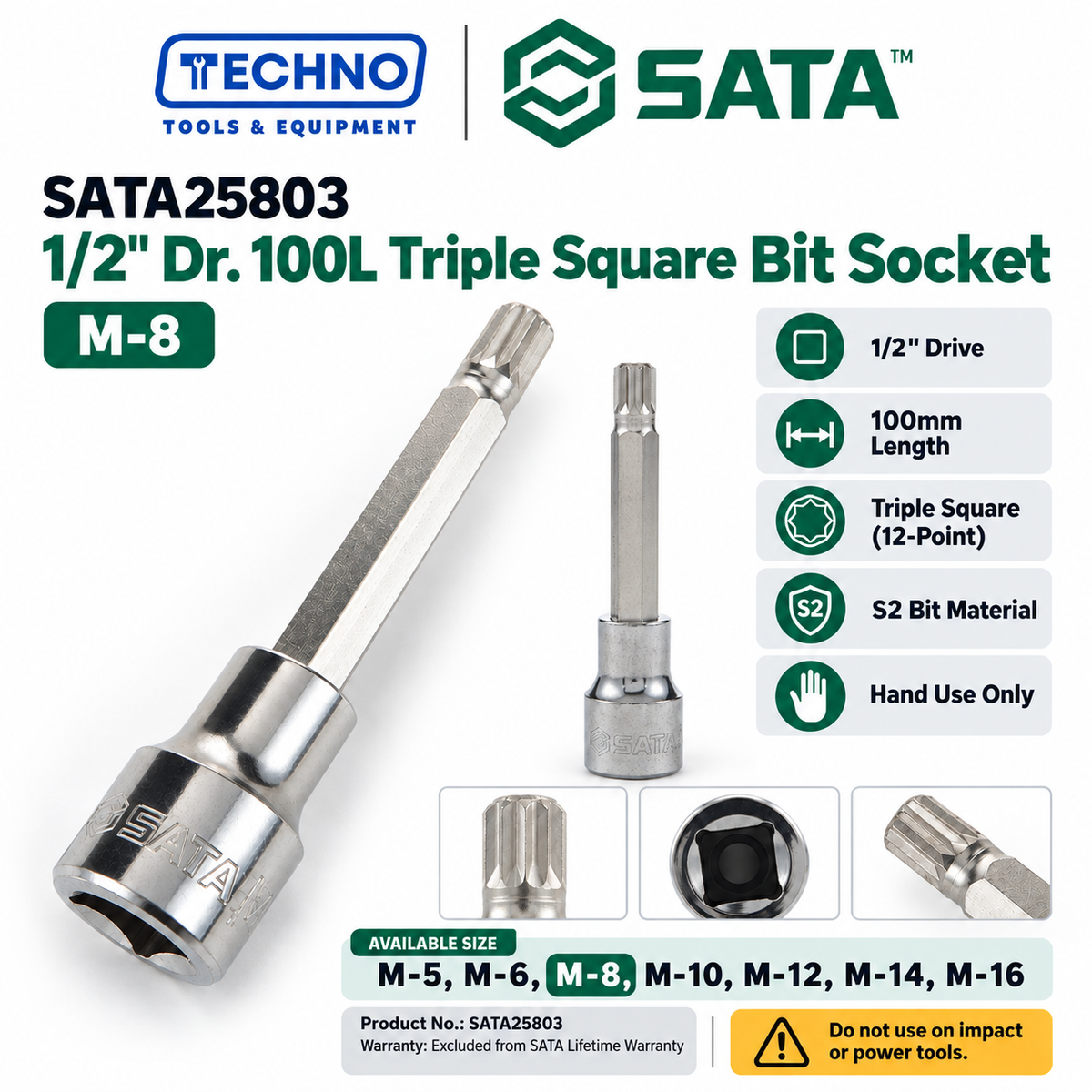

| M-8 | SATA25803 | SATA25803 1/2" Dr. 100L Triple Square Bit Socket M-8 |
| M-10 | SATA25804 | SATA25804 1/2" Dr. 100L Triple Square Bit Socket M-10 |

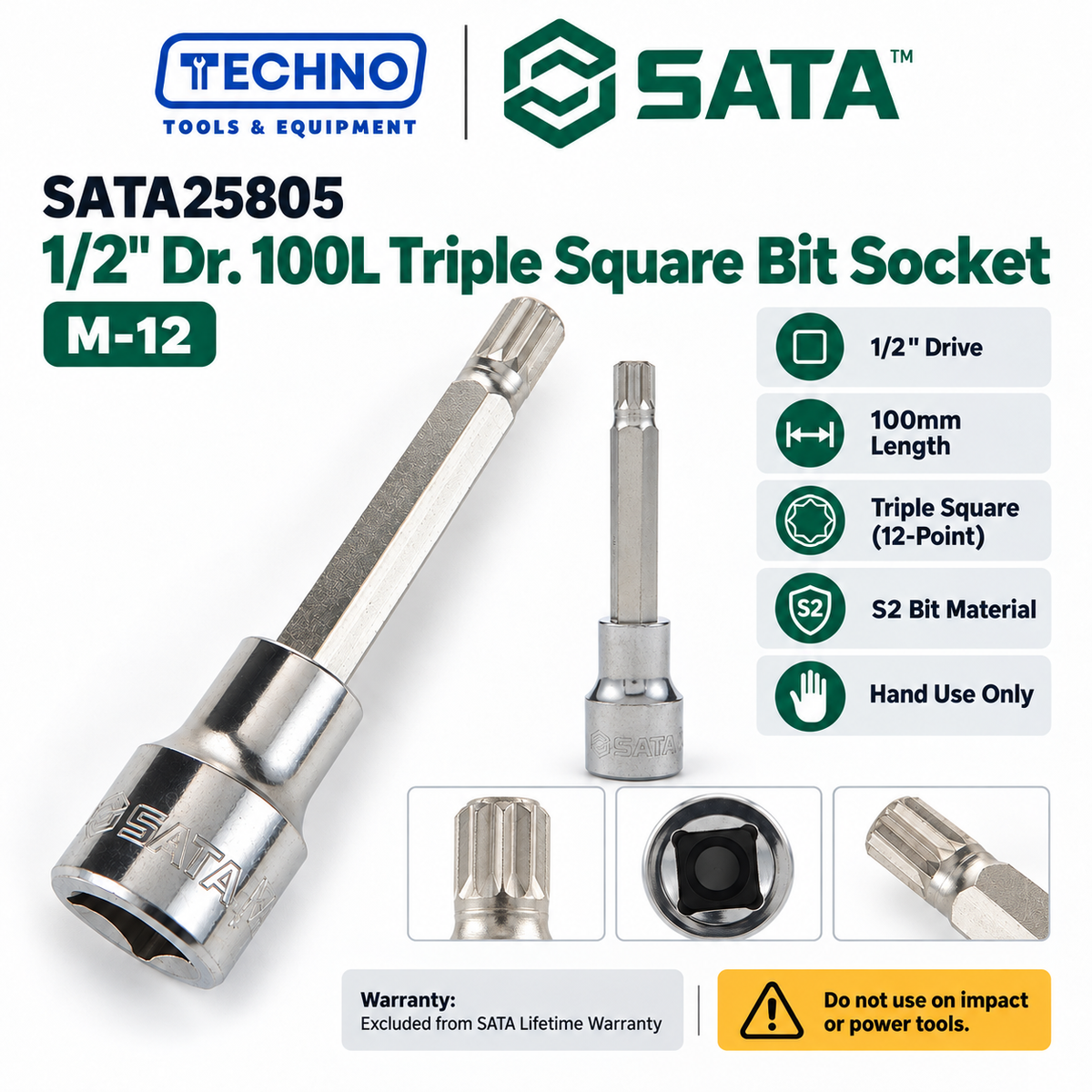

| M-12 | SATA25805 | SATA25805 1/2" Dr. 100L Triple Square Bit Socket M-12 |

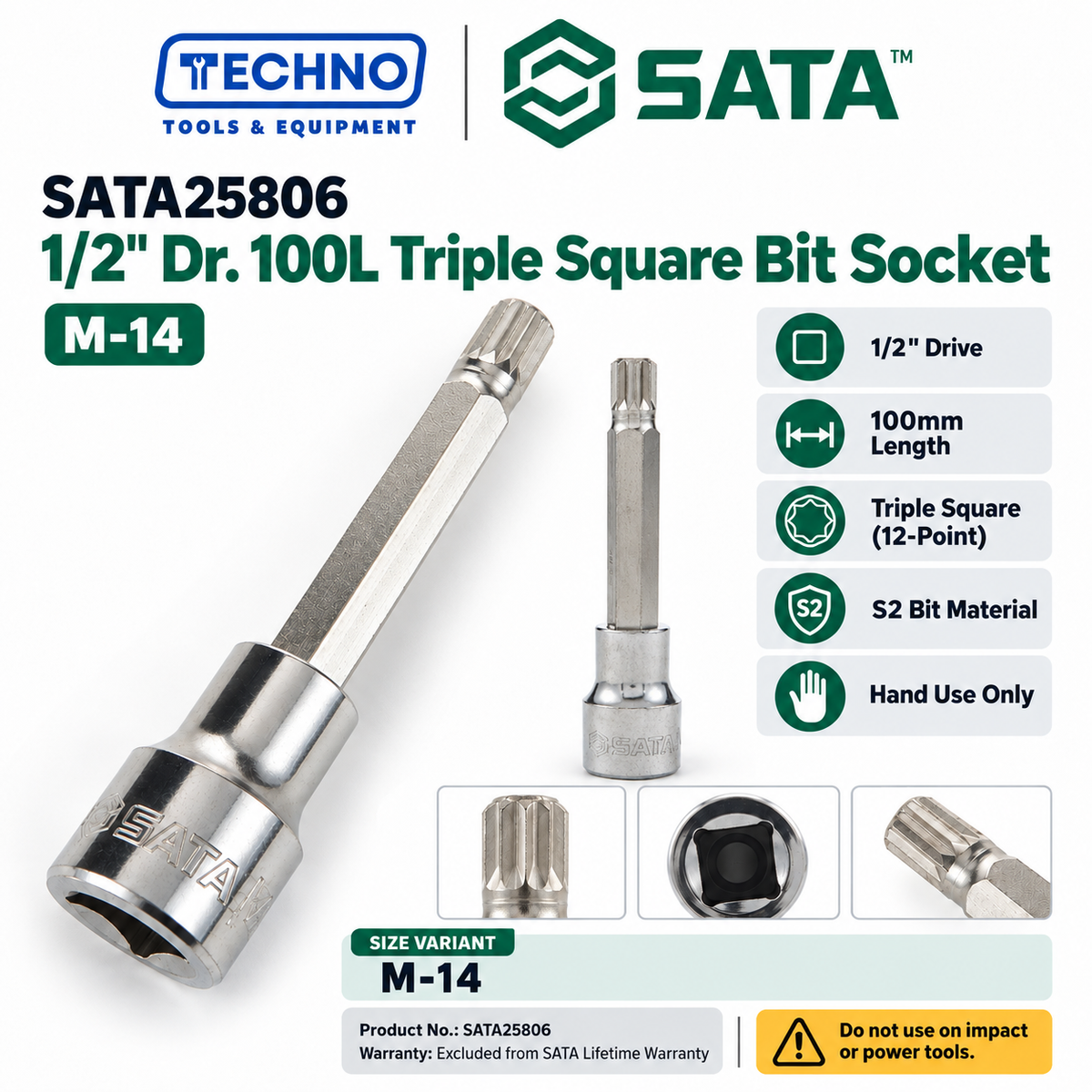

| M-14 | SATA25806 | SATA25806 1/2" Dr. 100L Triple Square Bit Socket M-14 |

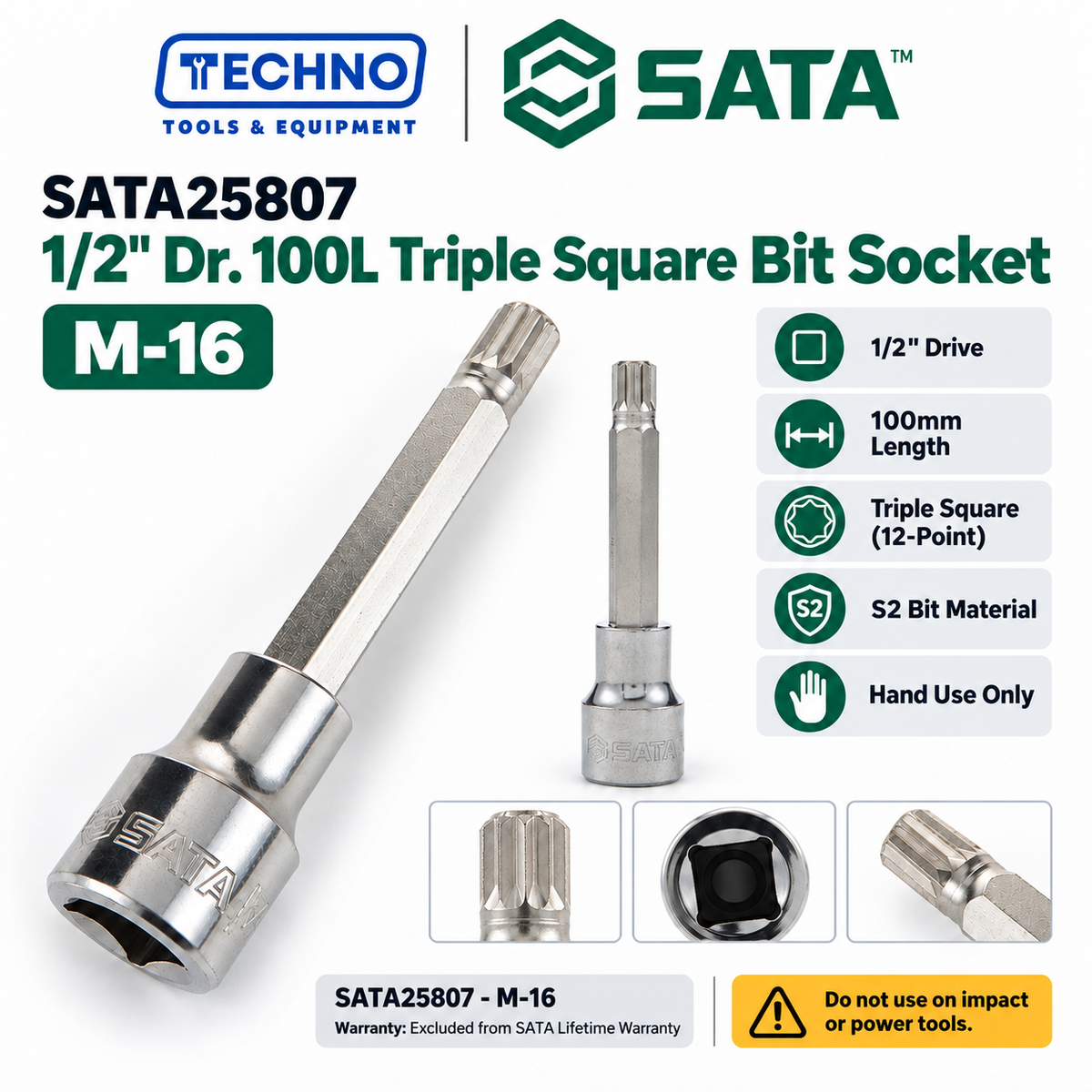

| M-16 | SATA25807 | SATA25807 1/2" Dr. 100L Triple Square Bit Socket M-16 |
Package Contents
1 × SATA 1/2" Dr. 100L Triple Square Bit Socket (in the size and product number selected)
Warranty Terms
SATA25801 (M-5): Lifetime warranty.
SATA25802 to SATA25807: Warranty: This product is excluded from SATA's lifetime warranty terms.
Why Choose SATA?
- Professional-grade tools: SATA designs hand tools for technicians, mechanics and serious DIY users.
- Durable bit material: S2 bits made for durability and anti-slipping.
- Full size range: seven triple square sizes in one range.
- Trusted range: part of SATA's wider line of ratchets, sockets, extension bars and tool sets, so you can build a matching toolkit.
