SATA 45201-45204 Full Polish Torx Star Wrench E6xE8 to E20xE24
Couldn't load pickup availability
Product Overview
The SATA Full Polish Torx Star Wrenches (SATA45201 to SATA45204) are double box end wrenches with a Torx star-profile ring on each end in two different sizes, so one wrench covers two neighboring Torx fastener sizes. The full polish finish gives a clean, smooth look. The range covers four sizes from E6 x E8 (113mm long) to E20 x E24 (225mm long), so you can pick the exact one you need from one product page.
What Type of Tool Is This?
This is a Torx star wrench, a double box end hand tool with a star-profile ring on each end in two different sizes. It is used to tighten and loosen external Torx (E-size) fasteners, such as those found on automotive and machinery assemblies.
Key Features
- Torx star profile: E-size rings made for external Torx fasteners.
- Double box end design: two sizes in one wrench.
- Full polish finish: smooth, clean look.
- Four size pairs: E6 x E8, E10 x E12, E14 x E18 and E20 x E24.
- Graduated lengths: from 113mm to 225mm for matching leverage.
- Lifetime warranty: backed by SATA's lifetime warranty terms.
Specifications
| Item | Details |
|---|---|
| Product Type | Full Polish Torx Star Wrench (double box end) |
| SATA Series No. | 45201, 45202, 45203, 45204 |
| Sizes | E6 x E8, E10 x E12, E14 x E18, E20 x E24 (4 sizes) |
| Overall Length (L) | 113mm to 225mm |
| Finish | Full polish |
| Made In | China |
| Warranty | Lifetime warranty |
Dimensions

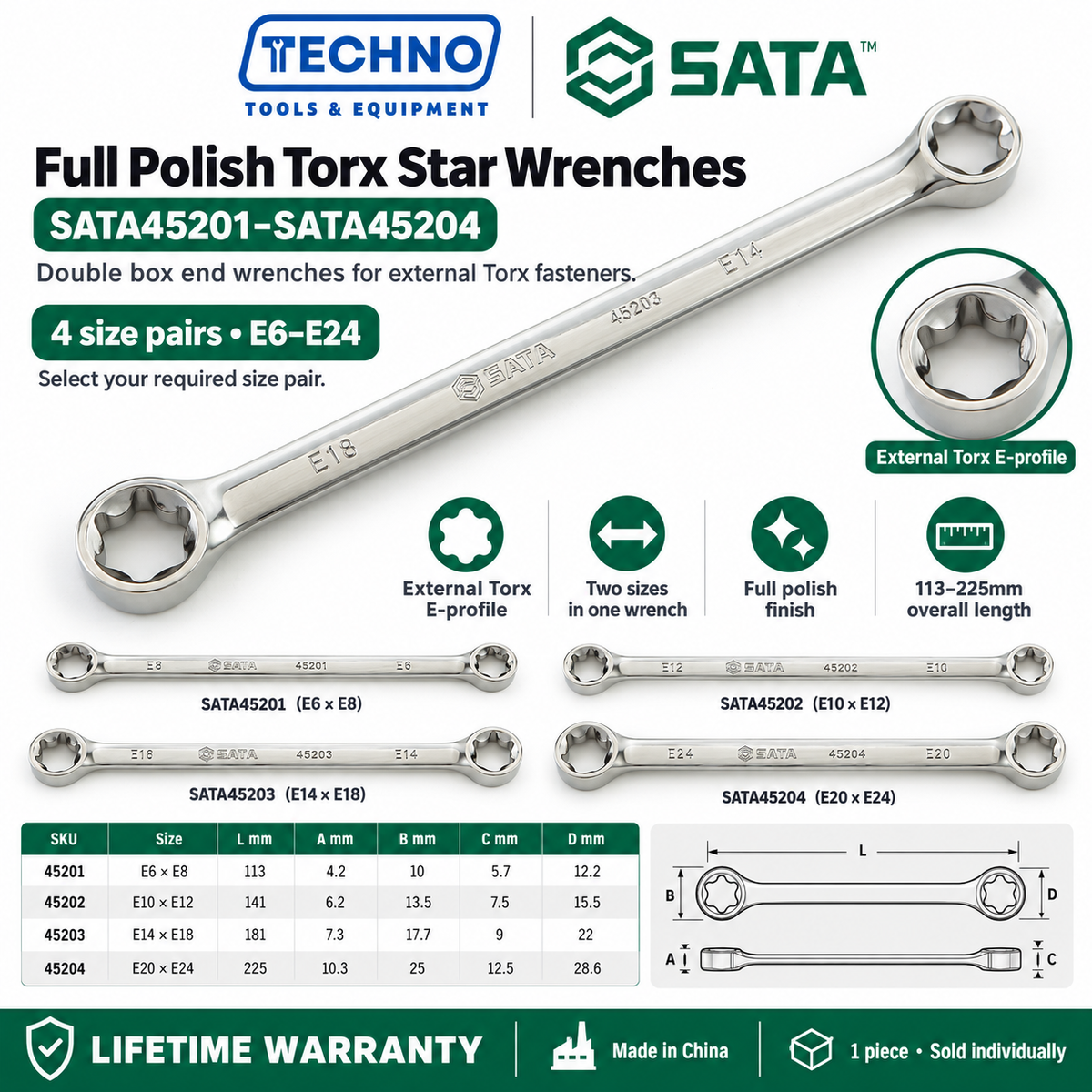

| Product No. | Size | L (mm) | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|---|---|

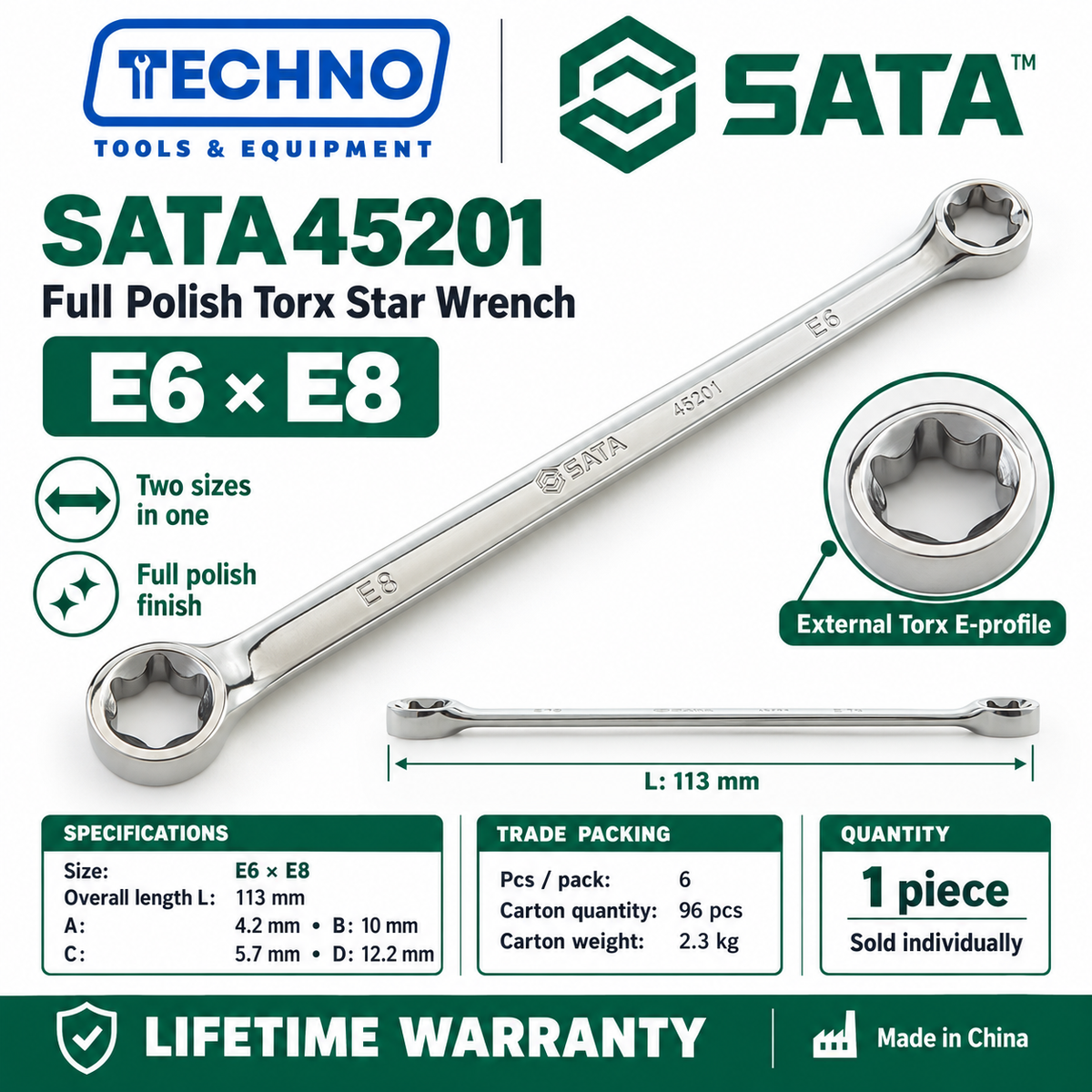

| SATA45201 | E6 x E8 | 113 | 4.2 | 10 | 5.7 | 12.2 |

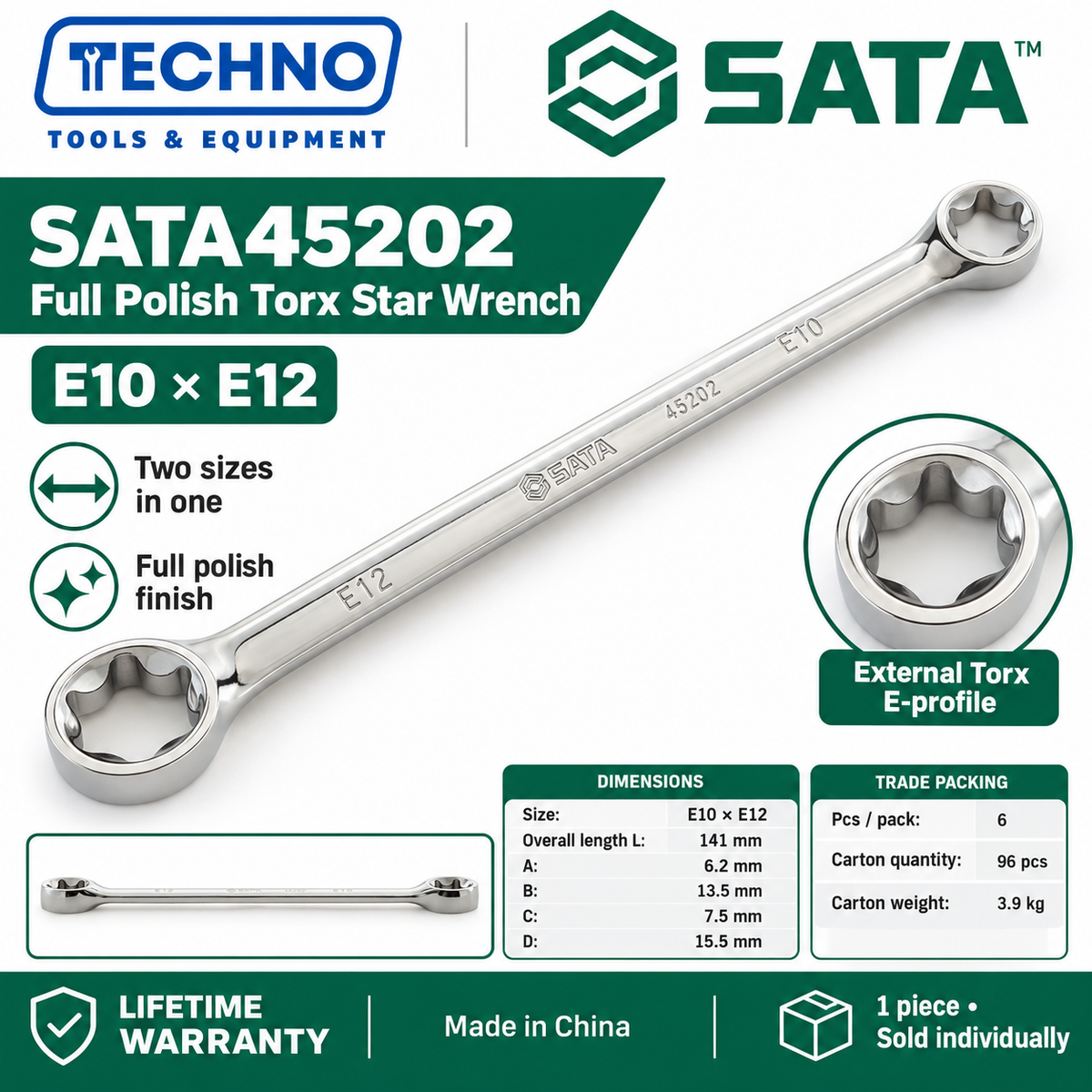

| SATA45202 | E10 x E12 | 141 | 6.2 | 13.5 | 7.5 | 15.5 |

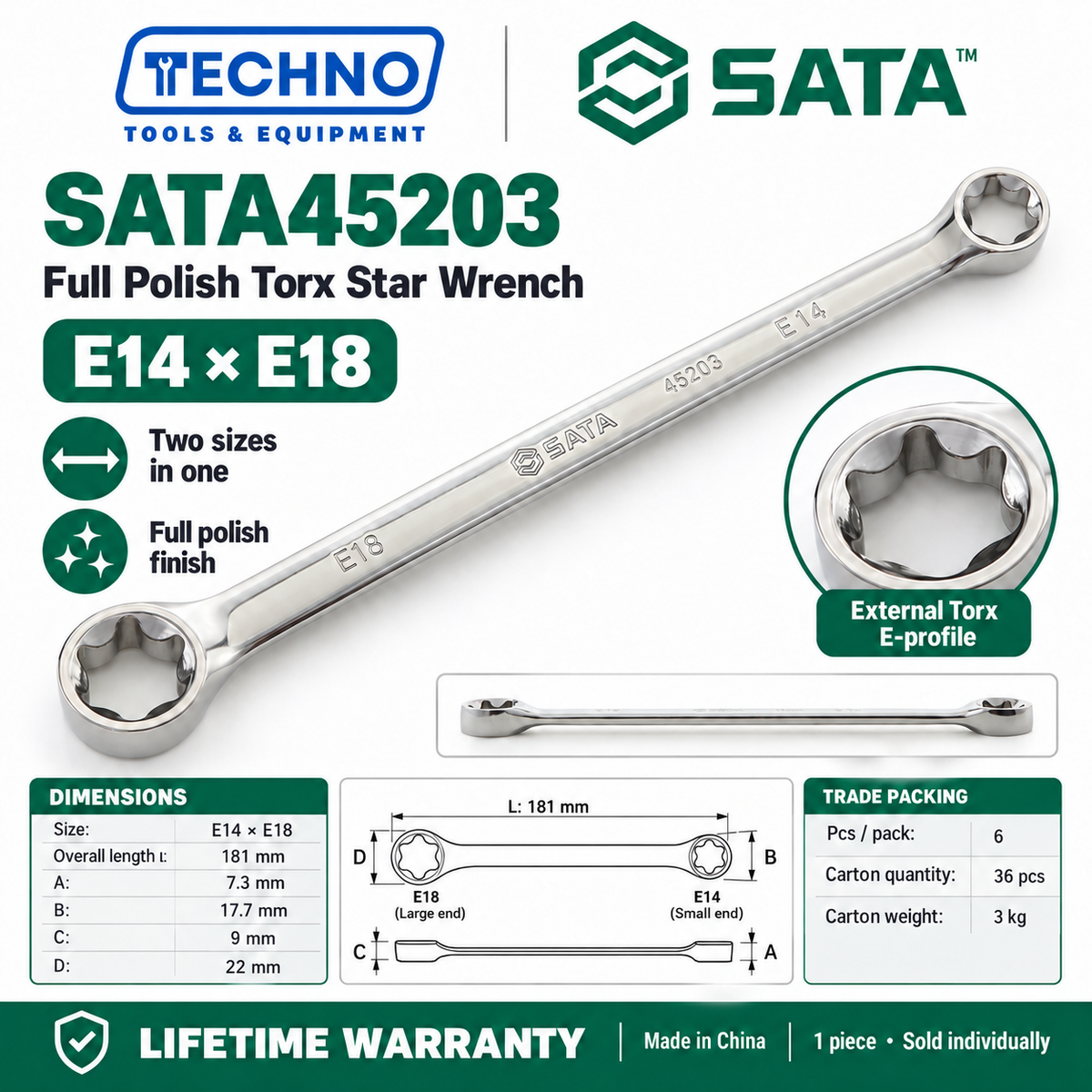

| SATA45203 | E14 x E18 | 181 | 7.3 | 17.7 | 9 | 22 |

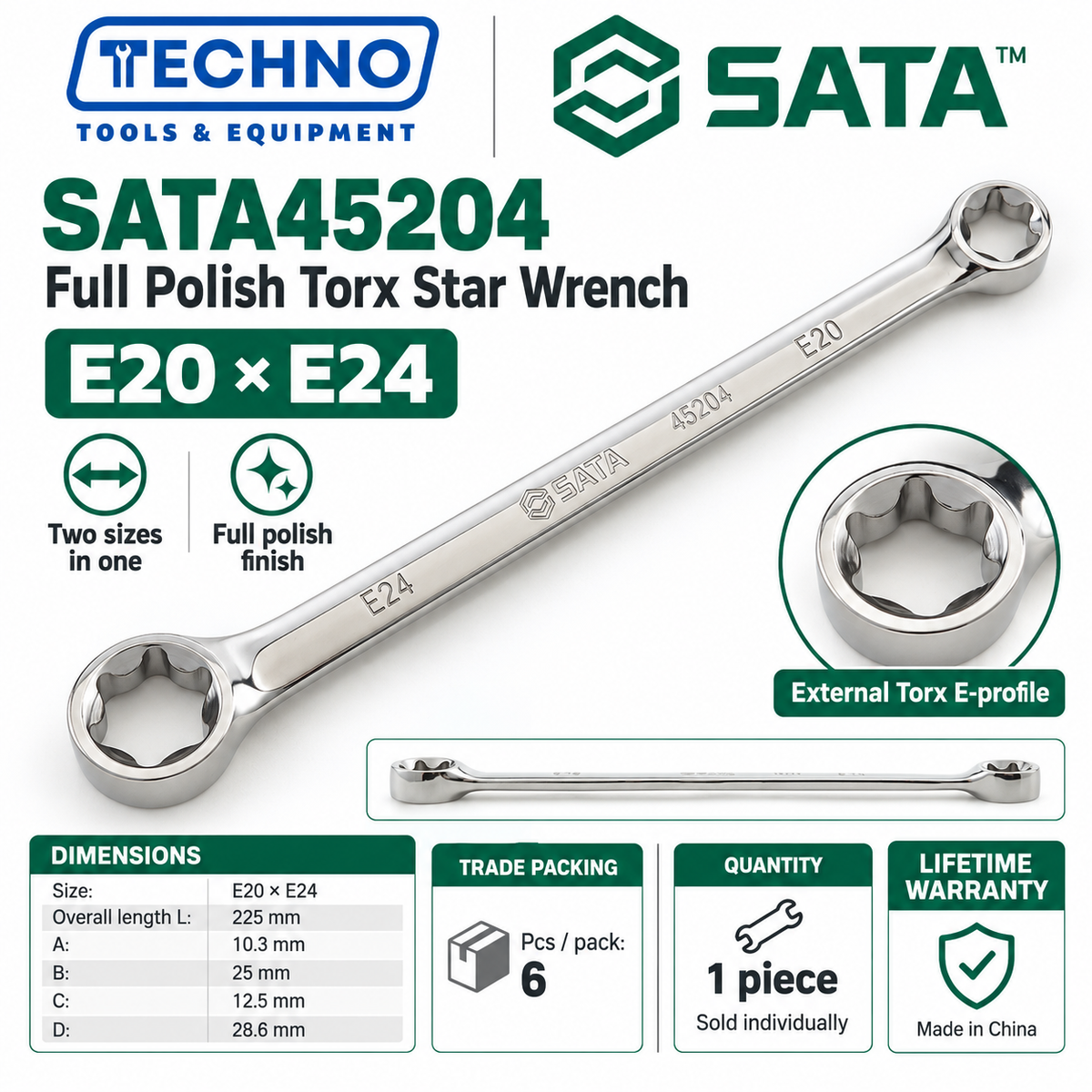

| SATA45204 | E20 x E24 | 225 | 10.3 | 25 | 12.5 | 28.6 |
Packing Details
| Product No. | Size | D1 (mm) | D2 (mm) | Pcs / Pack | Carton Qty (pcs) | Carton Weight (kg) |
|---|---|---|---|---|---|---|
| SATA45201 | E6 x E8 | 12.2 | 10 | 6 | 96 | 2.3 |
| SATA45202 | E10 x E12 | 15.5 | 13.5 | 6 | 96 | 3.9 |
| SATA45203 | E14 x E18 | 22 | 17.7 | 6 | 36 | 3 |
| SATA45204 | E20 x E24 | 28.6 | 25 | 6 | – | – |
Available Options
| Product No. | Size | Description | Pcs / Pack |
|---|---|---|---|
| SATA45201 | E6 x E8 | SATA45201 Full Polish Torx Star Wrench E6 x E8 | 6 |
| SATA45202 | E10 x E12 | SATA45202 Full Polish Torx Star Wrench E10 x E12 | 6 |
| SATA45203 | E14 x E18 | SATA45203 Full Polish Torx Star Wrench E14 x E18 | 6 |
| SATA45204 | E20 x E24 | SATA45204 Full Polish Torx Star Wrench E20 x E24 | 6 |
Package Content
- 1 × SATA Torx Star Wrench (in the size and product number selected)
Warranty Terms
Lifetime warranty.
Why Choose SATA?
- Professional-grade tools: SATA designs hand tools for technicians, mechanics and serious DIY users.
- Two sizes in one: each wrench covers a pair of neighboring Torx sizes.
- Clean finish: full polish for a smooth, tidy look.
- Lifetime warranty: a long-term guarantee on your purchase.
- Trusted range: part of SATA's wider line of wrenches, sockets and tool sets, so you can build a matching toolkit.
