SAWA 7" Iron Free Stainless Steel Grinding Disc 180 x 6 x 22.2mm Type 27 Depressed Centre WA24R
Couldn't load pickup availability
The SAWA 7" Iron Free Stainless Steel Grinding Disc is a Type 27 depressed-centre grinding wheel for 180mm (7") angle grinders with a 22.2mm (7/8") arbor. It uses coarse F24-grit white aluminium oxide that is free of iron, so it grinds stainless steel without leaving iron particles that cause rust spots. It is made for stainless steel fabrication, food and pharmaceutical equipment, handrails and marine work.
Key Features & Benefits
- Iron free (INOX): White aluminium oxide contains almost no iron, so it won't contaminate stainless steel or cause later rusting.
- Type 27 depressed centre: The recessed hub sits below the grinding face, so the flange and lock nut stay clear of the workpiece during flat and angled grinding.
- Coarse F24 grit: Removes weld beads and stock quickly.
- Hard R grade: A hard bond helps the disc keep its shape and last longer during heavy grinding.
- Fibreglass reinforced: The reinforcing mesh gives strength and stability at high speed.
- Rated to 80 m/s (8,500 RPM max): Suits standard 180mm angle grinders.
- Certified safe: Made to EN12413 and JB/T 3715-2006 with MPA marking, produced under ISO 9001 (SGS), and labelled as complying with ANSI B7.1 and OSHA.

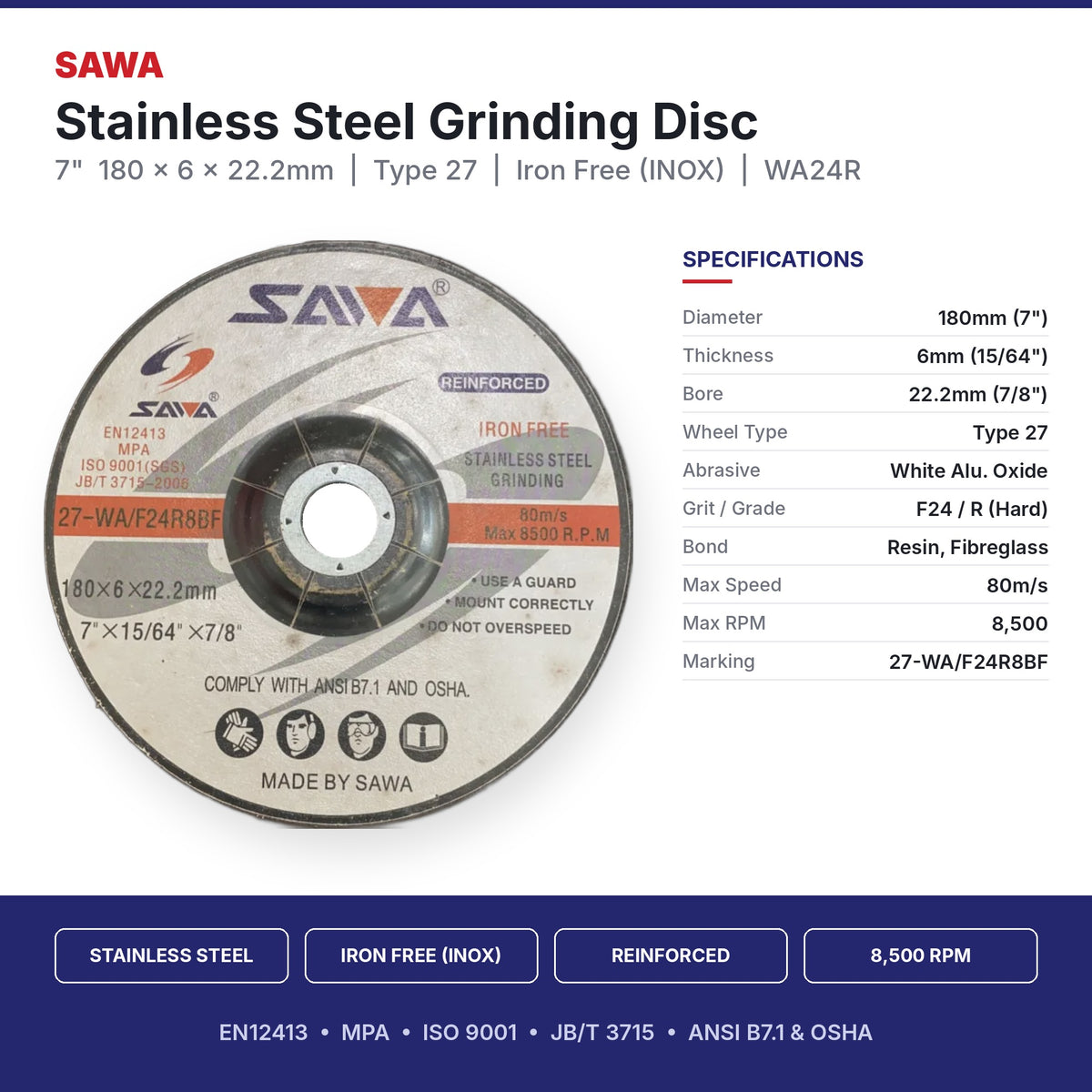

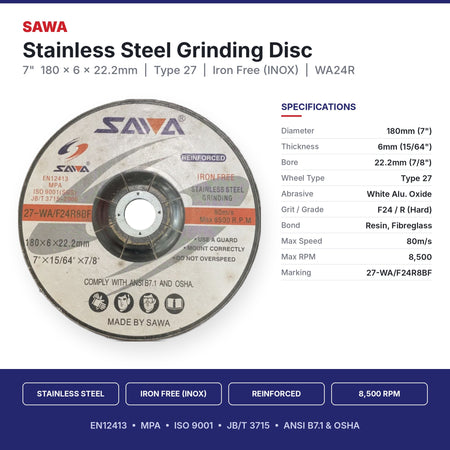

Technical Specifications
| Specification | Value |
|---|---|
| Brand | SAWA |
| Marking | 27-WA/F24R8BF |
| Wheel Type | Type 27 (Depressed Centre) |
| Diameter | 180 mm (7") |
| Thickness | 6 mm (15/64") |
| Bore (Arbor) | 22.2 mm (7/8") |
| Abrasive | White Aluminium Oxide (WA), Iron Free |
| Grit | F24 (Coarse) |
| Hardness Grade | R (Hard) |
| Structure | 8 (Medium) |
| Bond | Resin, fibreglass reinforced (BF) |
| Max Operating Speed | 80 m/s |
| Max RPM | 8,500 RPM |
| Application | Stainless Steel Grinding |
| Standards | EN12413, JB/T 3715-2006, MPA, ISO 9001, ANSI B7.1, OSHA |
What's in the Box
- 1 x SAWA 180 x 6 x 22.2mm Stainless Steel Grinding Disc
Applications / Ideal For
- Grinding and blending stainless steel weld seams
- Deburring and bevelling stainless steel plate, pipe and tube
- Food, beverage and pharmaceutical equipment fabrication
- Stainless handrails, balustrades and architectural metalwork
- Also suitable for carbon steel and general metal grinding
Safety
- Always use with the grinder's guard fitted.
- Check that the grinder's rated speed does not exceed 8,500 RPM.
- Mount the disc correctly with the proper flanges, and inspect it for cracks before use.
- Wear eye protection, hearing protection, a dust mask and gloves.
