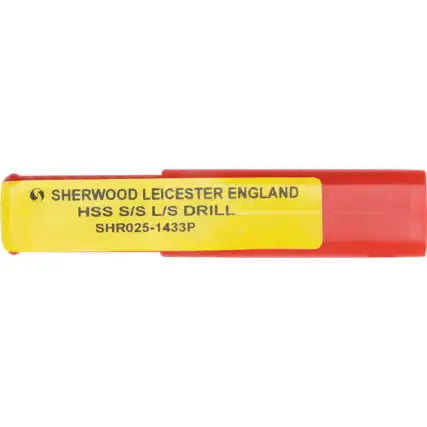

SHERWOOD 2.00mm HSS Long Series Drill Bit SHR0251433P for Metal
Couldn't load pickup availability
Overview Summary
The SHERWOOD SHR0251433P 2.00mm HSS Long Series Drill is designed for precision drilling where extended reach is required. Manufactured from high-speed steel (HSS), this drill bit provides excellent durability, heat resistance, and consistent cutting performance. Its long series design allows deeper drilling and improved access to confined or hard-to-reach areas, making it ideal for engineering, fabrication, metalworking, and maintenance applications.
Key Features
-
2.00mm Drill Diameter – Suitable for precise and accurate drilling tasks.
-
High Speed Steel (HSS) Construction – Ensures durability and long tool life.
-
Long Series Design – Provides extended reach for deeper drilling applications.
-
Effective on Steel & Stainless Steel – Reliable performance across metal materials.
-
Precision Ground Flutes – Enables smooth drilling and efficient chip removal.
-
Professional Grade Tool – Trusted by machinists, engineers, and workshops.
Specifications
Attribute |
Value |
|---|---|
|
Brand |
Sherwood |
|
Coolant Delivery |
External |
|
Cutting Direction |
Right Hand |
|
Drill Diameter Metric |
2 |
|
Drill Diameter Tolerance |
h8 |
|
Drill Length Type |
Long Series |
|
EAN |
5036140171534 |
|
ECLASS Code |
21010101 |
|
Finish/Coating |
Steam Tempered |
|
Flute Construction |
Ground Flute |
|
Flute Length |
56mm |
|
Flute Type |
Spiral |
|
Helix Angle |
30° |
|
Helix Type |
Normal Helix |
|
Individual or Set |
Individual |
|
Material |
High Speed Steel |
|
Number of Flutes |
2 |
|
Number of Pieces |
1 |
|
Overall Length |
85mm |
|
Point Angle |
118° |
|
Point Type |
Split Point |
|
Series |
L100 |
|
Shank Diameter Tolerance |
f11 |
|
Shank Type |
Straight |
|
Standards Met |
BS 328 DIN 340 ISO 494 |
|
System of Measurement |
Metric |
|
UNSPSC Code |
23241605 |
|
Web Thickness |
Standard |
Series L100 HSS straight shank long series drills are excellent general purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
- Manufactured from HSS for improved toughness
- Black oxide coating for greater heat and wear resistance
- Ideal for general purpose drilling
Typical Applications
- Drilling
- Steels
- Grey cast iron
- Malleable cast iron
- Nickel brass
- Graphite
Standards
- Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
Package Content
-
1 x SHERWOOD SHR0251433P 2.00mm HSS Long Series Drill Bit
Warranty
Covered by SHERWOOD manufacturing defect warranty according to the brand’s standard warranty policy.
Why SHERWOOD
SHERWOOD cutting tools are known for their precision engineering, durability, and consistent performance. Designed for professional and industrial environments, SHERWOOD drill bits deliver reliable accuracy, efficient drilling performance, and long-lasting service life trusted by technicians and workshops worldwide.
