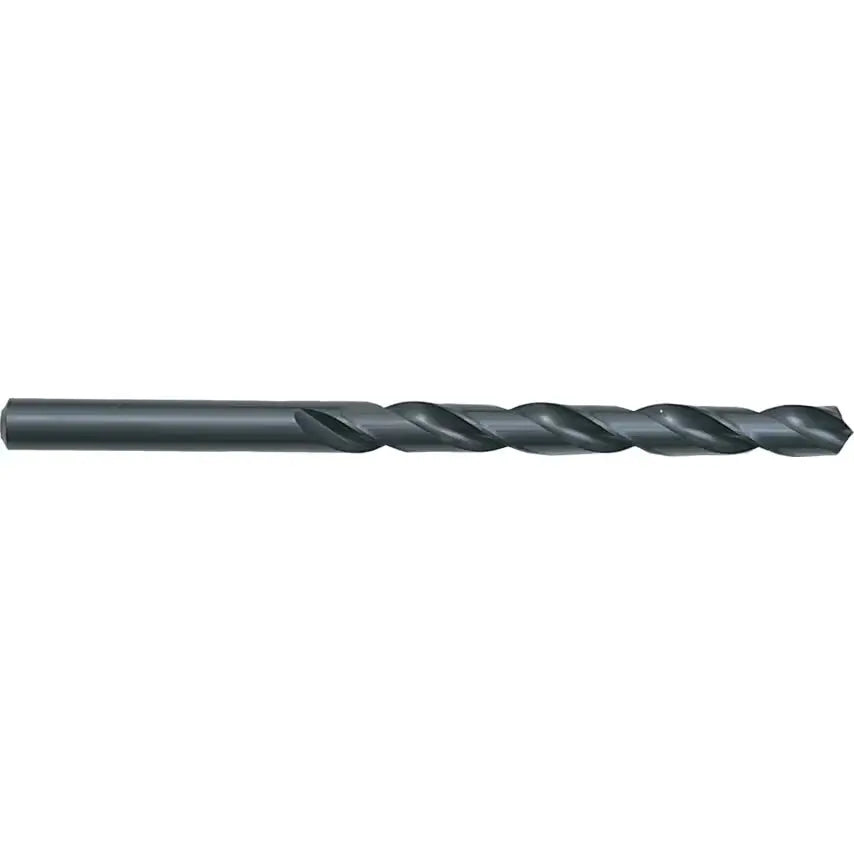

SHERWOOD 2.30mm HSS Long Series Drill Bit SHR0251439W for Metal
Couldn't load pickup availability
Overview Summary
The SHERWOOD SHR0251439W 2.30mm HSS Long Series Drill is engineered for precision drilling tasks requiring extended reach. Made from high-speed steel (HSS), it provides excellent durability, heat resistance, and reliable cutting performance. Its long series design allows deeper drilling and access to tight or difficult areas, making it ideal for metalworking, fabrication, engineering, and maintenance applications.
Key Features
-
2.30mm Drill Diameter – Suitable for accurate and precise drilling tasks.
-
High Speed Steel (HSS) Construction – Offers durability, strength, and long tool life.
-
Long Series Design – Ideal for deeper drilling and extended reach applications.
-
Effective on Steel & Stainless Steel – Reliable performance across metal materials.
-
Precision Ground Flutes – Promotes smooth cutting and efficient chip removal.
-
Professional Grade Tool – Trusted by workshops, machinists, and industrial users.
Specifications
Attribute |
Value |
|---|---|
|
Brand |
Sherwood |
|
Coolant Delivery |
External |
|
Cutting Direction |
Right Hand |
|
Drill Diameter Metric |
2.3 |
|
Drill Diameter Tolerance |
h8 |
|
Drill Length Type |
Long Series |
|
EAN |
5036140171565 |
|
ECLASS Code |
21010101 |
|
Finish/Coating |
Steam Tempered |
|
Flute Construction |
Ground Flute |
|
Flute Length |
59mm |
|
Flute Type |
Spiral |
|
Helix Angle |
30° |
|
Helix Type |
Normal Helix |
|
Individual or Set |
Individual |
|
Material |
High Speed Steel |
|
Number of Flutes |
2 |
|
Number of Pieces |
1 |
|
Overall Length |
90mm |
|
Point Angle |
118° |
|
Point Type |
Split Point |
|
Series |
L100 |
|
Shank Diameter Tolerance |
f11 |
|
Shank Type |
Straight |
|
Standards Met |
BS 328 DIN 340 ISO 494 |
|
System of Measurement |
Metric |
|
UNSPSC Code |
23241605 |
|
Web Thickness |
Standard |
Series L100 HSS straight shank long series drills are excellent general purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
- Manufactured from HSS for improved toughness
- Black oxide coating for greater heat and wear resistance
- Ideal for general purpose drilling
Typical Applications
- Drilling
- Steels
- Grey cast iron
- Malleable cast iron
- Nickel brass
- Graphite
Standards
- Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
Package Content
-
1 x SHERWOOD SHR0251439W 2.30mm HSS Long Series Drill Bit
Warranty
Covered by SHERWOOD manufacturing defect warranty according to the brand’s standard policy.
Why SHERWOOD
SHERWOOD tools are renowned for precision, durability, and consistent performance. Designed for professional and industrial applications, SHERWOOD drill bits deliver accurate drilling, reliable results, and long-lasting service life trusted by technicians and workshops worldwide.
