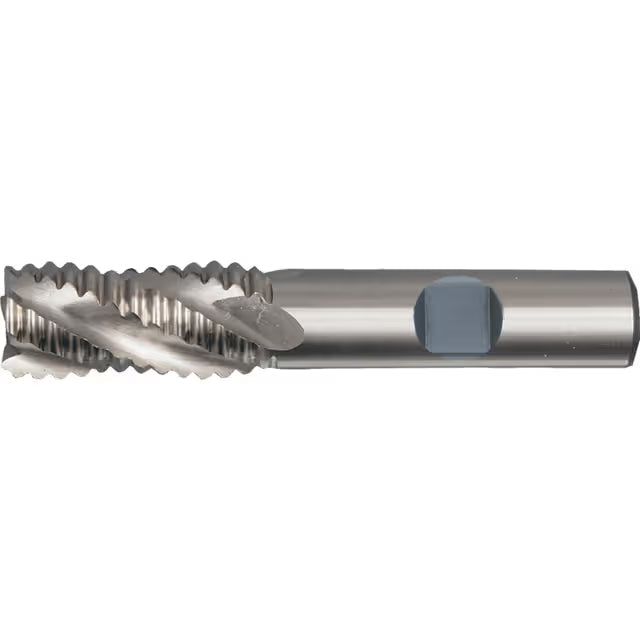

SHERWOOD HSS-Cobalt Weldon 4 Flute Ripper Cutter Series
Couldn't load pickup availability
Overview Summary
The SHERWOOD HSS-Cobalt Weldon Shank 4 Flute Ripper Cutter Regular Series is engineered for demanding metal shaping and forming operations requiring strong cutting performance and secure tool holding. Manufactured from premium sintered HSS-E extra vanadium steel (M35), these cutters offer superior wear resistance, heat resistance, and extended service life.
Designed with a Weldon flat shank, these cutters provide enhanced grip and torque transmission, reducing slippage during heavy-duty machining. The 4 flute ripper design enables aggressive material removal while maintaining efficient chip evacuation. Built to h8 tolerance and compliant with DIN 1835D standards, these cutters ensure consistent precision and reliable industrial performance.
Ideal for machinists, fabrication workshops, and industrial manufacturing environments, SHERWOOD ripper cutters deliver dependable cutting efficiency across a variety of metalworking applications.
Key Features
- Manufactured from sintered HSS-E extra vanadium steel (M35)
- Weldon flat shank for secure clamping and improved torque transfer
- 4 flute ripper design for aggressive material removal
- Industrial quality for shaping and forming metal components
- Square end cutter style
- Regular length series for standard machining tasks
- h8 tolerance ensures dimensional accuracy
- External coolant compatible
- Manufactured to DIN 1835D shank standard
- Suitable for professional machining applications
Multi-Variation Specification Table
| Model No | Cutting Diameter | Overall Length | Flute Length |
|---|---|---|---|
| SHR0612560A | 6mm | 57mm | 13mm |
| SHR0612561B | 8mm | 69mm | 19mm |
| SHR0612562C | 10mm | 72mm | 22mm |
| SHR0612563D | 12mm | 83mm | 26mm |
| SHR0612564E | 16mm | 92mm | 32mm |
| SHR0612565F | 20mm | 104mm | 38mm |
| SHR0612566G | 25mm | 121mm | 45mm |
General Technical Specifications
| Attribute | Value |
|---|---|
| Brand | SHERWOOD |
| Product Type | End Mill Ripper Cutter |
| Cutter Style | Square End |
| Flute Type | Ripper |
| Number of Flutes | 4 |
| Length Type | Regular |
| Material | Vanadium High Speed Steel |
| Material Grade | M35 (HSS-Cobalt) |
| Finish / Coating | Uncoated |
| Cutter Diameter Tolerance | h8 |
| Plunge Type | Non-centre Cutting |
| Coolant Delivery | External |
| Shank Type | Weldon Flat |
| Shank Standard | DIN 1835D |
| System of Measurement | Metric |
| Standard Compliance | DIN 1835 |
| Application | Metal shaping and forming |
Package Content
- 1 × SHERWOOD HSS-Cobalt Weldon Shank 4 Flute Ripper Cutter
(Selected size based on chosen model number)
Warranty Term
Manufacturer’s Warranty:
Covered against manufacturing defects under standard SHERWOOD warranty policy.
Why Choose SHERWOOD
SHERWOOD tools are manufactured to strict industrial standards using premium-grade materials to ensure reliable performance in demanding machining environments. Known for durability, accuracy, and consistent cutting efficiency, SHERWOOD cutting tools are trusted by machinists and engineers worldwide. Their commitment to quality ensures extended tool life, reduced maintenance downtime, and dependable machining results across a wide range of metalworking applications.
