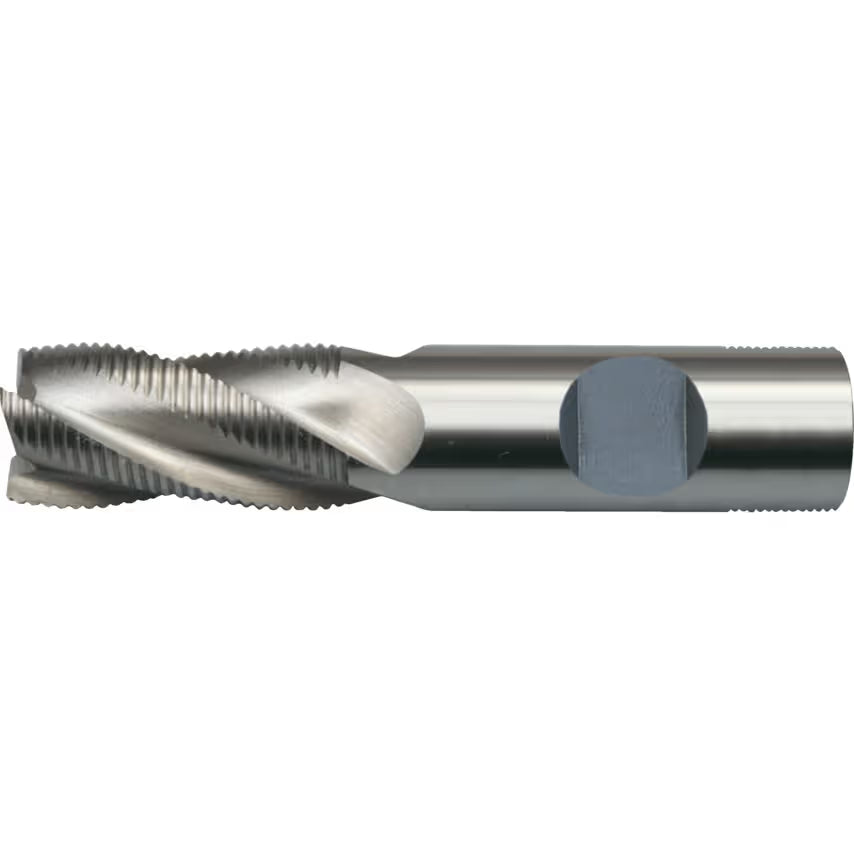

SHERWOOD HSS-Cobalt Weldon Fine Pitch 4 Flute Ripper Cutter
Couldn't load pickup availability
Overview Summary
The SHERWOOD HSS-Cobalt Weldon Fine Pitch 4 Flute Ripper Cutter Regular Series is designed for precision machining operations requiring strong clamping stability and improved cutting smoothness. Manufactured from premium sintered HSS-EV extra vanadium steel (M35), these cutters deliver high wear resistance, excellent heat tolerance, and consistent cutting performance.
Featuring a fine pitch 4 flute ripper design, these cutters provide smoother cutting action with efficient chip evacuation, making them suitable for detailed shaping and forming applications. The Weldon flat shank enhances tool holding security and torque transfer, reducing the risk of slippage during demanding operations.
Manufactured to DIN 844 dimensional standards and DIN 1835D shank specifications, these cutters ensure precise compatibility and reliable industrial performance across a wide range of metalworking environments.
Key Features
- Manufactured from sintered HSS-EV extra vanadium steel (M35)
- Fine pitch 4 flute ripper design for improved cutting smoothness
- Weldon flat shank for secure clamping and stability
- Industrial quality suitable for metal shaping and forming
- Square end cutter style
- Regular length series for standard machining applications
- h8 tolerance for consistent dimensional accuracy
- External coolant compatible
- Manufactured to DIN 844 dimensional standard
- DIN 1835D shank compliance
- Suitable for professional machining and industrial use
Multi-Variation Specification Table
| Model No | Drill Diameter | Overall Length | Flute Length |
|---|---|---|---|
| SHR0612620A | 6mm | 58mm | 15mm |
| SHR0612621B | 8mm | 70mm | 20mm |
| SHR0612622C | 10mm | 75mm | 28mm |
| SHR0612624E | 16mm | 90mm | 38mm |
| SHR0612625F | 20mm | 110mm | 47mm |
General Technical Specifications
| Attribute | Value |
|---|---|
| Brand | SHERWOOD |
| Product Type | End Mill Ripper Cutter |
| Cutter Style | Square End |
| Flute Type | Fine Pitch Ripper |
| Number of Flutes | 4 |
| Length Type | Regular |
| Material | Vanadium High Speed Steel |
| Material Grade | M35 (HSS-Cobalt) |
| Finish / Coating | Uncoated |
| Cutter Diameter Tolerance | h8 |
| Plunge Type | Non-centre Cutting |
| Coolant Delivery | External |
| Shank Type | Weldon Flat |
| Shank Standard | DIN 1835D |
| Dimensional Standard | DIN 844 |
| System of Measurement | Metric |
| Application | Precision shaping and forming of metal components |
Package Content
- 1 × SHERWOOD HSS-Cobalt Weldon Fine Pitch 4 Flute Ripper Cutter
(Selected size based on chosen model number)
