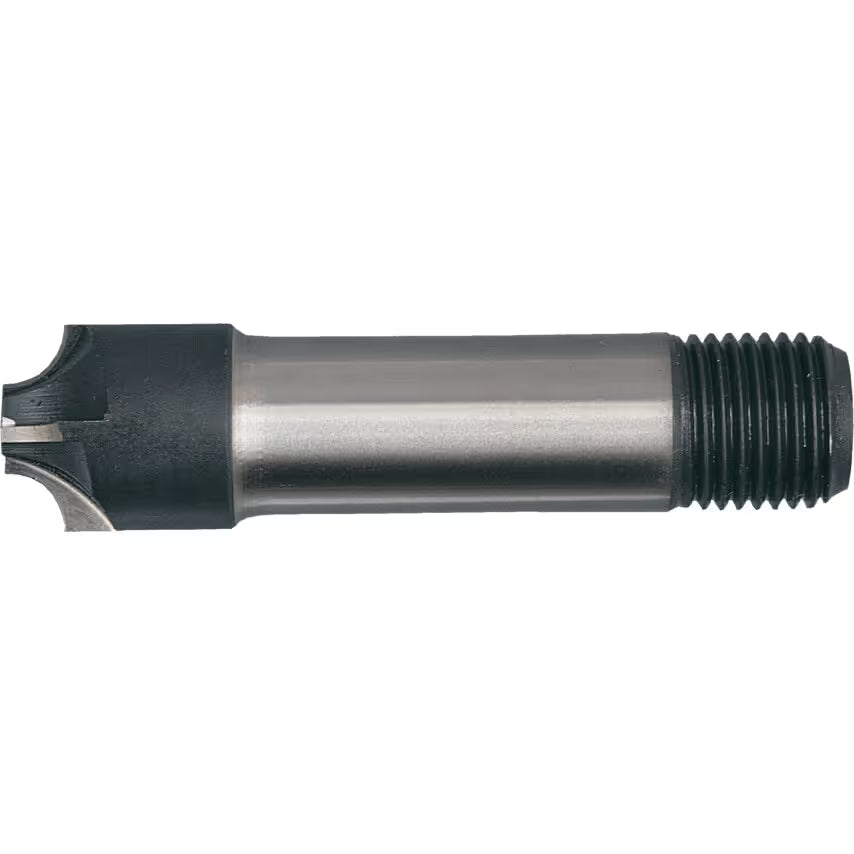

SHERWOOD HSS Corner Rounding Cutter Metric Radii End Mill
Couldn't load pickup availability
OVERVIEW SUMMARY
The SHERWOOD HSS Corner Rounding Cutter is designed for producing precise convex corner radii in milling applications. Manufactured from high speed steel, it offers excellent durability and cutting performance. Suitable for structural, carburizing, and heat-treated steel up to 900N/mm², this cutter ensures smooth and accurate radii with consistent results.
KEY FEATURES
- Designed for convex corner radii machining
- Made from High Speed Steel (HSS) for durability
- Suitable for steel up to 900N/mm²
- 4 flute design for smooth cutting performance
- 5° right-hand flutes for controlled machining
- Bright finish reduces friction
- Straight helix for stable cutting
- Radii tolerance ±0.005"
- Shank conforms to DIN 1835D
MULTI-VARIATION SPECIFICATION TABLE
| Model No | Radius | Overall Length | Cutter Diameter |
|---|---|---|---|
| SHR0616408Z | 2mm | 60.5mm | 12mm |
| SHR0616410A | 3mm | 60.5mm | 12mm |
| SHR0616411B | 4mm | 60.5mm | 14mm |
| SHR0616412C | 5mm | 60.5mm | 16mm |
| SHR0616413D | 6mm | 63.5mm | 22mm |
| SHR0616414E | 8mm | 73mm | 25mm |
| SHR0616415F | 10mm | 79.5mm | 28mm |
GENERAL TECHNICAL SPECIFICATIONS
| Attribute | Value |
|---|---|
| Brand | SHERWOOD |
| Material | High Speed Steel (HSS) |
| Cutter Style | Corner Rounding |
| Number of Flutes | 4 |
| Flute Direction | 5° Right-Hand |
| Helix Type | Straight |
| Finish / Coating | Bright |
| Radius Tolerance | ±0.005" |
| System of Measurement | Metric |
| Standards | DIN 1835D |
APPLICATION
- Milling convex radii edges
- Structural steel machining
- Heat-treated and carburized materials
- General precision machining
PACKAGE CONTENT
- 1 × SHERWOOD HSS Corner Rounding Cutter (Selected Size)
WARRANTY
- 6 Months Manufacturer Warranty
- Covers manufacturing defects only
- Excludes wear, misuse, or improper application
WHY SHERWOOD
SHERWOOD is a trusted name in industrial cutting tools, known for precision engineering and consistent performance. Manufactured to strict standards, SHERWOOD tools deliver reliability, durability, and accuracy for professional machining applications.
