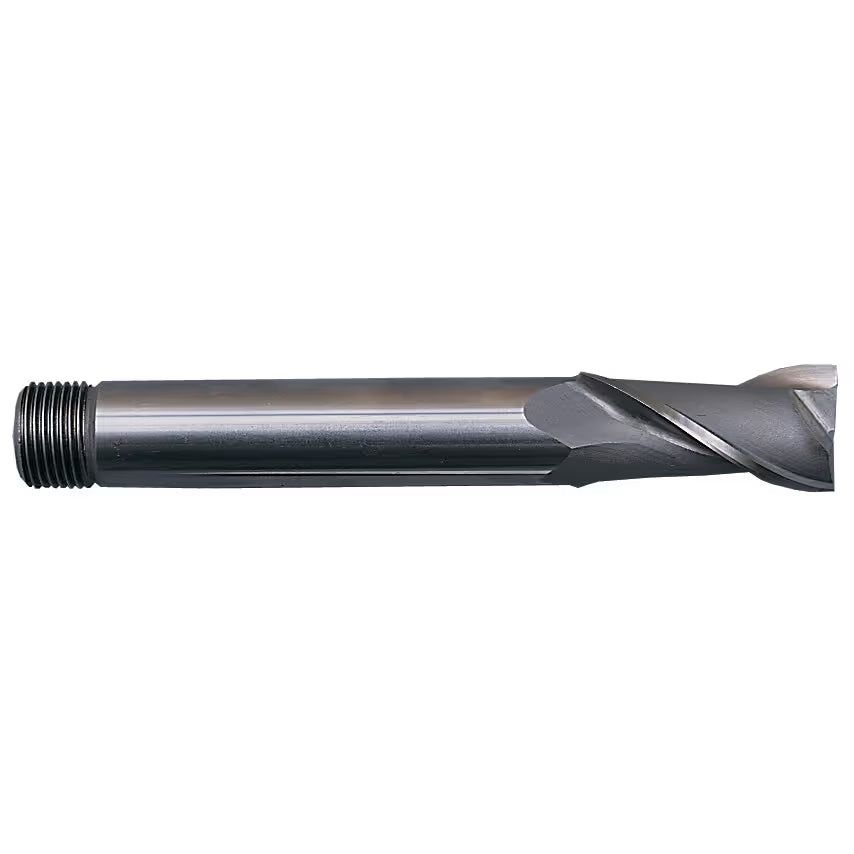

SHERWOOD HSS Long Series Slot Drill 2 Flute Imperial Sizes
Couldn't load pickup availability
Overview Summary
The SHERWOOD Long Series Slot Drills are precision-engineered milling tools designed for cutting keyways, slots, and grooves with high accuracy. Manufactured from premium M2 High Speed Steel (HSS), these cutters deliver excellent durability, heat resistance, and consistent performance in demanding machining environments.
Featuring a 2-flute design and a 30° helix angle, these slot drills ensure efficient chip evacuation and smooth cutting action. The long series design provides extended reach, making them ideal for deeper milling applications where standard cutters may not suffice.
Finished with a bright coating for enhanced wear resistance and corrosion protection, SHERWOOD slot drills are a reliable choice for professional machinists and industrial users.
Key Features
- Manufactured from premium M2 High Speed Steel (HSS)
- Long series design for extended reach applications
- 2 flute configuration for efficient slotting and plunging
- 30° helix angle for smooth cutting and chip removal
- Bright finish for improved durability and corrosion resistance
- Centre cutting capability for plunge operations
- Available in a wide range of imperial sizes
Multi-Variation Specification Table
| Model No. | Cutter Diameter | Overall Length | Flute Length |
|---|---|---|---|
| SHR0615700A | 1/16" | 2" | 3/16" |
| SHR0615703D | 1/8" | 2-1/2" | 7/16" |
| SHR0615704E | 5/32" | 2-3/4" | 1/2" |
| SHR0615707H | 1/4" | 3" | 5/8" |
| SHR0615709K | 5/16" | 3-1/2" | 5/8" |
| SHR0615715R | 1/2" | 3-3/4" | 1" |
| SHR0615717T | 9/16" | 4" | 1-1/8" |
General Technical Specifications
| Attribute | Value |
|---|---|
| Brand | SHERWOOD |
| Material | High Speed Steel (M2) |
| Finish | Bright |
| Flute Type | Helical |
| Helix Angle | 30° |
| Number of Flutes | 2 |
| Cutter Style | Square End |
| Length Type | Long Series |
| Milling Cutter Type | Slot Drill |
| Plunge Type | Centre Cutting |
| Coolant Delivery | External |
| Shank Type | Threaded |
| System of Measurement | Inch |
| Standards | BS 122: Part 4: 1980 |
Typical Applications
- Milling keyways
- Slot cutting operations
- General machining and fabrication work
- Precision engineering tasks
Standards & Tolerances
- Manufactured to BS 122: Part 4: 1980
- Diameter Tolerance:
- Up to 1/2": +0.0005 / -0.0013
- Over 1/2": +0.0005 / -0.0015
Package Content
- 1 x SHERWOOD HSS Long Series Slot Drill
Warranty
- Manufacturer’s standard warranty against defects in material and workmanship
Why Choose SHERWOOD
SHERWOOD tools are trusted for their precision engineering, durability, and consistent performance. Designed for professional machinists, SHERWOOD cutting tools deliver high accuracy, longer tool life, and dependable results across a wide range of industrial applications.
