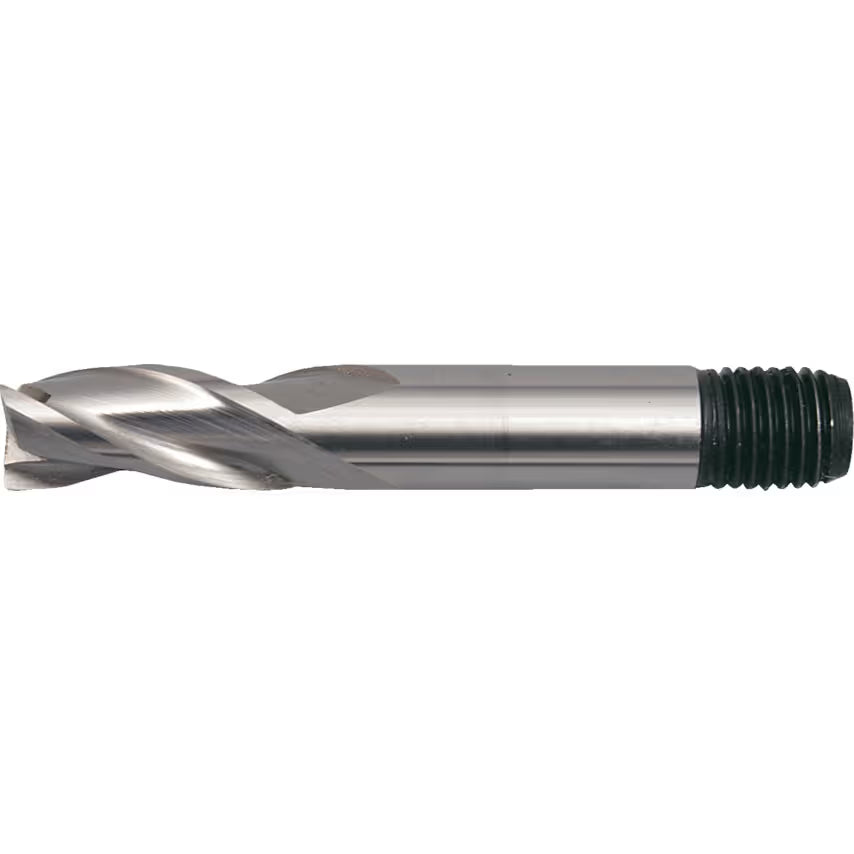

SHERWOOD Metric 3 Flute HSS Cobalt Slot Drill M35 Regular
Couldn't load pickup availability
OVERVIEW SUMMARY
The SHERWOOD Metric 3 Flute HSS Cobalt Slot Drill range is engineered for precision milling, delivering improved surface finish and higher feed rates. Manufactured from premium M35 cobalt high speed steel, these cutters offer excellent heat resistance, durability, and cutting performance. The 3 flute design enhances machining stability, while the 30° helix ensures efficient chip evacuation in demanding applications.
KEY FEATURES
- M35 Cobalt High Speed Steel for superior durability
- 3 flute design for smoother finish and higher feed rates
- 30° helix angle improves chip evacuation
- Centre cutting for plunging capability
- Bright finish reduces friction and heat
- Regular series (Type 5321T) for balanced performance
- Manufactured to BS 122: Part 4: 1980
- Ideal for steel, alloy, and general machining
MULTI-VARIATION SPECIFICATION TABLE
| Model No | Cutter Diameter | Overall Length | Flute Length |
|---|---|---|---|
| SHR0616021A | 3mm | 54mm | 10mm |
| SHR0616021J | 5mm | 60.5mm | 16mm |
| SHR0616021N | 6mm | 60.5mm | 16mm |
| SHR0616021Q | 8mm | 63.5mm | 19mm |
| SHR0616021S | 10mm | 66.5mm | 22mm |
| SHR0616021V | 12mm | 71.5mm | 26mm |
| SHR0616021X | 14mm | 74.5mm | 28mm |
| SHR0616021Z | 16mm | 80mm | 32mm |
| SHR0616022B | 18mm | 83.5mm | 35mm |
| SHR0616022D | 20mm | 90mm | 38mm |
GENERAL TECHNICAL SPECIFICATIONS
| Attribute | Value |
|---|---|
| Brand | SHERWOOD |
| Material | Cobalt High Speed Steel (M35) |
| Milling Cutter Type | Slot Drill |
| Series | 5321T |
| Cutter Style | Square End |
| Number of Flutes | 3 |
| Flute Type | Helical |
| Helix Angle | 30° |
| Finish / Coating | Bright |
| Length Type | Regular |
| Plunge Type | Centre Cutting |
| Coolant Delivery | External |
| Shank Type | Threaded |
| System of Measurement | Metric |
| Standard | BS 122 |
METRIC TOLERANCES
- Diameter up to 38.00mm: +0.0630 / -0.0130
- Diameter over 38.00mm: +0.1250 / -0.0000
PACKAGE CONTENT
- 1 × SHERWOOD Metric 3 Flute HSS Cobalt Slot Drill (Selected Size)
WARRANTY
- 6 Months Manufacturer Warranty
- Covers manufacturing defects only
- Excludes wear, misuse, or improper application
WHY SHERWOOD
SHERWOOD tools are trusted for their precision engineering and consistent industrial performance. Manufactured to strict British standards, they deliver durability, reliability, and accuracy for professional machining environments.
