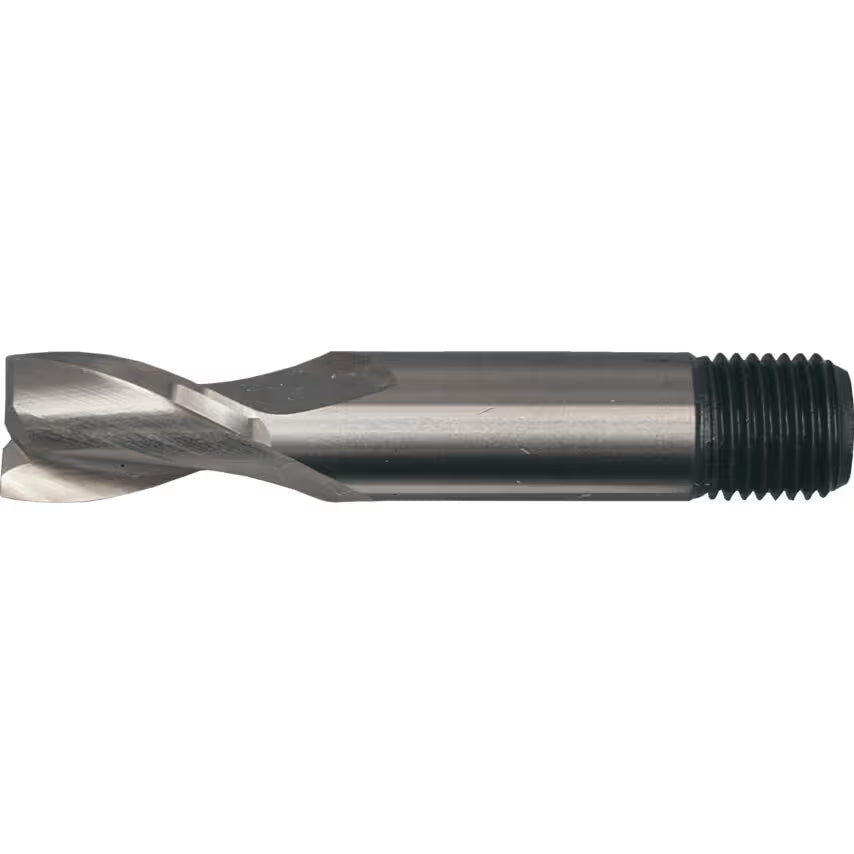

SHERWOOD Metric HSS Cobalt Slot Drill M35 Short Series End Mill
Couldn't load pickup availability
OVERVIEW SUMMARY
The SHERWOOD Metric HSS Cobalt Slot Drill range is designed for high-precision milling and slotting applications. Manufactured from premium M35 cobalt high speed steel, these cutters provide excellent heat resistance, durability, and consistent cutting performance. The short series design ensures enhanced rigidity, while the 30° helix improves chip evacuation for smoother machining across a wide range of materials.
KEY FEATURES
- Premium M35 Cobalt High Speed Steel
- 30° helix angle for efficient chip evacuation
- 2 flute design for slotting and plunging
- Bright finish reduces friction and heat build-up
- Short series for better rigidity and stability
- Manufactured to BS 122: Part 4: 1980
- Suitable for steel, alloy, and general machining
MULTI-VARIATION SPECIFICATION TABLE
| Model No | Cutter Diameter | Overall Length | Flute Length |
|---|---|---|---|
| SHR0615664A | 1.5mm | 48mm | 2.5mm |
| SHR0615665B | 2mm | 49mm | 3mm |
| SHR0615667D | 3mm | 51mm | 7mm |
| SHR0615669F | 4mm | 52mm | 9.5mm |
| SHR0615673K | 6mm | 56mm | 11mm |
| SHR0615674A | 6.5mm | 58mm | 11mm |
| SHR0615674L | 7mm | 58mm | 11mm |
| SHR0615675B | 7.5mm | 58mm | 11mm |
| SHR0615675M | 8mm | 60mm | 12.5mm |
| SHR0615676C | 8.5mm | 60mm | 14.5mm |
| SHR0615677P | 10mm | 60mm | 14.5mm |
| SHR0615678Q | 11mm | 65mm | 17.5mm |
| SHR0615679R | 12mm | 66mm | 19mm |
| SHR0615680S | 14mm | 68mm | 22mm |
| SHR0615681H | 15mm | 72mm | 22mm |
| SHR0615681T | 16mm | 72mm | 22mm |
| SHR0615682J | 17mm | 72mm | 24mm |
| SHR0615682V | 18mm | 72mm | 24mm |
| SHR0615683K | 19mm | 77mm | 25.5mm |
| SHR0615683W | 20mm | 77mm | 25.5mm |
| SHR0615686A | 25mm | 95mm | 27mm |
GENERAL TECHNICAL SPECIFICATIONS
| Attribute | Value |
|---|---|
| Brand | SHERWOOD |
| Material | Cobalt High Speed Steel (M35) |
| Milling Cutter Type | Slot Drill |
| Cutter Style | Ball Nose |
| Number of Flutes | 2 |
| Flute Type | Helical |
| Helix Angle | 30° |
| Finish / Coating | Bright |
| Length Type | Short Series |
| Coolant Delivery | External |
| Shank Type | Threaded |
| System of Measurement | Metric |
| Standard | BS 122: Part 4: 1980 |
METRIC TOLERANCES
- Up to 3.00mm: +0.013 / -0.033
-
3.00mm to 6.00mm: +0.020 / -0.038
-
6.00mm to 10.00mm: +0.025 / -0.046
-
10.00mm to 18.00mm: +0.033 / -0.058
-
18.00mm to 30.00mm: +0.041 / -0.071
-
30.00mm: +0.051 / -0.089
PACKAGE CONTENT
- 1 × SHERWOOD Metric HSS Cobalt Slot Drill (Selected Size)
WARRANTY
- 6 Months Manufacturer Warranty
- Covers manufacturing defects only
- Excludes wear, misuse, or improper usage
WHY SHERWOOD
SHERWOOD is a trusted name in industrial cutting tools, known for precision engineering and consistent performance. Manufactured to strict British standards, SHERWOOD tools deliver reliability, durability, and accuracy for professional machining environments.
