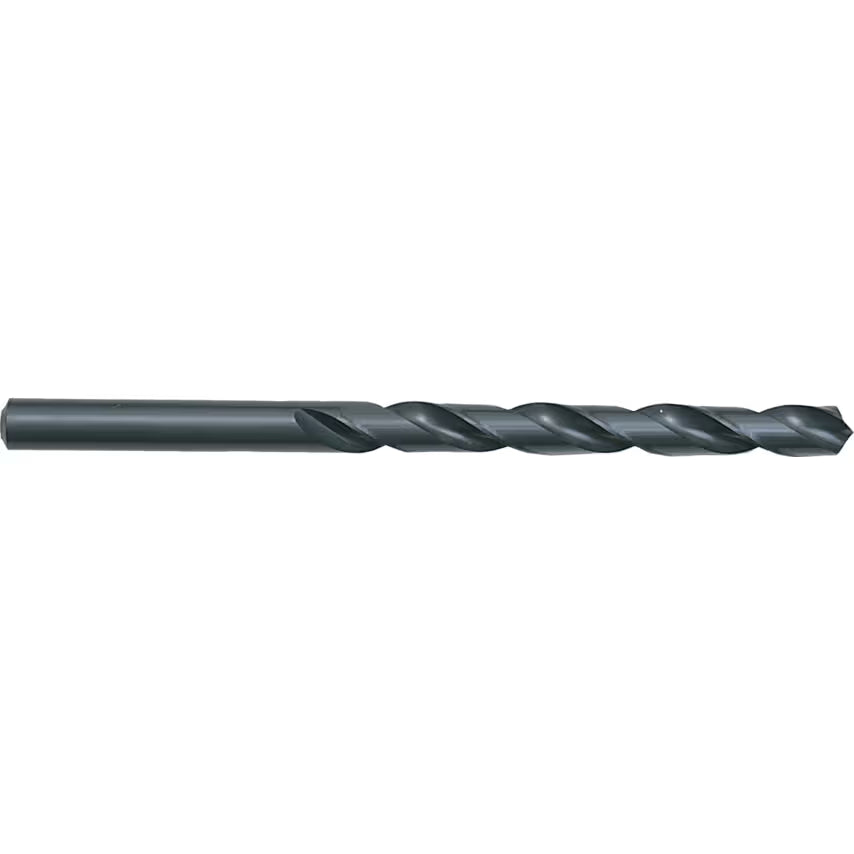

SHERWOOD 5.30mm HSS Long Series Drill Bit SHR0251481R Precision
Couldn't load pickup availability
Overview Summary
The SHERWOOD SHR0251481R 5.30mm HSS Long Series Drill Bit is designed for precision drilling where extra reach is required. Manufactured from high-quality High Speed Steel (HSS), this long series drill offers excellent durability, heat resistance, and consistent cutting performance.
Its extended length allows access to deeper holes and hard-to-reach areas while maintaining stability and accuracy. Ideal for professional engineers, machinists, and workshops, this drill bit performs efficiently when drilling steel, metal, and various industrial materials.
Key Features
-
High Speed Steel (HSS) Construction – Provides strength, durability, and heat resistance
-
Long Series Design – Extra reach for deep hole drilling applications
-
Precision Ground Tip – Ensures accurate starting and smooth drilling
-
5.30mm Diameter – Suitable for precise and controlled hole sizing
-
Reliable Industrial Performance – Ideal for engineering, fabrication, and workshop use
Specifications
Attribute |
Value |
|---|---|
|
Brand |
Sherwood |
|
Coolant Delivery |
External |
|
Cutting Direction |
Right Hand |
|
Drill Diameter Metric |
5.3 |
|
Drill Diameter Tolerance |
h8 |
|
Drill Length Type |
Long Series |
|
EAN |
5036140171909 |
|
ECLASS Code |
21010101 |
|
Finish/Coating |
Steam Tempered |
|
Flute Construction |
Ground Flute |
|
Flute Length |
87 |
|
Flute Type |
Spiral |
|
Helix Angle |
30° |
|
Helix Type |
Normal Helix |
|
Individual or Set |
Individual |
|
Material |
High Speed Steel |
|
Number of Flutes |
2 |
|
Number of Pieces |
1 |
|
Overall Length |
132mm |
|
Point Angle |
118° |
|
Point Type |
Split Point |
|
Series |
L100 |
|
Shank Diameter Tolerance |
f11 |
|
Shank Type |
Straight |
|
Standards Met |
BS 328 DIN 340 ISO 494 |
|
System of Measurement |
Metric |
|
UNSPSC Code |
23241605 |
|
Web Thickness |
Standard |
Series L100 HSS straight shank long series drills are excellent general purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
- Manufactured from HSS for improved toughness
- Black oxide coating for greater heat and wear resistance
- Ideal for general purpose drilling
Typical Applications
- Drilling
- Steels
- Grey cast iron
- Malleable cast iron
- Nickel brass
- Graphite
Standards
- Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
Package Content
-
1 × SHERWOOD SHR0251481R 5.30mm HSS Long Series Drill Bit
Warranty Term
Manufactured to SHERWOOD's strict quality standards. Warranty covers manufacturing defects only and does not cover wear and tear or misuse.
Why Choose SHERWOOD
SHERWOOD tools are trusted by professionals for their precision engineering, durability, and consistent performance. Designed for demanding industrial environments, SHERWOOD drill bits deliver reliable drilling accuracy, long service life, and excellent value for professional users.
